Help with turn signal and marker light wiring

[Sando Serious]

I recently picked up a set of LED headlights for my 73.

The headlights that were installed previously also had the three prong style like the new LEDs, but also had two additional wires coming out that were connected to the existing wiring. The prior headlights had a turn signal ring so I’m guessing that’s why they were wired up like that. Not sure.

The new headlights don’t have those two extra wires. Just the 3 prong connection.

New headlights work great, but I can’t figure out how to wire everything else up now. I’ve looked at a wiring diagram but it’s a bit foreign to me. I have no marker lights, obviously no turn signals, no tail lights, etc.

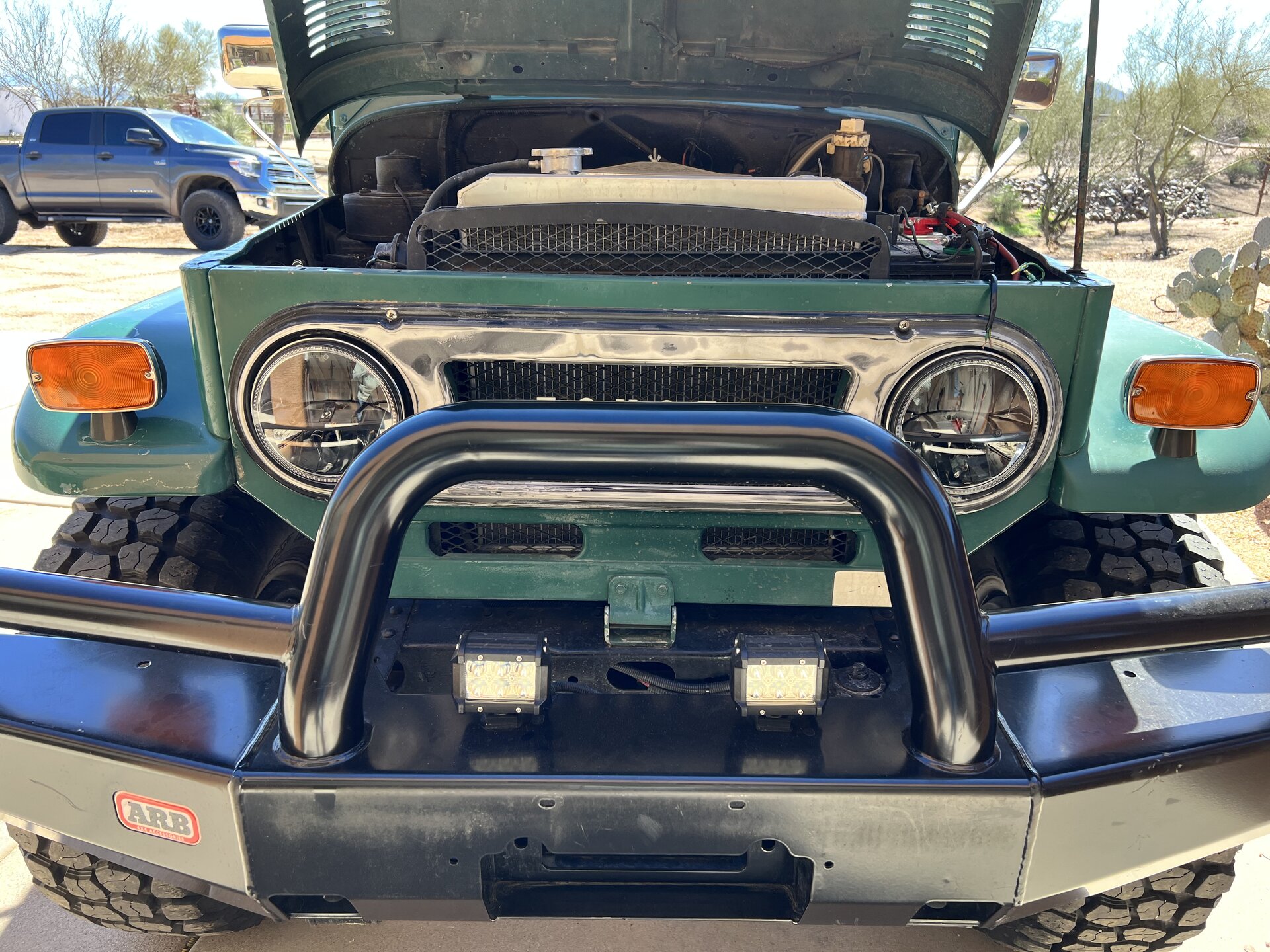

New headlights

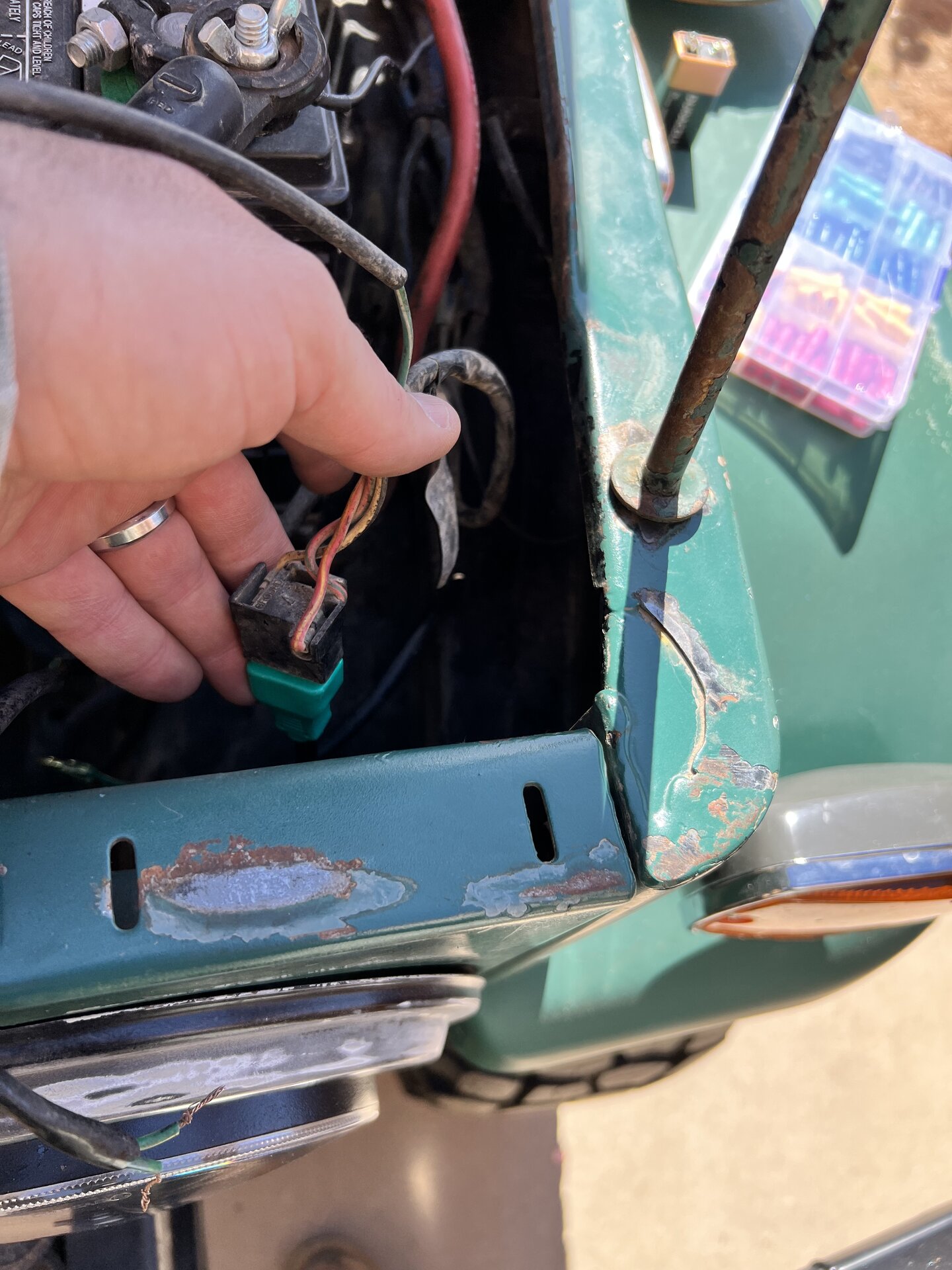

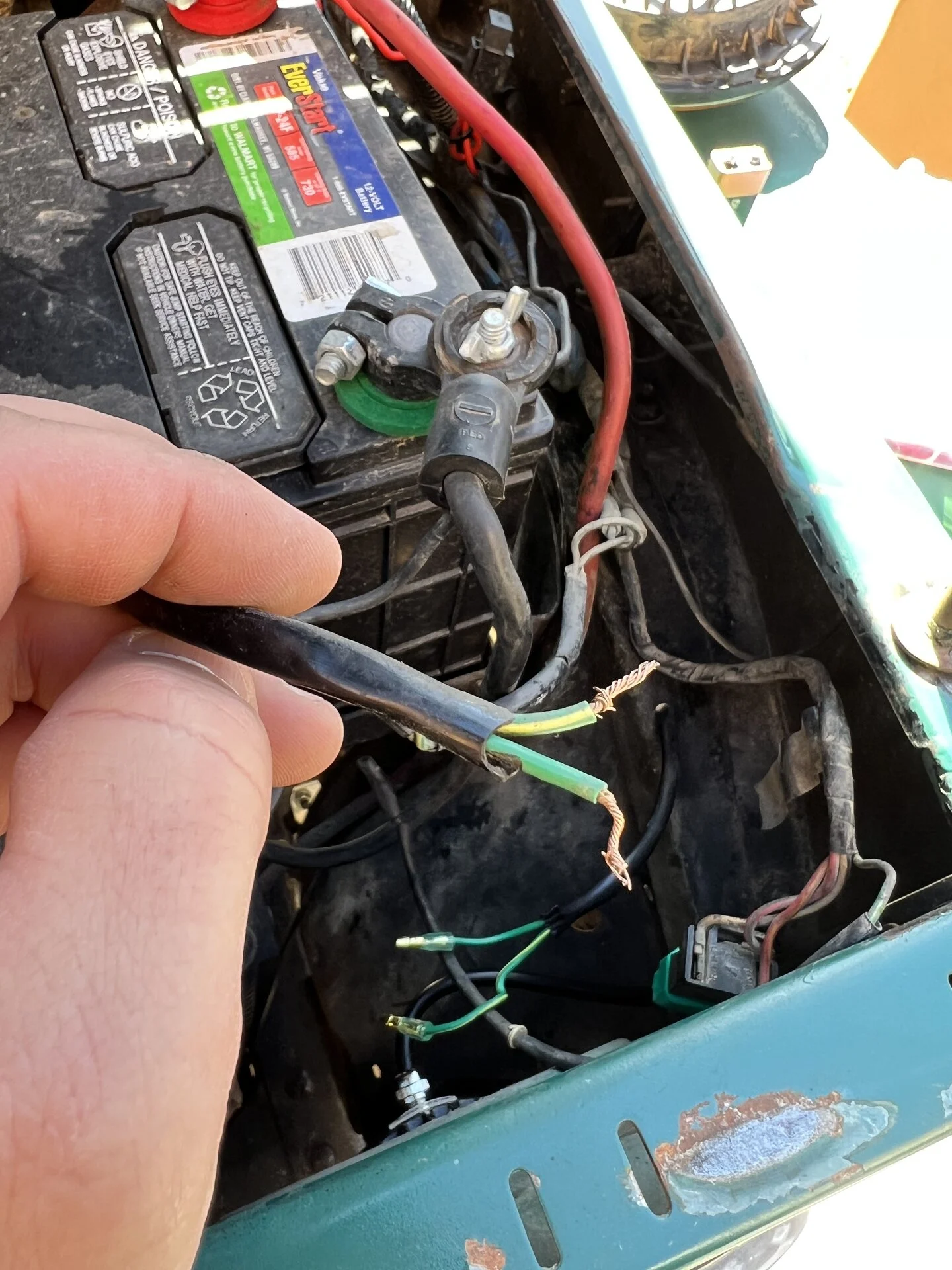

Existing wiring

Turn signal lights

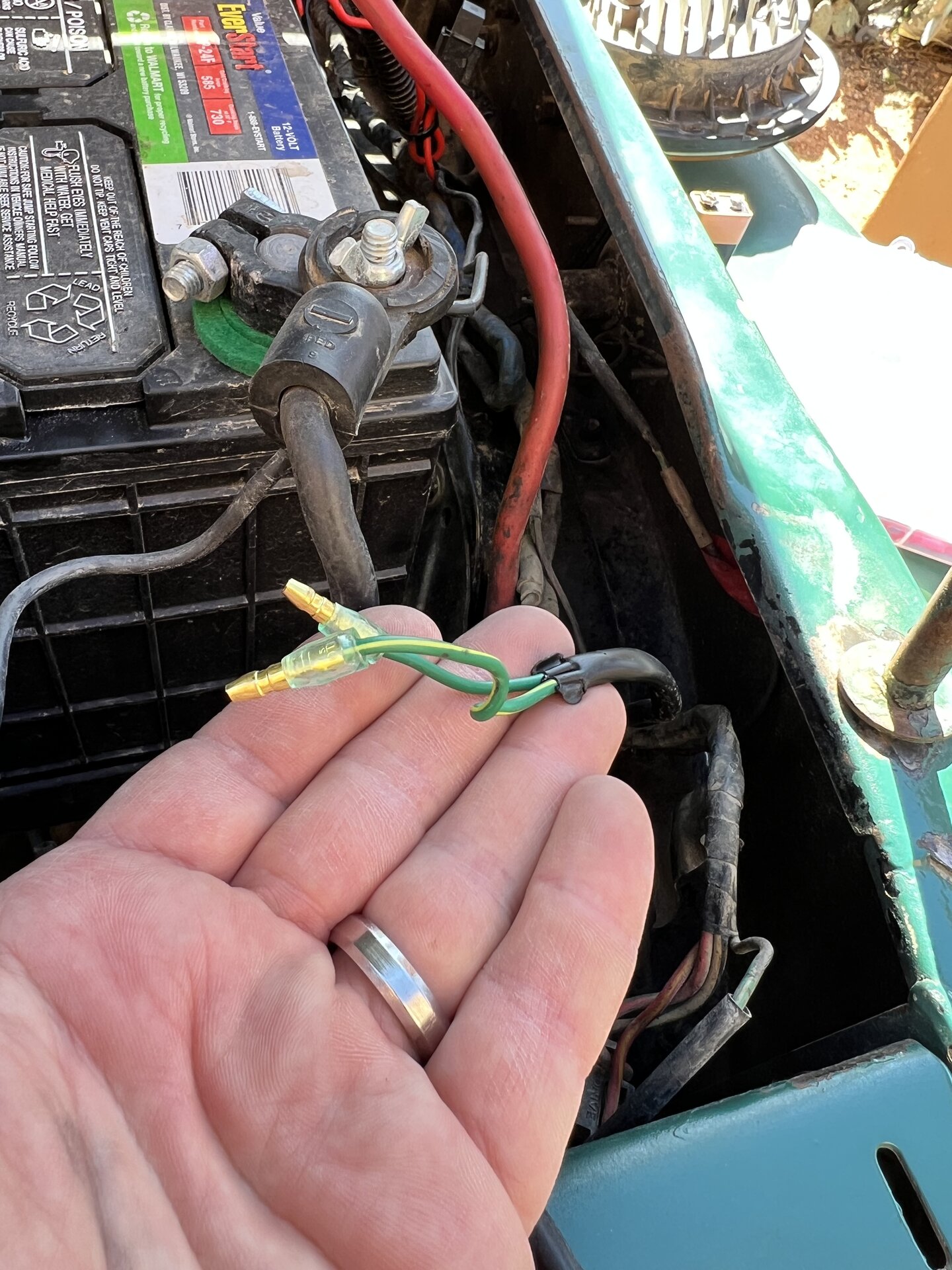

Old headlights with additional wires



[rkymtnflyfisher]

have no marker lights, obviously no turn signals, no tail lights, etc.

Any wires hooked up to any of those other lights?

Have you looked at a wiring diagram yet?
