Hard top gutter dimensions? (1 Viewer)

[81fj40]

A little backstory here. I have the hard top, no gutter as it was tossed many years ago, and finally getting to the point of welding together a kit I picked up a long time ago from SouthbostonFJ. I have an aqualu tub and cowl, and in trying to fit all this together, I think I need some dimensional guidance for the rain gutter. Anyone have the outside width of the gutter edge at it widest point on the back half?

Does the end of the cap go against the inside edge of the gutter, or is there a little space?

Thanks!



[thebigredrocker]

Are you still needing measurements?



[81fj40]

I do!



[brian]

the od of the cap is closer to the outside edge of teh drip rail. there is fair amount of the drip rail past the cap on the inside.



[thebigredrocker]

Sorry I'm tardy.

1976 OEM gutter. Restored by me.
19mm from fiberglass to outside edge of gutter lip

1971 OEM gutter with lichen
16mm to outside edge of gutter

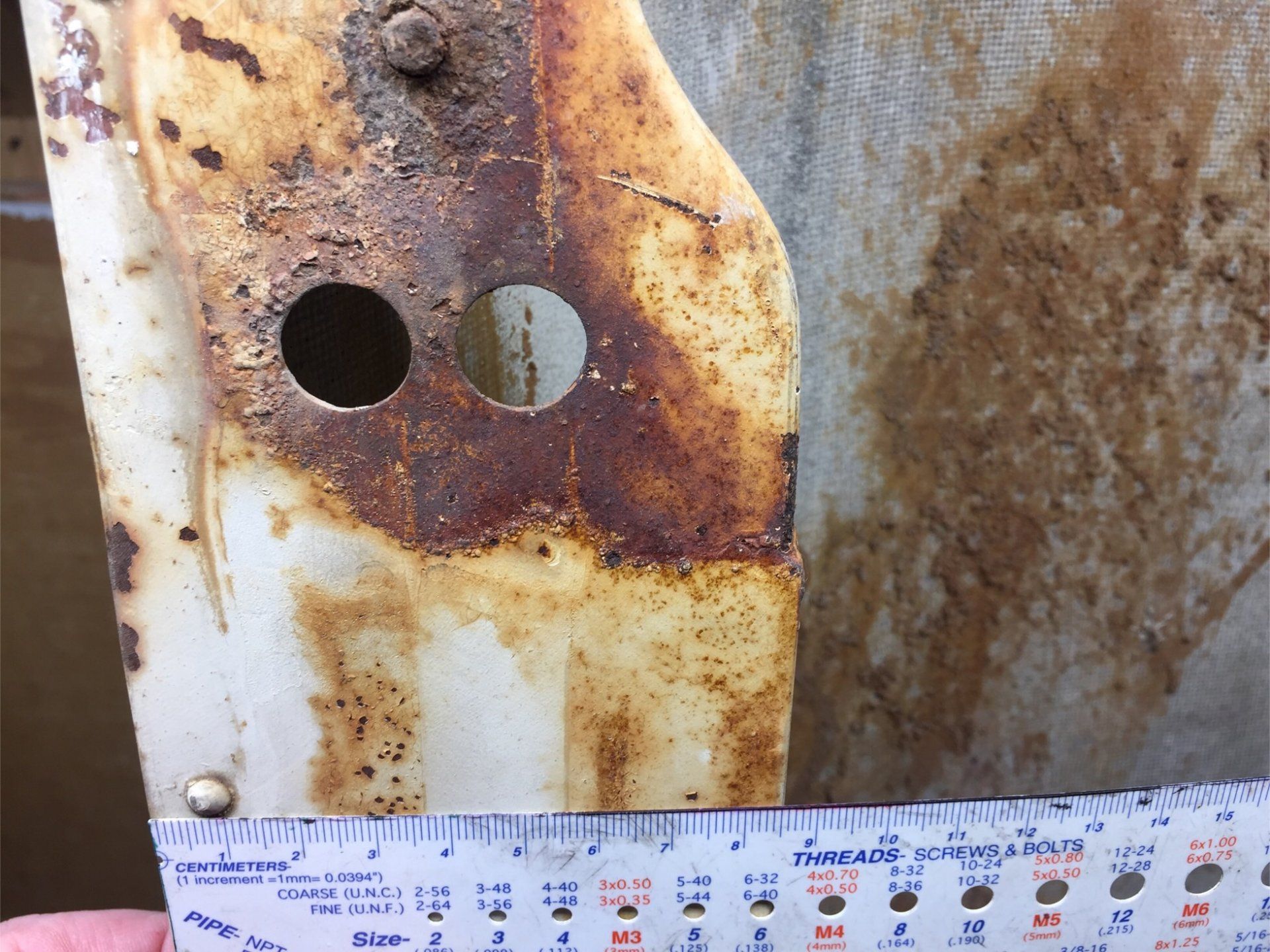

1971 OEM gutter
vehicle rear
underside of gutter
85mm



[81fj40]

Thanks!



[thebigredrocker]

You bet. Holler if you need any other measurements.
