Gertrude - cut/rebuild full body into cab

Joined
Jul 18, 2005
Messages
799
Location
Wellington, NZ
Trucking the body...

I decided to cut down the body to a cab - I was never carrying more than one passenger.
The cab would be lighter, and the new rear would be higher, fixing the rubbing I was getting on full flex.
Also, I was hitting a lot of trees, especially at the rear, so loosing the high roofline at the rear coners would prevent damage to the roof.

The cab etc took about 6 hours - really easy - the hard part was all the fiddling around little bits to finish it (as it always is) - about 40 hours total to completely finished.

Tailgate removed

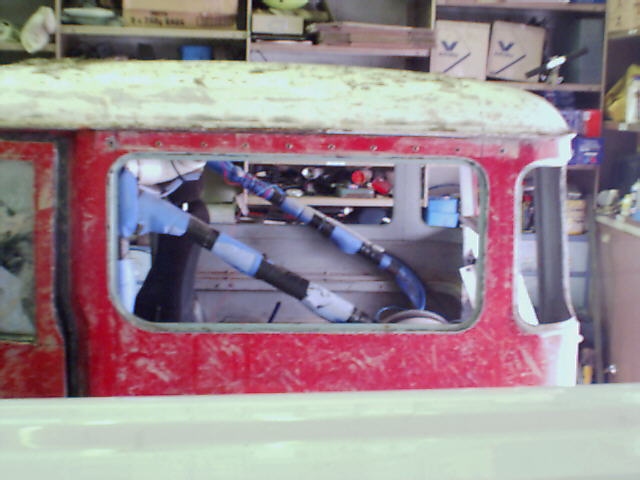

Glass removed, lines drawn - ready to start cutting...

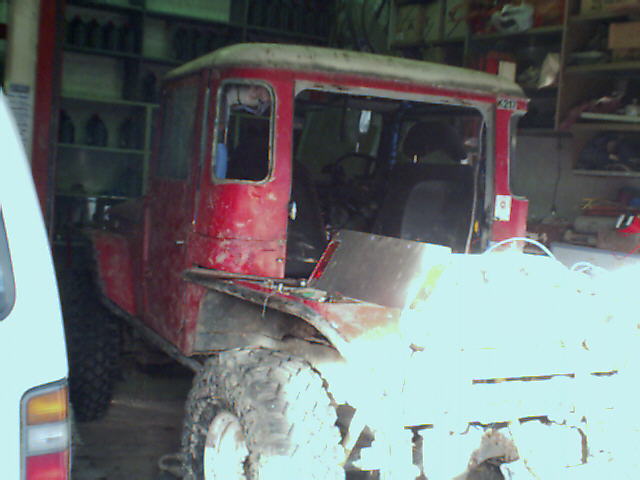

I cut down along the lip each end of the side window - this gave me an easy weld to put in back together later...

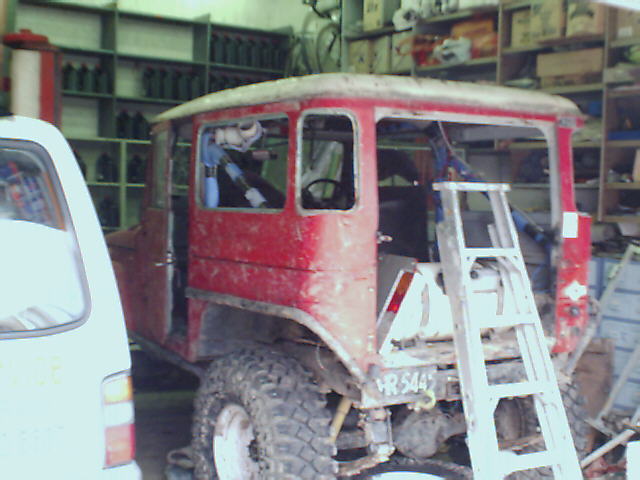

After the first cut - the backs off and stored now...

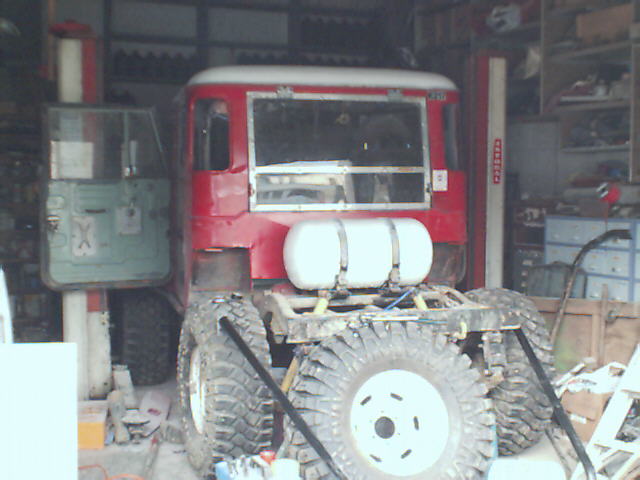

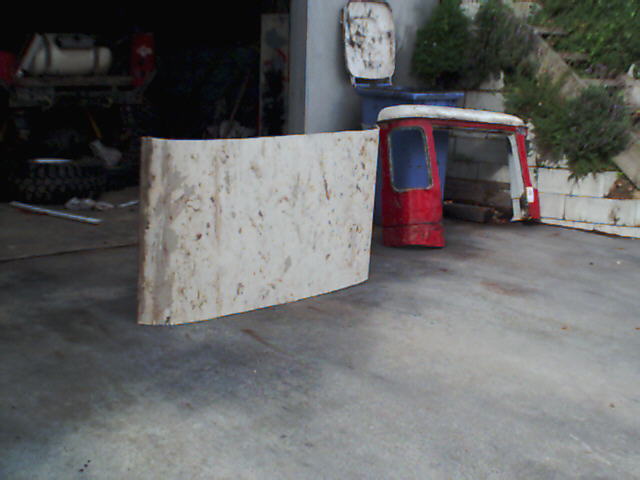

This is how much I chopped out of the body - the final build is about 4" longer than an FJ45 cab, giving some room behind the seats for storage etc.

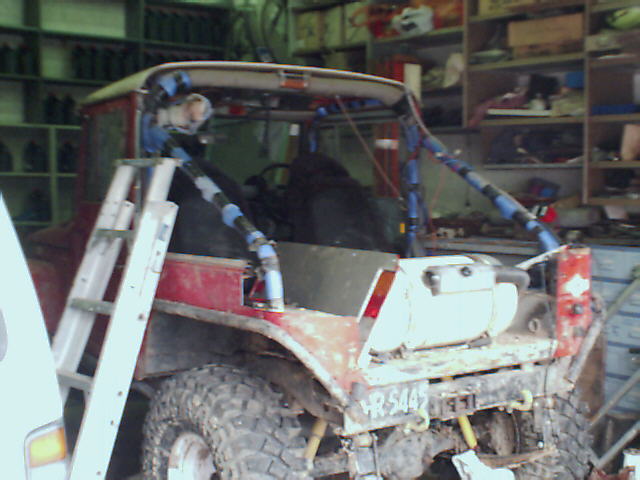

I slowly cut out the bits I needed - the top of the rear corner was removed then welded back on at the rear of the cab.



First rough fit of the cab rear - fitted Ok so welded up then off to have the roof fibreglassed up (I could have done it but I hate the itchy bits!)



Yes it was dark when I took this one! These are the old rear sidebars - you'll see in later pics I had to lift them, and change the connection to the rear xmember...

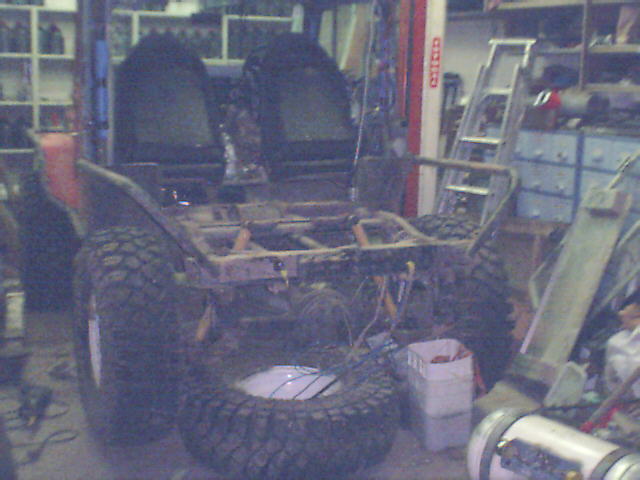

This is as dissassembled as it got - now the work starts...


Joined
Jul 18, 2005
Messages
799
Location
Wellington, NZ

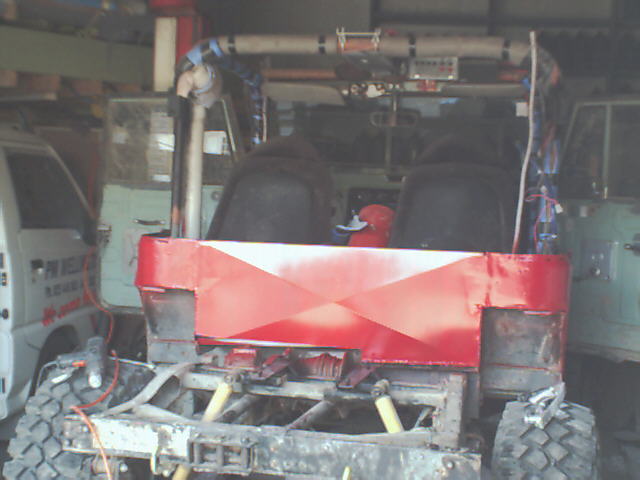

New rear panel welded in place and painted...
(this is also a good shot showing winch location)

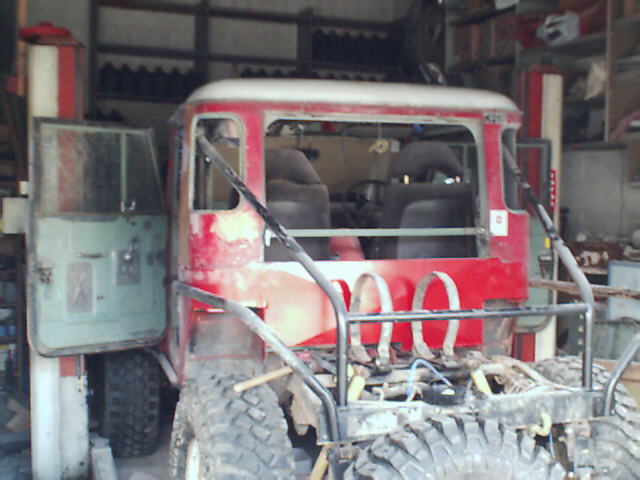

Rear bars all in place - now to check the cab roof fits...



Yes the cab does fit - now pull the bars off and finish the cab...



Cab finished - now to start the rear bodywork...



Rear shell in place - about to assemble the tool box...



Getting ready to cut the rear guards to shape...



rear guards and tailgate finished now...

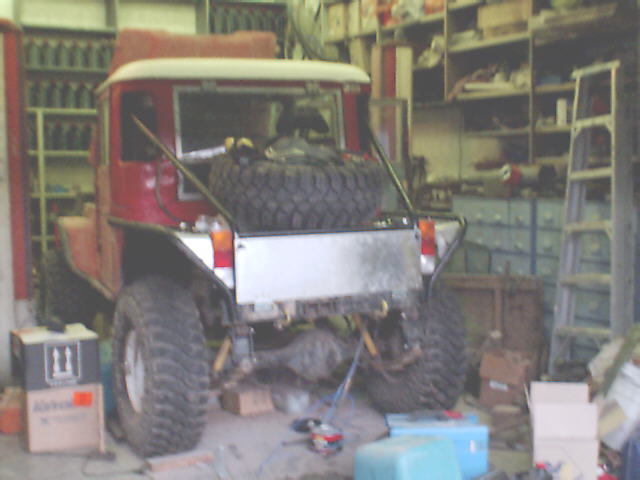

Almost done now, now to put all the 'loose' stuff on and check it fits...



And with everything strapped on in place.
This is almost finished - just need to fit the rear quarter windows...


Joined
Jul 18, 2005
Messages
799
Location
Wellington, NZ
I cut new rear quarter windows out of 3mm polycarbonate - really easy to do - just used tinsnips.
Was the easy way to get the rear stays through but still retain visibility.
The only problem was 3mm doesn't come in scratchproof, so they've got quite scratched - I may replace them with 4mm soon...

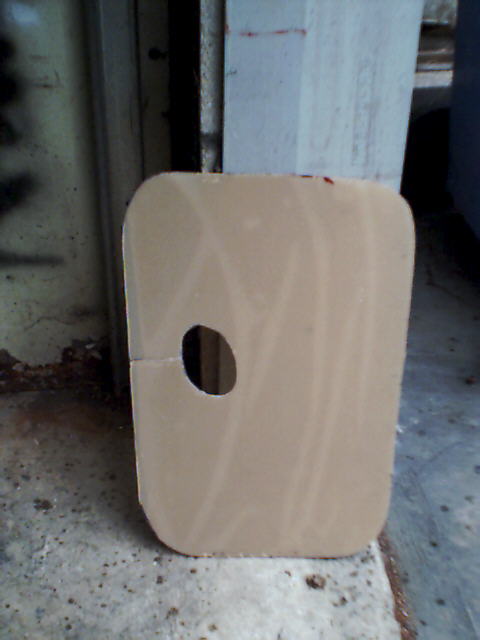

This is my spade mount - I wanted something that was easy to fasten/unfasten but wouldn't come loose.
This is what I came up with - note - spade blades are hardened steel - took forever to drill the hole!



Joined
Feb 1, 2002
Messages
3,312
Location
No. Ogden, Utah




I like those corner windows. And the shovel clip mounting thingy. Looks great. You do a fine job on your writeups too, lotsa pics and very descriptive. Great job.
