fj45lv h diesel

Discussion in 'FJ45 Owners Club' started by crosscreekjoe, Feb 12, 2009.

  1. crosscreekjoe

    crosscreekjoe

    Messages:
    80
    Likes Received:
    0
    Joined:
    Jul 26, 2007
    Here is a few pictures of the progress installing a H diesel and a 2.5'' sor lift on my lv project.
    mud pic engine.jpg engine 2.jpg engine3.jpg

  2. crosscreekjoe

    crosscreekjoe

    Messages:
    80
    Likes Received:
    0
    Joined:
    Jul 26, 2007
    The engine came from a spector half cut and was right hand drive. The engine had a aftermarket turbo kit on it. The problem that I ran into was the turbo was in the path of the power brakes and master. So with some thought this is what I came up with. I will build a heat shield for the master cylinder and I am planning to exhaust wrap the turbo extension. Hopefully i am not going to lose to much performance out of the turbo.
    engine 4.jpg engine 5.jpg lifted 2.jpg

    Last edited: Feb 12, 2009
  3. Awl_TEQ

    Awl_TEQ Supporting Vendor

    Messages:
    4,145
    Media:
    142
    Albums:
    5
    Likes Received:
    817
    Joined:
    Aug 27, 2008
    Location:
    Calgary Alberta
    Nice tubing runs Joe? Good lookin' LV too:cheers:

  4. DanS HJ-45

    DanS HJ-45 SILVER Star

    Messages:
    5,030
    Likes Received:
    879
    Joined:
    Apr 26, 2007
    Location:
    Idaho Springs, CO
    That's looking clean! Can you post up on the turbo coupled to the H, and how it ends up working out. I've got an H, and I'm not sure if I would be happy with a turbo on it, or if I should go out and find a 2H to turbo....

    Those tubing runs look fantastic! Well though out and clean.

    Dan

  5. 2ndGenToyotaFan

    2ndGenToyotaFan Ice-Bound Moderator

    Messages:
    9,709
    Likes Received:
    162
    Joined:
    Jan 8, 2006
    Location:
    It's complicated....
    Creek, are you in so OR? (Seems to stick in my head for some reason) I'd love to see it in person if you are near by.

    And nice work! :cheers:

  6. Steinar

    Steinar

    Messages:
    17
    Likes Received:
    0
    Joined:
    Nov 12, 2006
    Location:
    Northern Norway

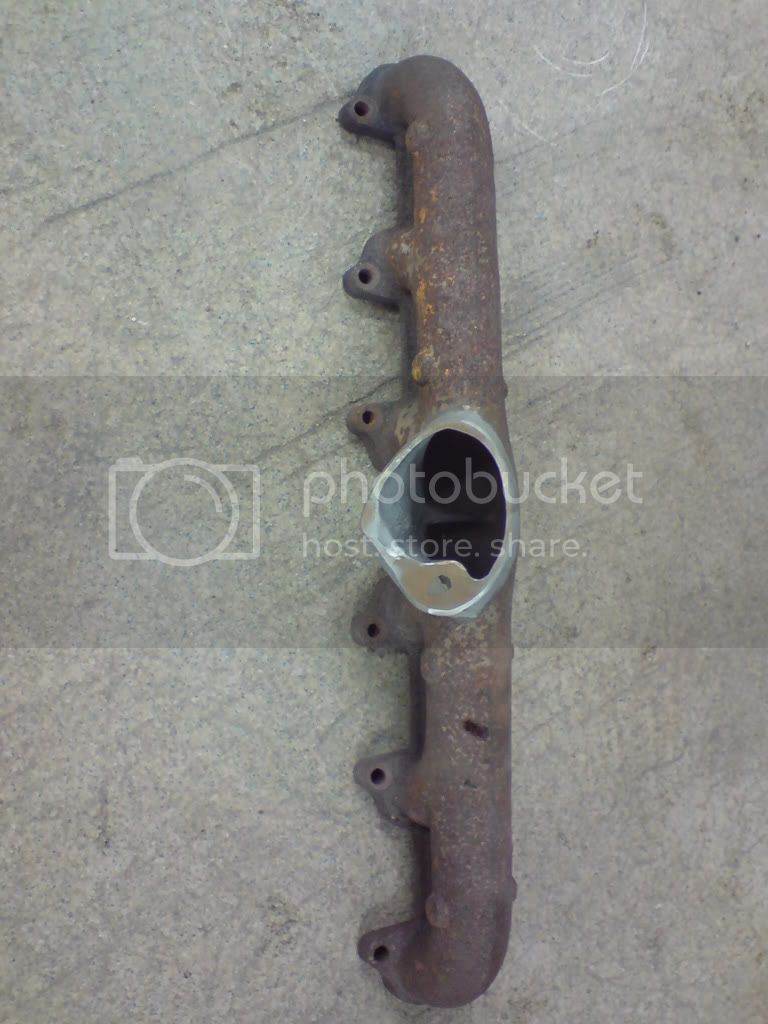

    The exhaust manifoil is'nt stock, i guess it is from a 12-HT. The problem with the 2H and 12-HT manifoil is that the two middle exhaust outlets, as the picture show, they are different from stock. You have to drill four new holes for the manifoil in the cylinder head

    [​IMG]

    Here is my stock manifoil ready to be welded, hopefully the angle for the turbo is correct, it's going to be tight fit between the steering box and master break.

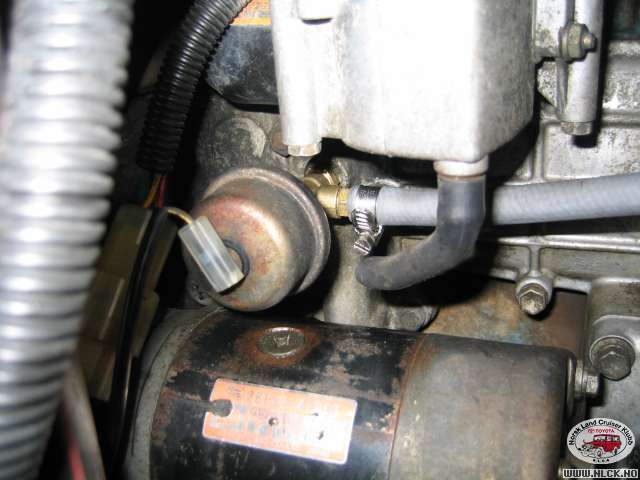

    I am taking oil from the oil pressure switch.... here from a 2H

    [​IMG]

  7. 24HOURSOFNEVADA

    24HOURSOFNEVADA

    Messages:
    1,506
    Likes Received:
    3
    Joined:
    Nov 6, 2006
    That looks great. Did you buy that out of OR.?

  8. crosscreekjoe

    crosscreekjoe

    Messages:
    80
    Likes Received:
    0
    Joined:
    Jul 26, 2007
    Thanks for the compliments everyone. The exhaust manifold was built for this turbo, a company must of had aftermarket turbo kit with the manifold over seas. We started the engine in the half cut and it seemed to run pretty good so i am very excited about getting it on the road. The lv was bought here in southern oregon, it was here on mud for a while.

  9. crosscreekjoe

    crosscreekjoe

    Messages:
    80
    Likes Received:
    0
    Joined:
    Jul 26, 2007
    here is the side shot after i installed the lift. I wonder if the rear will settle down or if i will have to extend my front shackles?. I am going to need to come up with some shocks, anyone have any advice on a brand. and size.
    lifted 1.jpg

  10. 1tontoy

    1tontoy

    Messages:
    1,719
    Likes Received:
    65
    Joined:
    Jun 18, 2004
    Location:
    In the MUD...OUTSIDE the box
    From the pic, the rake doesn't look too bad. You want a little for when you have a load. It will settle a bit, too.

  11. crosscreekjoe

    crosscreekjoe

    Messages:
    80
    Likes Received:
    0
    Joined:
    Jul 26, 2007
    ya your right, I will have to just wait to see.

  12. 24HOURSOFNEVADA

    24HOURSOFNEVADA

    Messages:
    1,506
    Likes Received:
    3
    Joined:
    Nov 6, 2006
    I remember when it was for sale. Nice job on it.

  13. Kief

    Kief

    Messages:
    5,349
    Likes Received:
    153
    Joined:
    Apr 24, 2003
    Location:
    Southwest Oregon
    Nice work Joe! Glad to see you're making a lot of progress.. Keep up the good work.. I'll have to come by and check it out once you get it running.
    If you are running OME springs you might want to take out a leaf or more, they are pretty beefy.. maybe too beefy.

  14. crosscreekjoe

    crosscreekjoe

    Messages:
    80
    Likes Received:
    0
    Joined:
    Jul 26, 2007
    thanks kief, stop by anytime.

  15. fogblanket

    fogblanket SILVER Star

    Messages:
    2,057
    Likes Received:
    100
    Joined:
    Jun 30, 2004
    Location:
    newport RI
    nice lv. I used Bilstein shocks on my lv. I measured pin to pin for front and back and contaced bilstine to see what they recommended. I ended up with the 5150's and am very happy with my ride quality. it actually rides better than my fj62 on OME did. well maybe I just like driving that makes it ride so nice
    Jason

  16. crosscreekjoe

    crosscreekjoe

    Messages:
    80
    Likes Received:
    0
    Joined:
    Jul 26, 2007
    Thanks Jason for the info, hopefully in the future mine will be as beautiful as yours. Good job man. The restorations on mud keeps me going.

  17. D'Animal

    D'Animal Rescuer of Beagles & Landcruisers Moderator

    Messages:
    21,199
    Media:
    180
    Albums:
    8
    Likes Received:
    520
    Joined:
    Mar 31, 2006
    Location:
    Central California
    Clean install, looks great!

  18. crosscreekjoe

    crosscreekjoe

    Messages:
    80
    Likes Received:
    0
    Joined:
    Jul 26, 2007
    Here is a few things I have been working on, I pretty much started thinking I was only going to have to replace a few pieces of the floor but ended by doing most of the whole thing. Actually was not to hard working with a 110 welder and a harbor freight sheet metal brake. Very time consuming. I also ran brake lines.
    100_0918.jpg 100_0921.jpg 100_0919.jpg

  19. crosscreekjoe

    crosscreekjoe

    Messages:
    80
    Likes Received:
    0
    Joined:
    Jul 26, 2007
    here is a few pics of brake lines and prop valve.
    100_0922.jpg 100_0923.jpg

  20. Kief

    Kief

    Messages:
    5,349
    Likes Received:
    153
    Joined:
    Apr 24, 2003
    Location:
    Southwest Oregon
    Good work!

    nice upholstery too, who did that?
