[DanS HJ-45]

I'm sure a few of you noticed a 1976 HJ-45 on eBay a couple weeks ago in Colorado. In fact, I'll bet I was bidding against a couple of you on it.

Anyway, I bought a blue one. 1976 HJ-45 LWB pickup originally from Honduras. It's ROUGH. Well, the wiring is worse than any PO pics I've seen or heard of. It's been beat up, and had some interesting repairs. Ever seen someone weld patches onto a muffler to save money? Neither had I until I got this. (but it's an original Toyota muffler, albeit with some nasty patches).

Anyway, this thing popped up on eBay and we (my Dad and I) just had to go check it out. I've been more or less on the prowl for a diesel 40 series for a couple of years now, and this one was within driving distance. So we headed up to Colorado (in my 1991 Toyota--converted to a Toyota diesel) to get a good look at it.

It's pretty much something right up my alley. It needs bodywork/replacement and electrical help--which are both things I'm pretty good at. The cab tub has rust through in the right rocker and the left rear floor. Easy enough. The fenders are beyond shot. The front bib will need a *little* straightening, the aprons are straight, but have been hacked on the insides (the bracketry), and the hood is in really nice shape. The doors are fine, and the upper half of the cab rear is probably salvageable. The steel top is in fantastic shape. The bed is another story. Hard to tell. Someone went to town with Bondo on this truck (for no good reason--it's like they tried to french the fenders and runing boards together with the stuff--they even put it on top of some perfectly smooth aprons), so the bed is really hard to get a good look at just yet.

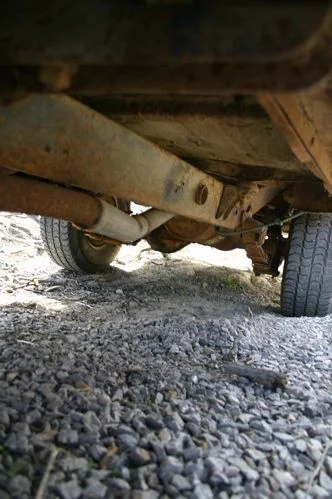

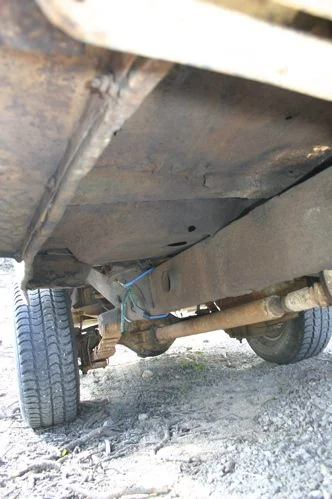

The frame has had some *interesting* work done near the rear axle. Looks to me like someone overloaded it and cracked the frame right over the axle. They also welded on some pretty impressive patches. But the patches might just be there to prevent the frame from cracking--I'll take them off just to see what I have going on in there. The frame is, however, straight and true.

The engine is pretty clean. And it will kick over on ether, but past that is anybody's guess. I suspect it's an EDIC or fuel pump problem, but because of all the other work to get it roadworthy, and some other projects right now, I'm pacing myself to not tinker with it too much at the moment (which is NOT easy to do). I don't really mind rebuilding it, and I might think about repowering it with a 2H or possibly 12HT, but I might very well leave it as is. I'm not exactly concerned with having tons of power or going fast.

The transmission and T-case seem like they are in good condition, but that's based more on the aura they give, than anything else. Either way, we've got a spare H42 sitting around with about 30K on it, and I will probably investigate an H55 to help out highway economy.

Basically, my plans are to do a frame off. Compared to other trucks I've restored (and am in the process of restoring) this should be relatively easy. Easy because parts are somewhat available, and because most parts of this thing can be lifted by hand. The current project (a 1949 White semi truck) has a rear axle housing that weighs as much as a 2F, with the third already out of it.

Like I said, the basic plan is to do a frame off and keep it mostly stock. Maybe replace the H with a 2H, maybe put in an H55. Without a doubt new suspension, probably just OME Heavy 2.5" kit. Probably box/rebox the rear frame area for more strength. Not sure if I care about power steering or not, if I were able to source a pump for the H engine, then I'd look for an OEM unit, even though I know they are hard to find and pricey--I just like Toyota quality, eh. I think I'll just get it restored without the box for now, because I'm kind of tempted to weld up a flatbed/stakebed for it because I like the way they look (and it's easy)--that would also make it easy for me to add a second fuel tank, which I am leaning towards because with another 20-30 gallon tank there, I could have a solid 800-900 mile range to help me avoid buying petroleum based diesel (I'll definitely viton it up for Biodiesel).

Either way, it's going to have to sit for a while before I can get to it. The White truck is about to have it's frame powder coated, and is about to start coming back together, and I think the HJ-45 will be best suited if I save up a big chunk of cash to try and do it all in a short span of time. So probably about a year before I have the White far enough along, as well as have the money saved up to sraight up order the suspension, new body panels, etc... In the meantime I'll probably put in slow work on the bodywork, so that by the time I'm ready to do it, the rust holes and whatnot are already taken care of.

Here's a pic of it with the bed, this pic was on eBay. I've got to resize my other pics, I should be able to resize those later today.

Dan

PS-longest first post ever?

[D'Animal]

Welcome to MUD!

Yep, I was one of them that was bidding on it.

There was a ton of work it needed to bring it up to road worthy status.

Some people confused the price with a road worthy one that was a basice turn key set up.

[D'Animal]

I could see dropping $10k to $12 in it in a heart beat. That particular diesel engine is very weak on power, most install a turbo system on it and it really wakes them up.

Coming from central america I knew that it would have patch work done to it all over the place. The fenders and body were full of bondo. The frame was straight but had some unusual fab work done.

The transmission in it should be an H41 with the lower gearing in first. If I switched it out I would go with an H55 but not an H42.

Congratulations! It is a good foundation to start with.

[DanS HJ-45]

I could see dropping $10k to $12 in it in a heart beat.

Then I'll end up dropping 20K I put probably twice as much into the 2LT-E conversion on the pickup than most do, but I just can't justify putting something back together with old seals, bearings, bushings...

Here's a couple more pics...







It's a foundation, and anything else is a bonus! I think in a year or so I'll know if I paid too much for it or not.

Here's my Dad's FJ-40


And our 1962 Dodge WM-300. Snow plows aren't ideal for pushing gravel, but they work!


Dan

[Wadesters]

Hi Don, I am a member of the HJ45 club as well (see the following) http://www.fototime.com/inv/4414E22EB35EBE1
I am a little bit ahead of you but not much. Mine has a great body with some work needed only of the floor of the bed. I have a new piece to go in it and have started the restoration. My biggest issue was the "H" engine. I could only get 49 mph out of it. I too was told to change it to something else. Was just about to do it when Marv (of Specter off Road) talked me out of it. He said it was a good engine and something must not be set up right with mine. After finding a guy who knows everything about Diesel's he was right. Now 65 and even 70 are able to be reached. Very happy I kept it as it is very unique. Mine will go back to original "Nebula" Green. Good luck with your project...

[Nomis]

Dan,
What tires are those on the 1962 Dodge WM-300? I like the look of them.

[cruiser_guy]

Here in Central America they LOVE bondo when they do "bodywork". My FJ45LV is also covered with it. Just because it's straight doesn't mean it couldn't use a layer of bondo right?!? Naturally it will ALL be coming off to do it right (bondo ONLY where necessary).
If you haven't been to Central America and looked under the hood of a few vehicles you haven't seen scary repairs yet! Some vehicles that are rolling down the road are of no known make, they are simply a conglomeration of different parts!!
The FJ45 pick ups in Central America are routinely overloaded with coffee or whatever they are growing and then driven down roads that we in the states and Canada use as off road tracks! Frame breakage is not uncommon I'm told.

[DanS HJ-45]

[Mods: feel free to move this to the diesel forums if it makes more sense there, I assure you my feelings won't be hurt]

Yeah, my goal will be zero bondo. It is, coincidentally, time for me to learn lead work. Actually, I'm only half kidding on that.

I've been to South America (close to Central America--Peru/bolivia) and I'm not surprised what I found here. It's absolutely amazing where and how much bondo they used. On a perfectly flat apron, I picked off a piece no less than 1/8" thick. That's more work to get the bondo smooth than I can imagine! At least the bondo worked as a sort of body armor.

Speaking of scary repairs, on our old dump truck we are about ready to send the frame out. When I took the rear spring off the drive axle ont he left side, the front hanger had literally no steel holding it together. The pin was rusted into a cracked hanger and that somehow held the thing together. What's truly amazing is that this truck spent it's life working on a gold mine in Utah, and was retired because the engine blew a piston. From the looks of the wear, it soldiered on for years with that front spring hanger messed up. I know that empty it had around 12,000 lbs on that drive axle.

Nomis: those are "Multi Mile" "super traction" tires. I know they don't make them any more, but the pattern was sold to someone else. We bought a new one less than six months ago. I'll have to go check who the new manufacturer is, but I think we would have been able to get it through a Big-O.

Dan

[Henry James the 47th]

The chassic doesn't look too bad, and the truck isn't sagging in the middle. What condition is the cowl top panel in, looking from underneath inside the cab?

Let's see some engine bay pics!

[DanS HJ-45]

The top of the cowl looks good and straight. Basically, it's got the rust on the rocker and floor, and a couple dings, but nothing show-stopping.

I've got good pictures of details of the engine bay but I've missed overall shots. I'll fix that tomorrow first thing. You can never have enough pictures.

Dan

PS-thanks for the move Mods!

[Landpimp]

for what you paid you did fine........seen worse sell for more....

[jsaltlick]

That dodge is beautiful.

[SteveH]

That power wagon with the Western Pro-plow simply rocks! It gives a resto-ride like that a real sense of purpose. Makes my '83 GMC pickup with the same plow look like a girly-ride.

I'm sure you'll have fun with the HJ45 - enjoy! Good find at any price - virtually unique in the States.

Steve
'65 FJ45LV, '78 FJ40, '95 FZJ80,

[2manycruisers]

Dan, congrats on the 45 and welcome to Mud. I also want to plug a TLCA Chapter, High Desert Cruisers, in ABQ. A few of us have 45s, but no H-series in the club. Check out the club forum here on Mud, if you're interested.
cheers,

[DanS HJ-45]

2many, I'll definitely check out HDC.

But back to the pictures of the HJ-45. As promised (although a day late) here are some engine pictures.

Dan

[PVCruiser]

Originally Posted by DanS HJ-45

The frame has had some *interesting* work done near the rear axle. Looks to me like someone overloaded it and cracked the frame right over the axle. They also welded on some pretty impressive patches. But the patches might just be there to prevent the frame from cracking--I'll take them off just to see what I have going on in there. The frame is, however, straight and true.

Hi Dan-

99.9% of all the pickup in central america have this patch. It's located at the back of the frame where it curves up and back down (above the rear wheel).... It's one of the reasons I have such a tough time finding good vehicles in Central America... I would grind off the current patch and put a new one on... my $0.02

Originally Posted by DanS HJ-45

The engine is pretty clean. And it will kick over on ether, but past that is anybody's guess. I suspect it's an EDIC or fuel pump problem, but because of all the other work to get it roadworthy, and some other projects right now, I'm pacing myself to not tinker with it too much at the moment (which is NOT easy to do). I don't really mind rebuilding it, and I might think about repowering it with a 2H or possibly 12HT, but I might very well leave it as is. I'm not exactly concerned with having tons of power or going fast.

Are you sure it has an edic motor? Do you know what one looks like (not trying to be a jerk, just trying to help you trouble shoot). A number of the rigs in that region didn't have them... (EDIT) Looking at the pictures closer, looks like it does have one...


Welcome to MUD! You bought a standard Central American vehicle. You will learn more about cruisers, fixing this one up, then you would ever want to.


I can't wait to see your build!

[wdukes]

I'll have to agree with landpimp. For that price on a 45, it is much better to emphasize what you HAVE and not what you don't. I have paid closer to 7,000 to 9,000 for vehicles that look better, but you end up redoing the same things to reach the quality you want anyway. I often feel like you are better off spending less, getting something that looks worse, but at least you know from the begining that you need to redo everything.
On your frame split over the axle...that was one thing that concerned me on the picture. It had a clear tilt to the bed as it met the cab. I feared what you have confirmed.
Good luck. It is no worse than most I have seen at that price.

Dukes

[DanS HJ-45]

I definitely plan on taking off those patches and redoing them myself. I'm totally curious as to whether it was cracked under there or not. If it turns out to be bent, I'll see what I can do about getting it onto a frame bench.

The bow you see in the first pic is due to the bed not being bolted onto the frame, and it was sitting at an odd angle. I've got the bed on there now and it is indeed straight (or at least it is to my untrained eye).

I *think* that is an EDIC. It's the fuel cutoff solenoid, whatever the real name is supposed to be. All I know is that when you energize the solenoid, the lever pulls back (or is supposed to). I also understand that there are three positions: off/on/start. do they have detents when I pull the lever by hand, or no? I don't feel any... I'm assuming the EPC will show if mine *should* have an EDIC, or if it was later added on mine. With the state of the wiring here, I'm not yet brave enough to hook up a battery to see if that unit actuates the arm. I think I'll jerry rig something up with my 12V power supply to see if it actuates or not. Since it is only one wire, I assume that it's a modulated voltage to actuate it between off/run/start, but I don't really know. I've got a FSM for the FJ/BJ series, and I don't offhand remember if it includes the HJ. I'll have to check when I go up to the shop later today. I'm sure it will have that info (if it includes H series trucks)

I also have discovered something peculiar. The door locks work great to engage the locks. They do not work well to unlock. I locked myself inside it for about a half hour while I fiddled with the linkages to get it to unlock. d'oh!

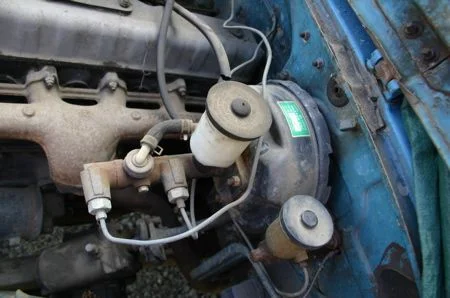

The brake booster gets it's vacuum straight from the intake manifold on this truck, is that adequate? I don't think I'll do more than rebild the stock brakes (discs on the front and drums rear), but it seems a bit odd for a diesel to simply tap into the intake manifold. I know my 2LT-E (and many other Toyota diesels) use a vacuum pump on the alternator, but my 2LT-E is obviously turbocharged...

It's amazing what I've learned just by comparing my dad's FJ to this one. Toyota really does use an efficient manufacturing system.

Dan

[cruiser_guy]

Originally Posted by DanS HJ-45

The brake booster gets it's vacuum straight from the intake manifold on this truck, is that adequate? I don't think I'll do more than rebild the stock brakes (discs on the front and drums rear), but it seems a bit odd for a diesel to simply tap into the intake manifold. I know my 2LT-E (and many other Toyota diesels) use a vacuum pump on the alternator, but my 2LT-E is obviously turbocharged...

Dan

I doubt that the stock brakes were disc on the front. I've seen post 1980 FJ45's here in Guatemala with 4 wheel drum. I'd bet that the disc front was added stateside and they did not have a vacuum pump for the altenator. A diesel doesn't produce much if any vacuum at all.

[D'Animal]

Originally Posted by DanS HJ-45

I also have discovered something peculiar. The door locks work great to engage the locks. They do not work well to unlock.

I locked myself inside it for about a half hour while I fiddled with the linkages to get it to unlock. d'oh!

Dan

Now that is funny stuff.

[Henry James the 47th]

There ought to be an vacuum pump on the back of the alternator - I don't see how the intake manifold would create the neccessary vacuum. Where is the vacuum reservoir? (look for a big tank under the cab).

I'm not so familiar with H engines as the 2H (which i'm no expert on either, but learning more every day), but it looks like the rad is non stock and off, I'm guessing, of a gas-engined truck. The inlet neck looks reversed to me.

There should be an EDIC motor on this engine - I can see it in the second engine bay pic - and there are no detents to feel as it pushes and pulls the on the injector arm. The EDIC controller you will likely find attached to the side of the glovebox sheet metal.

The air cleaner does not look like a diesel one either, though I can see it does bolt to the rocker and looks stock.

Could you take a picture of the accelerator cable linkage where it attaches to the injector pump/EDIC control rod? And what does the tag on the side of the injector pump say? I'm curious to see what model of Denso pump it has.

Lotsa fun ahead!

[DanS HJ-45]

Well, looking under the cab, there is definitely not a vacuum tank of any kind. I also don't see any mounts for anything else under there (looking like it had been removed).

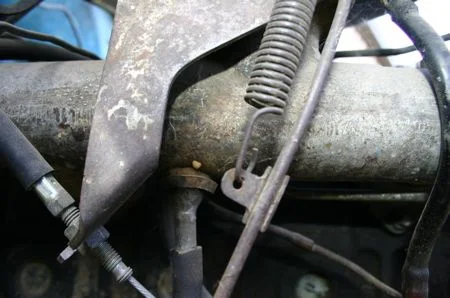

But here's some pics of the throttle linkage and general right side of the engine, and also of the alternator. The alternator is a Denso part, but who knows if it's an original for this truck.

You are right about the radiator. I don't know if it's the original (but it is a Toyota part), but it's only mounted with one bolt right now. There are two bolts on the bottom of the radiator, and two mounting tabs on the front crossmember, yet only one lines up (and therefor only one is secured). So I imagine that the radiator is not correct for that truck.

The FSM we have (Chassis and Body) does cover HJ models, yet the frame measurement diagram doesn't include vertical measurements. It lists horizontal measurements, so I can make sure it wasn't squished front to back, but it's pretty tough to come up with easy vertical measurements to check the trueness of the frame, although I bet I could derive them from the FSM diagram (assuming it's to scale).

Dan

[Henry James the 47th]

There should be a vacuum tank reservoir - I'd be surprised if there weren't at least evidence of it somewhere. Diesels have vac. reservoir tanks - I've not seen a diesel cruiser without one located somewhere - then again, this is a '76 vehicle, so maybe they didn't use them at that time(?) (I'm skeptical).

Usually in 40 series rigs the tank is located under the cab, bolted to the outside of the chassis rail. It has an inlet and outlet, and a sender switch on the back. On 60 series rigs, the tank is much smaller and is usually bolted to the engine bay firewall or fender apron. The reservoir is connected to the vacuum pump and to the brake booster. For some reason, this entire reservoir system is not mentioned in the FSM, at least the 1980 edition anyhow. Here's a couple of pictures of my tank prior to restoration, showing what it looks like and where it is located (though I have unbolted it and placed it atop the chassis rail in this instance - you can see the bolts that mount it sticking out of the chassis side below). I'm not sure what side of the chassis yours would have been on. I'm relocating mine the left hand side as it shortens all of the piping runs.

Thanks for the pics of the throttle linkage. I can also see another difference between the H and 2H motors: there is no aluminum oil cooler housing (sometimes termed "water inlet jacket") on the side of the block.

I've added a third picture I pulled off the web a few months ago of a LHD HJ45 engine bay. That one had the same 'reversed' rad too, so i wonder what the stock set up is. If you look closely at the brake booster, you will see the rubber line coming from it, transitioning to the metal tube that runs across the firewall (note that there are two of them) and down - this tube then hooks to another rubber pipe that goes to the vacuum reservoir. The other metal pipe should be connected to the back of the alternator pump. This indicates that the vac. reservoir should be under the passenger side floorpan.

[DanS HJ-45]

Pictures of junk! Yeah!

I am starting to think that the vacuum assisted brakes were added to this vehicle. Here's why: there is no vacuum tank (see pics of undercab area, passenger and driver sides), the vacuum assist isn't a Denso or Aisin product (it's got a tag on it with a Japanese name that I haven't seen before, and says "Bendix License"), and the vacuum tap is just plugged into the intake--poorly (see picture). It just doesn't strike me as very Toyota-esque.

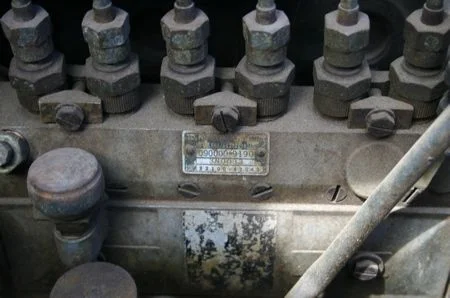

I also included some close up pics of the IP and it's tag for Henry James.

Dan

[DanS HJ-45]

more
The numbers on the IP are:

090000-9190
3N0033
22100-47043

[Henry James the 47th]

Is that the priming pump visible in the left hand side of the injector pump pic?

The bottom of the three numbers on it is the Toyota part number, and I think the middle is the model number and the top one the Denso number. I'd like to learn a bit more about the differences between different pumps. There are pumps specific to arctic regions, and pumps specific to auto trans models, etc.

I don't see any holes in the chassis for the vacuum tank, nevermind the sedimenter -- where's that located?

[DanS HJ-45]

I don't see any holes in the chassis for the vacuum tank, nevermind the sedimenter -- where's that located?

Not there. That vacuum line runs directly from the tap on the intake, across the top of the engine into the brake booster. No clips, no support, just a line running to the booster. Another reason I don't think it's stock Toyota.

In the pic of the IP, it is indeed the primer you see the top of. I haven't tried doing anything with it really, but I can pump it without resistance. Either it has no fuel, or the pump is bad. I'm willing to bet it's a little from column A, and a little from column B...

Any idea what the differences are between the pumps? Does an "arctic" pump somehow circulate coolant through the pump or something? The only place below 7,000 feet I've ever lived was in Alaska, so I'm a bit partial to making sure my truck can handle a little cold.

Dan

[cruiser_guy]

Like I said earlier, they did NOT have discs in Central America in 1980. I was at an auction for FJ45's from the electric utility here in Guatemala about a year and a half ago. They had 4-5 FJ45's there and EVERY ONE was a drum brake setup and some were 1979 and some were 1980. If that truck has discs they were added on by the PO. Drums DON'T need a booster because they automatically tighten themselves up (increase braking action) when the wheels are turning while the brakes are applied.
There are trucks into the '90's here that run 4 wheel drums!!

[Henry James the 47th]

Originally Posted by DanS HJ-45

Not there. That vacuum line runs directly from the tap on the intake, across the top of the engine into the brake booster. No clips, no support, just a line running to the booster. Another reason I don't think it's stock Toyota.

In the pic of the IP, it is indeed the primer you see the top of. I haven't tried doing anything with it really, but I can pump it without resistance. Either it has no fuel, or the pump is bad. I'm willing to bet it's a little from column A, and a little from column B...

Any idea what the differences are between the pumps? Does an "arctic" pump somehow circulate coolant through the pump or something? The only place below 7,000 feet I've ever lived was in Alaska, so I'm a bit partial to making sure my truck can handle a little cold.

Dan

The sedimenter normally resides on the chassis as well. If you follow the line from your fuel tank, does it go directly to the pump? If you locate a splice in it somewhere, I'd bet that is the location where it was removed from.

The cold weather spec. injector pumps put more fuel in at startup, essentially. At cranking speed the pump turns at around 100 rprm, and at that setting on its control rack it delivers about 15% more fuel than a regular pump. At all other rpm's, the cold spec. pump puts out the same quantity of fuel as a regular pump.

To get a cold weather spec. pump, your best bet would be from a Canadian truck (no H's to be found, unless an offshore import, which would probably not be to cold weather specs., though you can get a hold of 2H's and 12h-t's that set up for cold climate).

There's also the high altitude compensator, fited to some 2H's - I'm not sure about H engines though.

You can test your priming pump to see if it develops adequate pressure or not.

[Henry James the 47th]

Originally Posted by cruiser_guy

Like I said earlier, they did NOT have discs in Central America in 1980. I was at an auction for FJ45's from the electric utility here in Guatemala about a year and a half ago. They had 4-5 FJ45's there and EVERY ONE was a drum brake setup and some were 1979 and some were 1980. If that truck has discs they were added on by the PO. Drums DON'T need a booster because they automatically tighten themselves up (increase braking action) when the wheels are turning while the brakes are applied.
There are trucks into the '90's here that run 4 wheel drums!!

Now, I thought the main point of the brake booster was to lighten the physical effort needed at the pedal to brake the vehicle.

My 47 series came with 4 wheel drums, and it is now going to have 4 wheel discs. The rear drums were fitted with 2.5" shoes and have single cylinders, while the front are dual cylinder and have 3" shoes. The truck came with a brake booster, which is stock as far as I know. I'll be changing mine for a 60 series booster since the discs are now going on.
