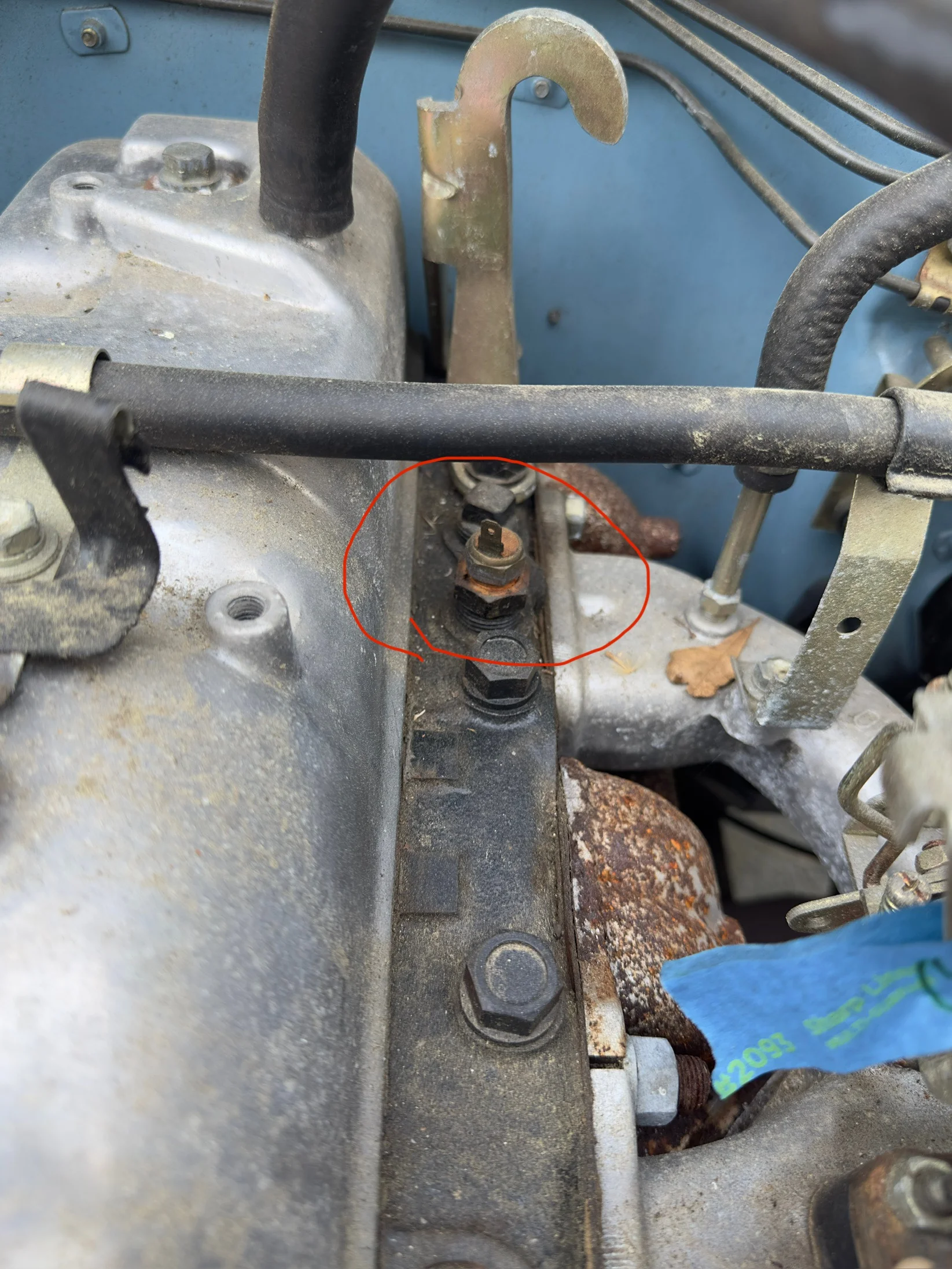

Does anyone know what this pins function is? Is it for a sensor? Help!
Read my bio for more info about the truck.




Did you download any manuals for your rig?
You need to know year/model/market
Free downloads here. The Chilton book is better than nothing.

Plus you can look at the vendors, many have pic's along with the application.

Did you download any manuals for your rig?
You need to know year/model/market
Free downloads here. The Chilton book is better than nothing.

Plus you can look at the vendors, many have pic's along with the application.
I appreciate the help. I dont know the specific year my car was built (CKD in venezula).

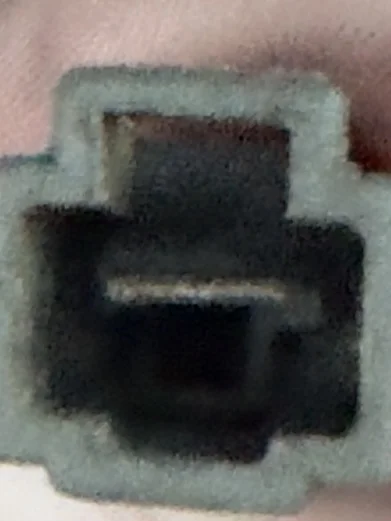

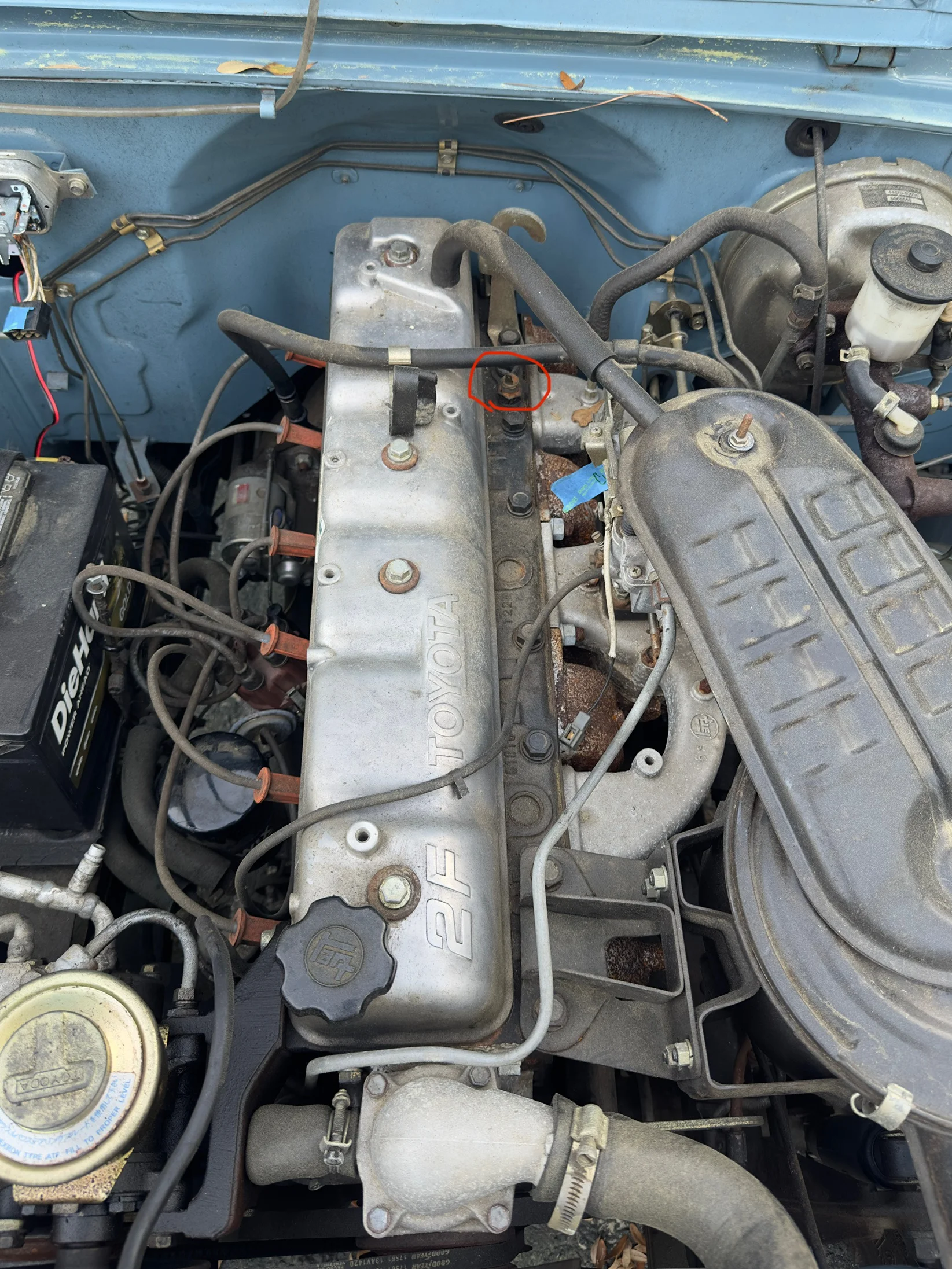

Does anyone have any idea what sensor this is and or its function? Thanks

View attachment 3865707

View attachment 3865708

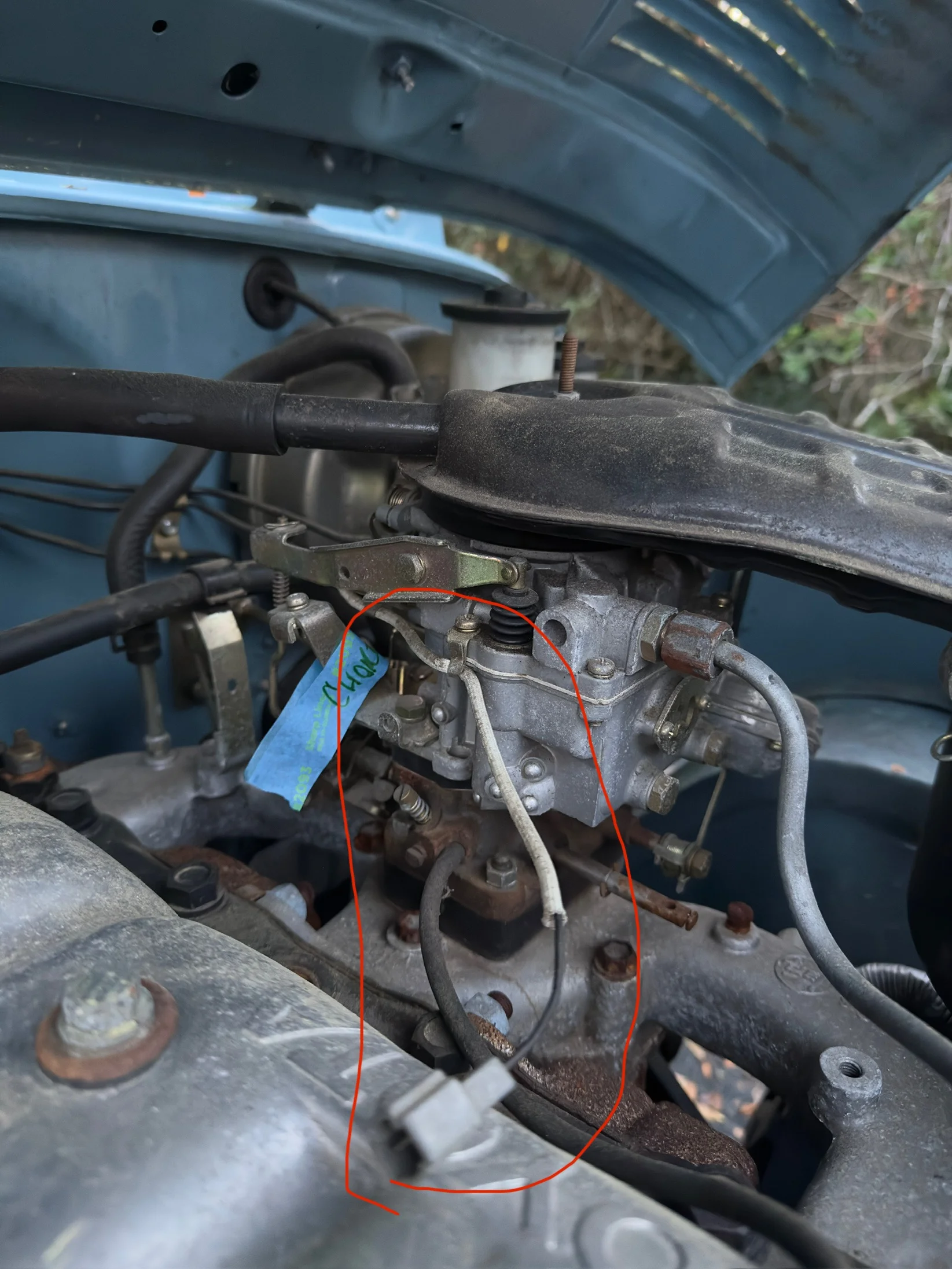

Based on its location, it’s probably the idle solenoid of the carburetor. If you trace it to the source, and that source is a barrel on the back of the carburetor, that’s for sure what it is. You will need to provide it key-hot power, or the engine will not idle.

Based on its location, it’s probably the idle solenoid of the carburetor. If you trace it to the source, and that source is a barrel on the back of the carburetor, that’s for sure what it is. You will need to provide it key-hot power, or the engine will not idle.
Thanks. It does go to a little barrel on the back of the carburetor. I have not found the female connector on my wiring harness yet.

Thanks. It does go to a little barrel on the back of the carburetor. I have not found the female connector on my wiring harness yet.
Chances are you wont. Factory plugs are green, and an OE single lead would have a bullet connector. It’s going to be on the same section of harness with your missing temp sensor wire, so there’s a start. Good luck.

Chances are you wont. Factory plugs are green, and an OE single lead would have a bullet connector. It’s going to be on the same section of harness with your missing temp sensor wire, so there’s a start. Good luck.
Thanks for the start, my harness is currently a nightmare. I have a bunch of random unused connectors and random splices. Though, I have most of it figured out. Also I have found the temp sensor wire & my oil temp sensor wire. Havent found the oil sensor yet. Where would the oil temp sensor be on the engine?

I may be ill-informed…I don’t know that there is an OIL TEMPERATURE SENSOR unless added by a PO

I may be ill-informed…I don’t know that there is an OIL TEMPERATURE SENSOR unless added by a PO
Newb. Wag he means oil pressure.

On a 2F it should be near the oil filter.

Have you tried using the search function?

Newb. Wag he means oil pressure.

On a 2F it should be near the oil filter.

Have you tried using the search function?
Yes thats what i meant. The wire that goes to the oil pressure guage is grouped with the water temp wire. but on the other hand there is a wire that comes off the distributor and goes to the oil filter. Also what is the search function?

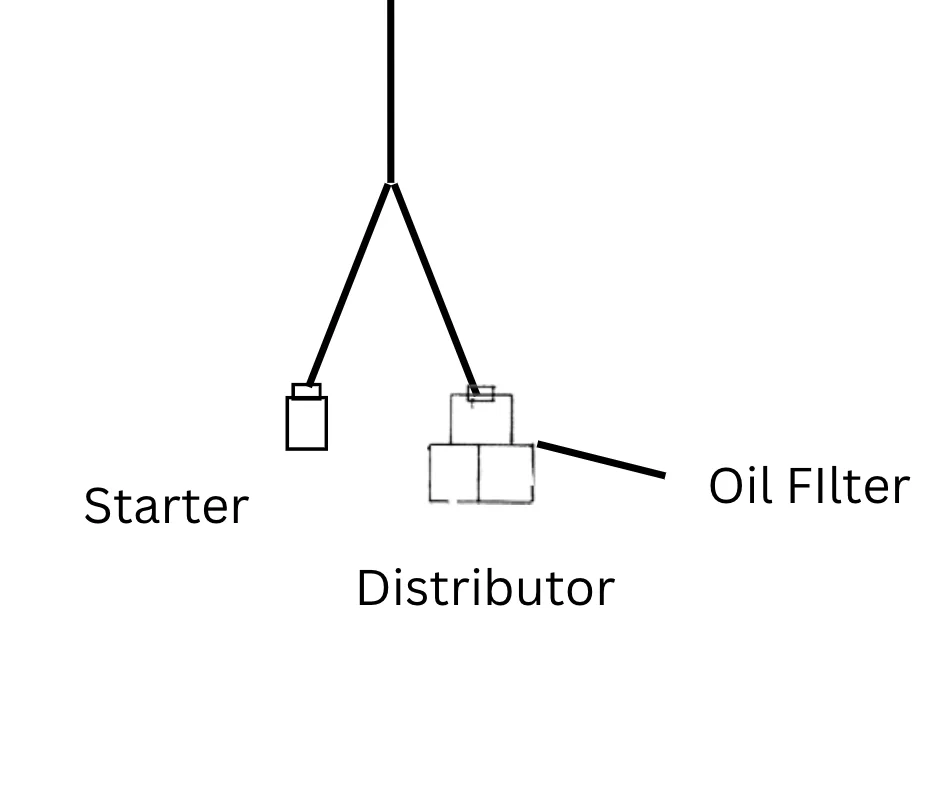

Below i attached the EWD ive been constructing of that section

Screenshot 2025-03-21 at 11.03.39 AM.png

Last edited:
On my Winders ten laptop running chrome, the search feature is on the top right with a magnifying glass icon. Offers many parameters for the search such as everywhere, to this thread. You can search for members or specific words. There is a way to use the google search in any data base.

People here like to help. We understand that new folks don't always have the computer skills or correct name/function of a part and the regional terms can be interesting too. Hood Bonnet Trunk Boot Gas Petrol Ground Earth... So if you make some effort to find your answer first, then folks will be glad to chime - however lack of effort on your part can lead to folks putting you on ignore ie tough love to force you to do the work.

On my Winders ten laptop running chrome, the search feature is on the top right with a magnifying glass icon. Offers many parameters for the search such as everywhere, to this thread. You can search for members or specific words. There is a way to use the google search in any data base.

People here like to help. We understand that new folks don't always have the computer skills or correct name/function of a part and the regional terms can be interesting too. Hood Bonnet Trunk Boot Gas Petrol Ground Earth... So if you make some effort to find your answer first, then folks will be glad to chime - however lack of effort on your part can lead to folks putting you on ignore ie tough love to force you to do the work.
Ive been using the search function a bit before posting to this thread. search hasnt been that helpful to me so far though

I understand the search function isn't all that wonderful - phrasing your inquiry in different ways can of often yield better results. Still looking for how search using google I have it written down somewhere, this might have it

@stewt sorry….Previous Owner….

Some of them have had remarkably crazy ideas regarding modifications and fixes. 🙄
Some of those “fixes” are frustrating as hell and 101% wrong
