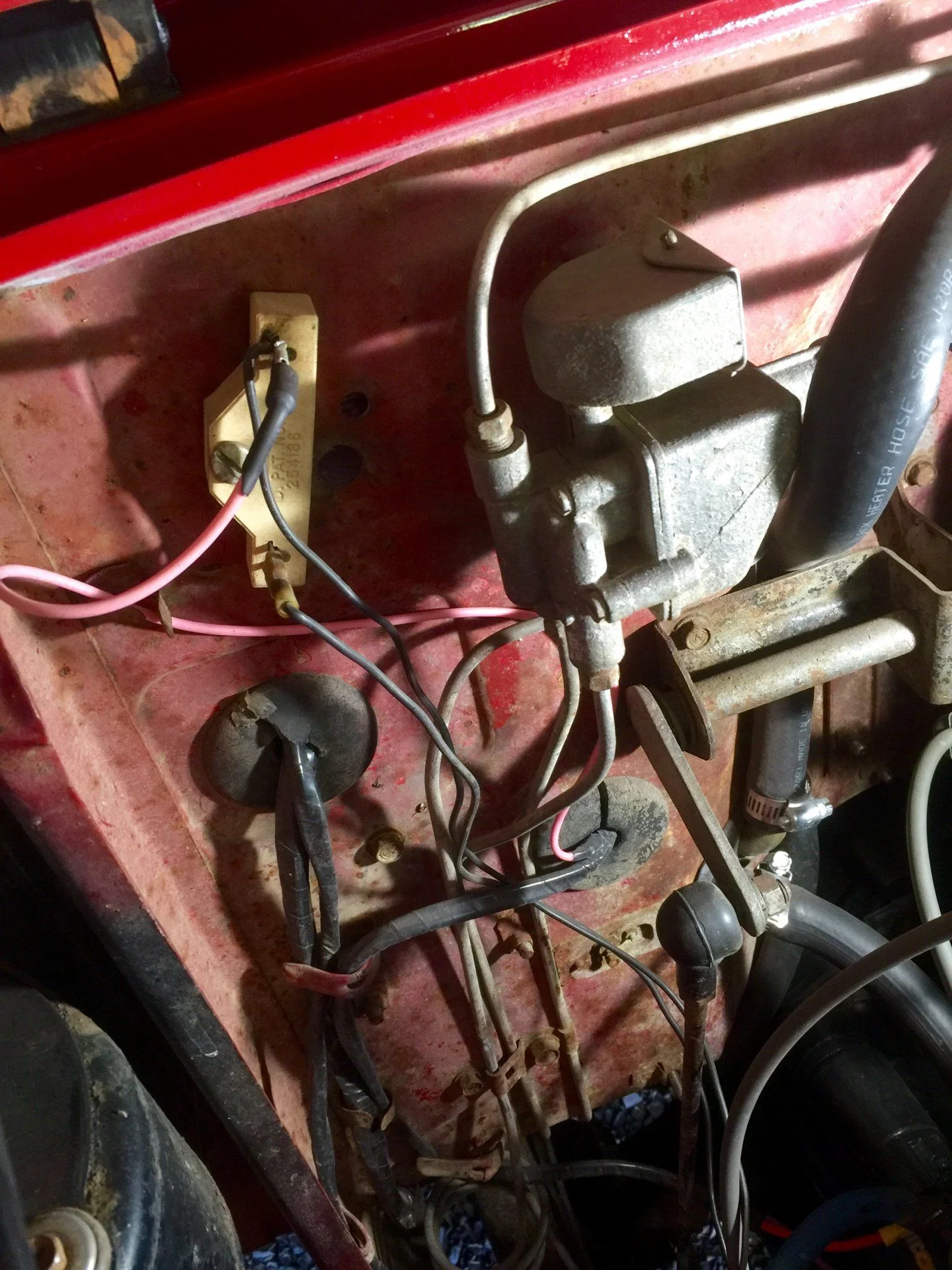

I have a 1971 FJ40 and have a question about an item on the firewall. Could somebody tell me what the white item attached to the firewall is? The pink wire is switched hot and has two additional black wires (one on each terminal) both going to the positive side of the coil. If this is some sort of fuse, shouldn't it be the pink hot in and the other terminal to the coil?

Looked on numerous wiring diagrams but couldn't find it or figure it out.
Thanks, Tom




Cruiserdrew

On the way there
SILVER Star
Joined
Mar 15, 2003
Messages
15,935
Location
Sacramento, CA
Do the wires go to the coil? If so, I'd guess a ballast resistor. What's the actuator arm thing?

Re-read your post. It's got to be a ballast resistor.. Maybe the stock one went bad? Not sure if stock '71 had one.

Joined
Apr 3, 2016
Messages
32
Location
Joseph OR
Do the wires go to the coil? If so, I'd guess a ballast resistor. What's the actuator arm thing?

Re-read your post. It's got to be a ballast resistor.. Maybe the stock one went bad? Not sure if stock '71 had one.

This has vacuum assist for the 4wd and a lever under the dash for the transfer case. That is part of the mechanism for low, high etc

Joined
Apr 3, 2016
Messages
32
Location
Joseph OR
Do the wires go to the coil? If so, I'd guess a ballast resistor. What's the actuator arm thing?

Re-read your post. It's got to be a ballast resistor.. Maybe the stock one went bad? Not sure if stock '71 had one.

Only have owned this for a couple of months and the po said he switched to electronic ignition. From my research, it indicates this reduces voltage a little so the points won't wear as fast. I will go out and pop off the distributed cap to double check but no points, no need for the resister?

Joined
Jun 29, 2014
Messages
718
Location
Cariboo BC
The resistor is for the coil. The resistor reduces voltage to 9.6ish volts, if the coil ran at 12+ volts continuously it would crap out.

Joined
Jan 22, 2007
Messages
2,942
Location
Alva, Fl.

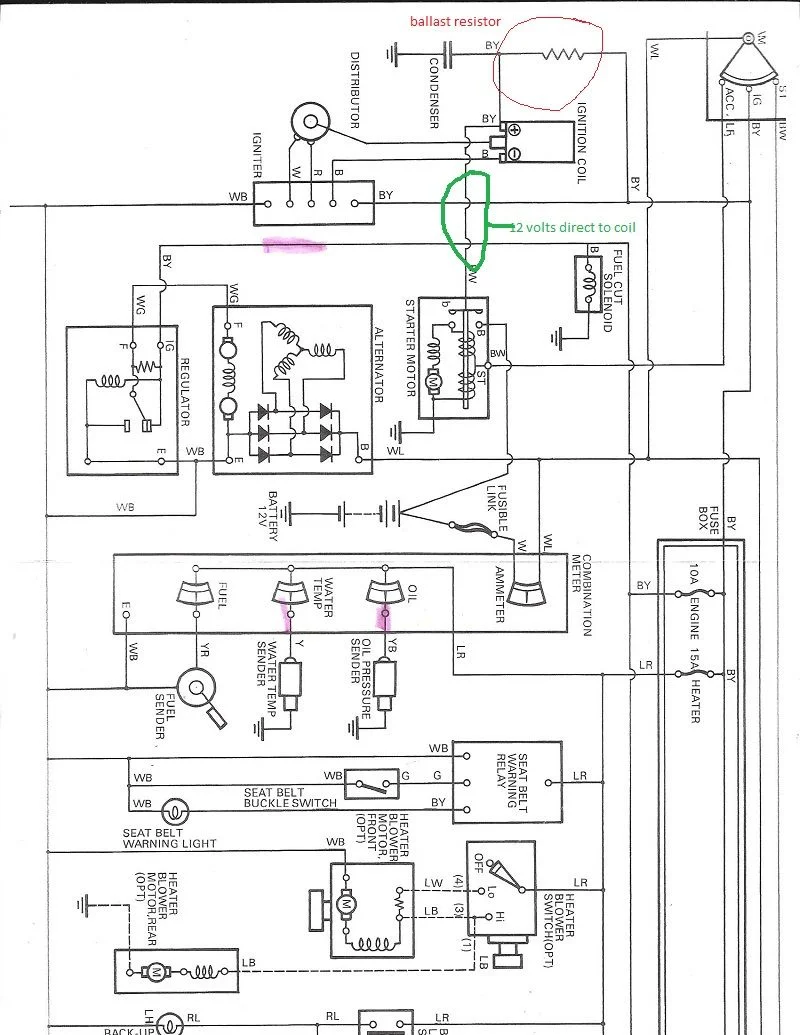

If you can believe the FSM--the coil should always have 12volts---This is for a 77, so the 71 may be different. If I am reading the wiring correctly, the coil should have 12 volts supplied to the starter(during start), afterwards, the coil voltage runs thru the ballast resistor to keep the points from failing prematurely.

ignitor insp.jpg


77 fj40 starter wiring1.jpg
