don't know how long this has been broke, but it will be repaired next week. ASAP!

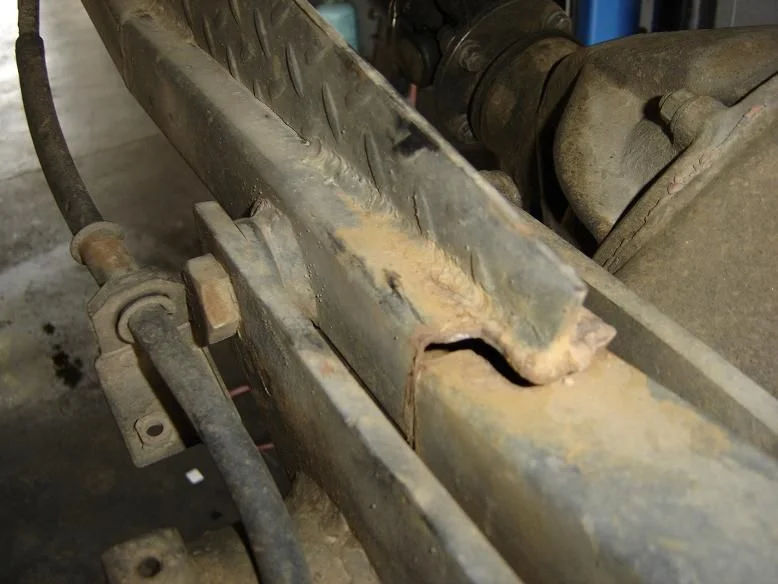

i think the flaw is in the gusset not going past the rear bushing on the axle mount.

oh well



[Dirty White Boy]

Needs more triangulation.



[Josie'sLandCruiser]

Hi All:

It is the failure of that crappy "diamond plate" that was used in this traction bar!



Regards,

Alan



[camcruiser13]

ease up on the throttle big guy



[Cruiserdrew]

Daymmn--You need to find a good welder.


Interesting it broke right at the stress riser at the end of the gussett. Post a pic of the fix, so we all can learn something.



[projektdotnet]

Last time I saw that thing it was on blocks who the heck let you take a break from sliders?



[2badfjs]

QWB.Needs more triangulation
i needed to extend the gusset all the way back past the end mount.
i may add some torsional gussets along the main one.

Q: josie (and the pussy cats) It is the failure of that crappy "diamond plate" that was used in this traction bar!
nope, the lack of extending it. no welds were hurt in the breakage.

Q:cam13. ease up on the throttle big guy
it's cool, everyone has an opinion.

Q:CD. Daymmn--You need to find a good welder
YOU GOT THAT RIGHT! my welder has been pissing me off lately

Qj.net.Last time I saw that thing it was on blocks who the heck let you take a break from sliders?

not on the 40, this is on the 60
40's still in the drive



[D'Animal]

Q:CD. Daymmn--You need to find a good welder
YOU GOT THAT RIGHT! my welder has been pissing me off lately

Doesn't it suck that the labor laws won't let you fire your welder! LOL!



[cruiser88]

Blame it on the dog



[Mace]

ease up on the throttle big guy

Completely the wrong mindset

Yep, failed at the stress riser caused by the gusset. You have plenty of room to plate the sides and reweld the tar out of it. You can also see how it failed right next to the weld, the material around the weld was made brittle because of the welding process.

Good job Jim :laughing:



[2badfjs]

yup, trial and error.

i'll update next week



[projektdotnet]

Qj.net.Last time I saw that thing it was on blocks who the heck let you take a break from sliders?

not on the 40, this is on the 60
40's still in the drive

:whoops: Don't feel bad, both of my 40's are parked in pieces right now too



[bustanutley]

good i'm not alone, ripped my wrap bar off my axle yesterday and popped a pinion as a result. Drove off the trail 5 miles or so in reverse with the motor pinned and overheated it



[D'Animal]

good i'm not alone, ripped my wrap bar off my axle yesterday and popped a pinion as a result. Drove off the trail 5 miles or so in reverse with the motor pinned and overheated it

Been there, done that, at night time. I did not over heat though.



[84CRUISER]

Maybe Slee Can Make You A Good Trac Bar.:d



[Isotel]

What Material was that made of?

mine is 2x2 1/4" wall with no gusset.. but my bushings are not in line like that.. Thats alot of stress at that one point!



[Mace]

Maybe Slee Can Make You A Good Trac Bar.:d

I think Jim has this well in hand



[D'Animal]

Maybe Slee Can Make You A Good Trac Bar.:d

I think Jim has this well in hand

Now that is some funny stuff right there!



[2badfjs]

I think Jim has this well in hand

yup! this should do for awhile



[cody c]

I wonder if a different version of this wrap bar will be in the works for a SROR product? This looks like a bit of R+D to me!
