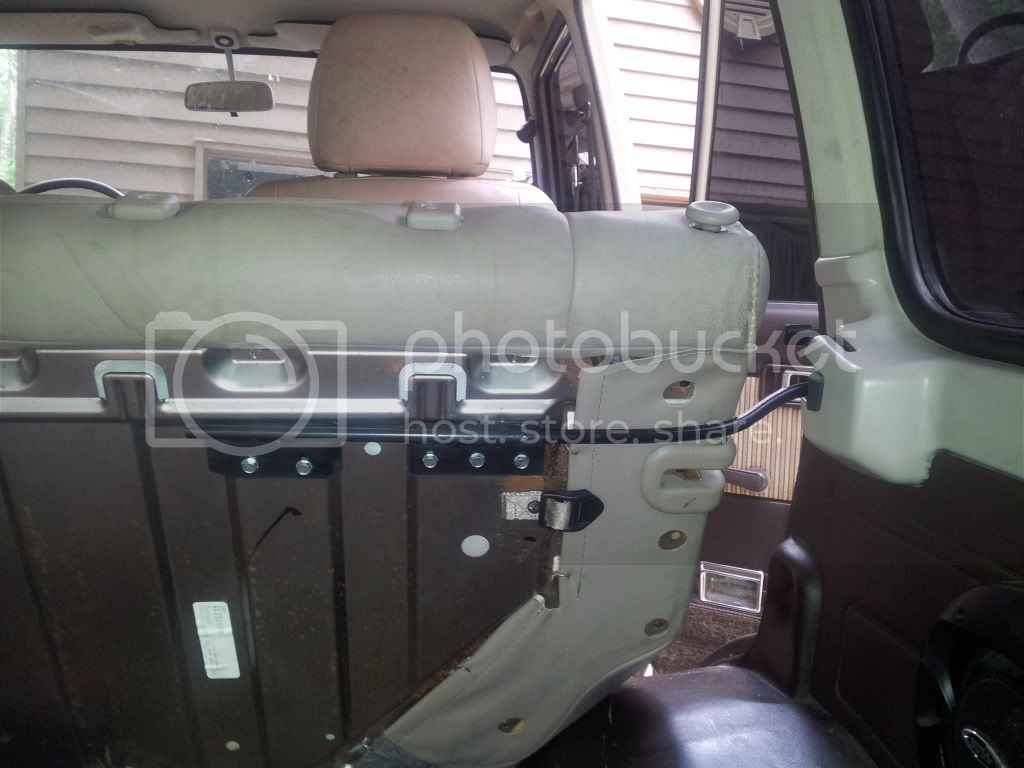

I attached a metal rod the same diameter as the stock toyota one to the back of the seat. It attaches the same way the OEM Toyota one does with the lever on each side. It works out great so that you can fold it flat to extend the cargo space.

I worked on it some this morning but I only had a little time before work, I will take some more pictures tommorow.

......

Joined
Mar 29, 2013
Messages
33
Location
Jacksonville, Fl
Sorry for the delay on updates. I have been working on the truck and have not had a chance to post lately. I normally post when I am working during down time, and I just got done with a five day off cycle. Anyway on to the updates...

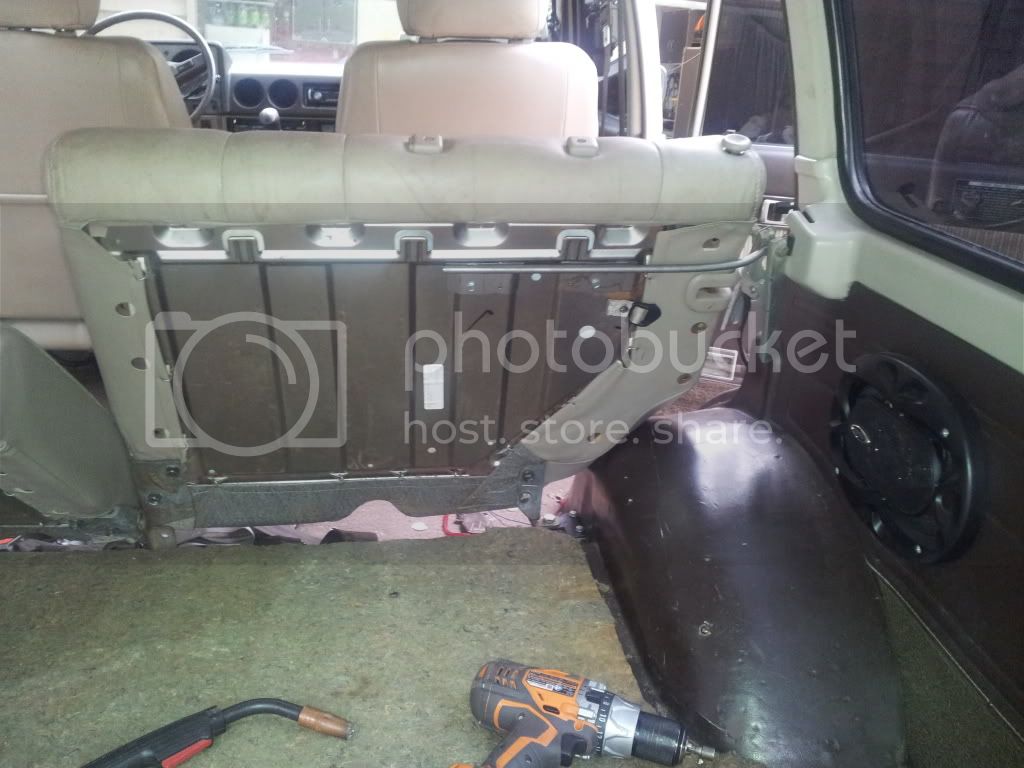

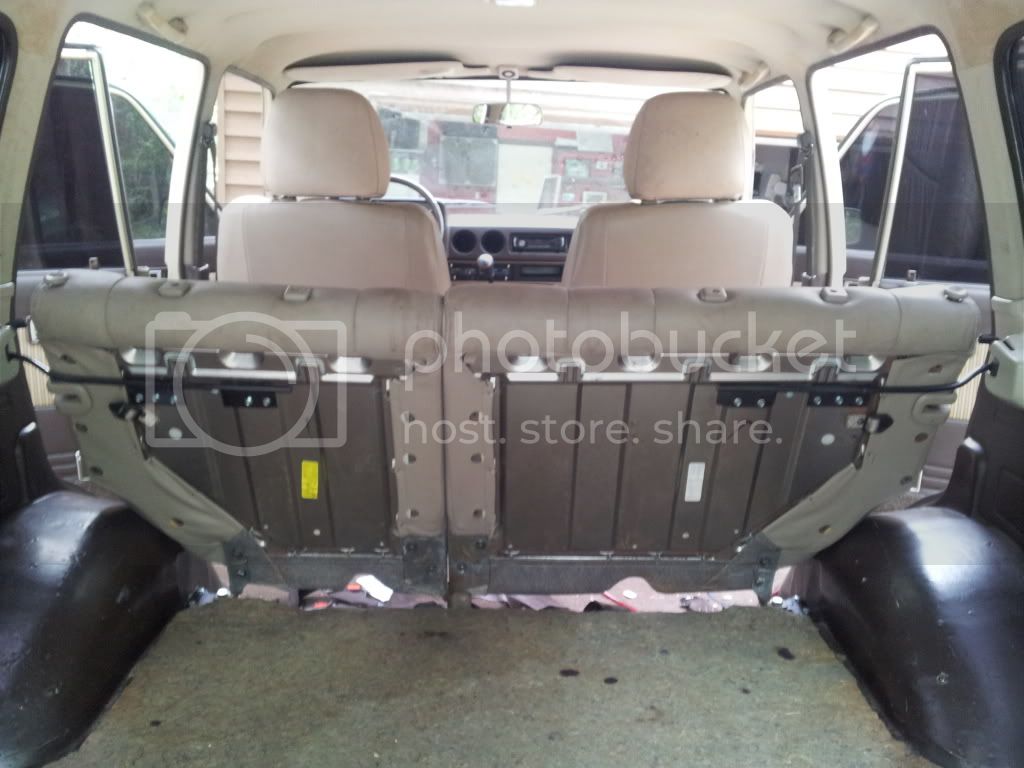

The brackets that mount the seat backs to the factory Cruiser latches is basically a thick metal rod that is the same diameter as the factory piece. I bent the rod into a s or z shape and welded it to two small rectangular brackets. I attached the brackets to the back of the Rodeo seats and tacked them while in the car. I then took them up and welded them up solid outside the Cruiser.






Joined
Mar 29, 2013
Messages
33
Location
Jacksonville, Fl
You may notice that the Rodeo seats are a little narrower then the Cruiser's seats. There is approximatly a 2 inch gap on either side, but it looks fine IMHO.

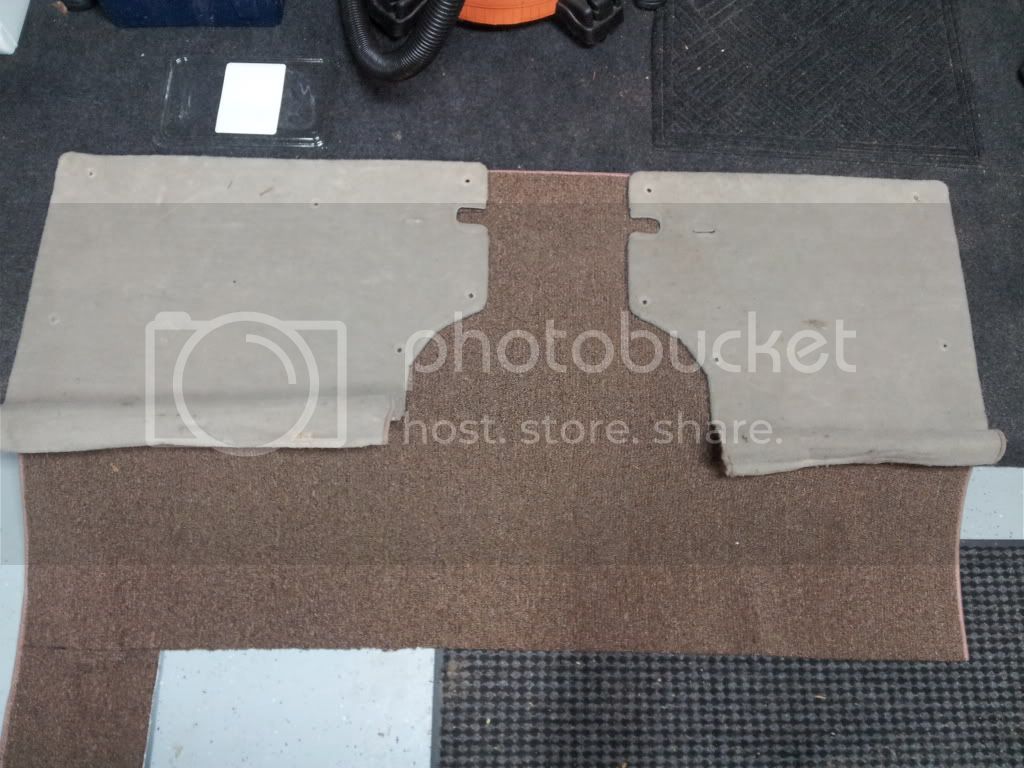

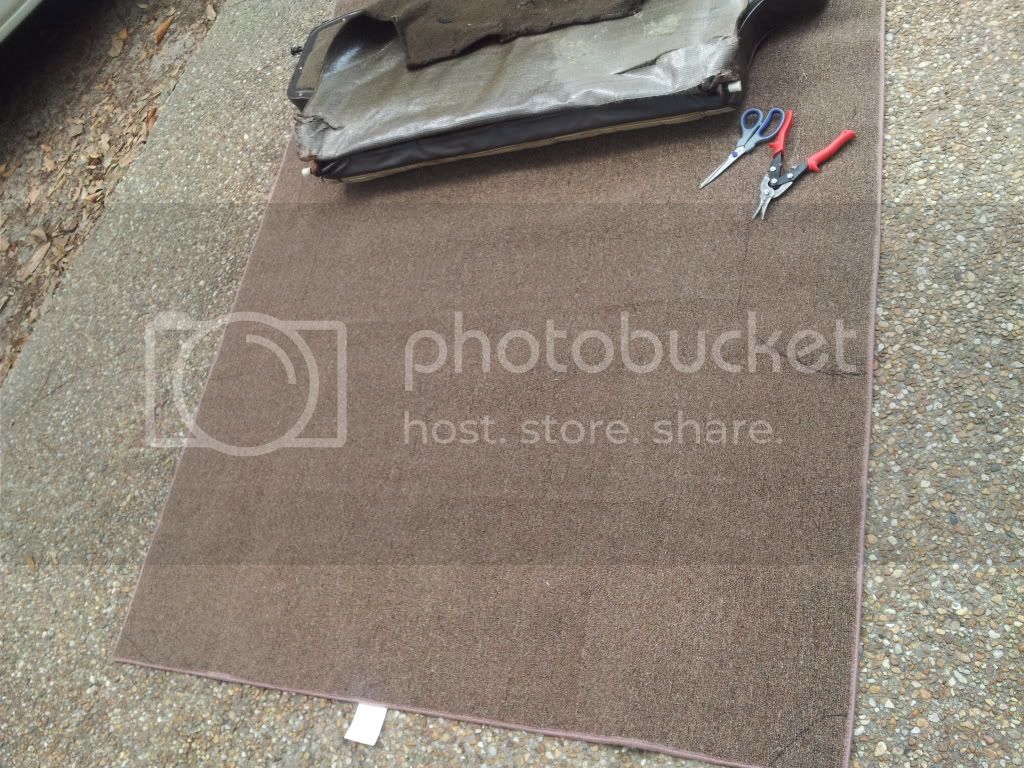

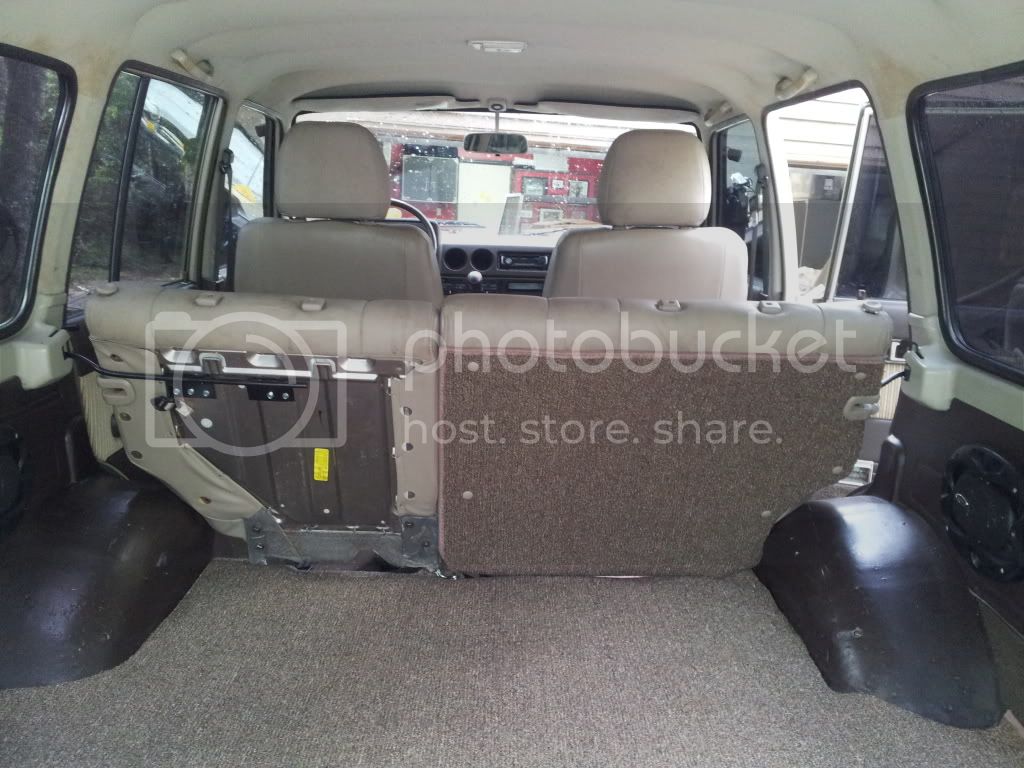

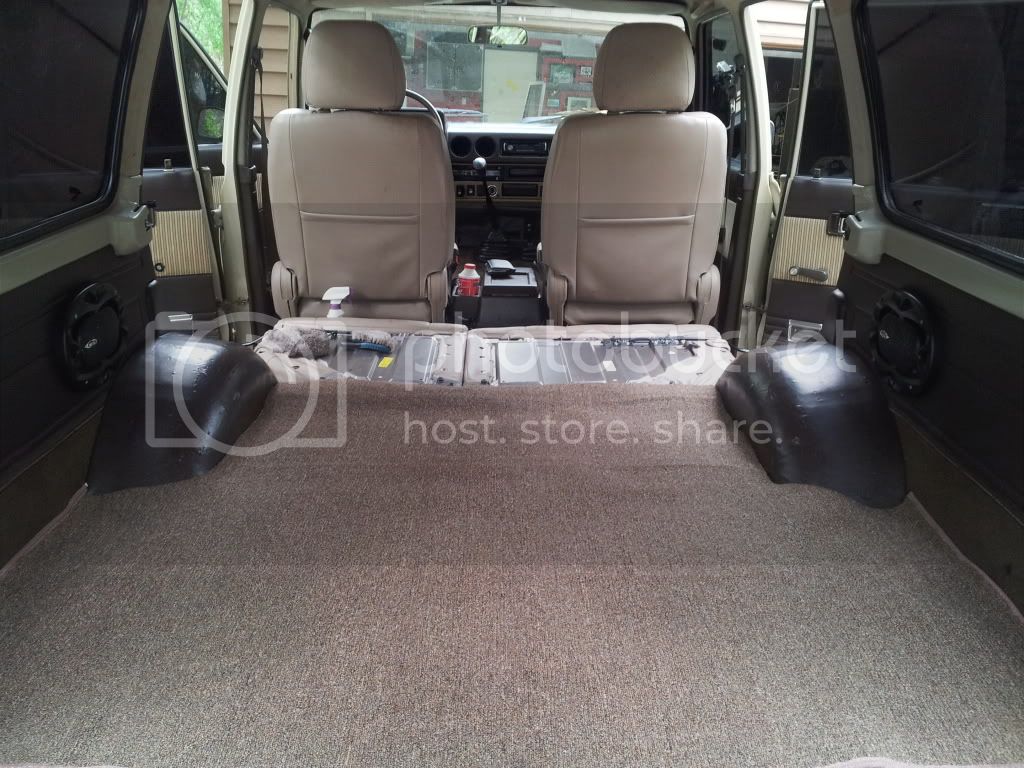

While I was working in the back of the truck I took the time to replace my wore out trunk carpet. I went to Lowes and bought a rug for $20.00. I put it on the ground and traced the outline of my old carpet. I then used some tin snips to cut it to shape.

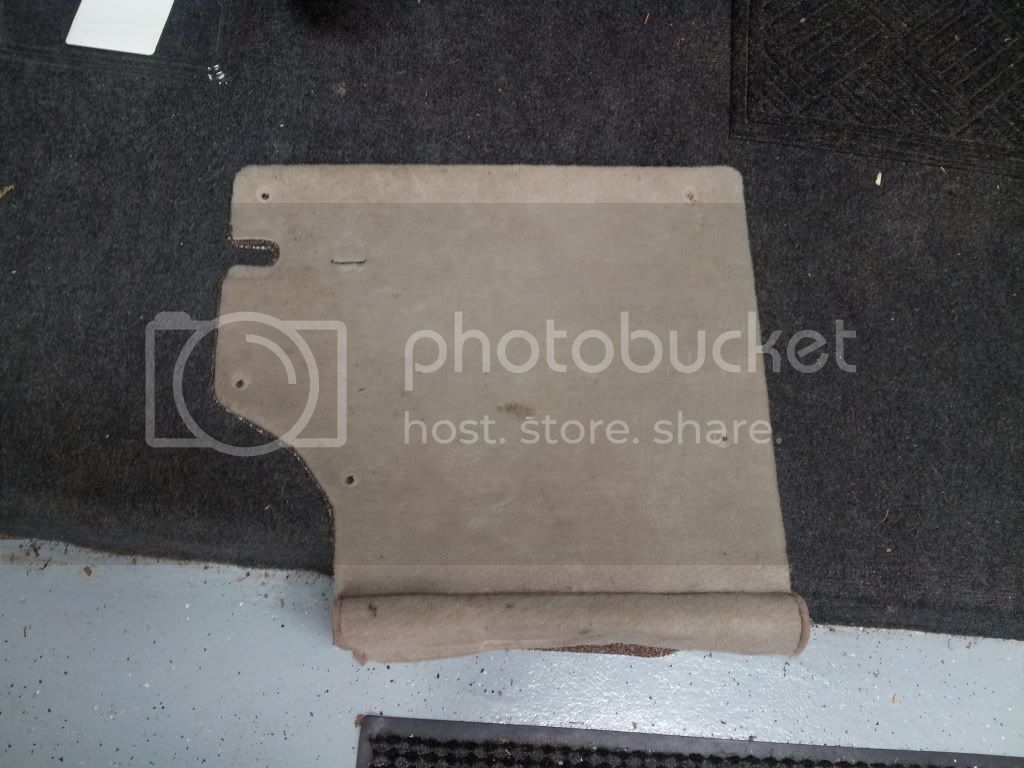

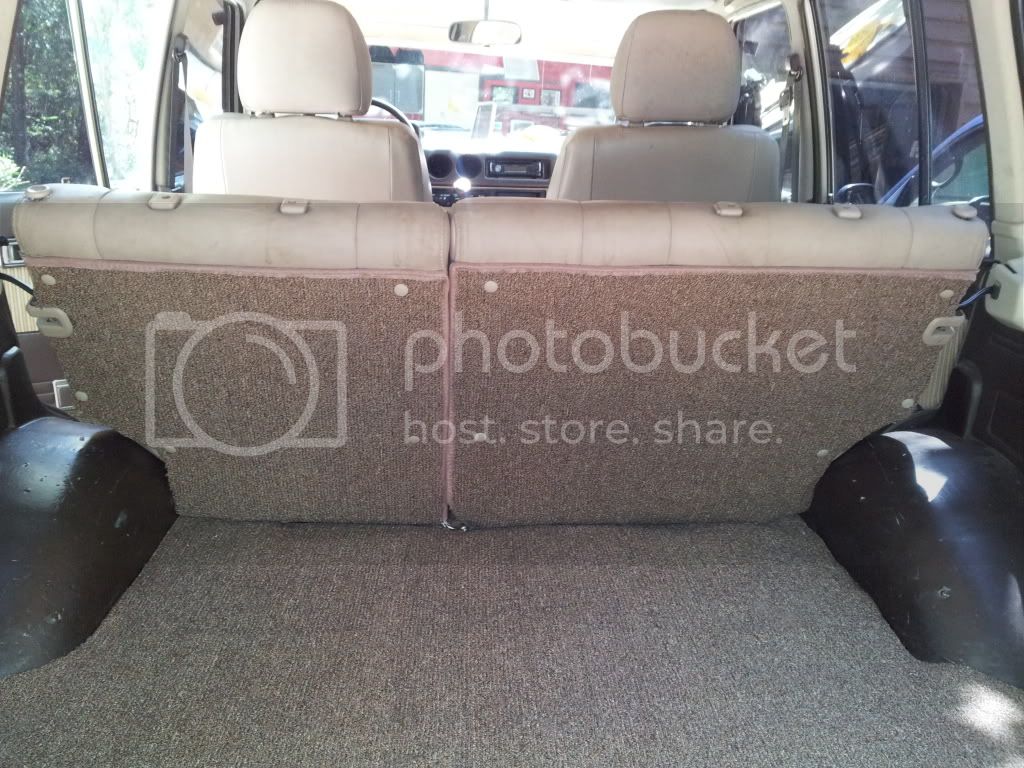

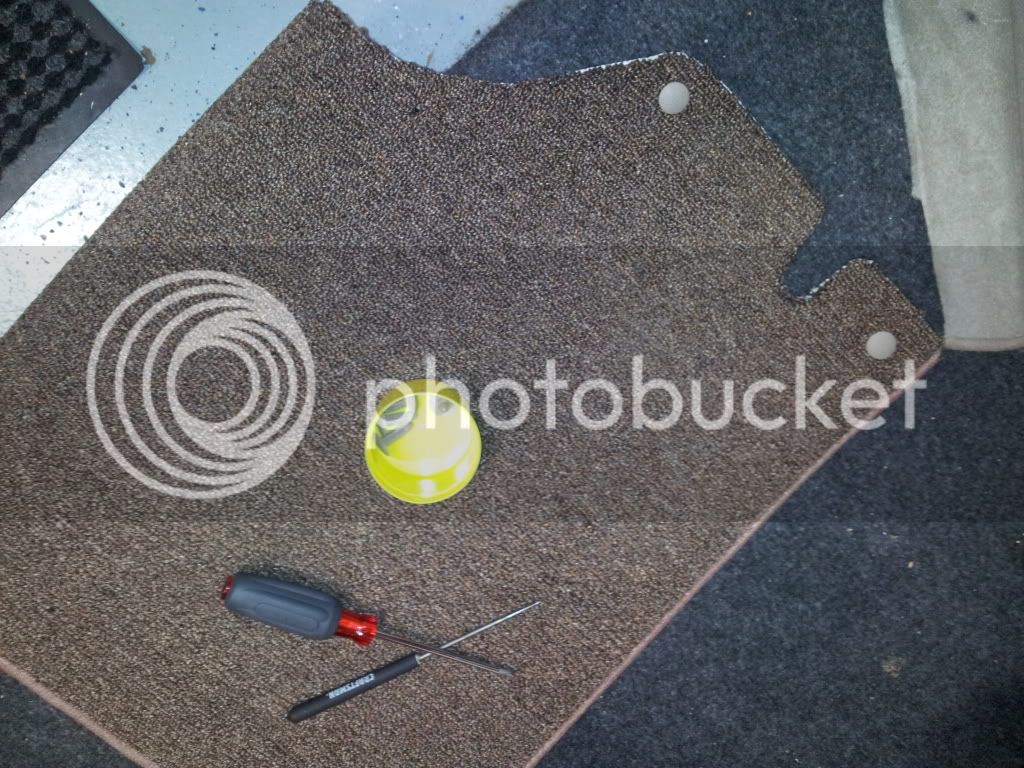

I did the same thing with the left over rug and the stock Rodeo seat back trim.

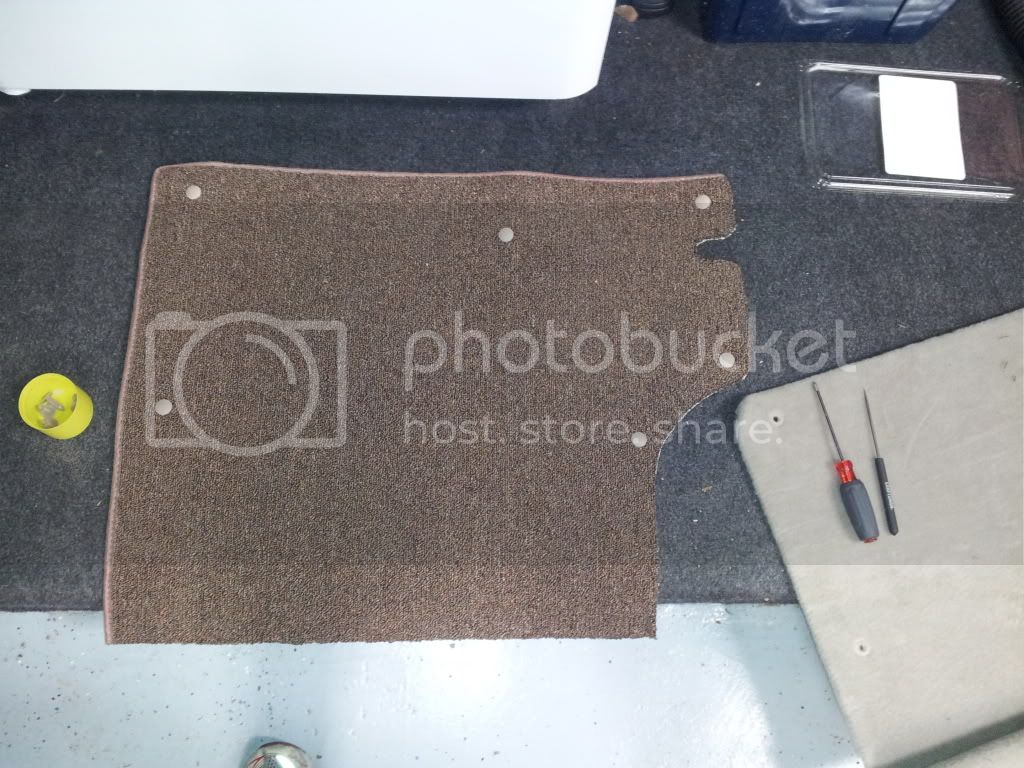

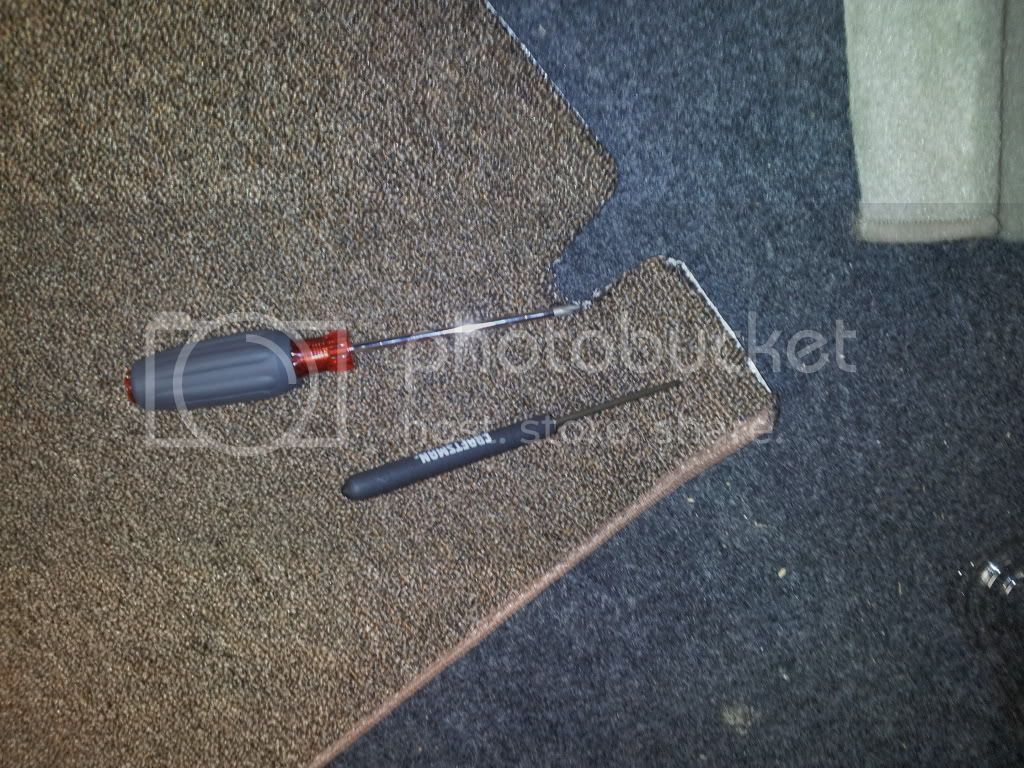

I used an ice pick and a screw driver to punch holes for the stock plastic clips.













SNLC

OCD
Supporting Vendor
Joined
Sep 9, 2004
Messages
7,509
Location
Boise - Idaho
Looks pretty good, especially the color for your brown interior.

The only comment I have is the back is a little low. Taller than stock but not much. My complaint about stock seats (had some restuffed ones) is that the back is to low. On long drives my upper back and shoulders wasn't all that happy.

Cheers

Joined
Mar 29, 2013
Messages
33
Location
Jacksonville, Fl
The seats are taller then the stock rears by about an inch. I had the stock bottom seat in for awhile and the rears from the Rodeo would not fold flat with it in place. I am still working on the bottoms and I am hoping that I can keep the ability to fold the seat. It is looking like it should still fold flat but at the moment I still have some work to do.

So far the rears have been pretty easy to install. I had to make three small brackets in addition to the rods that hold the rear seat backs. So far everything has bolted into the stock Cruiser attachment points so I can go back to stock easily.

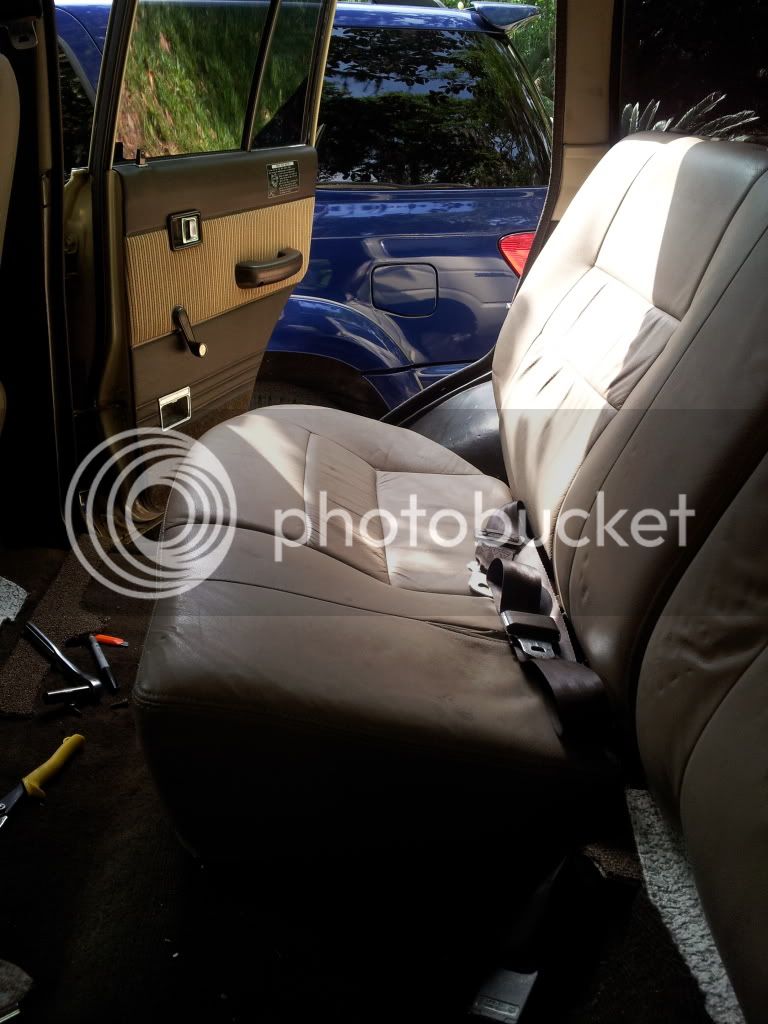

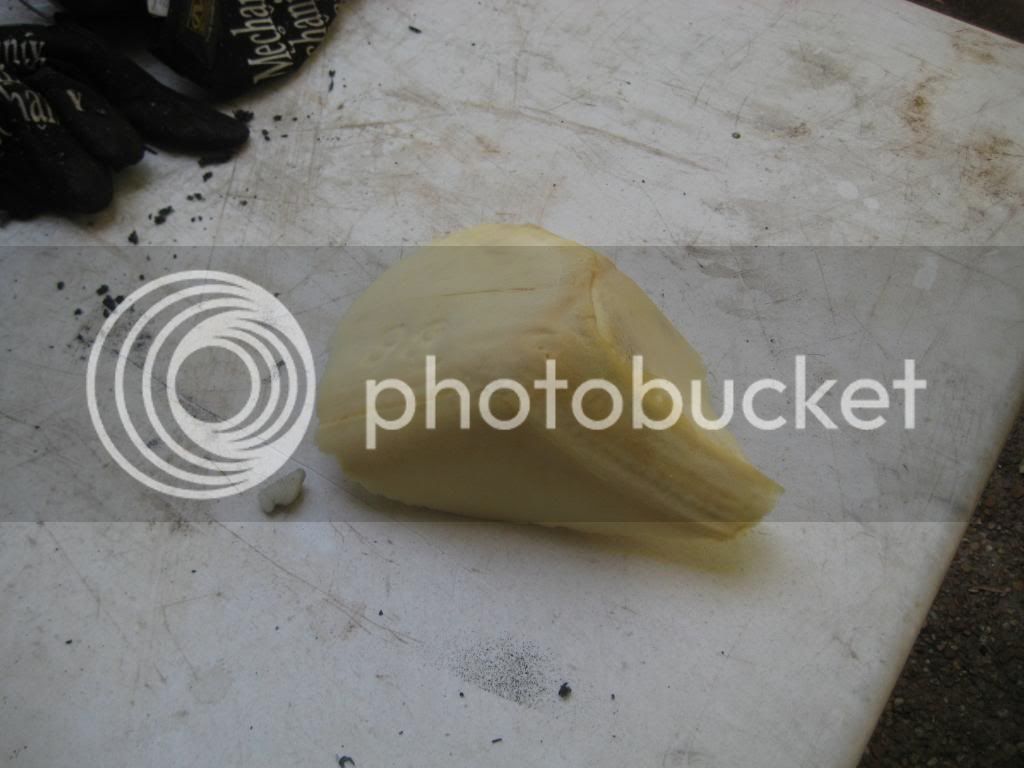

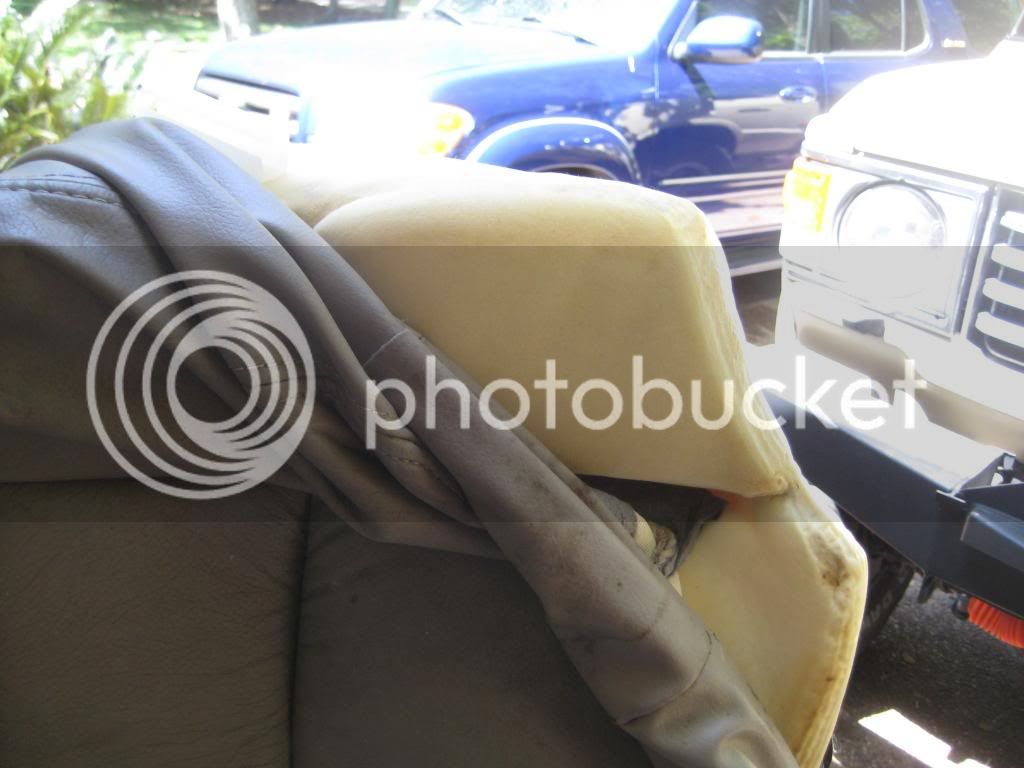

The seat bottom in the back has been the most labor intensive part of the install to this point. I had to trim a small portion of foam from the edge to get the contour to fit the cruiser wheel well. I also had to cut out a small piece of plastic from the bottom. It is coming along nicely and I hope to have it finished soon.

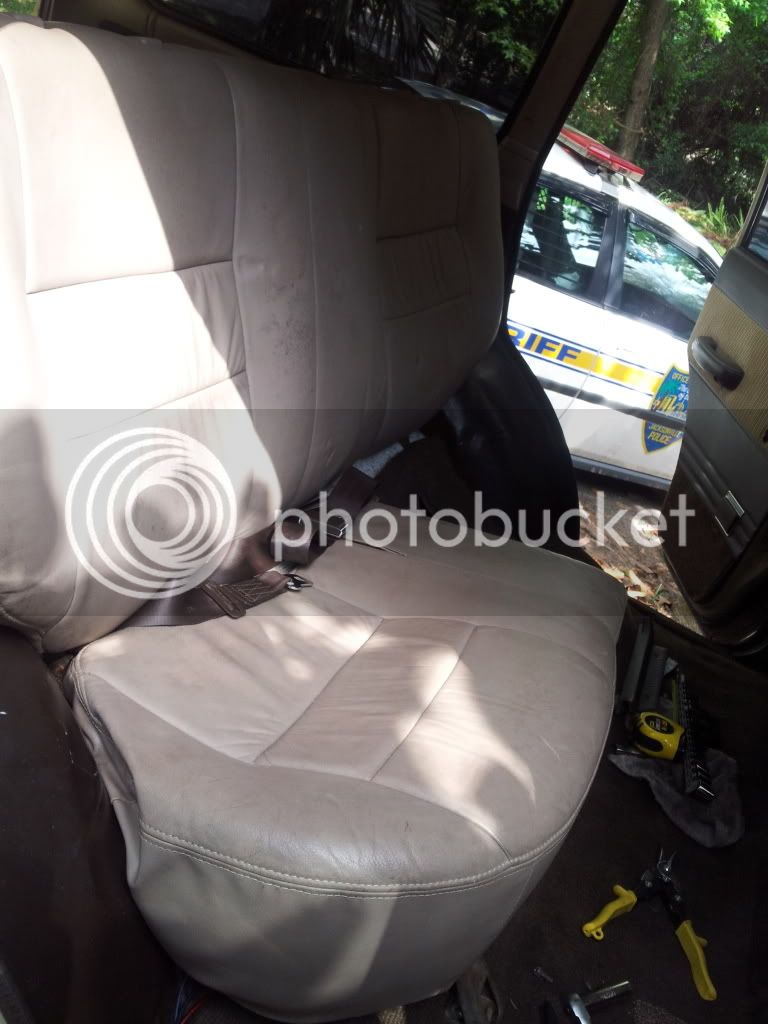

Notice the edge of the seat where it butts up to the fender liner. I am not 100% happy with this. Once I get the other seat in the truck I will look into cutting and sewing the upholstery tight right here.

I have been thinking about the door panels and have a pretty good idea how to make them match the seats for cheap. I will keep you all posted.

Speaking of cheap I have roughly $140 in the entire interior upgrade at this point. The seats were $100.00, the rug was $21.00, I spent $13.00 on weldable steel at Lowes, $6.00 on two trailer connectors and I bought roughly $3.00 worth of bolts / washers / etc...

Last edited:
Joined
Mar 23, 2010
Messages
70
Location
KCMO
Looks awesome! Did the seat portion of the rear bench use the stock flip down hinge? Have you tried to see if it will lay flat? It looks like they're bolted in.....I love the idea of a spilt bench....

Joined
Sep 14, 2009
Messages
2,737
Location
Medford, Oregon.
I see the "sherriff" has arrived to question you about your "shady dealings" and to look at your glock! When you tell him the seats were only $100 he's gonna know you're lying- and probably guilty of "other" crimes!! :D

You've done a great job there. :cheers:

Joined
Mar 29, 2013
Messages
33
Location
Jacksonville, Fl
I see the "sherriff" has arrived to question you about your "shady dealings" and to look at your glock! When you tell him the seats were only $100 he's gonna know you're lying- and probably guilty of "other" crimes!! :D

I hope not...

Thats actually my daily driver :cool:
Its a great perk having a take home car, with free gas. (so what if I have to help an ocassional motorist off duty)...

Joined
Mar 29, 2013
Messages
33
Location
Jacksonville, Fl
Looks awesome! Did the seat portion of the rear bench use the stock flip down hinge? Have you tried to see if it will lay flat? It looks like they're bolted in.....I love the idea of a spilt bench....

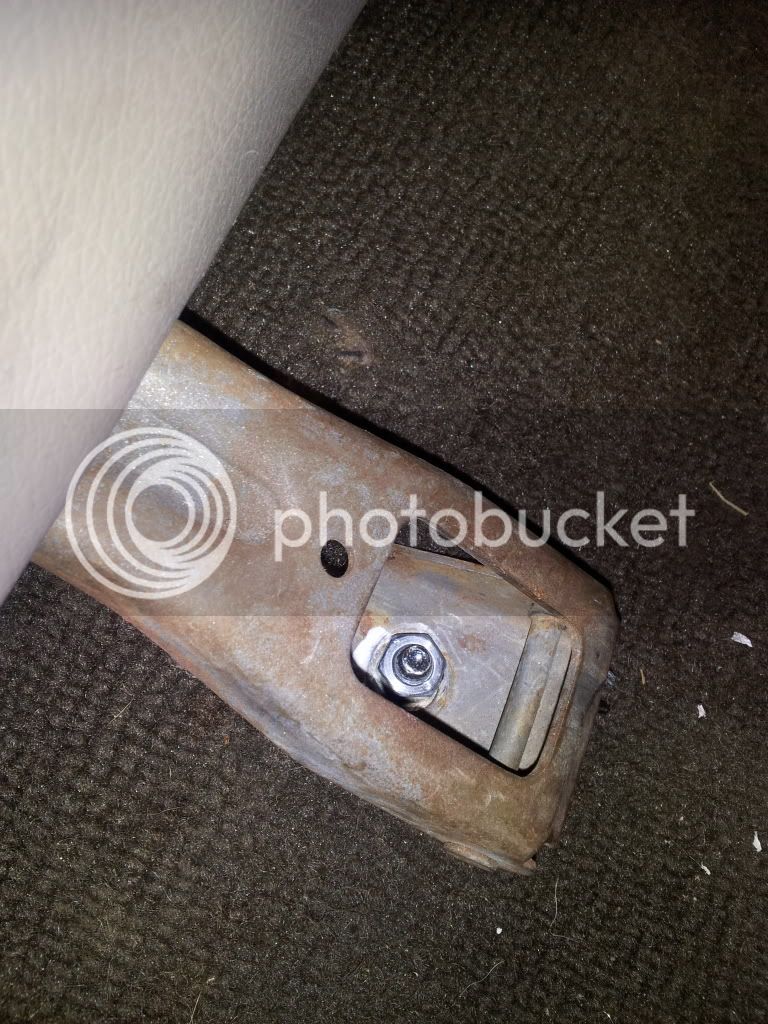

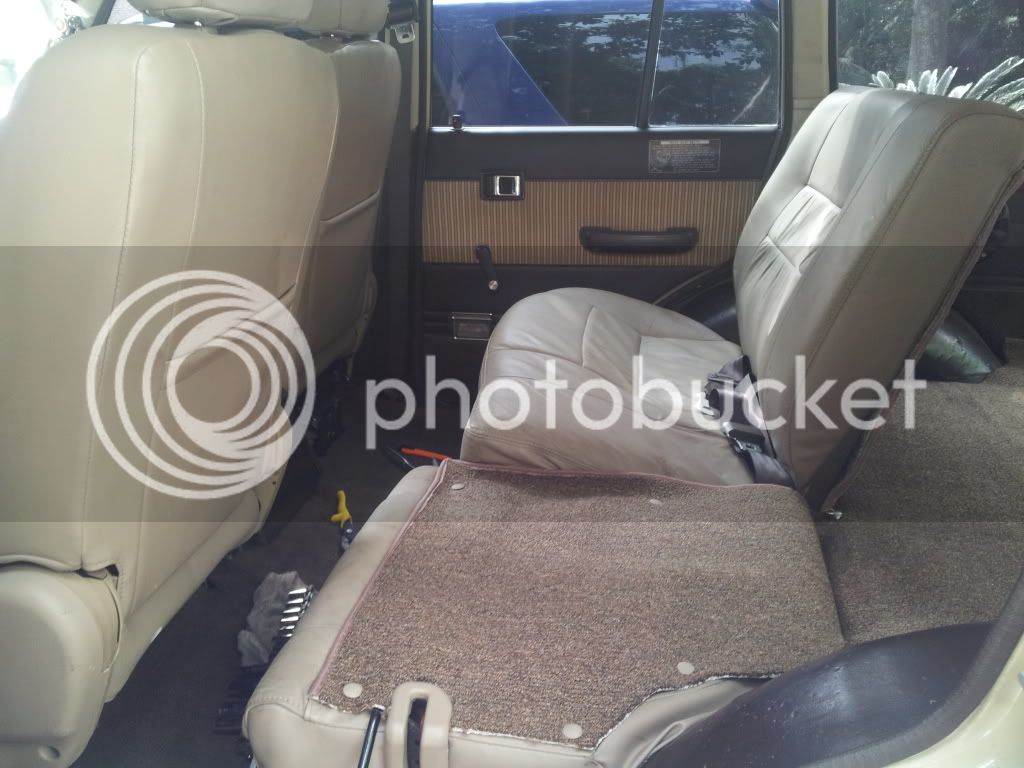

I initially planed to use the stock hinge, however I didn't want to damage any of the stock cruiser parts in case I decided to go back to stock. The hinge in the picture is the stock Rodeo piece. It does allow the seat to flip forward but it has a little tab that limits its movement. The tab has a date with my grinder in the near future so I will have to wait and see if flipping forward option will work 100%. Wose case the bottom can be easily removed with a 13mm socket.

Joined
Oct 11, 2008
Messages
856
Location
Tucson, AZ
Updates on back seat?

Wondering if you've had any time to finish that, and if the seats when folded flat are able to clear the front seats, etc.

Been loving this, and been looking for a Rodeo/Passport that has a tan leather interior at the yards.

Glenn in Tucson

Joined
Oct 11, 2008
Messages
856
Location
Tucson, AZ
2001 Rodeo works as well - install report

Got the front pair installed. I would recommend that whatever donor vehicle you pull it out of, get the connector for the power seat if it has one. I thought they were both manual, much to my surprise when I got them home. I fabbed up a temp power cable froma 12v connector to the cig lighter and a couple of spade ends. I don't want or need to adjust it all that often, but I can plug it in if I so desire.

Using a step-bit, I wallowed out the tabs - I had to bend the front set down a little to match the LC mounting, but that was the extent of mods. Used the original 14mm bolts front and rear - you will need a box end wrench for the rear two - I didn't have enough room to ge a socket. Plenty of clearance for the rear heater and tool kit, btw.

Note when wallowing out the holes - put some sort of shield (cardboard worked) or you will have hot little bits of metal attempting to melt into your seat. The set I got are fabric, so after the first one, I learned to put something in the way. No terrible damage, and its underneath, so who cares....but only on the one side underneath. :)

It does change the entry angle to the LC a bit (5'10 and I still walloped my skull on the door frame first time) but the headroom is fine once you're in. It does sit a bit higher, probably even more than you would think due to saggy 30 year old seats. Wife like the passenger seat. I'll have to fab up brackets for the rear set split bench, but thats probably next weekend.

Had to move my ammo can console over a lit to allow for the seat belt on the passenger side, but not so much as to interfere with the brake handle. All in all, a pretty easy mod.

Search for Rodeo/Amigo/Passport in the salvage yards as they appear to all be the same setup. YMMV.
