Broken leaf spring

Godwin

Resident Herpetologist
SILVER Star
Joined
Dec 4, 2004
Messages
5,733
Location
Alabama

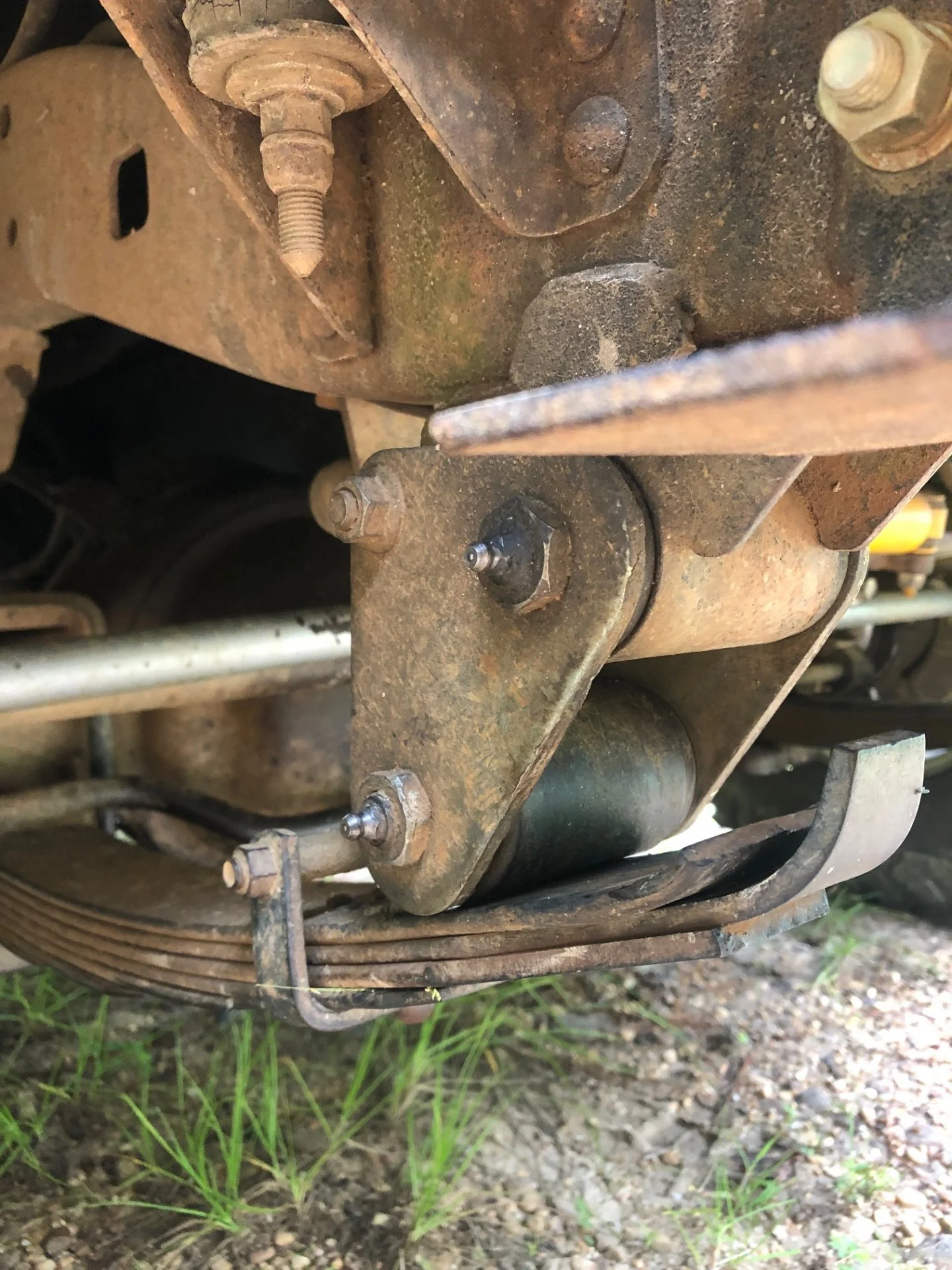

@cruiserinsanity since getting his license last year has taken over driving one of our FJ60s. During this past year we swapped on a set of used OME heavy springs I pulled from my FJ60. Springs had > 200k miles on them but appeared good and delivered a nice ride. They have been well used in a variety of non-pavement situations. Two weeks ago he noticed a front spring was broken; he'd put about 100 miles on it like this. I swapped out both fronts today.

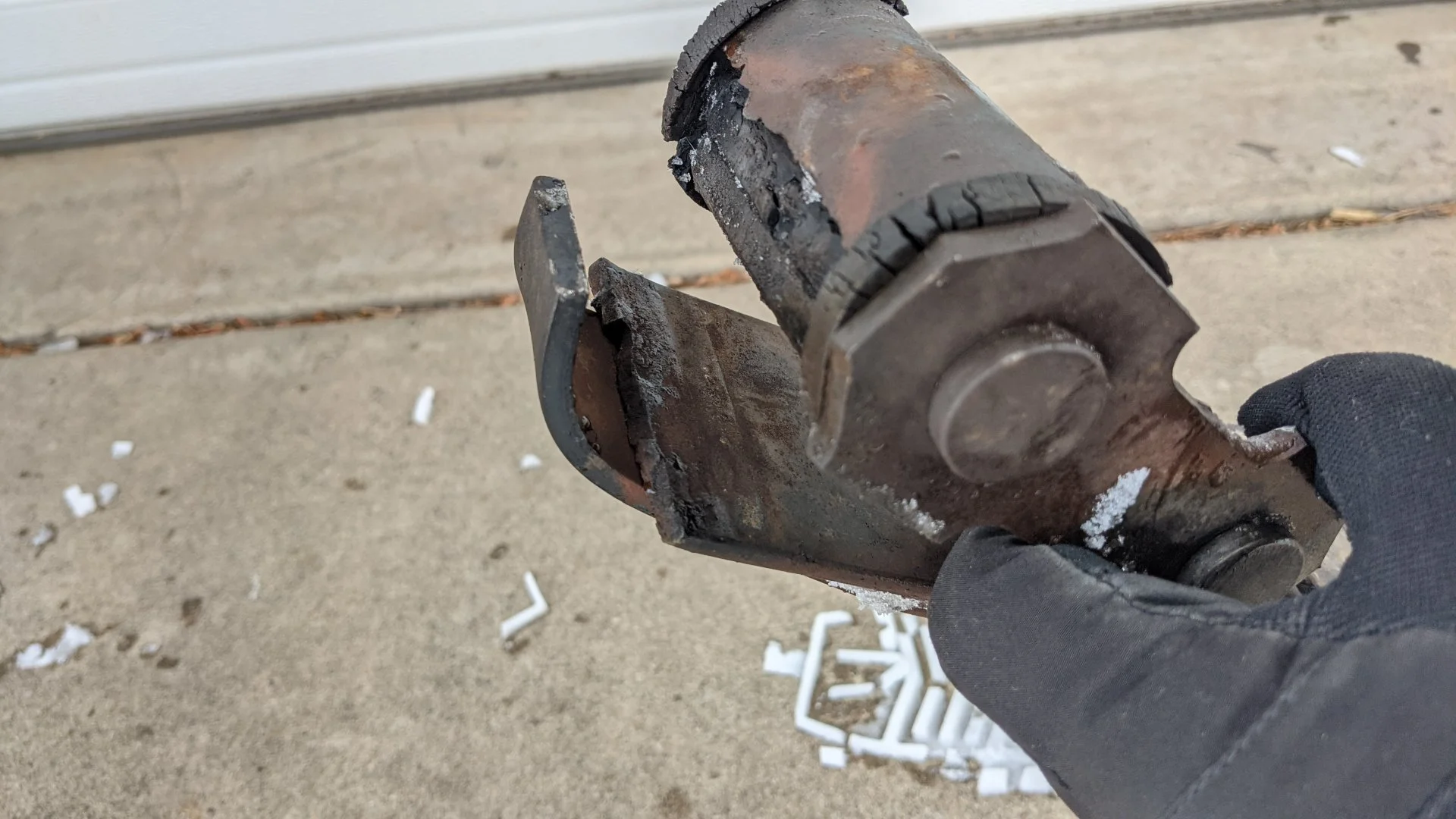

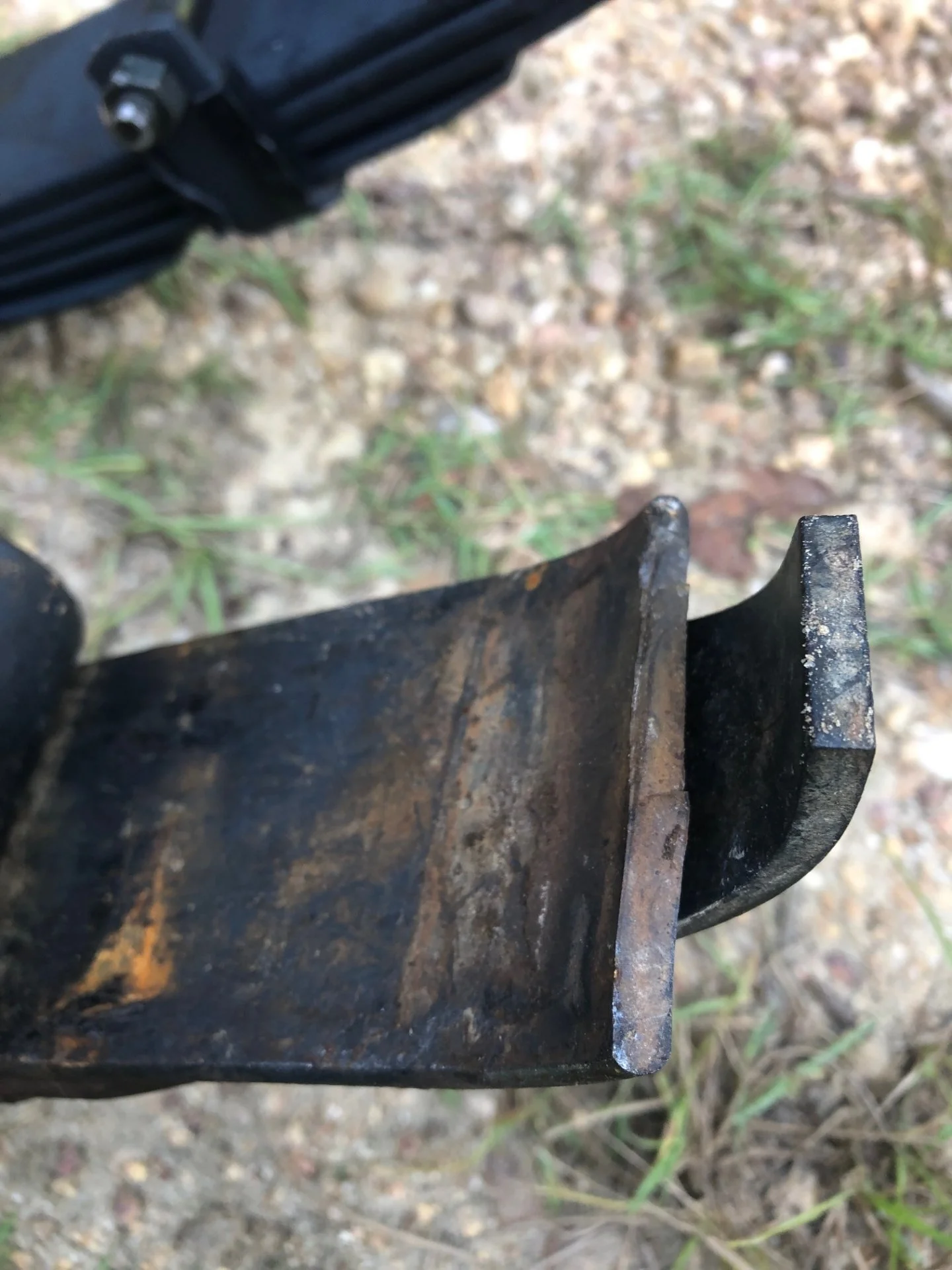

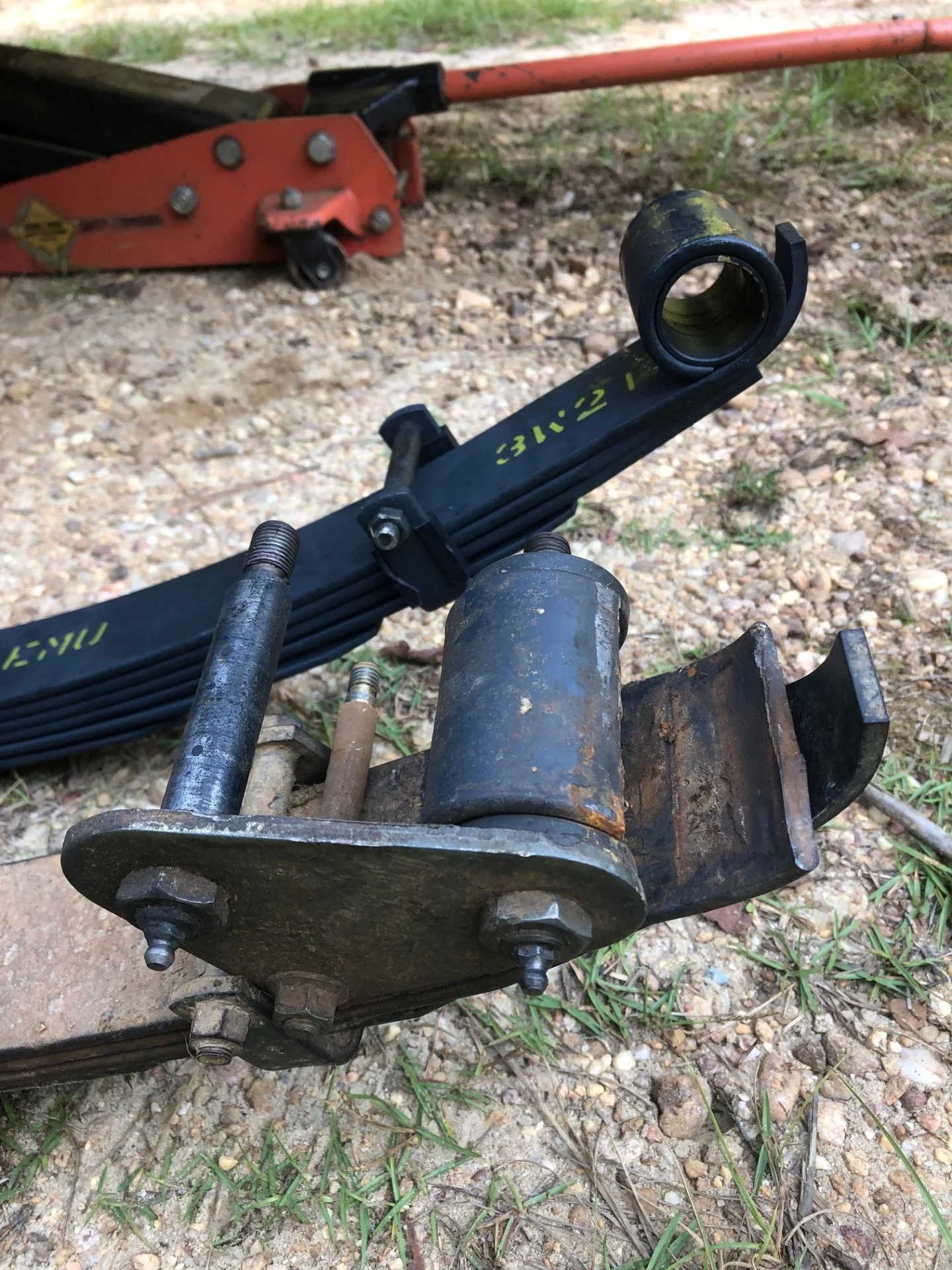

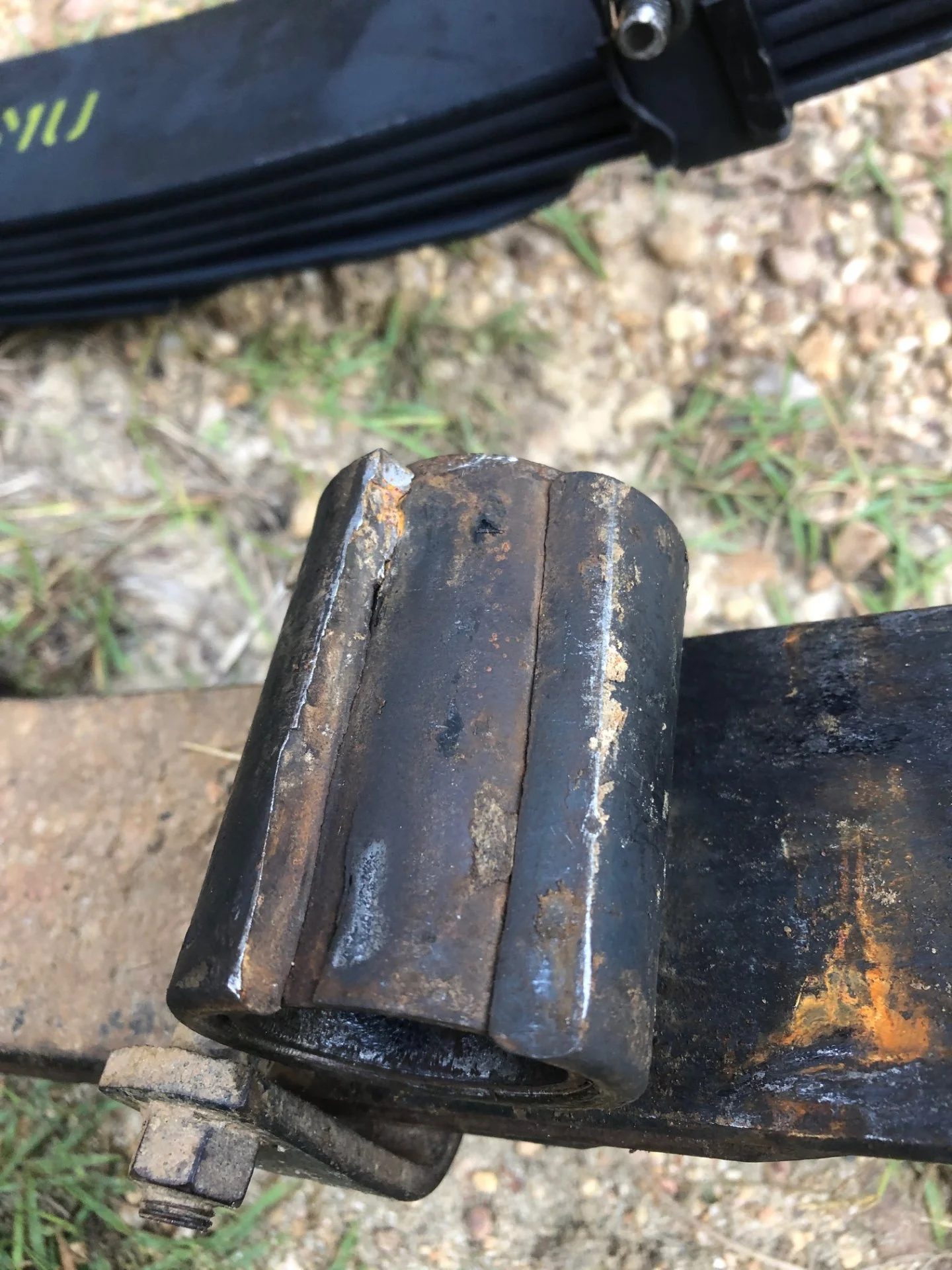

The broken eyelet came off with the shackle and it was pain separating the eyelet from the shackle . You can also see the broken edge and that this has been fatiguing for some time.



MoaByte

SILVER Star
Joined
Dec 13, 2014
Messages
1,732
Location
Moab
This is why the military wrap goes on the pinned end.
My stock spring broke there the first time I took it on a trail after I bought it in 2014. OME to the rescue.

Joined
May 28, 2017
Messages
867
Location
in the woods
you swapped out? there's your problem :flipoff2: h3ll, he's driving it, he should fix it.
ok, i'm off my soapbox. so other than a broken spring, how's things man?

Joined
Aug 4, 2017
Messages
480
Location
Colorado
My original spring was broken in the same way. It was stable enough so it never "unseated" itself like yours. It wasn't until I replaced the suspension that I discovered the spring was not connected to the shackle anymore!



OSS

SILVER Star
Joined
Jun 30, 2017
Messages
3,896
Location
Oblivion
I had a broken rear spring. One leaf snapped a few inches away from the wrap. Like yours, the break was rusted — so it was a stress crack from long ago that finally weakened it to the point where it failed.


HemiAlex

Long live the 2F
Supporting Vendor
GOLD Star
Joined
Sep 28, 2015
Messages
3,049
Location
Houston
Website
yotaoilfilters.com
That’s a fatigue crack terminated by a shear overload.

That worked its way out over a long time. It shouldn’t break, that’s a result of poor metallurgy and a manufacturing inclusion.

It would worry me more if it was a clean and fresh overload with no rust on the fracture.

A simple can of dye penetrant and contrast paint could have picked up that crack forming.

Joined
Mar 4, 2016
Messages
2,108
Location
Boulder, Co
I saw a video yesterday showing a standard brake drum from a Silverado that sheered off at the 90 degree point where it goes from the hub to the braking surface. Apparently it only drove a few miles before it shattered and sheered off. It was likely over torqued, but should never have sheered off. It seems like a lot of metallurgy problems are laying it wait for us in the future as general manufacturing is increasingly becoming crummier and crummier. Be ware.


3_puppies

SILVER Star
Joined
Dec 2, 2002
Messages
15,523
Location
Helena MT

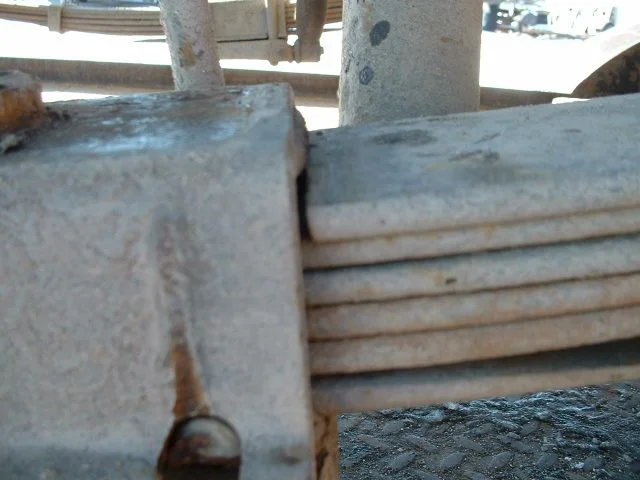

I had pics of a broken leaf, similar place but the driver side on a 60 I was parting out, maybe 12 years ago
I had pics on mud, not sure I can find them.

found the thread:
