8274 / Albright / 5 pin Remote

[ASO544]

I did a search and found a few threads but not one I think explained my setup. I just bought an Albright Contactor and need to figure out the proper wiring

I have white, brown, green, black , and red wires in my remote harness.

Any help or link to a thread I missed will be greatly appreciated



[1911]

Warn 5 Pin socket wiring New and Old colors wiring Albright - https://forum.ih8mud.com/threads/warn-5-pin-socket-wiring-new-and-old-colors-wiring-albright.1251396/

Wiring an 8274 + Albright - https://forum.ih8mud.com/threads/wiring-an-8274-albright.485518/page-9#post-15215819



[ASO544]

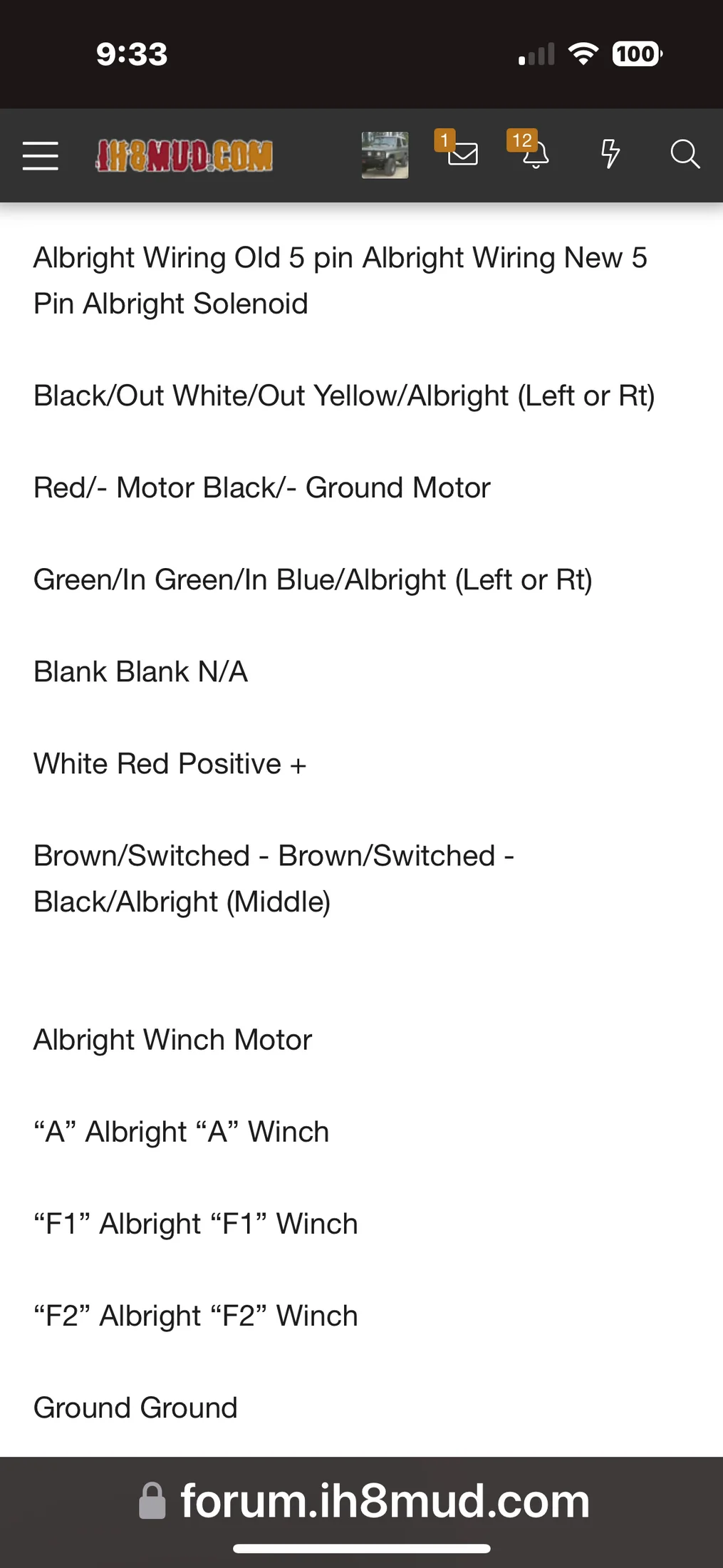

So does this look correct … since mine will stay the same color from remote plug to contactor



[ASO544]

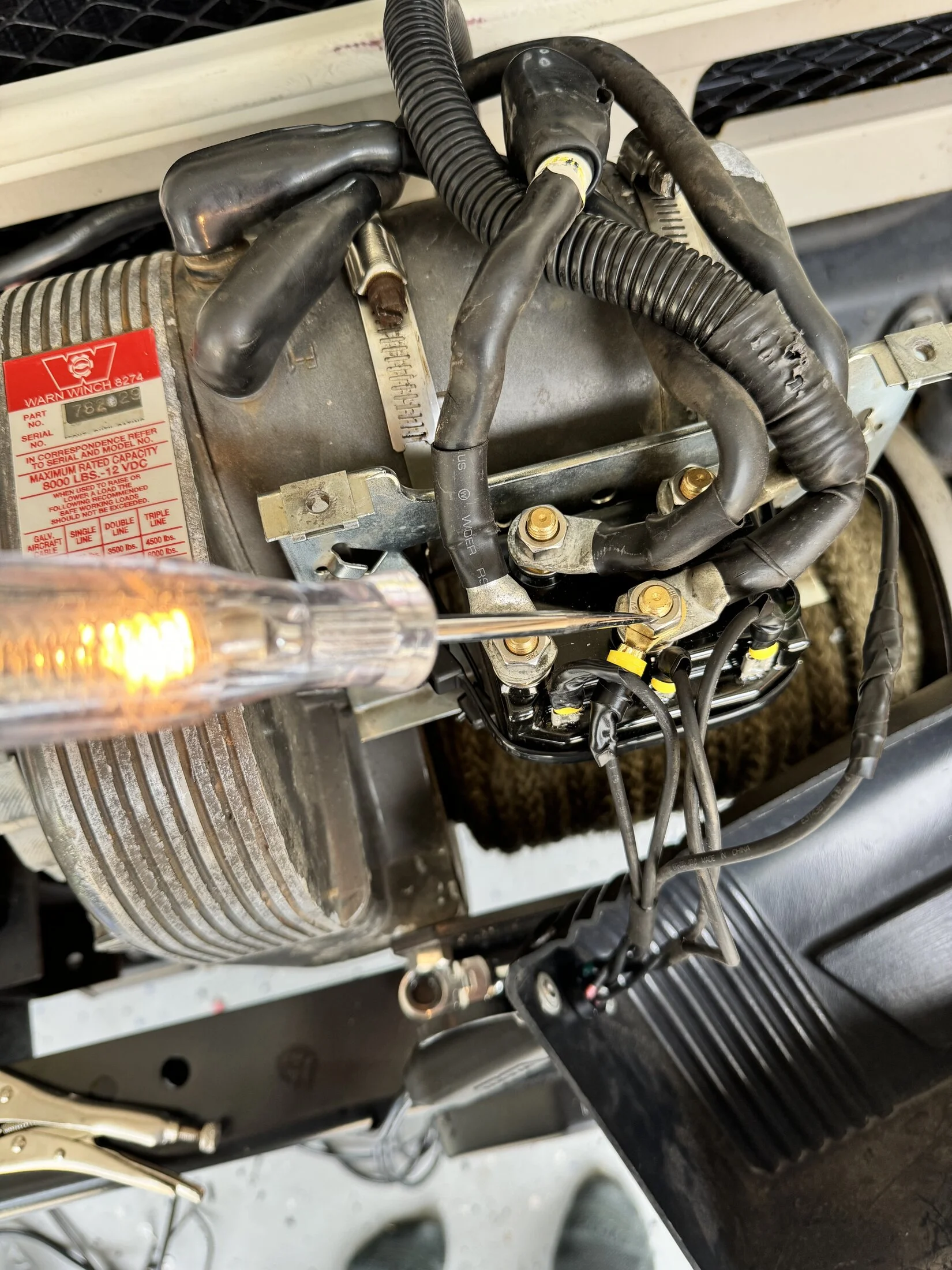

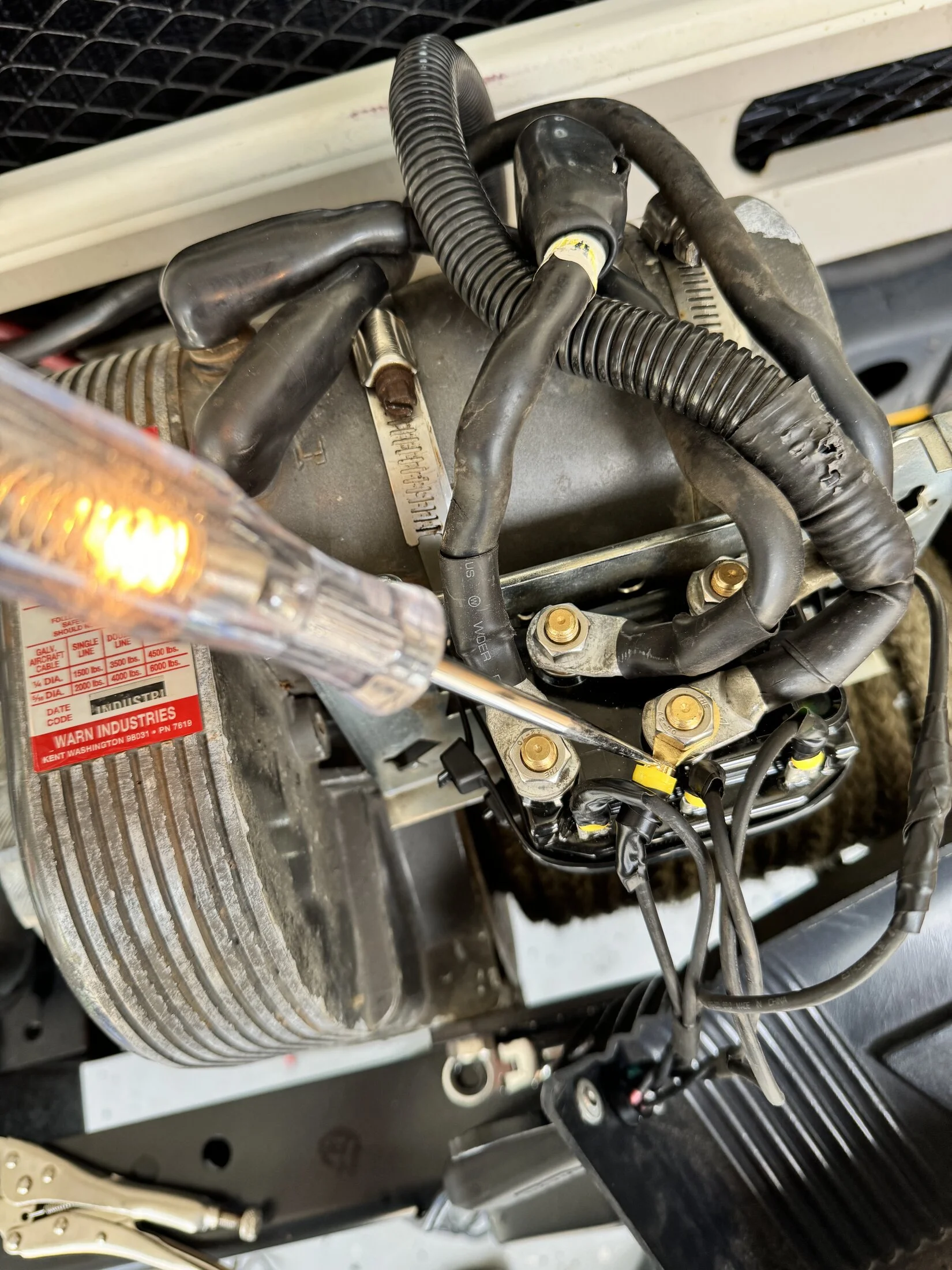

Ok… tried this but got no results other than power on center front post of contractor … tried the remote but no in or out movement would happen or clicking. This was temporary wiring till I got the right setup then I’ll heat shrink it all.



[gnob]

your colors don't match the diagram.
what needs to be happening is the two outer spades are switched power. so figure out which two have continuity to power in either switched position.
ground loops back through the switch as well. although not really necessary. same though in thst ground should show in either switched positions as well.

frankly the remotes that aren't 3 wire are dumb and redundant to save people from themselves.



[ASO544]

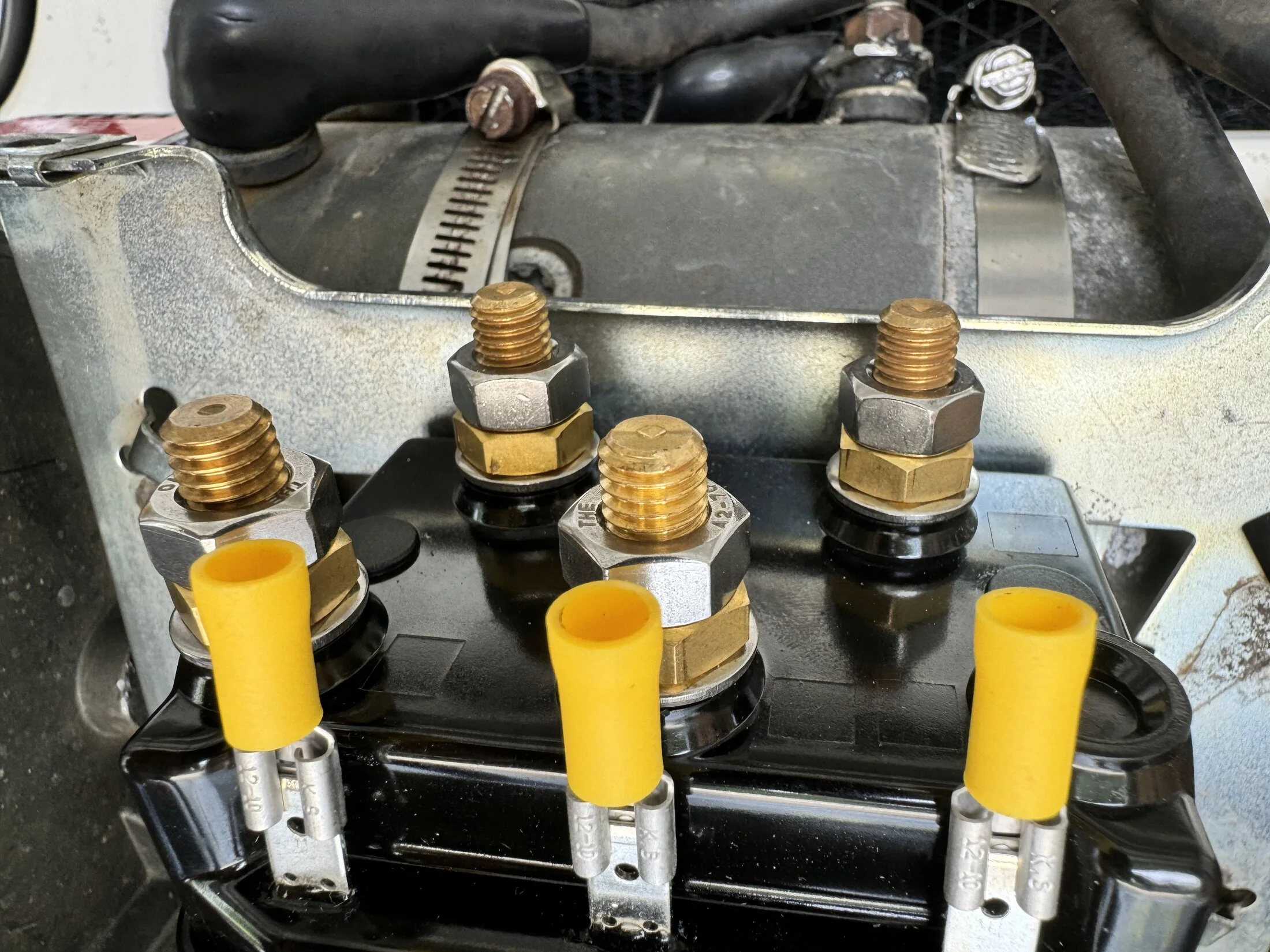

I’m looking to see where I’m not run correctly but don’t see it …. Now my Albright didn’t come with any color wires for the spades so that’s why I went with the colors from the control plug.

Black - R Spade
Brown - C Spade
Green - L Spade
Red -,Winch Motor Ground
White - Front Center Terminal ( + )

A - Front L Terminal
F2 - Rear L Terminal
F1 - Rear R Terminal
Battery Positive - Front center Terminal
Battery Negative - winch Motor



[gnob]

the colors don't match the diagram. therefore they are irrelevant.
what would you do if they were all the same color?



[ASO544]

got it fixed… thanks guys !!!!



[gnob]

what ended up being the issue?



[ASO544]

Colors are the wires from the Warn 5 pin socket plug to the Albright Solenoid

White - R Spade
Brown - C Spade
Green - L Spade
Black - Winch Motor Ground
Red Front Center Terminal ( + )

A - Front L Terminal
F2 - Rear L Terminal
F1 - Rear R Terminal
Battery Positive - Front Center Terminal
Battery Negative - Winch Motor

Runs perfect and strong



[tornadoalleycruiser]

This might help others when they search. I had a heck of a time finding any solid thread with schematics when I wired mine. Oops saw someone linked my thread above already. I was digging out some 8274's from the storage bin anyway so I'll go read my old thread.

Thread 'Warn 5 Pin socket wiring New and Old colors wiring Albright' Warn 5 Pin socket wiring New and Old colors wiring Albright - https://forum.ih8mud.com/threads/warn-5-pin-socket-wiring-new-and-old-colors-wiring-albright.1251396/
