2F serial number info...

Poser

Oh...Durka Durka Durka.
s-Moderator
Supporting Vendor


Joined
Oct 1, 2003
Messages
20,450
Location
MN
If you have an original 2F in your 40 or 55, please post up your engine serial number, and the month/year of your truck build and the vin if you would. I am trying to complie 2F year data.



I will be posting this up in the 60 section as well.



Thank you for your help! :beer:



-Steve

Last edited:

Mace

rock scientist..
Staff member
s-Moderator



Joined
Feb 17, 2002
Messages
21,541
Location
Las Vegas
12-78 2F 333422 FJ40-296348
early 85 2F 860452

Last edited:
Joined
Jan 22, 2003
Messages
8,118
Location
Kansastitty

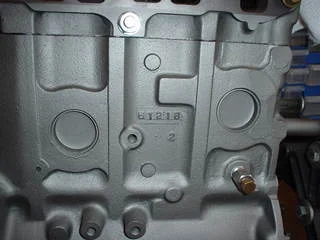

Here's min, Steve. According to Jim C it was cast on 12-18 of '76. If'n you want the serial # you can have that, too. Here it is: 2F 138687

Ed


Uh Oh, I fawked up....not an orginal motor. Well, original, but not to my truck.
Sorry
2F 016.jpg

Last edited:

Poser

Oh...Durka Durka Durka.
s-Moderator
Supporting Vendor


Joined
Oct 1, 2003
Messages
20,450
Location
MN
The engine serial number is stamped into the block on a little flat area right by the starter motor.... :)


Blue60


Joined
Mar 16, 2003
Messages
615
Info request...

2/79 FJ40 USA

Engine #2F347599

Frame #FJ40307805


Pin_Head




Joined
Feb 6, 2002
Messages
14,977
Location
OC, CA
My 2F is a '79 and up, but it has no serial number on the block. It hasn't been ground off, like a midnight auto parts job. Never been stamped with a serial. What's up with that? Replacement engine?


Poser

Oh...Durka Durka Durka.
s-Moderator
Supporting Vendor


Joined
Oct 1, 2003
Messages
20,450
Location
MN
Anyone else?


subzali


Joined
Jan 31, 2005
Messages
3,605
Location
Denver CO
October '76 FJ40
2F119577 Engine Serial Number
60930 Engine Casting Date (9/30/76)
61031 Head Casting Date (10/31/76)
FJ40233589 VIN and Frame Number

I would be surprised if the engine's been switched, but I don't know for certain.

Last edited:

FJ40Jim

The Cruiser Whisperer


Joined
Sep 26, 2003
Messages
10,676
Location
Lancaster, Ohio, USA
Pin_Head said:
My 2F is a '79 and up, but it has no serial number on the block. It hasn't been ground off, like a midnight auto parts job. Never been stamped with a serial. What's up with that? Replacement engine?
Yes, a service replacement block.
Lucky dog, you got a brand new engine from Toyota somewhere along the line.


Poser

Oh...Durka Durka Durka.
s-Moderator
Supporting Vendor


Joined
Oct 1, 2003
Messages
20,450
Location
MN
THANK YOU FOLKS!!!


Anyone else?


FJ40Jim

The Cruiser Whisperer


Joined
Sep 26, 2003
Messages
10,676
Location
Lancaster, Ohio, USA
Poser,
The engine date is cast on the driver's side of the block. See Degnol's post for a pic and de-coding. With Toyota's JIT production, the engine cast date (and carb date, t-case date, and R&P date...) never varies by more than a few days from vehicle build date.

The date is also cast on top of the cylinder head, easier to see on a fully dressed engine. But heads can be swapped from engine to engine, so...


casey

-=-=-=-=-
SILVER Star
Joined
Jun 16, 2004
Messages
190
Location
Austin, TX
I don't know the history of my 40 but here's what I've got.

Jan 78
267747

2F 236731

Joined
Apr 30, 2005
Messages
256
Location
Down South
12/76 Date on the vin plate

Block# 2F 138579
Frame # 239609

I don't think the engine has been swapped, but can't be 100% sure.

Joined
Oct 8, 2005
Messages
27
Location
Trenton, NJ
OK, somebody out there has to have something close to this. I'm told it's a 1981, 2F 528558. Does that look about right, I couldn't find anything close in the post or on the SOR site.
