1997 Collector's Edition - Full stock exhaust replacement.

[jwilliams]

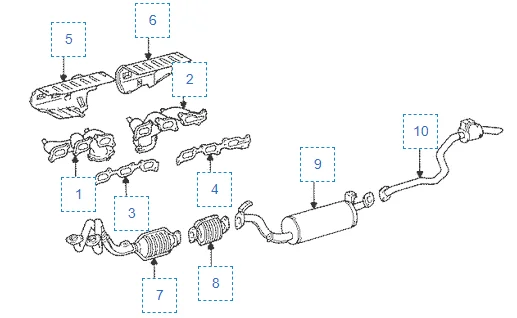

I will be installing a full new stock exhaust system on my 1997 CE in the near future. I had saved my pennies and I now have both cats (7&8), muffler (9), and resonator tailpipe (10).

I am having trouble findings threads that I thought I had book marked, addressing all the other parts I will need to bolt this up to the manifolds. I think there are gaskets at each joint that I need and the mounts too. Does anyone have the factory part numbers for the rest of the parts I need to do a full replacement?



[WarDamnEagle]

17400	CONVERTER ASSY, W/CATALYST
18450-66120		1	€ 845.64
17400B	RETAINER, EXHAUST PIPE
18495-76010		1	€ 16.17
17410	PIPE ASSY, EXHAUST, FRONT
17401-66090		1	€ 1,015.38
17410A	NUT, EXHAUST PIPE SET STUD BOLT
90179-10070		4	€ 1.77
17410B	GASKET, EXHAUST PIPE
90917-06065		2	€ 10.88

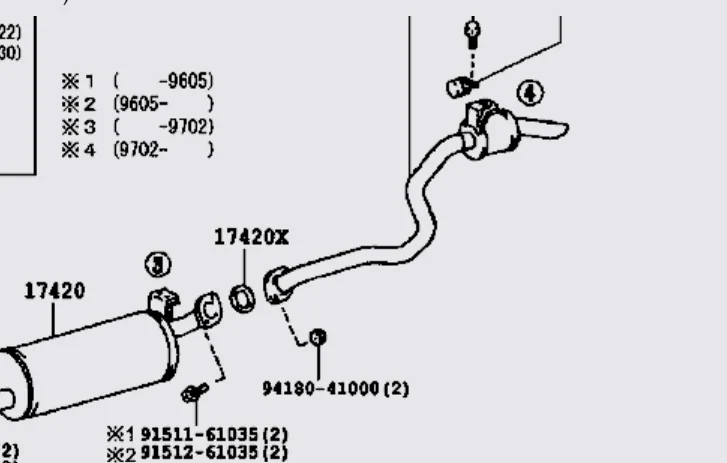

17420	PIPE ASSY, EXHAUST, CENTER
17403-66041		1	€ 498.56
17420X	GASKET, EXHAUST PIPE, CENTER
90917-06076		1	€ 11.15
17430	PIPE ASSY, EXHAUST, TAIL
17405-66010		1	€ 293.66
17430B	CUSHION, EXHAUST TAIL PIPE(FOR FRONT)
17567-17010		1	€ 20.79
17430G	CUSHION, EXHAUST TAIL PIPE(FOR CENTER)
17567-17010		1	€ 20.79
17430S	BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17574-61080		1	€ 39.43
17430T	CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17567-17010		1	€ 20.79
17451	GASKET, EXHAUST PIPE
90917-06043	FRONT	1	€ 11.02
90917-06076	REAR	1	€ 11.15
17572	BRACKET, EXHAUST PIPE NO.1 SUPPORT
17571-61211		1	€ 111.23
17572B	BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-66050		1	€ 42.43
17573A	BRACKET, EXHAUST PIPE SUPPORT, NO.3
17573-61060		1	€ 61.81
17581A	DAMPER, EXHAUST PIPE
17581-70080		1	€ 80.88
90105-10388	*** STD. PART		€ 1.13
90119-08701	*** STD. PART		€ 1.20
90119-08862	*** STD. PART		€ 2.75
90179-06007	*** STD. PART		€ 1.03
91511-61035	*** STD. PART		€ 1.34
91512-61035	*** STD. PART		€ 1.16
91621-60835	*** STD. PART		€ 1.03
91651-41020	*** STD. PART		€ 1.73
91651-60830	*** STD. PART		€ 1.94
94180-41000	*** STD. PART		€ 1.77

Ignore the prices; they don't mean anything.



[Godwin]

I will be installing a full new stock exhaust system on my 1997 CE in the near future. I had saved my pennies and I now have both cats (7&8), muffler (9), and resonator tailpipe (10).
View attachment 3755622
I am having trouble findings threads that I thought I had book marked, addressing all the other parts I will need to bolt this up to the manifolds. I think there are gaskets at each joint that I need and the mounts too. Does anyone have the factory part numbers for the rest of the parts I need to do a full replacement?

Partsouq has diagrams with all the parts, part numbers, and if you want you can order through them

https://partsouq.com/en/catalog/genuine/unit?c=Toyota&ssd=%24%2AKwFSZndgJAMcJTAMHi96BwoePjknVllUVUdZaxtDEkVaQzxGFRVIQltXGh4UDwB5TAkDCAJFWlBKRl9eT0JbRFZXUVRGFRVCDkNcRVFWU1wKAgkdHxAOBCEdRlBDCVpDMC4uQ0pGUEQJWkMsM1MpLFwMfRw2UVdfUFFTURsbCQMCRF1CVl9VDQMbQk1ECgNDXEZ_bWFYUSpKJy82IXJ2CUxDAA4EQ1xWRAAAAACPeX4X%24&vid=0&cid=1&uid=415820&q=jt3hj85j7v0180055
