Hello—my 71 fj40 came without a fan shroud. I had another which I -thought- was from a 71 but when installed the fan would not clear it. Does anyone have a pic of the correct shroud for a 71? Or have an extra one they’d want to sell me, lol. Thanks!
1971 fj40 fan shroud question—
- Thread starter kpfoten
- Start date
This site may earn a commission from merchant affiliate
links, including eBay, Amazon, Skimlinks, and others.

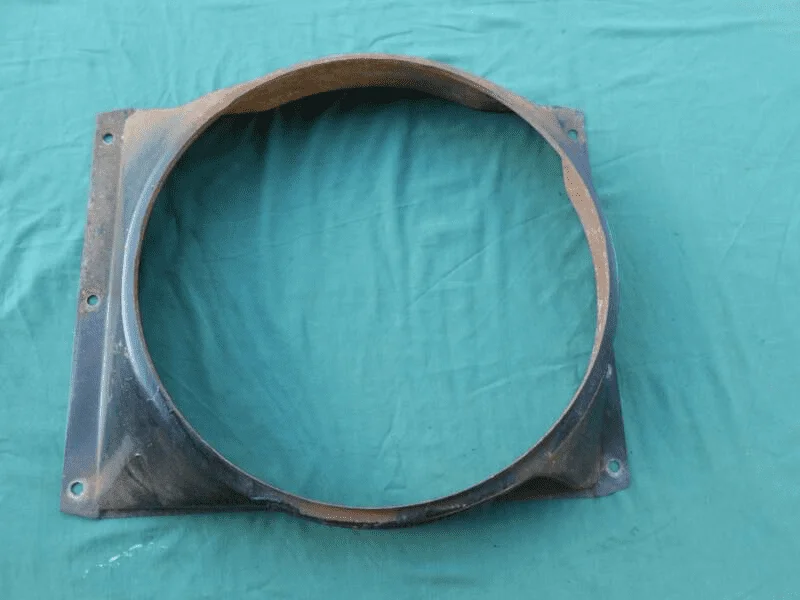

The "F" shroud is very boxy where the 2F is formed with more rounded lines. Are you sure it's the wrong shroud or do you have
the wrong fan
1971 fan
the wrong fan
- Thread starter
- #3
No I think I have the wrong shroud. I’ll get a photo of it and post. Don’t know which year it’s from!
- Thread starter
- #5
Thanks!
- Thread starter
- #6

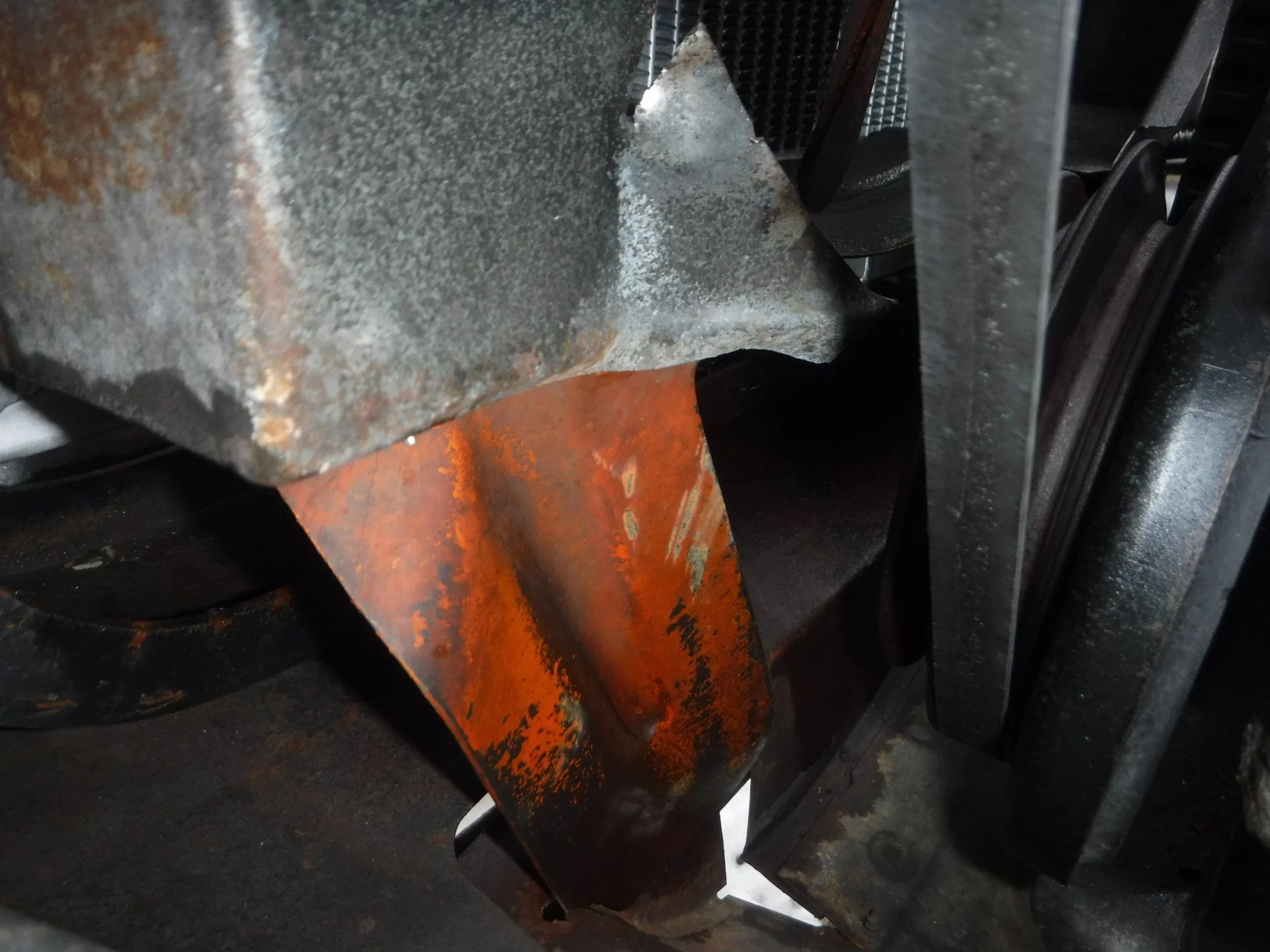

Here’s the shroud. It’s not the right one but I wonder where it came from? I think I bought it from somebody years ago or salvaged it off a parts rig.
It looks about right.. what is the issue with the fan and shroud being incompatible?
1F shroud installed

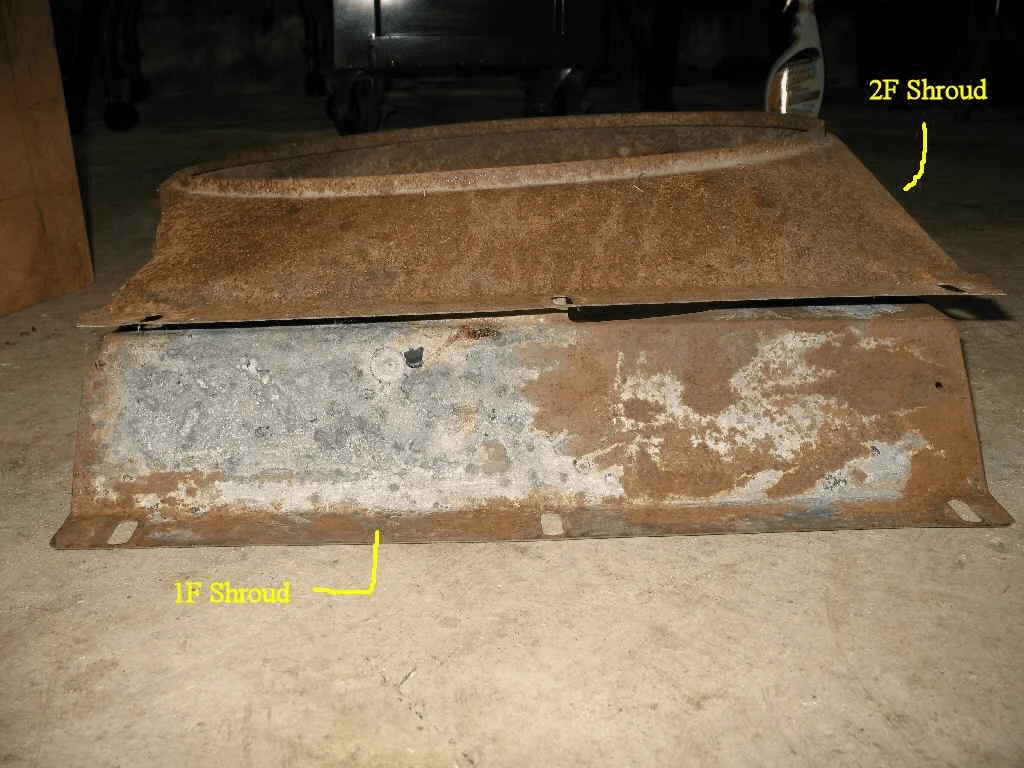

2F vs 1F shroud

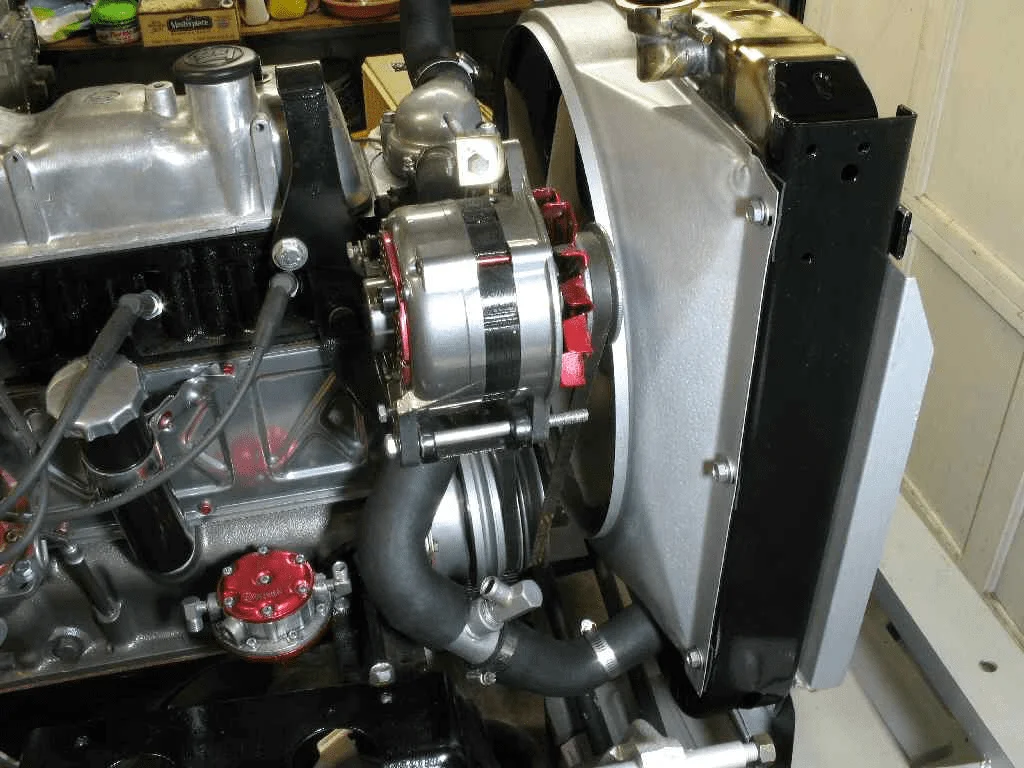

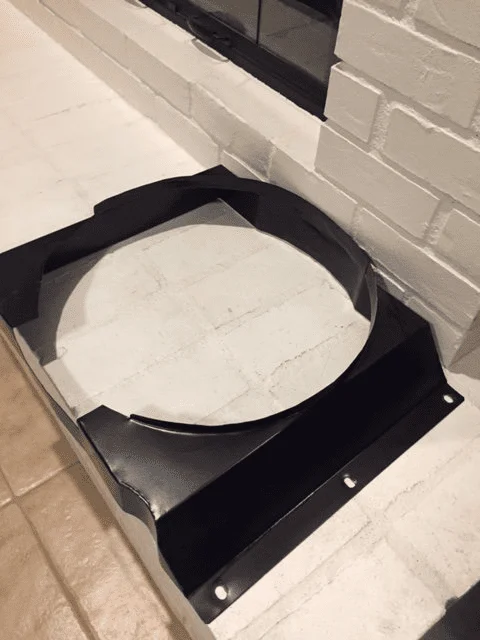

2F shroud installed
2F vs 1F shroud
2F shroud installed
If you have an "F" motor ( 1F ) , that shroud would be correct if everything is stock. If your 71 had a 2F transplant you should use the 2F shroud. The 2F usually used a fan clutch so the face of the fan moved and the shroud became shallower. The 2F fan will bolt to an early radiator support . Left /Right, Up/Down position of the motor didn't change so the center point position of either shrouds fan opening\
is the same. Specter does show two of the early fan shrouds, 1965-1968 and 1968-1974 but the fan is the same for both so the differences must be little. The fact that the 6 blade plastic became available in 73 leads me to believe that the fan diameter is the same.
The plastic fan was run with a spacer until the clutch was introduced
is the same. Specter does show two of the early fan shrouds, 1965-1968 and 1968-1974 but the fan is the same for both so the differences must be little. The fact that the 6 blade plastic became available in 73 leads me to believe that the fan diameter is the same.
The plastic fan was run with a spacer until the clutch was introduced
Living in the Past
SILVER Star
My 65 FJ45 has a early 2F. When the water pump failed I updated to a fan clutch and plastics fan. A later shroud was needed. The bolt holes didn't match the 65 radiator housing. That may have been the change in 68.
- Thread starter
- #12

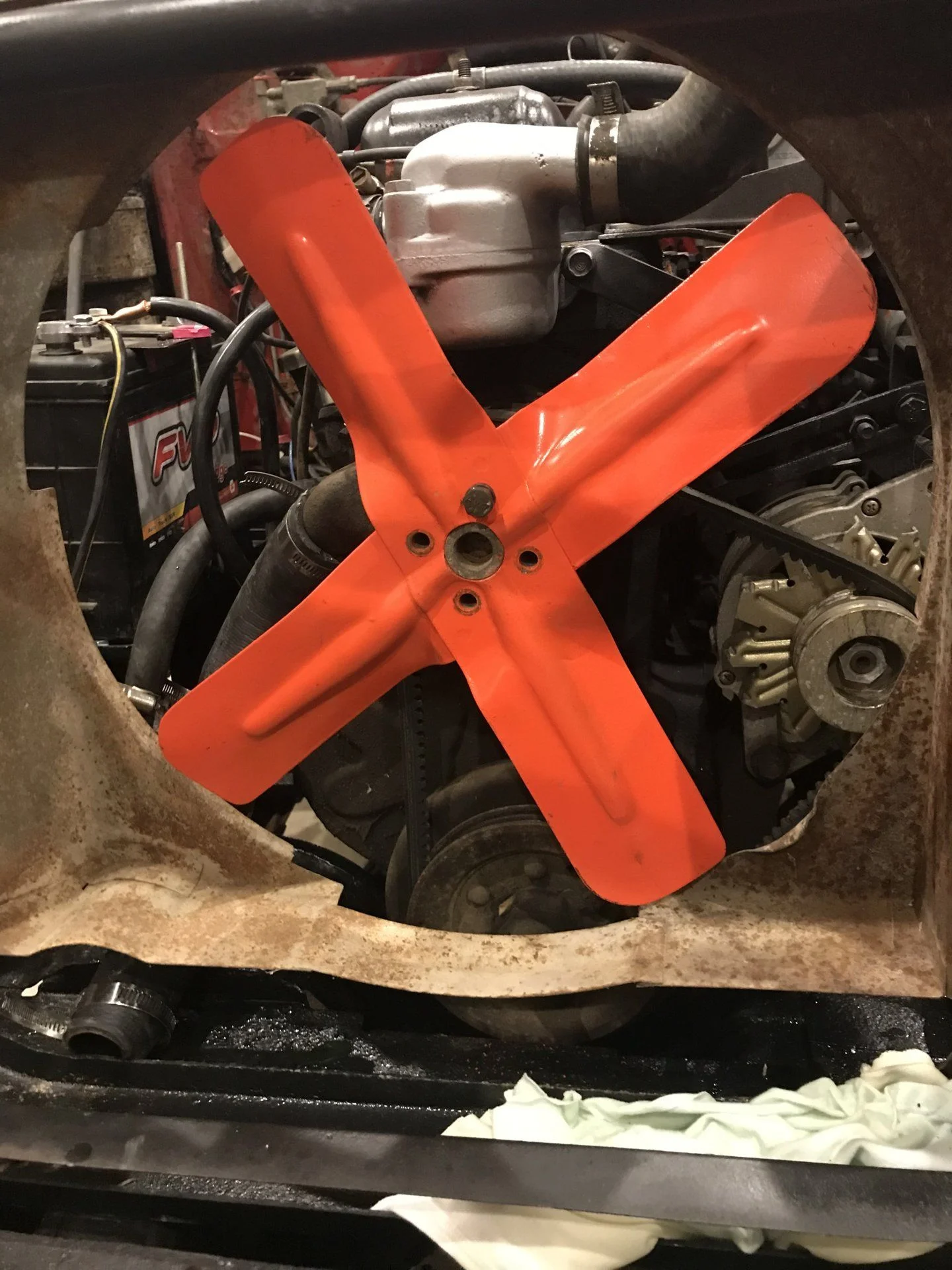

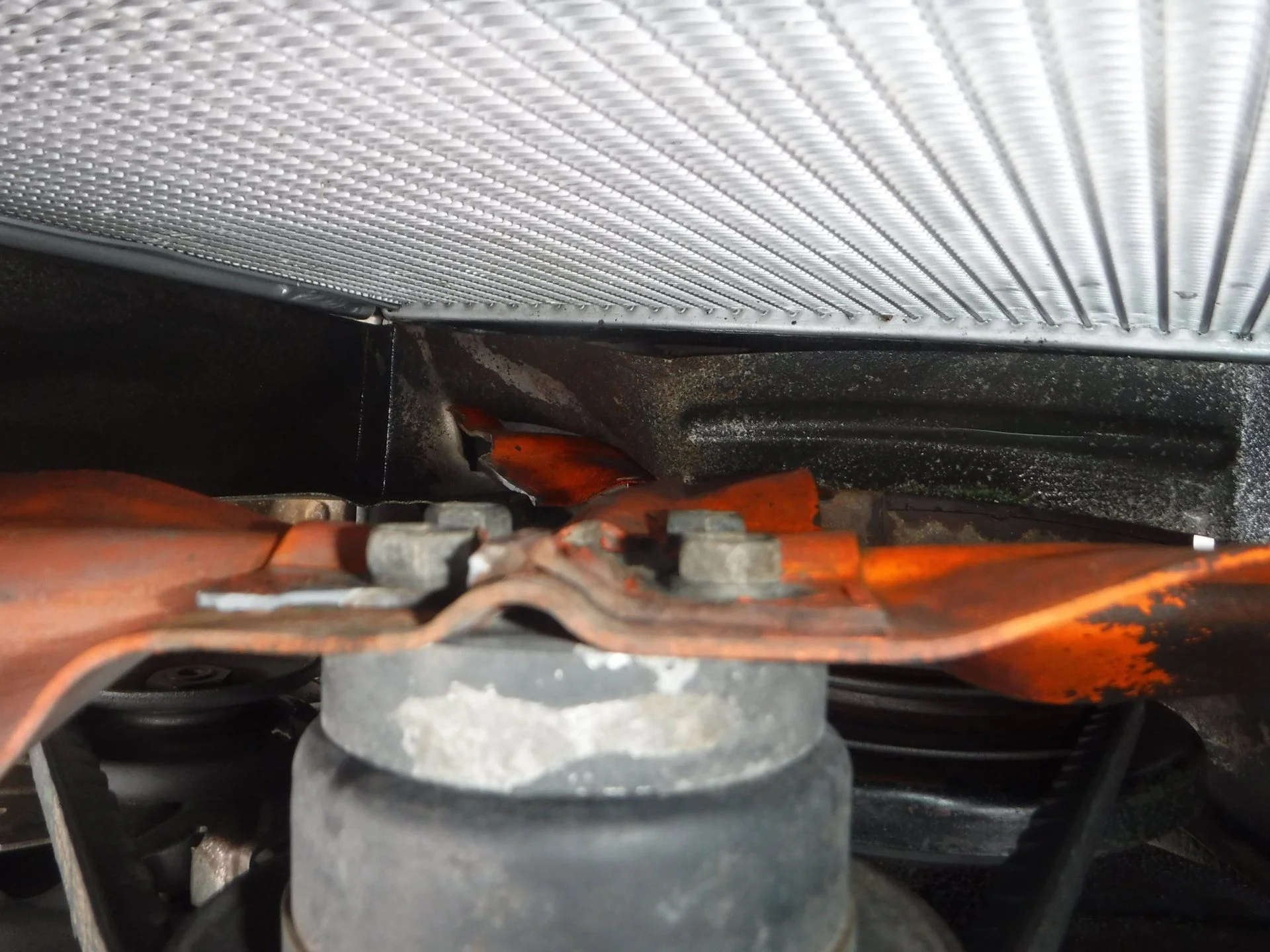

Here’s another angle. Doesn’t seem like it clears the fan if installed this way.
how about flipping the shroud over, top is bottom?
the engine hugs the left side of the frame
- Joined
- Apr 14, 2004
- Threads
- 1,474
- Messages
- 37,021
- Location
- 818-953-9230
- Website
- www.marksoffroad.net
/this\
- Thread starter
- #15

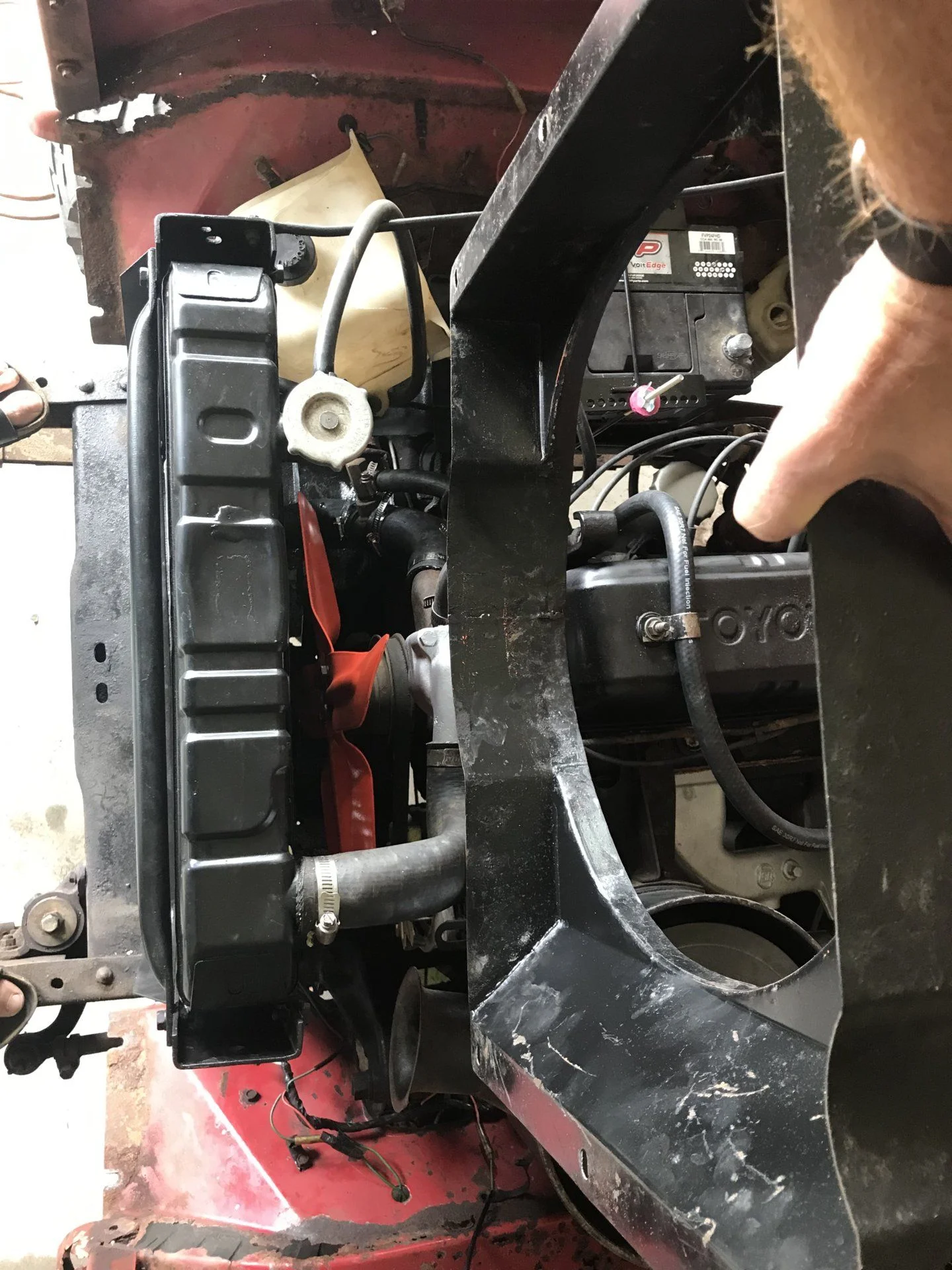

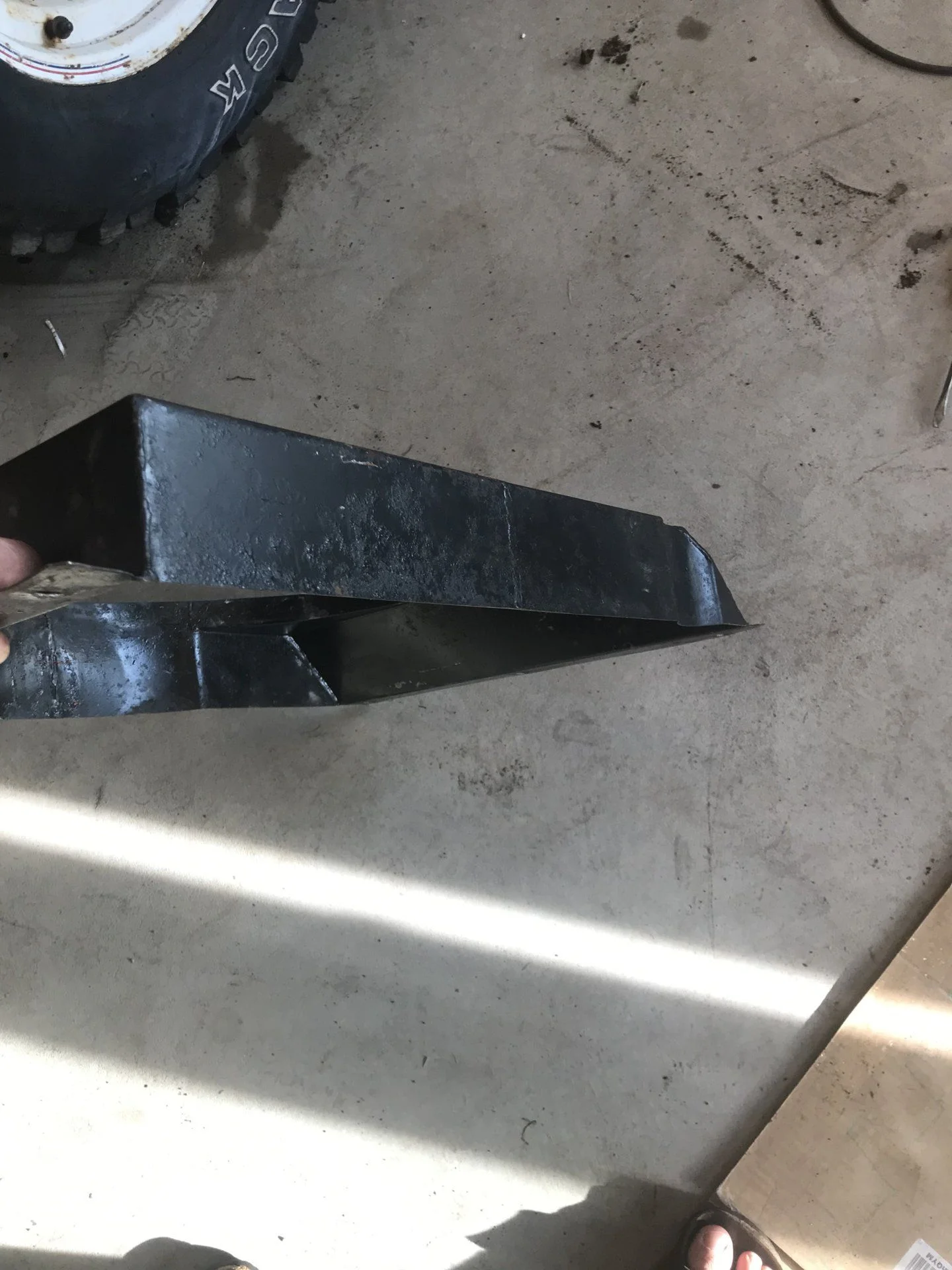

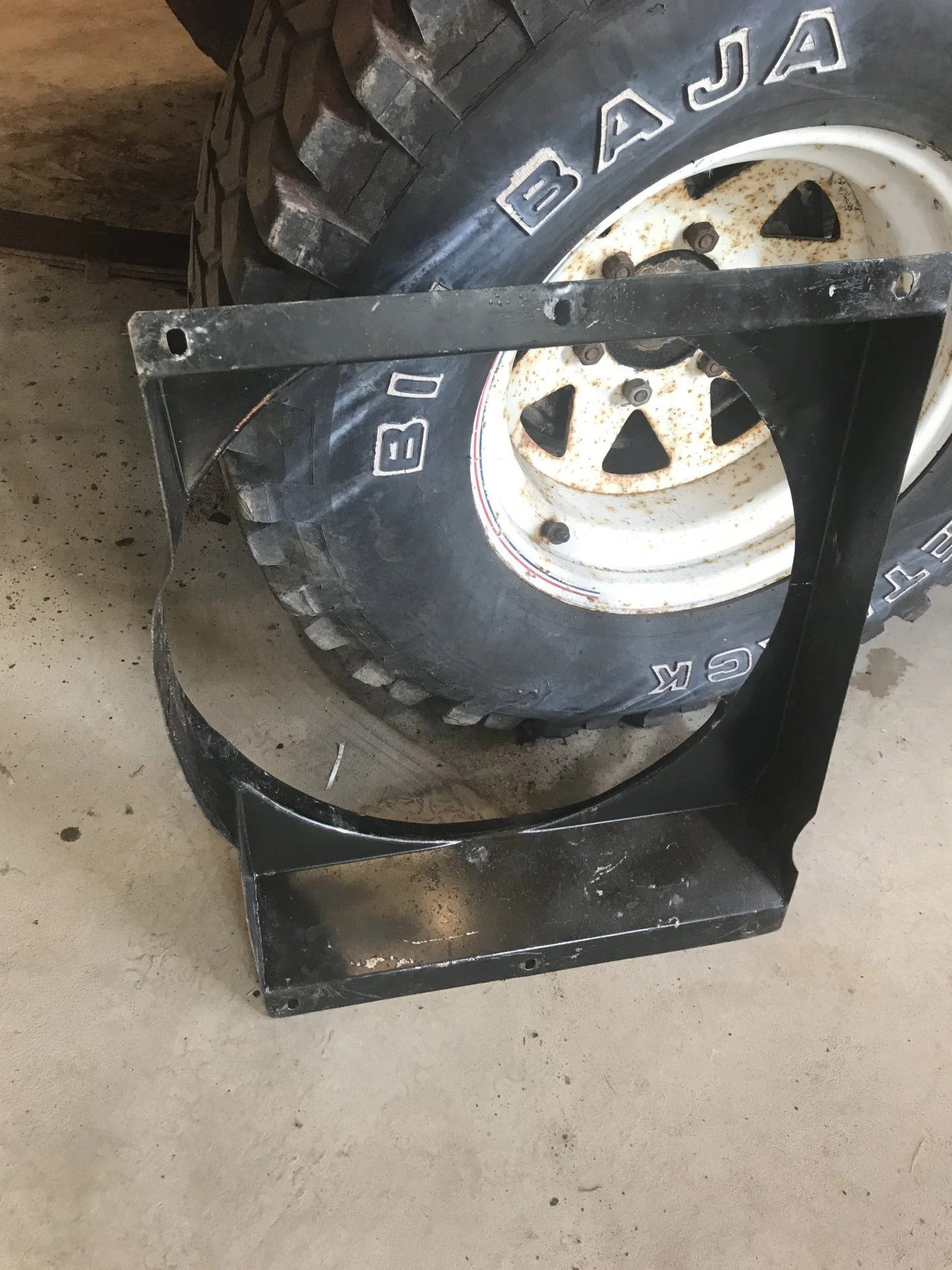

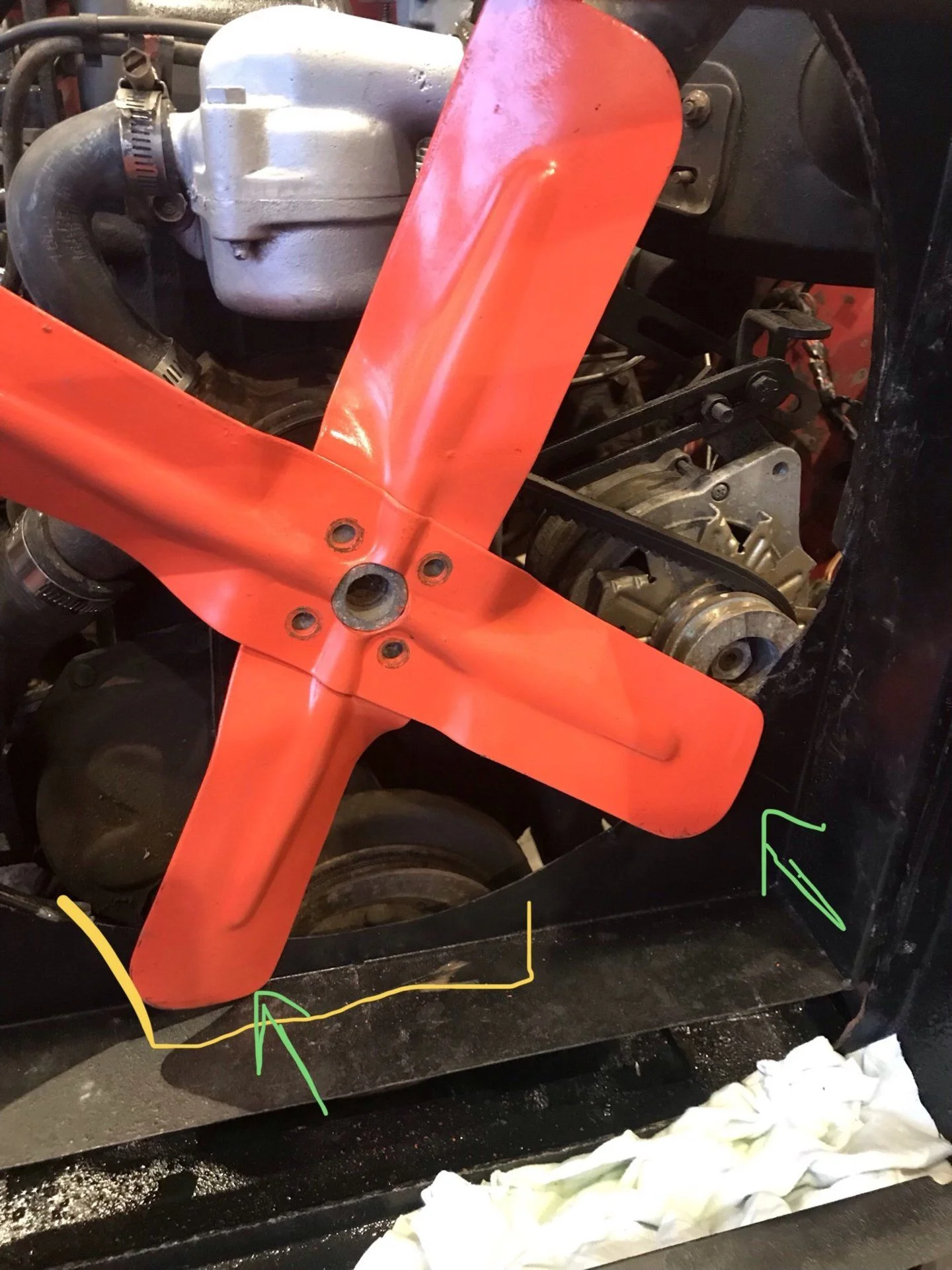

I pulled the radiator to give a better idea what is going on. I flipped the shroud so the flat side was up like some of the photos and the offset is even worse. I was able to check a late 60s fj45 that I have and it has the same shroud shown in some of the photos you all have sent me (1F motor). The one I _thought_ was for this motor does not have the bottom cutout (see yellow outline in pics) and binds in a few spots (green arrows). The fan is correct for this motor.
- Thread starter
- #16

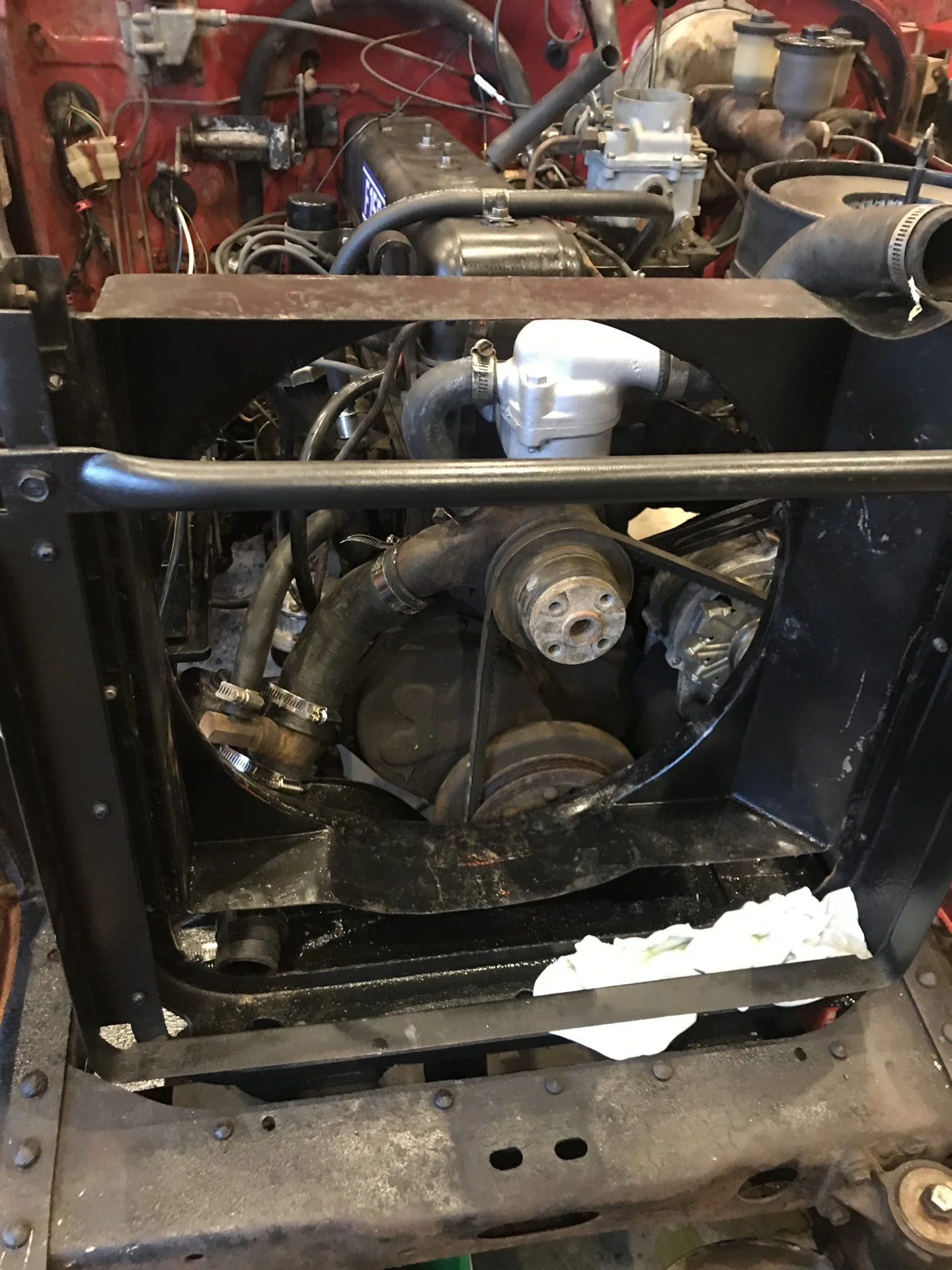

Crisis averted. In my pile of relatively organized cruiser parts, after looking like 5 times, I found the correct shroud. Still have no idea what year the other one is for—perhaps an older model? Anyway, thanks for all your suggestions.
Last edited:
- Thread starter
- #17

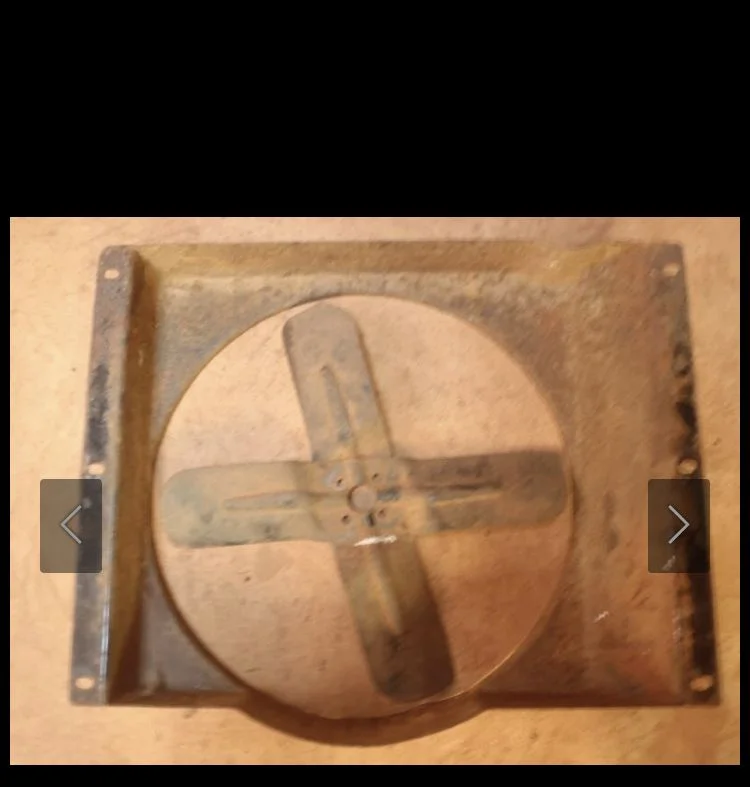

I’m wondering if the mystery shroud is from an FJ25? Found a link to a mud build with a photo!
- Joined
- Apr 14, 2004
- Threads
- 1,474
- Messages
- 37,021
- Location
- 818-953-9230
- Website
- www.marksoffroad.net
Wow,
Interesting. Never paid attention to the 25 shroud before, but it does look the same. And the fit with the other shroud was definitely off, and in the same way it would be off if had been designed for the taller F135 block.
How's your radiator support mounted? Are there spacers under it? Are the mounts on the frame stock ( riveted on)
that looks better, I would still get rid of that metal 4 blade fan. this is what can happen, luckily it didn't go thru the rad. This happened to a customer last Feb going down the highway at 55mph.
