Builds 1964 FJ40 Diesel build, 5 speed, vw TDI, 35's....Lets not call it a restoration.

HandForged

SILVER Star
Joined
Sep 10, 2019
Messages
177
Location
Montana
another note: I am not aware of a remote oil filter kit for a 1Z. Most likely I will be using the factory oil filter housing to make my own remote filter setup. More on that later.


HandForged

SILVER Star
Joined
Sep 10, 2019
Messages
177
Location
Montana
well, as things move forward they change. I was able to pick this 1993 Cruiser up today for a good deal. I'll be using it to swap the full suspension and axles into my project FJ40. Did I say I liked to weld and fabricate? And yes, it has factory lockers. The rest of the truck will be parted out.





HandForged

SILVER Star
Joined
Sep 10, 2019
Messages
177
Location
Montana
I purchased the Dana 60's for my FJ40 and then really started thinking about weight and bastardization. I mean it's getting a VW diesel but everything else thus far is Toyota (at least). Throwing dodge and chevy in there just seemed wrong so I went looking for a FJ80 to steal the axles from. Found this rig locally for sale and when I found it had factory lockers bought it on the spot. I'm not positive but since this project is likely to carry on into winter I may go ahead and setup the factory 80 suspension under this truck. Coils, buckets and all the links. The difference in ride quality would be a noticeable advantage I think.

Last edited:

HandForged

SILVER Star
Joined
Sep 10, 2019
Messages
177
Location
Montana
This is what you get when you strip the factory VW motor mounts. It's a large corrugated rubber cylindrical mount. I have done this a few times and these work great. Some say they are a little soft but I really like the dampening on them. One bolt in the top and one in the bottom with a steel through sleeve. Unlike the custom mounts you can get, these are available in parts stores should one die on your while travelling or wheeling out of town. It's little things like this that I try to build into everything. Parts availability. Custom is cool but if something breaks away from your machine shop, you're screwed. Keep it simple stupid.

motor mounts.jpg


HandForged

SILVER Star
Joined
Sep 10, 2019
Messages
177
Location
Montana
Having a small Moral dilemma this morning. weighting the differences in doing a gear drive transfer case with 4.70-1 gears installed OR setting up a doubler with two gear drive cases. Keep in mind that I have two cases in the shop. The adapter to the gear drive case is 400 plus the gear kit at 599. Shifters will add another 300. So roughly 1300.00 Now the doubler path is about the same cost, almost exactly the same. In theory, the doubler setup is more reduction (2.28 with 2.28 added using stock cases) what I am worried about is the length.


Now at the same time I am realistically considering what I NEED vs what I want. The chain drive v-6 case is not weak. Although not as strong as the gear drive case. I will be running a 38" or larger tire on the FJ80 axles with 300m shafts. This will be a truck that is used but not a rock crawler, although a trip to MOAB is certainly in the cards. My philosophy has always been to overbuild and let the chips fall where they may. I could use some input here from the peanut gallery. I was about to pull the trigger on the adapter and 4:70-1 gears this morning and talked myself out of it for a little more time to consider things realistically.


Kris

But my friends call me Kris

Joined
Nov 23, 2006
Messages
497
Location
Lowden, IA (Quad Cities)
Granted this is mini-truck info, but having the double setup is REALLY nice for all kinds of gearing options. It kind of sucks with just the 4.7, because you have road gears and crawler gears, but nothing in between. If you were just crawling, sure - why not. But the majority of my rigs use has always been road gears and just the stock transfer case gearing. Sure, occasionally I wished I had a doubler. But not that often. I would be inclined to keep the stock chain case and upgrade from there if a need arises.


HandForged

SILVER Star
Joined
Sep 10, 2019
Messages
177
Location
Montana
Granted this is mini-truck info, but having the double setup is REALLY nice for all kinds of gearing options. It kind of sucks with just the 4.7, because you have road gears and crawler gears, but nothing in between. If you were just crawling, sure - why not. But the majority of my rigs use has always been road gears and just the stock transfer case gearing. Sure, occasionally I wished I had a doubler. But not that often. I would be inclined to keep the stock chain case and upgrade from there if a need arises.
Might have to rely on those e-lockers saving my bacon. The chain drive case does have better reduction than the stock 4cylinder case. I'm making these considerations NOW as I'm about to put mounts and cross member in.


HandForged

SILVER Star
Joined
Sep 10, 2019
Messages
177
Location
Montana
I'm contemplating scrapping my original idea of using the 40 frame with the 80 suspension/ Axles grafted and possibly just using the 80 frame whole. I have a very clear picture in my head of what I am looking for as an end result and I think it might just be easier. Less fab work, more getting down to business. Steering is already worked out, everything is where it needs to be. The full drivetrain is already sorted so I could spend my time working on the body and building the custom bed....yeah I said bed. HA!


FJBen

SILVER Star


Joined
Apr 1, 2004
Messages
3,830
Location
West

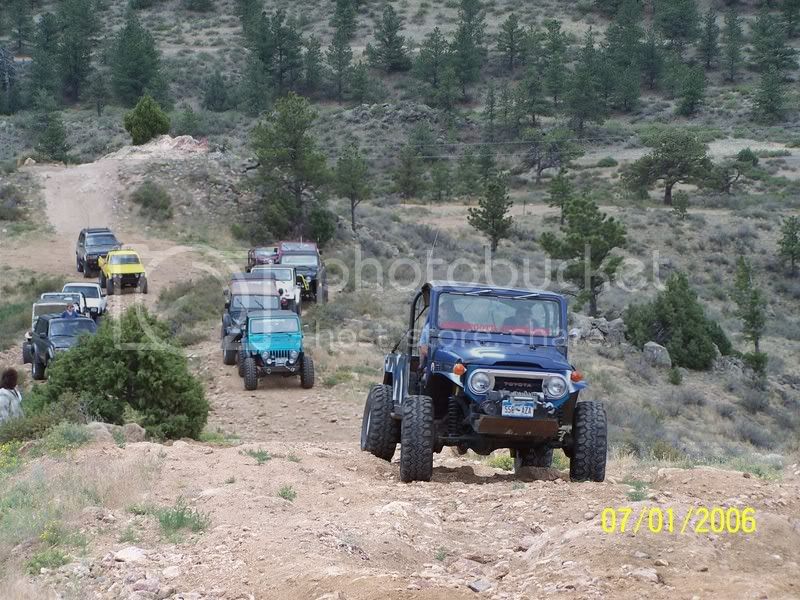

This was a guys FZJ80/40 that was in a club I was in years ago. Not sure if he still owns it or not, but that thing crawled all over the place. I do however like the idea of a separate bed more like a 45 setup rather than stretching a 40 unless you are going 4 door.





87BJ74

SILVER Star
Joined
Aug 30, 2017
Messages
79
Location
Bozeman MT
The 80 series suspension design is pretty proven. Keeping it all attached to the frame and just stretching the 40 body onto the chassis makes the most sense to me. Custom suspension(links,coils,etc) sometimes turns into a headache sometimes. I have been working very slowly for the last year on the bj74s coilover/link setup and am just now getting to where is setting just right where i want it.


HandForged

SILVER Star
Joined
Sep 10, 2019
Messages
177
Location
Montana
The 80 series suspension design is pretty proven. Keeping it all attached to the frame and just stretching the 40 body onto the chassis makes the most sense to me. Custom suspension(links,coils,etc) sometimes turns into a headache sometimes. I have been working very slowly for the last year on the bj74s coilover/link setup and am just now getting to where is setting just right where i want it.
[/QUOTE
As I said, I have a fairly clear picture in my head of what I want to do and it would have involved stretching the frame on the 40. This, although it sets my timeline back a bit seems like the best bet to get my goals accomplished. I posted the body and drivetrain on the local page for free if someone wanted to remove the body and drivetrain they could keep it. I hope someone needs it.


FJBen

SILVER Star


Joined
Apr 1, 2004
Messages
3,830
Location
West
Yeah this was quite a few years ago, I'm not sure why the body was placed where it was, but I'm assuming there was a reason it's that way. It had a 1FZ and all that. A VW diesel would be much easier to play with body placement and frame cutting.

Now the best "45ish" on an 80 series frame setup I know is @Waggoner5 's FJZ45, which I think went to 2UZ power. There is A TON of custom work on that one.



HandForged

SILVER Star
Joined
Sep 10, 2019
Messages
177
Location
Montana
Yeah this was quite a few years ago, I'm not sure why the body was placed where it was, but I'm assuming there was a reason it's that way. It had a 1FZ and all that. A VW diesel would be much easier to play with body placement and frame cutting.

Now the best "45ish" on an 80 series frame setup I know is @Waggoner5 's FJZ45, which I think went to 2UZ power. There is A TON of custom work on that one.

That's actually fairly close to what I have in mind. Appearance wise. I want it to be really understated....on 38's. Some simple color, smoke grey or tan...


REZARF



Joined
Sep 8, 2003
Messages
4,914
Location
Bozeman, MT
Gary's 45 was one of the best builds with a Cruiser ever. I've been all over that one in person and it was done 100% right.

@HandForged you will get a bit more help and knowledge on the hardcore section for builds like this than here in the 40 section.

Lots of guys there know how to cut and paste this truck onto that truck... etc.


HandForged

SILVER Star
Joined
Sep 10, 2019
Messages
177
Location
Montana
Gary's 45 was one of the best builds with a Cruiser ever. I've been all over that one in person and it was done 100% right.

@HandForged you will get a bit more help and knowledge on the hardcore section for builds like this than here in the 40 section.

Lots of guys there know how to cut and paste this truck onto that truck... etc.
I messaged the MOD of this section to move it over to hardcore for me, as of yet it hasn't happened...
