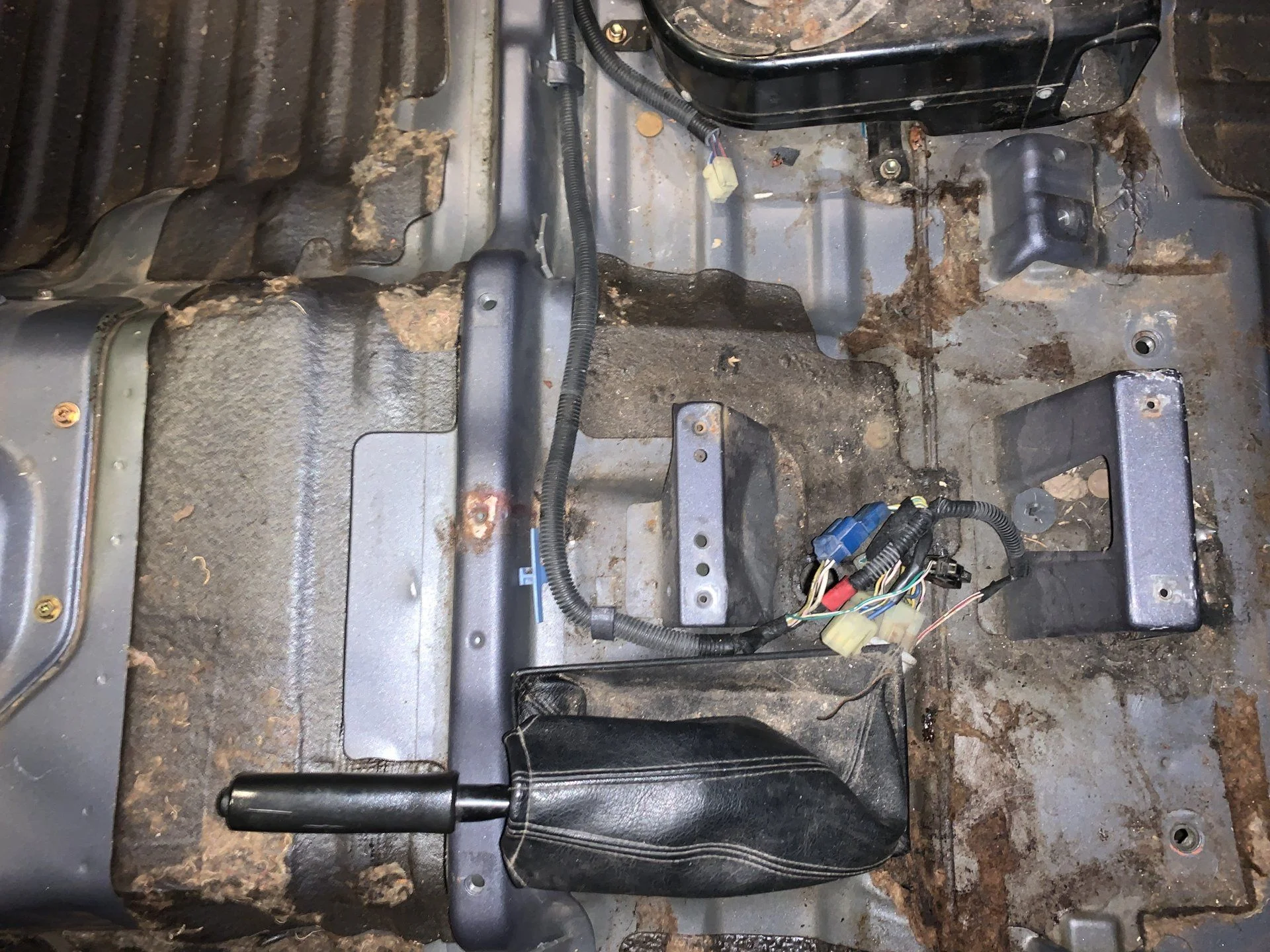

I know, the wiring schematics are in the FSM...but what I need is a wiring map....I need to know where the various wires run in the truck, and what the wires I"m looking at (under the carpet, near the handbrake, for example) are for. I've got several connectors that are disconnected, or missing one side or the other, but I can't tell what they are for by just looking at them. Several are on the floor by the emergency brake (see photo), and there's one coming down the footwell in front of the driver's side door, etc. Is there such a thing as drawings of where the wires run through the truck?



[Seth S]

Something like this?

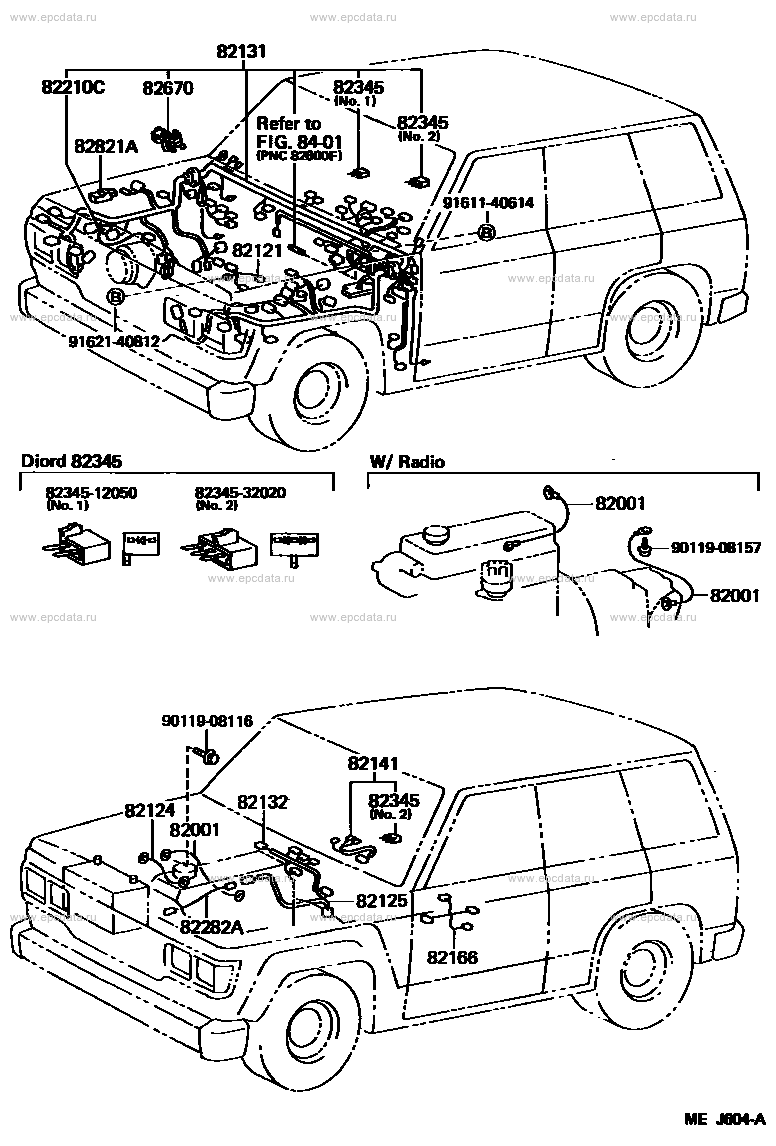

Land Cruiser Wire Harness & Firewall Grommets

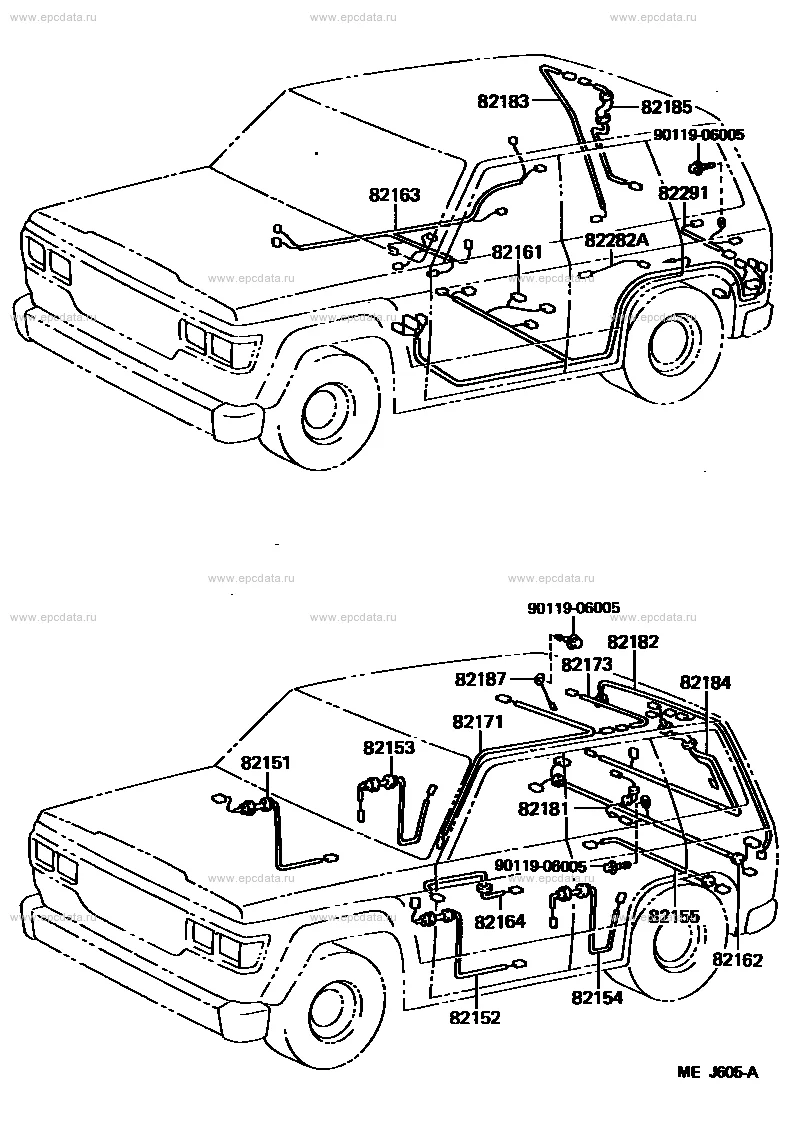

Land Cruiser, 40 45 55 60 62 Wire Harness, electric connectors

www.sor.com



[NearJetties]

For a 62

Parts catalog for Toyota Land Cruiser may also have some useful schematics (looks like you have a 60). I wouldn’t think there’d be much there except for rear heater controls and e-brake light switch.



[phaques]

Something like this?

Land Cruiser Wire Harness & Firewall Grommets

Land Cruiser, 40 45 55 60 62 Wire Harness, electric connectors

www.sor.com

YES! Although the SOR diagrams don't do a great job of identifying what many of those wiring runs are for....only a couple are labeled in the diagrams. Thanks though - good lead.
