Where can I find a Clinometer like this one (1 Viewer)

Doc

Joined
Apr 26, 2004
Messages
5,815
Location
Utah



Apparently, in a prado.









(FWIW, I realize I'm a smartass... it's just part of my charm.)


mot

Joined
Aug 21, 2003
Messages
7,293


Riad said:
PM has been sent.

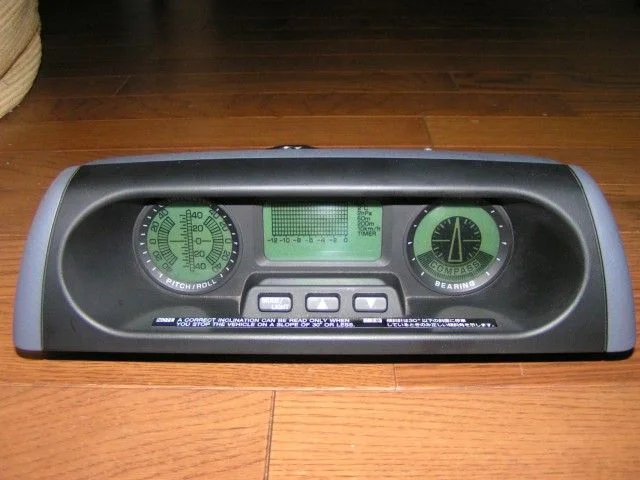

As I've said in the PM to Riad, I have one which looks exactly like it. :D

But not sure if it requires anything in addition in order to make it work, such as the unit for the 80 (needs magnetic field(?) sensor).

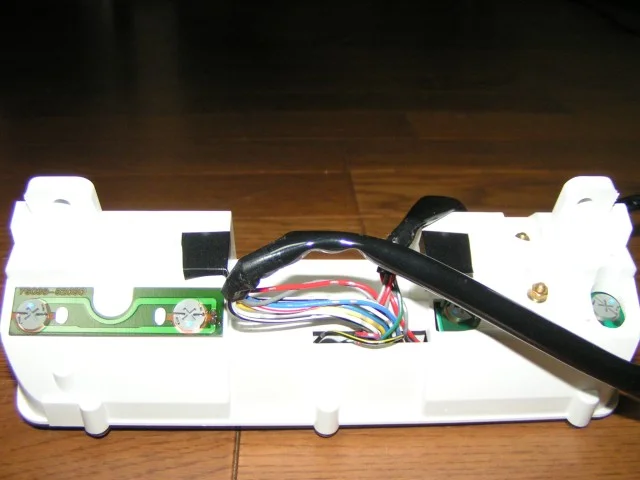

I've just snapped a few pics.
You can tell that the display in the middle might require information coming outside of the unit itself, such as ECU, speedo, etc... maybe. I'm just not familiar with it.

To be continued...


mot

Joined
Aug 21, 2003
Messages
7,293

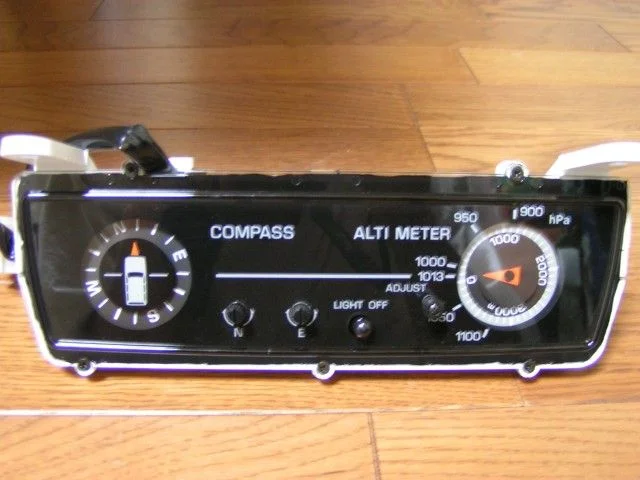

Now if it were for the 80, I know that all you'll need would be the meter unit and the magnetic field sensor :cool: :rolleyes: :

As I said I'll try to find the info on the web. :)

Mot ;)

[EDIT]

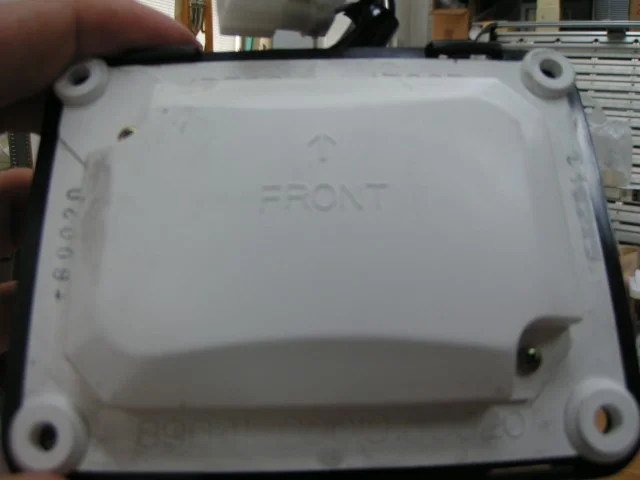

Here's a pic of the sensor.

Last edited:
Joined
Dec 23, 2003
Messages
3,772
Location
Payson, AZ



i like the second one. mitsubishi monteros had a mechanical pitch/roll device, i got one from a wreckin yard but havent installed it yet. looks alot like aviation type.


rusty_tlc

Dain Bramaged Member
Joined
Jun 23, 2005
Messages
13,926
Location
Reno, NV



There is a more basic, read easier to adapt, clinometer. They were used in some 4runners, truck's and Tercel 4WD station wagons from 84 - 89.
CHeck here or just google clinometer.
