Strange Electrical Issue at Fuse Block

  • Thread starter stoshzack
  • Start date
  • Watchers 4
stoshzack

stoshzack

Joined
Feb 14, 2013
Messages
846
Location
Wake Forest, NC
Hi All -

I recently finished a bunch of mechanical work on my FJ40 1970 ('71 wiring diagram). I must have messed something up because now, when I go to start the vehicle, I constantly get a 20 amp fuse burning out. It is the fuse that goes to the yellow (oil press. ga, temp ga, and fuel gauge) and red-blue lines (back-up light/switch).

Reading past threads on the forum, I removed the fuse, attached an amp meter on the fuse block, and turned on the ignition switch. I got zero amps. I removed all the components on the lines, turned on the ignition switch, and still got zero amps. Thinking my meter was broken, I check the voltage across that fuse and got the normal 12 volts. I then put another fuse in, and it burned out right away.

Any thoughts as to what is going on? I figured with no amps, the fuse would not burn out. However, it continues to burn out right away.

Thanks for any help

@Coolerman
@Pin_Head

Green Bean

Green Bean

SILVER Star
Joined
May 9, 2021
Messages
351
Location
78620
Hi All -

I recently finished a bunch of mechanical work on my FJ40 1970 ('71 wiring diagram). I must have messed something up because now, when I go to start the vehicle, I constantly get a 20 amp fuse burning out. It is the fuse that goes to the yellow (oil press. ga, temp ga, and fuel gauge) and red-blue lines (back-up light/switch).

Reading past threads on the forum, I removed the fuse, attached an amp meter on the fuse block, and turned on the ignition switch. I got zero amps. I removed all the components on the lines, turned on the ignition switch, and still got zero amps. Thinking my meter was broken, I check the voltage across that fuse and got the normal 12 volts. I then put another fuse in, and it burned out right away.

Any thoughts as to what is going on? I figured with no amps, the fuse would not burn out. However, it continues to burn out right away.

Thanks for any help

@Coolerman
@Pin_Head
I'm probably wrong on this and someone may correct me, but I was under the impression that the instrument cluster gauges were on a 5 amp fuse

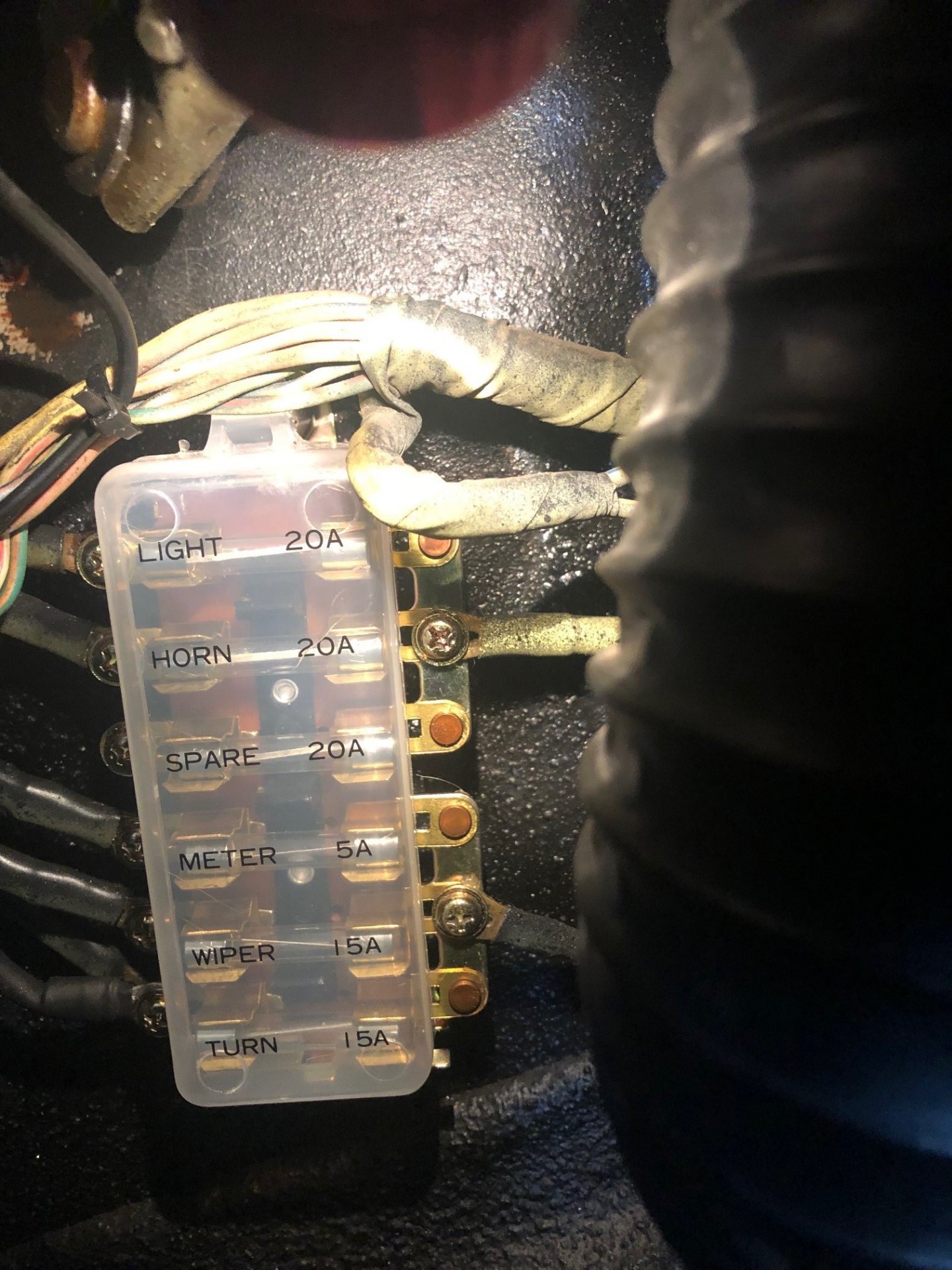

Fuse Block

Skreddy

Skreddy

Joined
Feb 3, 2020
Messages
612
Location
Stanwood, WA
My 2/71, the instruments are on a 5 amp. Either way, I blew mine and it turned out in my excited rush, I didn’t get one of the wires on the post on the alternator and it was arcing. Maybe look there if you were near the alternator lately?

Pin_Head

Pin_Head

Joined
Feb 6, 2002
Messages
15,332
Location
OC, CA
Possibilities:
1. You are not measuring the current properly. Put the amp meter probes on opposite sides of the fuse holder.
2. You have an intermittent short.

Engineer8000

Engineer8000

CAPE FEAR ELECTRONICS
Supporting Vendor
Joined
Aug 16, 2019
Messages
768
Location
SOUTHPORT NC
If it was a short, it may have blown your meter fuse before you noticed anything. My fluke 87 is only rated at 10A.

stoshzack

stoshzack

Joined
Feb 14, 2013
Messages
846
Location
Wake Forest, NC
If it was a short, it may have blown your meter fuse before you noticed anything. My fluke 87 is only rated at 10A.
Thanks @Engineer8000 - I think that is what happened. Ordered new fuses and an amp meter that will read up to 100 amps today.

73FJ40

73FJ40

After another night of rust removal!
SILVER Star
Joined
Dec 28, 2006
Messages
1,717
Location
Western Massachusetts
@stoshzack .

If it is a dead short blowing 20 amp fuses, hooking up a 100 amp ammeter may allow up to 100 amps through your problem circuit. If so, the short will be easily found, located at the end of the melted and charred wire harness. (for reference, the OEM starter draws about 100 amps on a warm day.)

I suggest you check the two circuits leading to the fuel sending unit and the backup light, continuity to ground, with your ohmmeter. Fuel is yellow/ red on the top of the tank, back-up from the light fixture with the transmission in reverse.

After those, the remaining sending units.

stoshzack

stoshzack

Joined
Feb 14, 2013
Messages
846
Location
Wake Forest, NC
Thanks @73FJ40 - I was thinking using the amp meter might be bad. Thanks for the advice. I’ll use your method to play it safe.
