Simple, Low $$ storage solution

Discussion in 'Camping & Outdoor Gear' started by MaddBaggins, Nov 12, 2005.

  1. MaddBaggins

    MaddBaggins Remember the KnightRider!

    Messages:
    3,562
    Media:
    20
    Albums:
    2
    Likes Received:
    323
    Joined:
    Feb 22, 2005
    Location:
    The Old Pueblo
    I made this today, took about 5 hours including 2 runs to ACE for the fasteners and stuff.
    3/4 plywood, galv L brkt and some storage bins that slide in.
    Cost about $100.
    It sits about 1/2" below the top of the tailgate, I still have enough height for my future ARB fridge to sit on top. When I finish my rear bumper the tire will move outside. The ports right behind the seat are to let my subs pound(thats what the box is underneath the deck).
    I decided against trying to make an actual drawer setup for 2 reasons, this was much easier and much lighter.

    Some pics

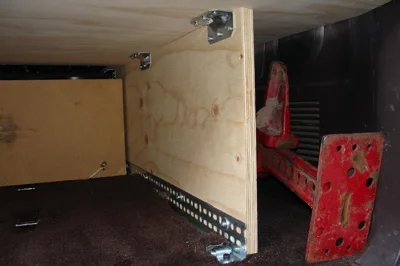

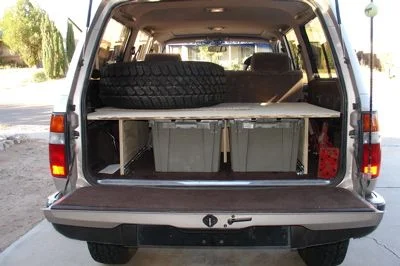

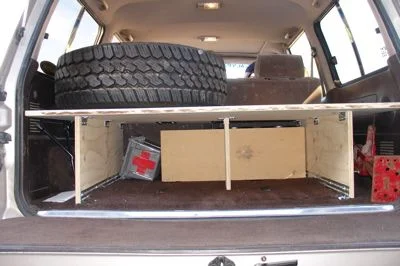

    DSC00880.jpg DSC00882.jpg DSC00884.jpg

  2. MaddBaggins

    MaddBaggins Remember the KnightRider!

    Messages:
    3,562
    Media:
    20
    Albums:
    2
    Likes Received:
    323
    Joined:
    Feb 22, 2005
    Location:
    The Old Pueblo
    Couple more pics :cheers:

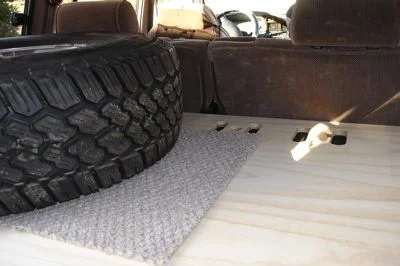

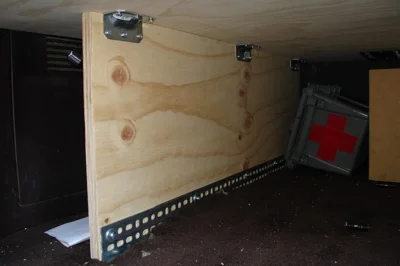

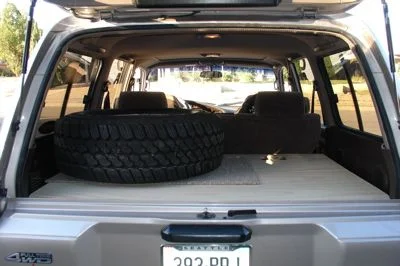

    DSC00883.jpg DSC00885.jpg DSC00886.jpg

  3. mooker82

    mooker82

    Messages:
    1,696
    Likes Received:
    23
    Joined:
    Nov 3, 2004
    Location:
    Charleston, SC
    How is your tire mounted and held down? That could be really dangerous in a panic stop or accident.

  4. RHINO

    RHINO

    Messages:
    3,766
    Likes Received:
    6
    Joined:
    Dec 23, 2003
    Location:
    valley of the sunstroke, AZ
    looks good buddy, and get a strap at least on that tire.

  5. Tools R Us

    Tools R Us

    Messages:
    23,274
    Likes Received:
    4,699
    Joined:
    Jul 20, 2004
    Location:
    Chandler, AZ
    Looks good Alvin, did you get started on mine yet? :D

  6. MaddBaggins

    MaddBaggins Remember the KnightRider!

    Messages:
    3,562
    Media:
    20
    Albums:
    2
    Likes Received:
    323
    Joined:
    Feb 22, 2005
    Location:
    The Old Pueblo
    I went out later after taking those pics and solved that problem. I have a D-ring bolted to the deck and a metal plate, then a strap thru the rim to keep it still. Got it covered! :cheers:

    It would be a lot easier to make the 2nd one thats for sure Kevin. My brain wasn't on all cylinders when I cut the top deck. I made it to fit nearly perfect once inside. Only problem was then I couldn't get it in the truck :frown: I trimmed about 2" off both sides then I could angle it in. :cool:
    I took it on trip today, about 200 miles round trip. Alittle bit of wheeling, all with the dog and her blanket on the deck next to the tire. Those storage boxes underneath have less than 1/4" clearance but when I hit some good bumps the contents inside jumped a little. Otherwise, all good. :bounce2:

  7. aedgington

    aedgington

    Messages:
    522
    Likes Received:
    30
    Joined:
    Aug 30, 2005
    Location:
    Houston, TX
    I'm doing something very similar & using speaker carpet on the inside to deaden jostling items. Don't know if it will work, but I had some extra carpet lying around.

  8. GeoRoss

    GeoRoss

    Messages:
    1,927
    Likes Received:
    1,306
    Joined:
    Dec 4, 2004
    Location:
    Tucson AZ
    Hey Alvin,
    Looks good. You should have seen what my 'system' this weekend. Taking the fam on o/n trips sure does require a bunch of crap. We have got to get the tires out of the back :D .

    Oh yea, your miss out this weekend :flipoff2:.

    Ross

  9. MaddBaggins

    MaddBaggins Remember the KnightRider!

    Messages:
    3,562
    Media:
    20
    Albums:
    2
    Likes Received:
    323
    Joined:
    Feb 22, 2005
    Location:
    The Old Pueblo
    Storage solution - finished!

    I spent a week looking at my new deck and decided it need something else. So, for another $30 I added 6 tie down points and carpet.

    Pics

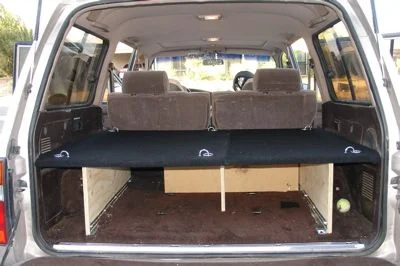

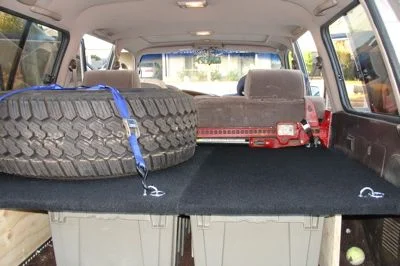

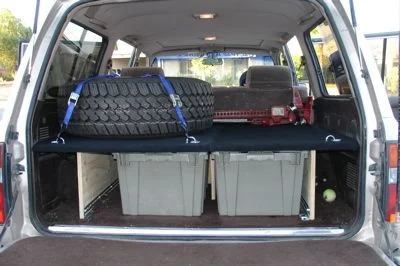

    DSC00920.jpg DSC00925.jpg DSC00926.jpg

  10. GeoRoss

    GeoRoss

    Messages:
    1,927
    Likes Received:
    1,306
    Joined:
    Dec 4, 2004
    Location:
    Tucson AZ
    I'll come over and check it out tomorrow, looks great.

    Ross

  11. green_machine

    green_machine

    Messages:
    230
    Likes Received:
    0
    Joined:
    Apr 25, 2005
    what's the little high lift for?

  12. MaddBaggins

    MaddBaggins Remember the KnightRider!

    Messages:
    3,562
    Media:
    20
    Albums:
    2
    Likes Received:
    323
    Joined:
    Feb 22, 2005
    Location:
    The Old Pueblo
    I haven't yet figured that out, my superior skills as a driver have prevented me from ever using it:D

  13. MaddBaggins

    MaddBaggins Remember the KnightRider!

    Messages:
    3,562
    Media:
    20
    Albums:
    2
    Likes Received:
    323
    Joined:
    Feb 22, 2005
    Location:
    The Old Pueblo
    Quick rundown on the material list

    1 sheet 4'x8' 3/4" plywood. The main deck is 55" wide x 42" deep with the rear corners cut off to fit with the rear pillar. The uprights are 2ea 13"x36" and 1ea 12"x13" support for in the middle.
    2ea L bracket 39" long. I used the 4 tie down hook points to mount these to the floor. I slit the carpet and layed the short side of the L bracket under the carpet. I had to get longer bolts and extra washers(for spacers under the bracket) to mount these to the floor.
    I used 1/4" x 1" bolts and 1/4" x 5/16" tee nuts to secure the uprights to the L bracket. and 1/2" wood screws with some roofing V brackets to secure the deck to the uprights then some 1-1/2" thin wood screws thru the deck into the uprights.
    6ea 1/4" u-bolts with 1-1/4" fender washers and teflon locknuts.
    2 rolls of automotive repair carpet and some 3M multi-purpose adhesive spray and stapled underneath the edges.
    The storage boxes I ordered from C&H Distributors. My work has an acct with them so I got them at a discount. They are HDPE with stainless hinges.

    I wheeled the holy crap out of it a couple days ago and everything is holding together well. I did however pretty much trash that wind deflector on the back of the rig and almost tore off my firestix antenna. Seriously tight trail with a lot of LOW hanging trees

    :cheers:

  14. reffug

    reffug

    Messages:
    3,925
    Likes Received:
    11
    Joined:
    May 28, 2004
    Location:
    'in dat der briar patch'

    Good answer.................

  15. green_machine

    green_machine

    Messages:
    230
    Likes Received:
    0
    Joined:
    Apr 25, 2005

    bad answer. in all seriousness, a 48" high lift is useless in most situations. At least on the trail. It may be tall enough on a dirt road, but that's about it.

  16. MaddBaggins

    MaddBaggins Remember the KnightRider!

    Messages:
    3,562
    Media:
    20
    Albums:
    2
    Likes Received:
    323
    Joined:
    Feb 22, 2005
    Location:
    The Old Pueblo
    I understand what your saying John, but for me, at the extreme end I run 3.5 rated trails and I'm not scared to take bypasses or stack rocks. In 3+ years of carrying that jack I have never needed it. If I ever get into a situation where I need to break it out, I feel confident I can make it work. One way or another.

    Now back to your regularly scheduled program.

  17. cbmontgo

    cbmontgo SILVER Star

    Messages:
    3,861
    Likes Received:
    1,857
    Joined:
    Feb 28, 2004
    Location:
    Texas
    That is an awesome set-up. I have been wanting to do that with my 60, so expect a post from me soon with some pics. The carpet looks great!

    C

  18. BMAN

    BMAN

    Messages:
    3,281
    Media:
    6
    Albums:
    1
    Likes Received:
    9
    Joined:
    May 13, 2002
    Location:
    Greg's place

    Please explain? I have a 48" highlift in my 40 and have never been in a situation where it would not do the job req'd.

    cruiserpilot and NLXTACY like this.
  19. RHINO

    RHINO

    Messages:
    3,766
    Likes Received:
    6
    Joined:
    Dec 23, 2003
    Location:
    valley of the sunstroke, AZ
    yeah what he said!! really i have a 60" and the couple times i used most of it it bent, more than once, but its easy to straighten so its no biggie.

  20. GW Nugget

    GW Nugget There's nothing funnier thn dyslexic perfectionist

    Messages:
    2,788
    Media:
    7
    Albums:
    1
    Likes Received:
    2,407
    Joined:
    Jul 25, 2014
    Location:
    Coalinga, CA
    10 year old bump...
    I've been looking for a bare bone no frills platform and finally found it here.
    Thanks for the post.
