RTH (not urgent) - Plug connector ID on 80 Master Cylinder

This site may earn a commission from merchant affiliate
links, including eBay, Amazon, Skimlinks, and others.

cruiseroutfit

Supporting Vendor
Moderator
Joined
Jan 9, 2003
Threads
366
Messages
13,728
Location
Utah
Website
cruiseroutfitters.com
The 47201-60540/550/570, etc Brake Master Cylinders use a fluid level sensor connector on the side of the housing. I’m not in the shop today but I’ve been crawling through the connector manual and can’t find the housing. Anyone recall this connector housing part number?











Full disclosure, my Baja office today :D


The 47201-60540/550/570, etc Brake Master Cylinders use a fluid level sensor connector on the side of the housing. I’m not in the shop today but I’ve been crawling through the connector manual and can’t find the housing. Anyone recall this connector housing part number?

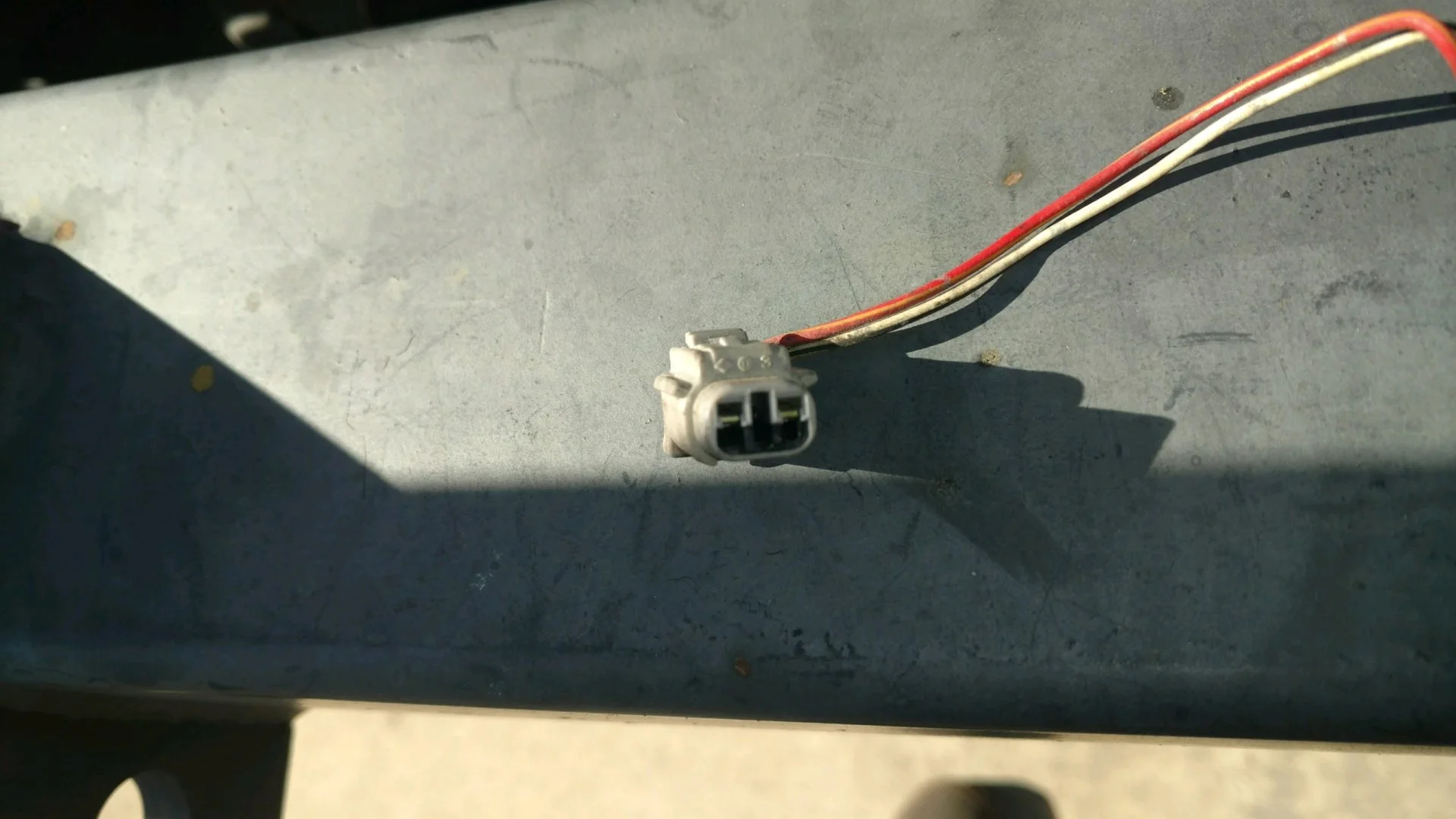

View attachment 3769757

View attachment 3769756







Full disclosure, my Baja office today :D

View attachment 3769758
Looks like 90980–11207 to me
@cruiseroutfit I have severe FOMO.



good evening Kurt ,

i see that oem Gazoo-Koozy your buddy is sporting in the shadows there ....... :D :wrench: :wrench: ./
.

So this needed Master Cylinder harness side female connector in-put-plug topic has been well mapped out by everyone's favorite vintage toyota re-production wire harness sub-assy. maker & Oracle @Coolerman ....

i have posted the links to his electrical parts store main page and also the plug-kit-form-kit page you need as outlined above ....

he keeps good stock of these particular rascals and a great many other thingy's and stuff related to wires , terminals & housings ,,,,


he works best Via Email in his store contact page ......fyi


i hope my most recent skunk-worx parts-
arc made it into your office stacked front and center . .....?
hope this help you and others who see my info i posted


matt

Part# 80MS-SW

;\\
,

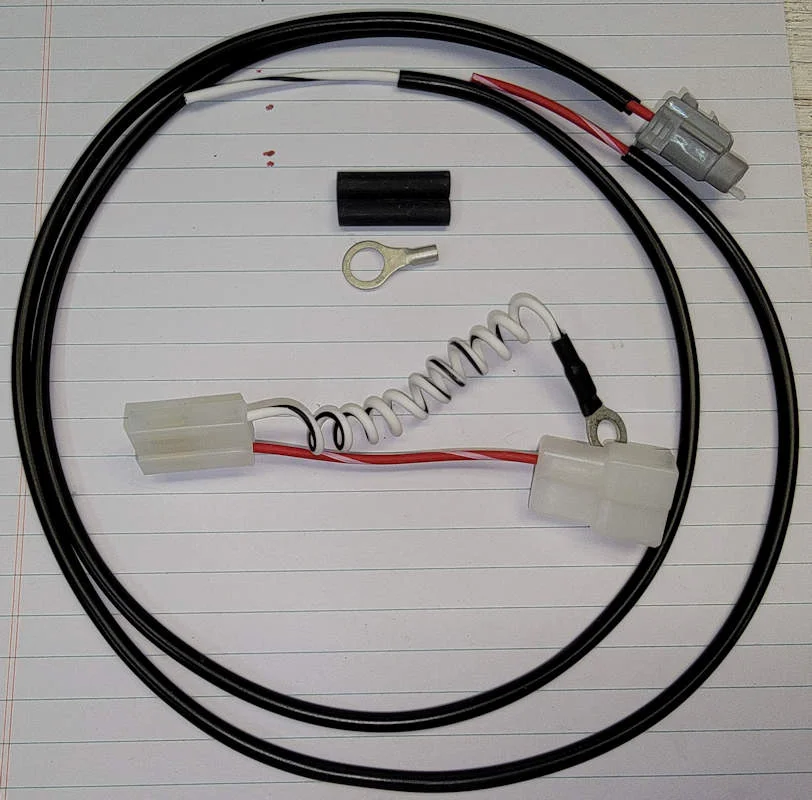

note ; all tech pics below from @coolermans online parts store ...fyi
.

BEFORE :



.
AFTER :







toyotamatt giphygifmaker giphyattribution GIF
.
