OEM Winch mount (factory winch) Does anyone have any pictures of just the mount?

[extremetoy1]

Iwould like to see some pics of the factory winch mount if anyone has them or can get them (I searched and used many different terms) but came up with nothing. I would like to see the OEM style setup not any home made ones (unless they are BALLS on exact copys)

Thanks *B*



[Miescha]

I didn't even know there was a factory winch option - I take it that was a state-side option.



[RavenTai]

I didn't even know there was a factory winch option - I take it that was a state-side option.

nope not avaiable here, mainly an option in Asain countries from what I have seen.



[extremetoy1]

yeah there are alot of cool options we didnt get here, search on the terms "switchs" "what goes here" and factory options - some of the items are really well thought out but very pricey to add (as Cdan says for converting to his roof/ceiling mounted compass) the winch mount would be a simple one to duplicate and fab up at my shop but I need a general idea of what it loks like ( I could do one using the existing holes for it on my own, but some guidance would be nice! )

the factory bumper will be modified to accomadate the fairlead (right about where the license plate goes)



[MARLIN375]

Try a PM to Prossett If I remember his 80 has the factory setup and he was looking for a winch to put in the hole.



[Japan4X4]

PTO or Electric? Both flavours here.



[extremetoy1]

thanks will do that... maybe I can get him to post some pics here for the benefit of the members. I am working on making that style mount for one of my 80s and want to see how Mr. T did it.



[extremetoy1]

electric......please

PTO or electric!!!! I am humbled!!!

pics of both would be cool if you could.
Much appreciated,

*B*



[Bear80]

There is no power take off with the HF2AV case. Electric is the only option unless the manual tranny had a different t-case with a pto output.



[wussyPup]

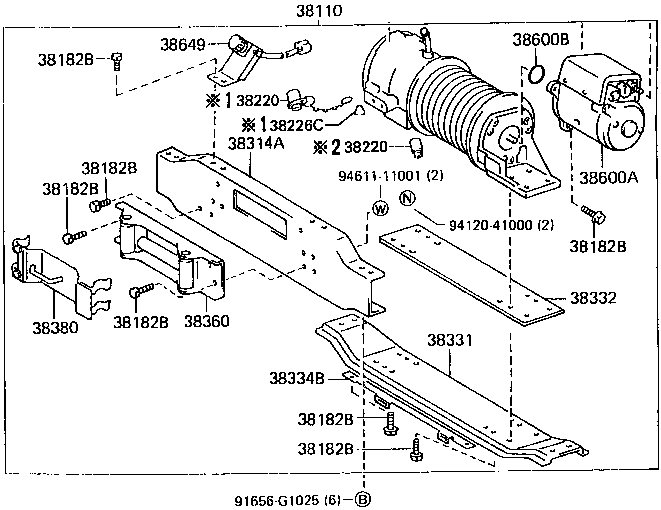

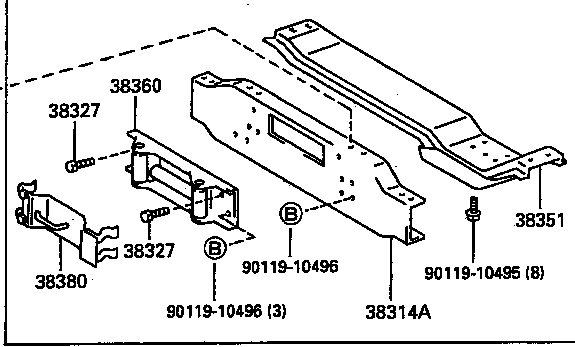

PTO winch mount


Electric winch mount


Or, just call cruiserdan with the part number for the whole assembly...
[URL="http://www.flickr.com/photos/44243969@N00/380256833/]

[/URL]
I can't tell which is PTO and which is electric.



[wussyPup]

and harveya's writeup and photos of his install at https://forum.ih8mud.com/showpost.php?p=797017&postcount=2



[wussyPup]

and a pic of redstang410's 80 showing the handle for his PTO winch at https://forum.ih8mud.com/showpost.php?p=1379902&postcount=56



[extremetoy1]

thanks for the pics...... thats what I was looking for.

the top pic is the PTO I believe. the bottom one is the electric (see the Motor)

Much appreciated,


*B*



[podiev]

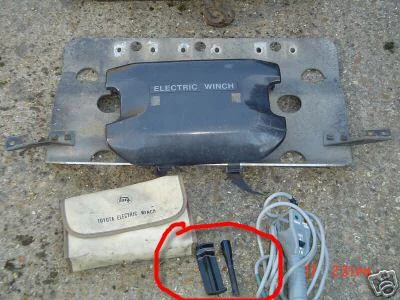

I have the same winch setup shown in harveya's post. However, got couple of questions:

What is this item (circled in red in PicA). I don't seem to have this - only the winch controller cable).

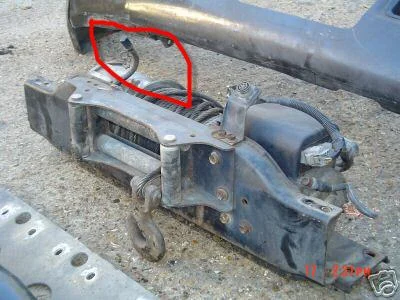

On second picB (circled again in red), I have this part - what goes here and what is it used for? Looks like a lever. Do I need to use this to operate the the winch? Or the cable controller is enough?



[wussyPup]

thanks for the pics...... thats what I was looking for.

the top pic is the PTO I believe. the bottom one is the electric (see the Motor)

Much appreciated,


*B*

LOL - I labeled the diagrams correctly, but in my suggested joke to call cruiserdan with a part number for the entire winch assembly, I didn't know which part number applied to which type of winch - they both have the same PNC

G'luck with your build.



[panamalexus]

Where can you get one? Been trying but no luck.



[RavenTai]

There is no power take off with the HF2AV case. Electric is the only option unless the manual tranny had a different t-case with a pto output.

the US HF2AV does have a rear facing PTO output, Dan recently stated there is an oversea's version that also has a forward PTO output where ours just has a blank casting.



[landcrusher80]

Where can you get one? Been trying but no luck.

Have one for sale. But I think shipping from Japan would kill the deal. PM me if interested.

Cheers,

Landcrusher 80



[RavenTai]

how much? if it is under 50 pounds I can pick it up for free.



[prossett]

Just got back - I'm afraid I can't help with the mounts since they are not on my truck - iif you like, I could easily measure where the mounts should fit onto the frame, though.

Sorry I'm a bit late and didn't actually bring anything to the table..
