SOLD NJ: H151/152 Wiring Harness 82125-60043

This site may earn a commission from merchant affiliate
links, including eBay, Amazon, Skimlinks, and others.

Joined
Apr 11, 2019
Threads
137
Messages
1,393
Location
NJ
Vehicle Model
  1. 80 Series
  2. LX450

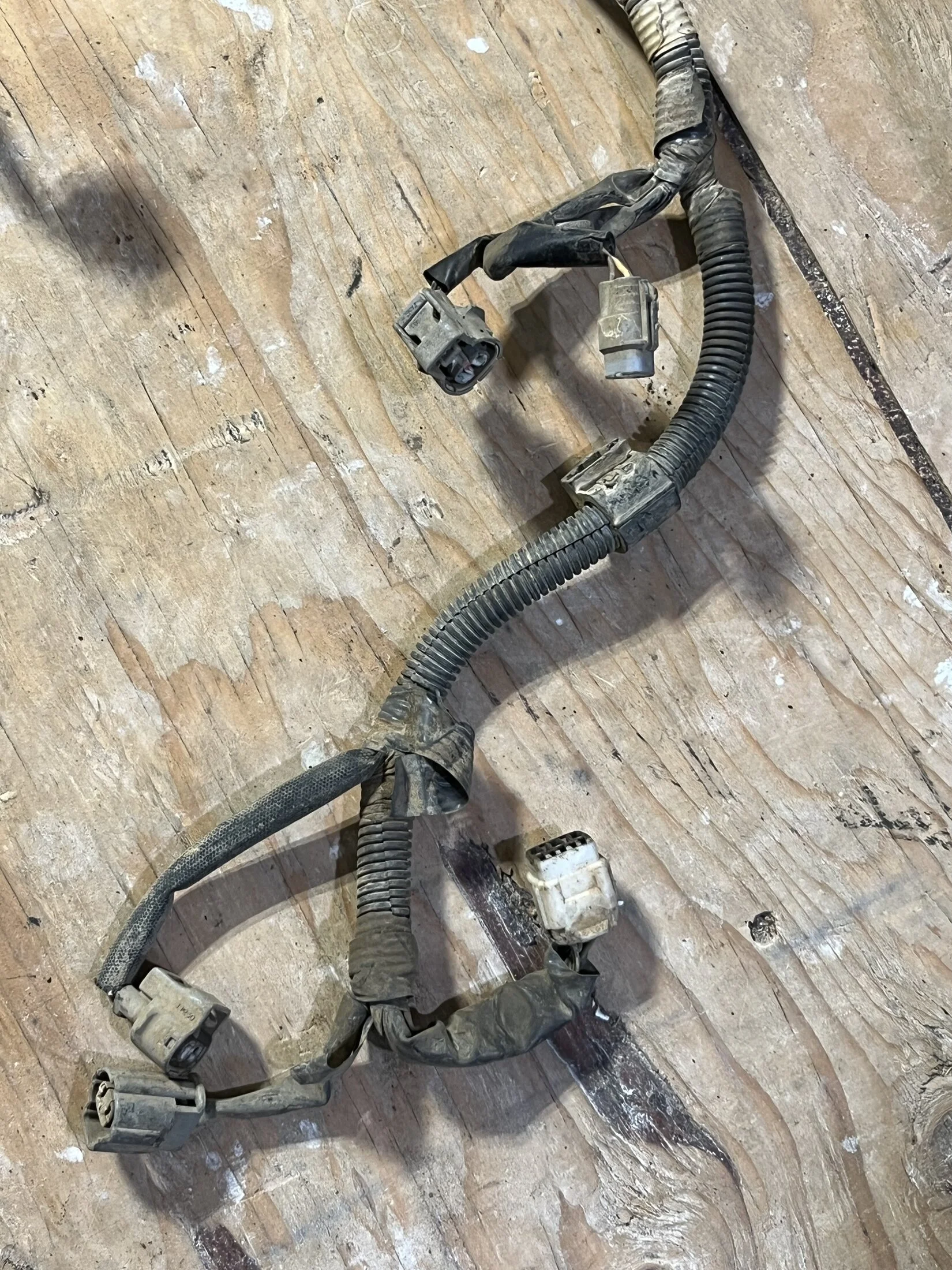

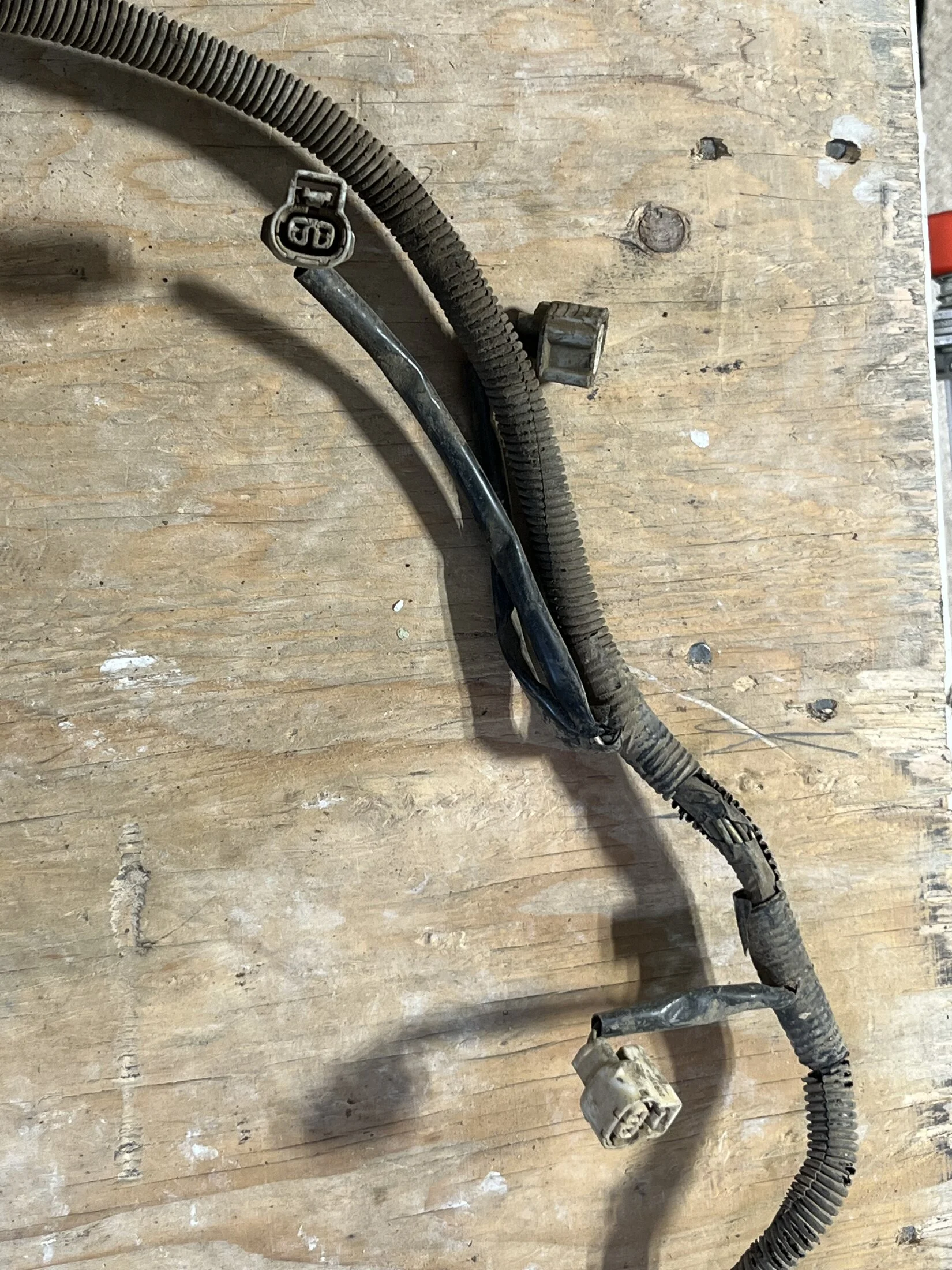

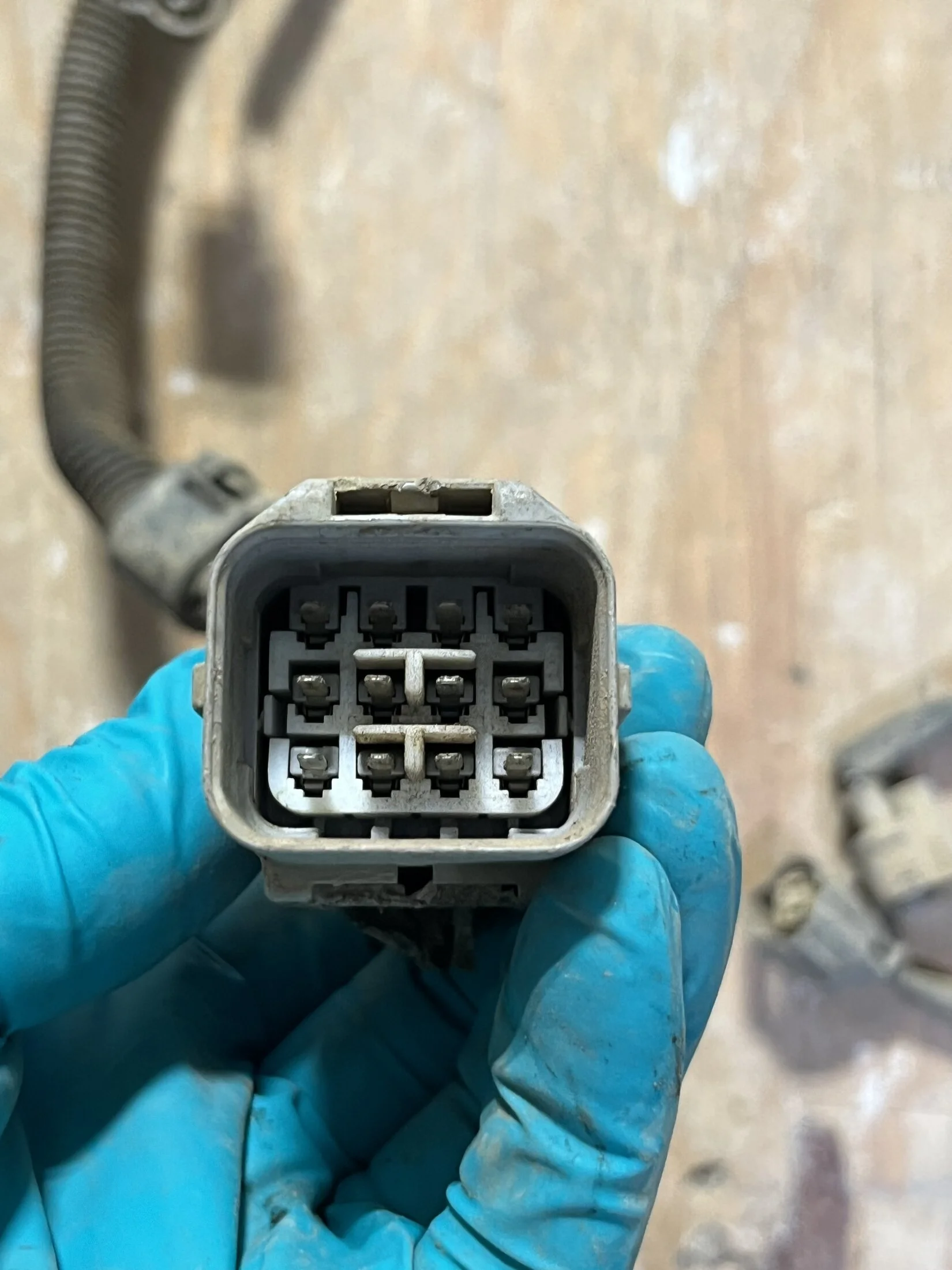

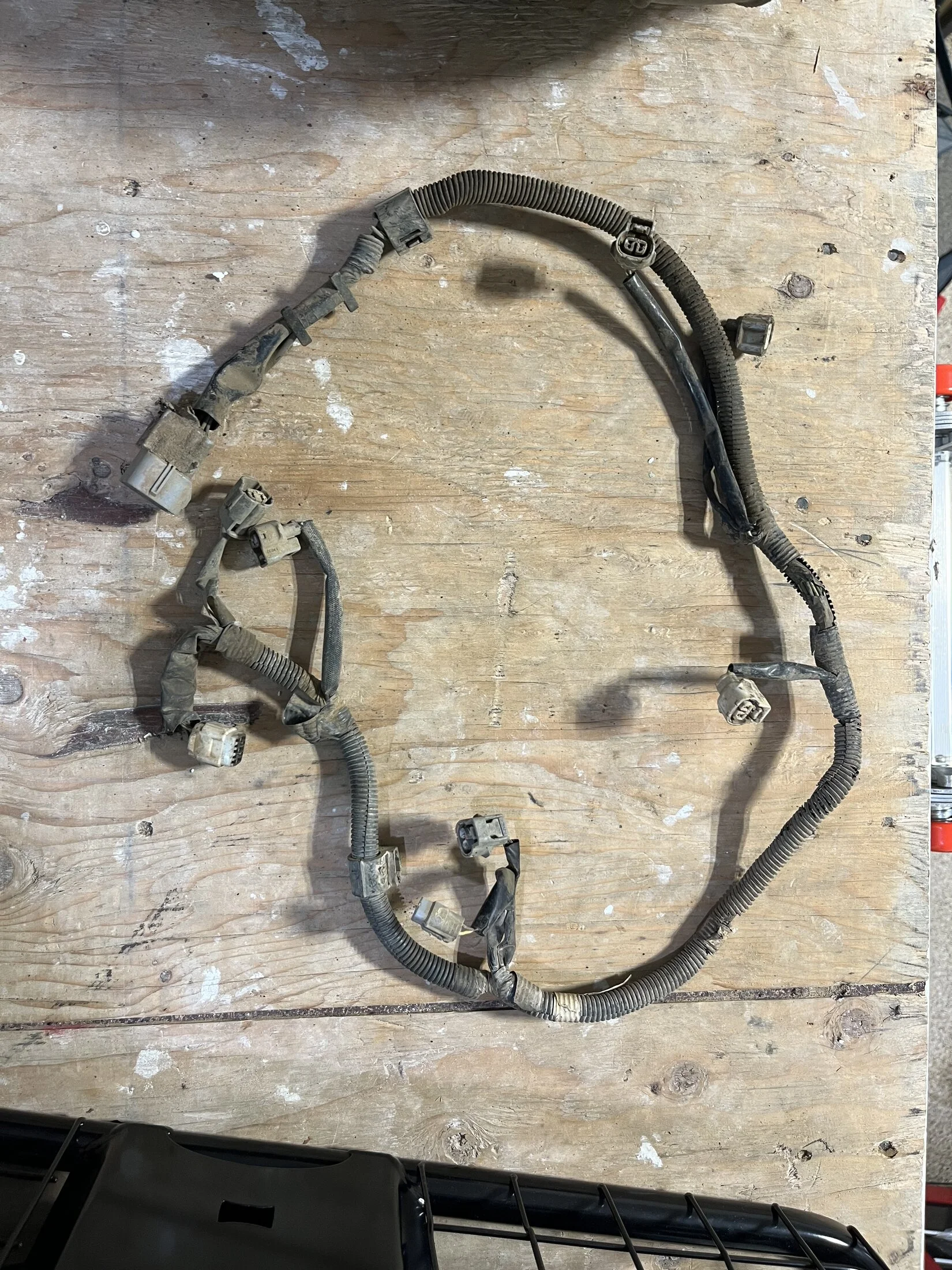

H151 transmission wiring harness for 80 series. Shows up for 1FZ and 1HDT. Could be for FT and FTE too as well as the H152.
No longer available new and hard to come by.
$200









Last edited:
Is there a part number on this?

Is there a part number on this?

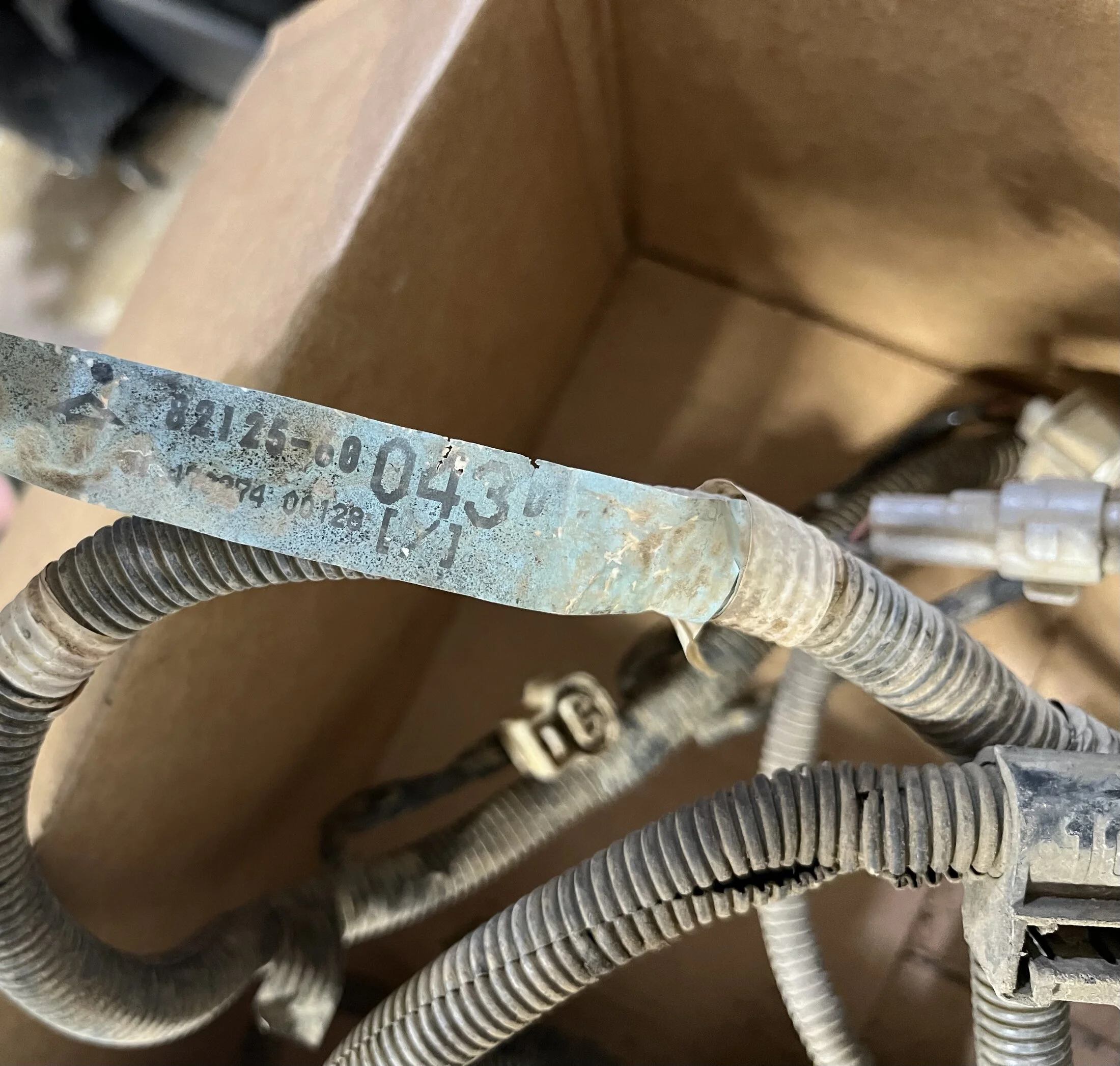

I read this question again and maybe you were asking for markings on the harness.. Here it is:


What's this for - sensors? Haven't seen this before in the manual swap threads
Is specific for the manual gear boxes and it's sensors.
It connect to the speed sensor and center diff lock/sensors. The H151+transfer case have the following sensors that need to be connected. I think it's doable without it but this makes life easier.

-Reverse Light
-5th Gear sensor
- sensor for cruise control
- neutral safety switch
- 4wd indication
- 1st gear overspeed sensor

I read this question again and maybe you were asking for markings on the harness.. Here it is:
View attachment 3711218


Is specific for the manual gear boxes and it's sensors.
It connect to the speed sensor and center diff lock/sensors. The H151+transfer case have the following sensors that need to be connected. I think it's doable without it but this makes life easier.

-Reverse Light
-5th Gear sensor
- sensor for cruise control
- neutral safety switch
- 4wd indication
- 1st gear overspeed sensor
Nice, I’ll take it. I’ll PM you

This does show as available on Amayama as new from Toyota.
