Vendor ( NEW PRODUCT RELEASE ) Introducing #4 MARK Head Yellow Zinc Gold Plated Made in JAPAN Double Lock and Fender washers SEMS BOLTS

[ToyotaMatt]

( NEW PRODUCT RELEASE )

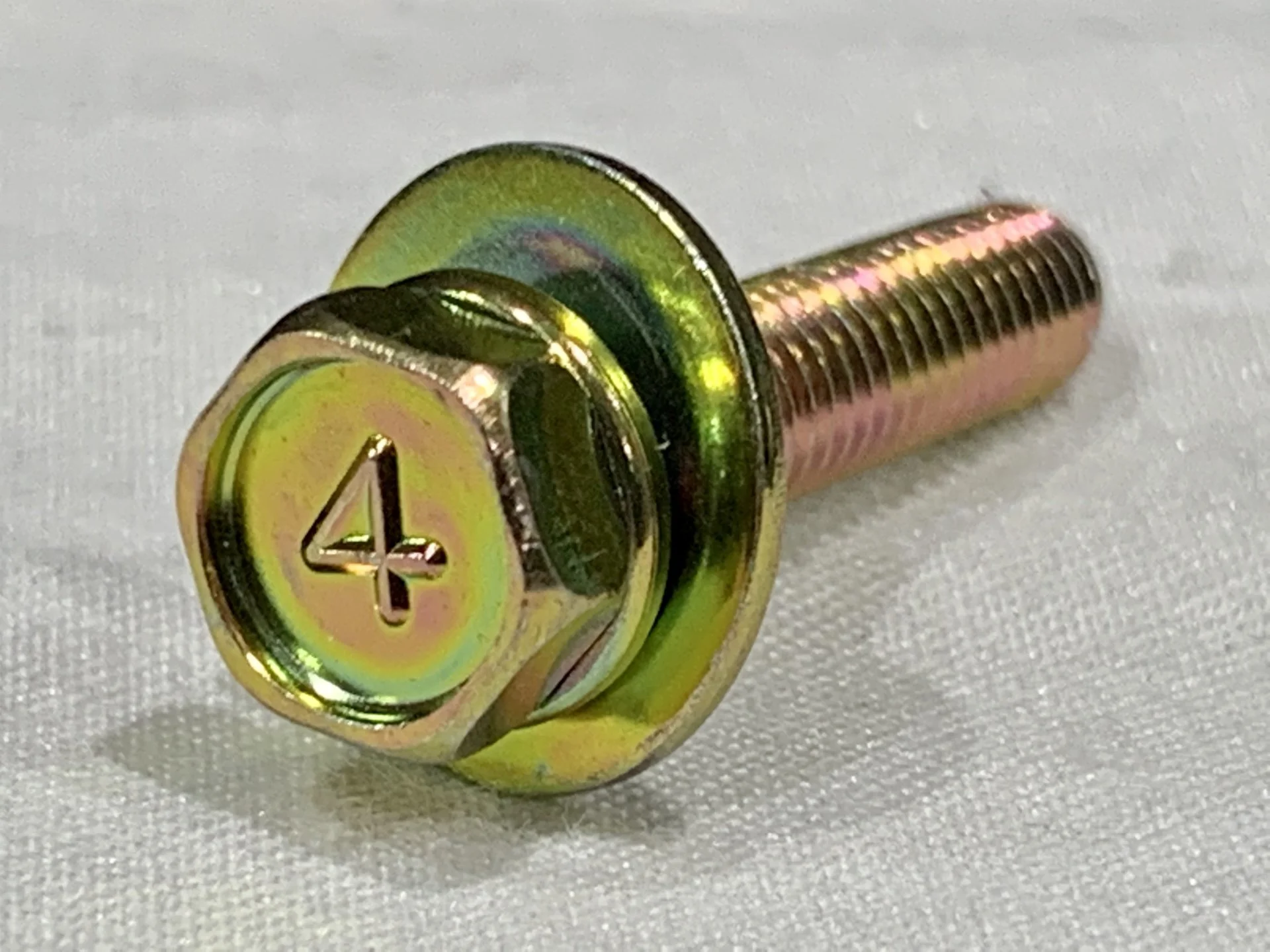

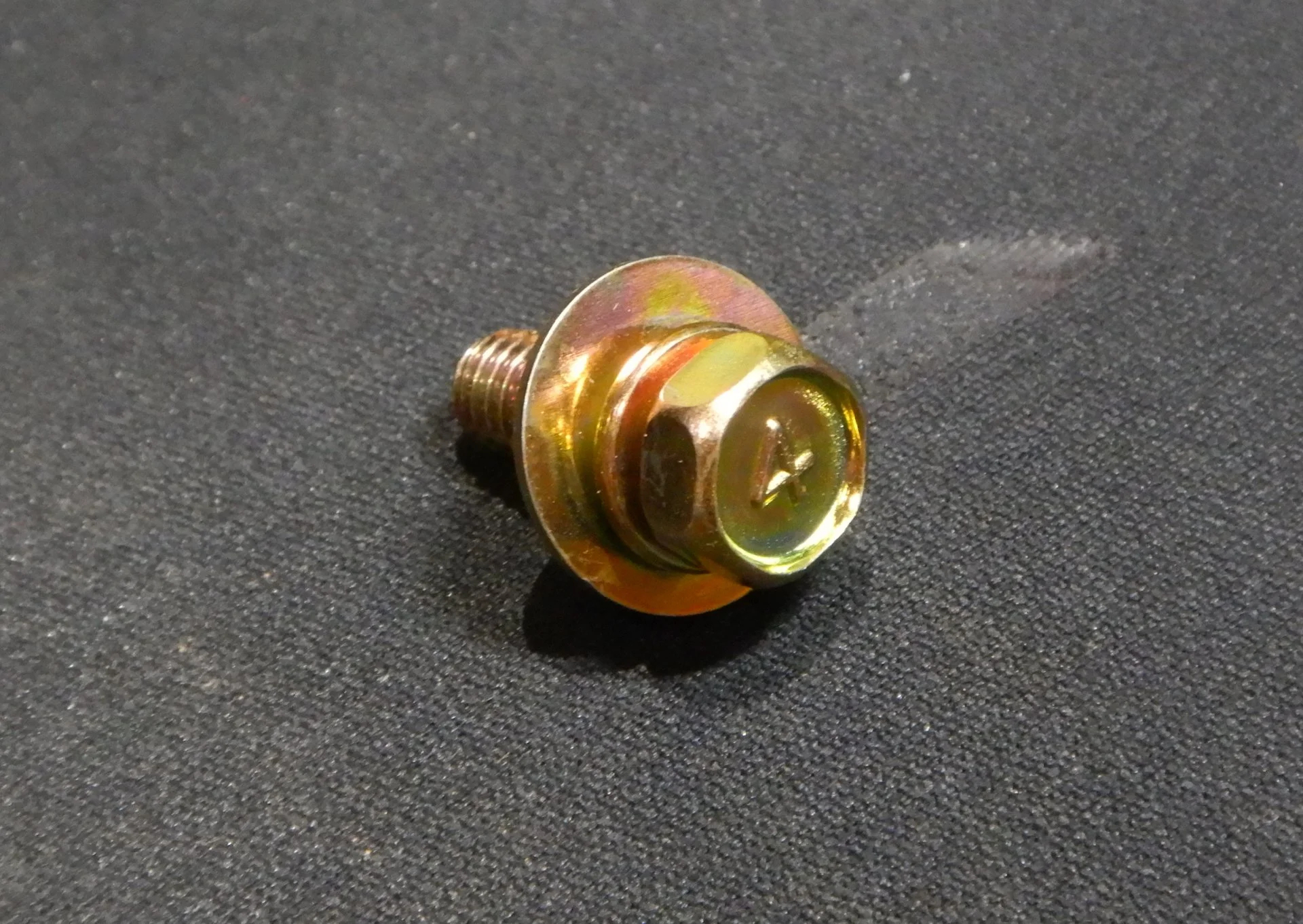

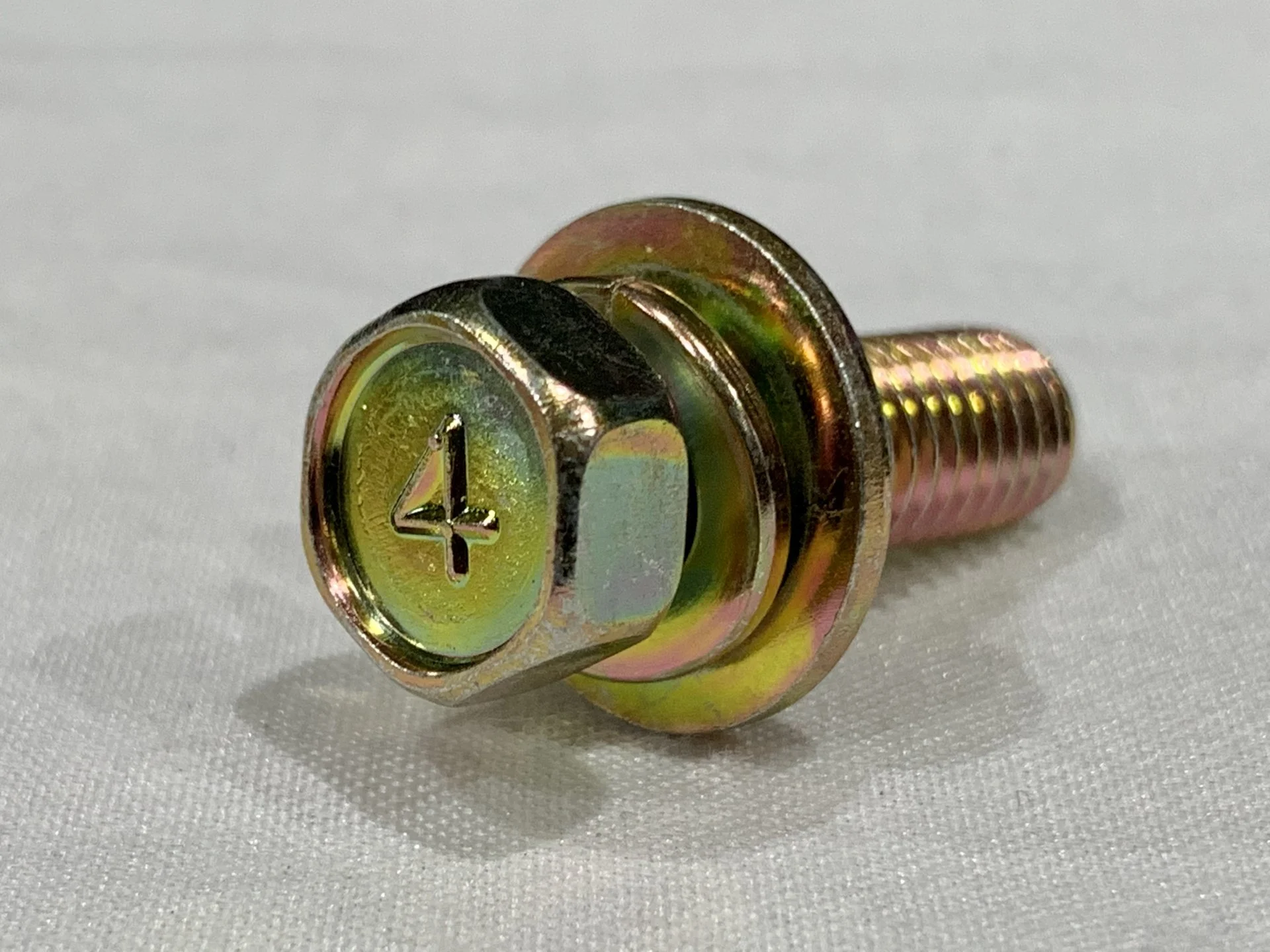

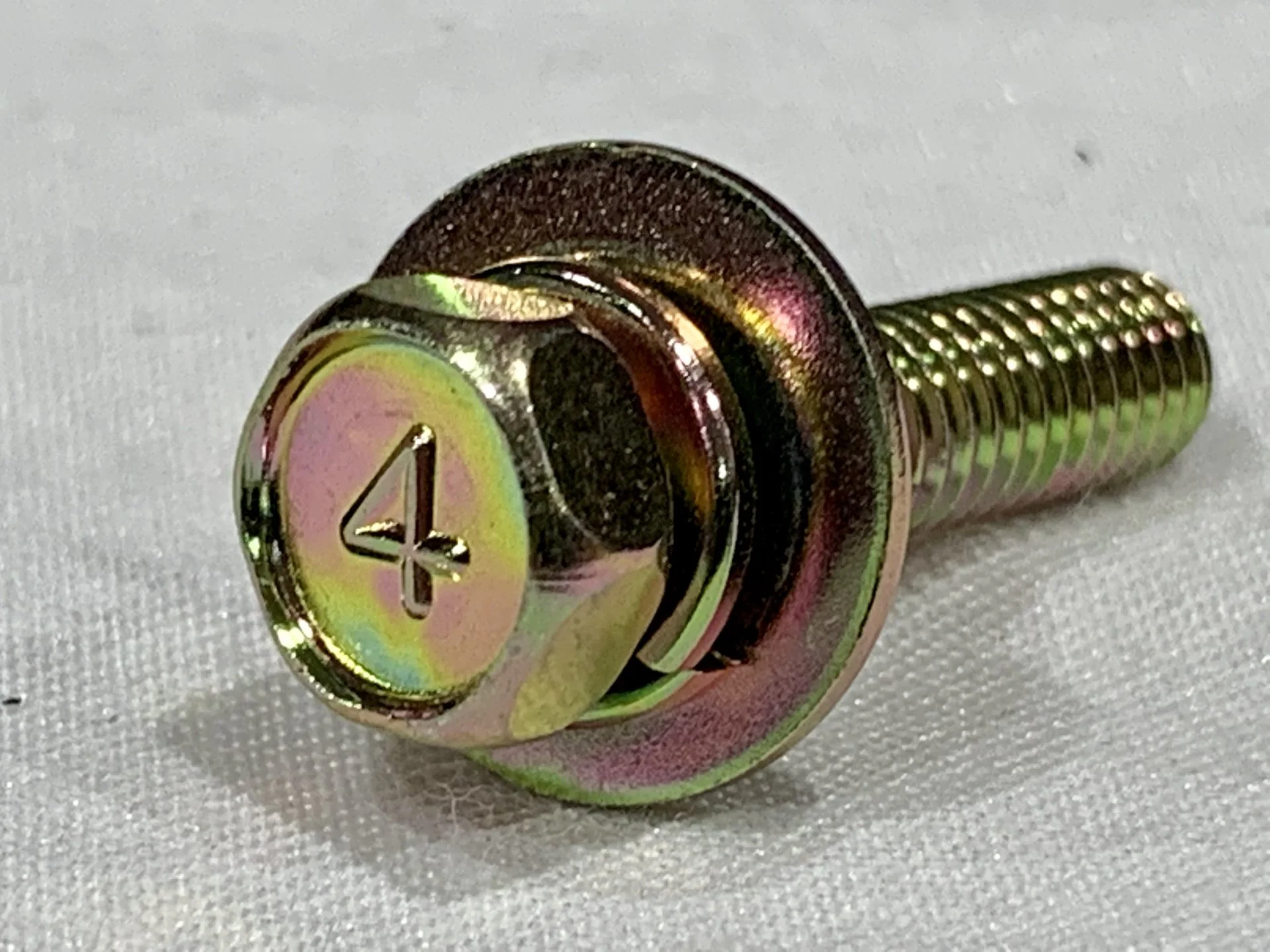

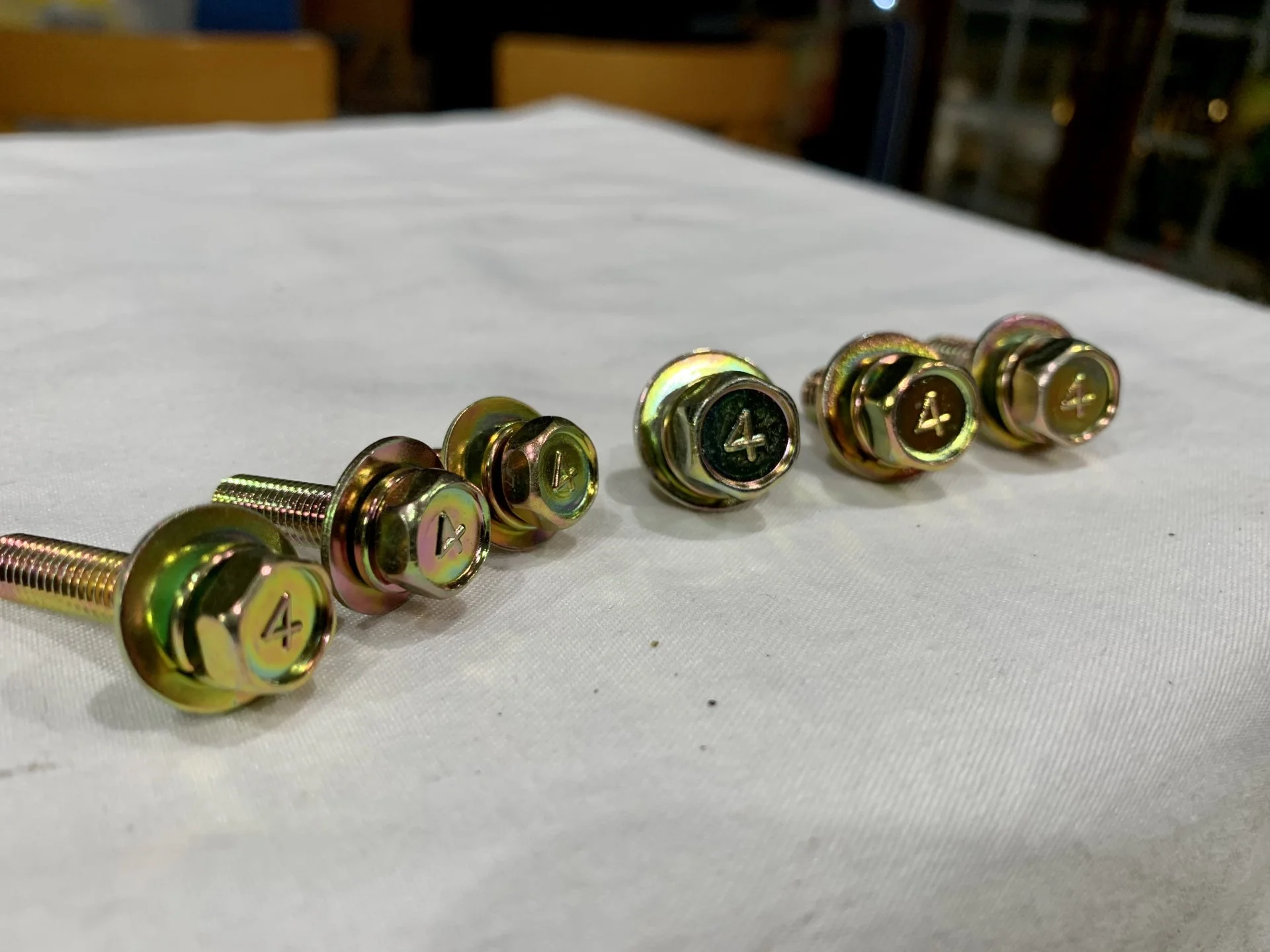

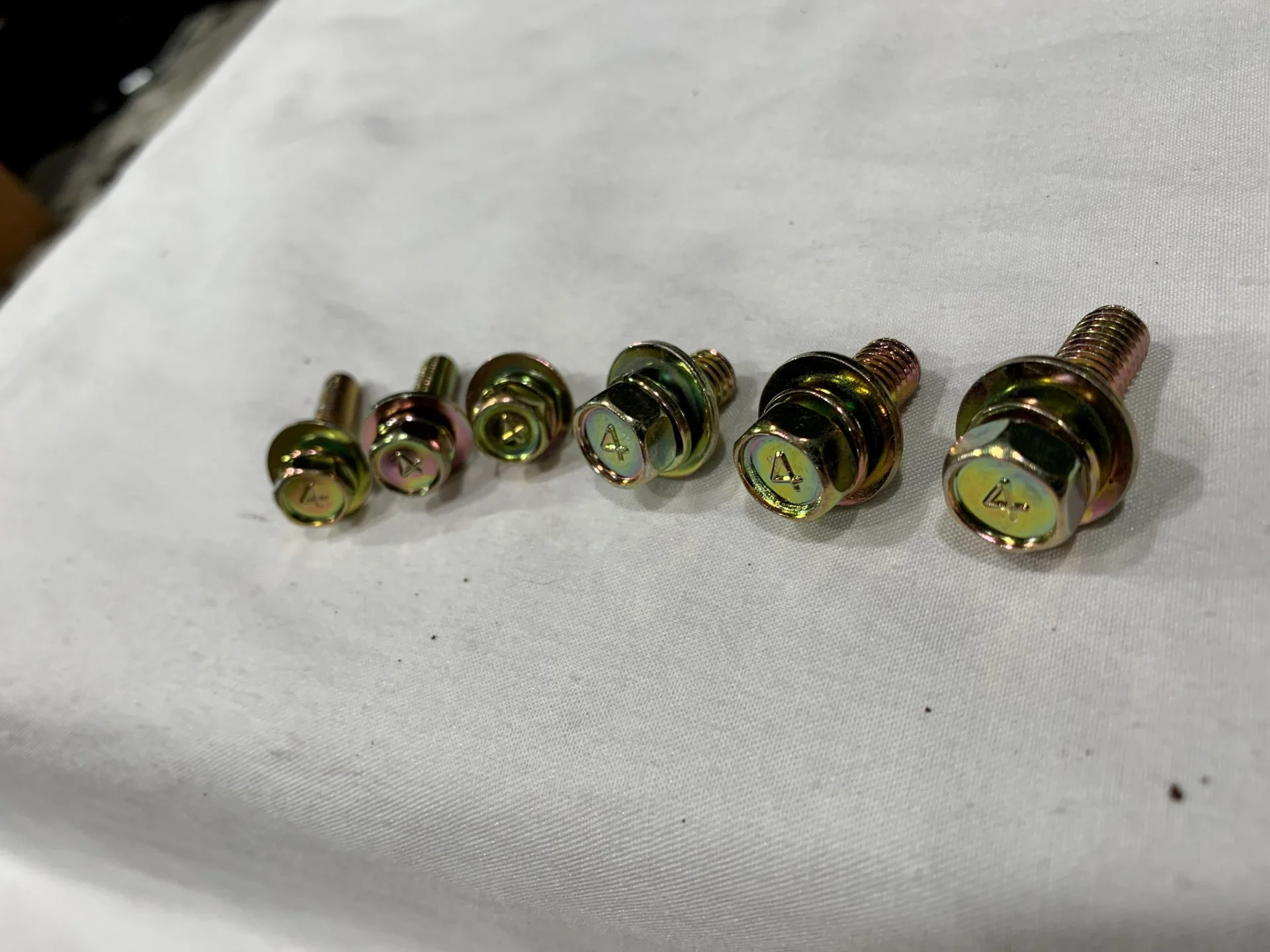

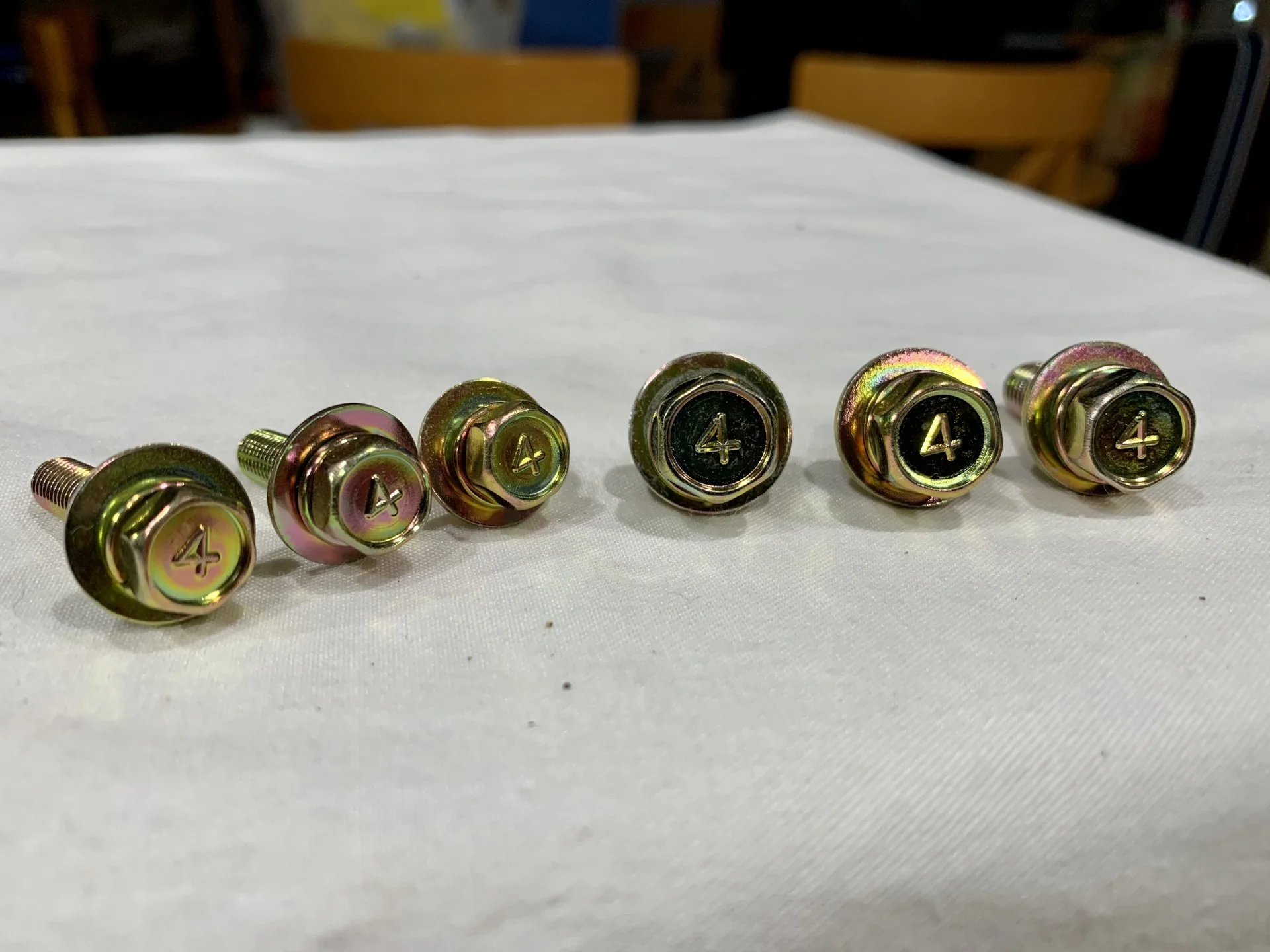

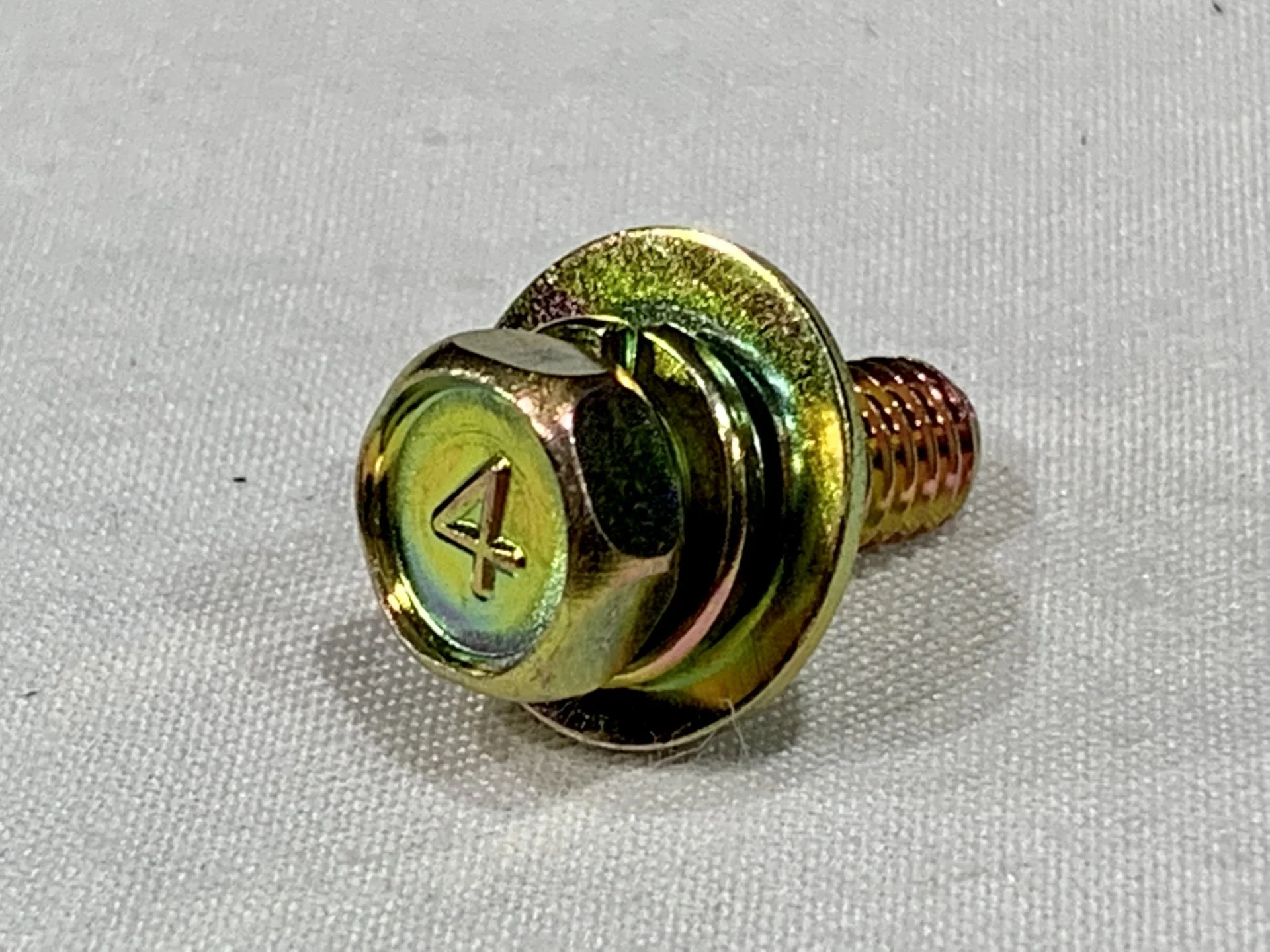

Introducing #4 MARK Head Yellow Zinc Gold Plated Made in JAPAN Double Lock and Fender washers SEMS BOLTS

M6 x 1.0 x 16mm J.I.S. SEMS GOLD ZINC PLATED STAMPED #4 HEAD BOLTS OEM MADE IN JAPAN , SOLD in PACKS of 25pcs. Each - VintageTEqParts.com

M6 x 1.0 x 16mm M6 x 1.0 x 16mm Long J.I.S. SEMS GOLD ZINC PLATED STAMPED #4 HEAD BOLTS...

vintageteqparts.com

M6 x 1.0 x 25mm J.I.S. SEMS GOLD ZINC PLATED STAMPED #4 HEAD BOLTS OEM MADE IN JAPAN , SOLD in PACKS of 25pcs. Each - VintageTEqParts.com

M6 x 1.0 x 25mm Long J.I.S. SEMS GOLD ZINC PLATED STAMPED #4 HEAD BOLTS OEM MADE IN JAPAN SOLD...

vintageteqparts.com

M6 x 1.0 x 30mm J.I.S. SEMS GOLD ZINC PLATED STAMPED #4 HEAD BOLTS OEM MADE IN JAPAN , SOLD in PACKS of 25pcs. Each - VintageTEqParts.com

M6 x 1.0 x 30mm Long J.I.S. SEMS GOLD ZINC PLATED STAMPED #4 HEAD BOLTS OEM MADE IN JAPAN SOLD...

vintageteqparts.com

M8 x 1.25 x 16mm J.I.S. SEMS GOLD ZINC PLATED STAMPED #4 HEAD BOLTS OEM MADE IN JAPAN , SOLD in PACKS of 10pcs. Each - VintageTEqParts.com

M8 x 1.25 x 16mm Long J.I.S. SEMS GOLD ZINC PLATED STAMPED #4 HEAD BOLTS OEM MADE IN JAPAN SOLD...

vintageteqparts.com

M8 x 1.25 x 20mm J.I.S. SEMS GOLD ZINC PLATED STAMPED #4 HEAD BOLTS OEM MADE IN JAPAN , SOLD in PACKS of 10pcs. Each - VintageTEqParts.com

M8 x 1.25 x 20mm Long J.I.S. SEMS GOLD ZINC PLATED STAMPED #4 HEAD BOLTS OEM MADE IN JAPAN SOLD...

vintageteqparts.com

M8 x 1.25 x 25mm J.I.S. SEMS GOLD ZINC PLATED STAMPED #4 HEAD BOLTS OEM MADE IN JAPAN , SOLD in PACKS of 10pcs. Each - VintageTEqParts.com

M8 x 1.25 x 25mm Long J.I.S. SEMS GOLD ZINC PLATED STAMPED #4 HEAD BOLTS OEM MADE IN JAPAN SOLD...

vintageteqparts.com



[ToyotaMatt]

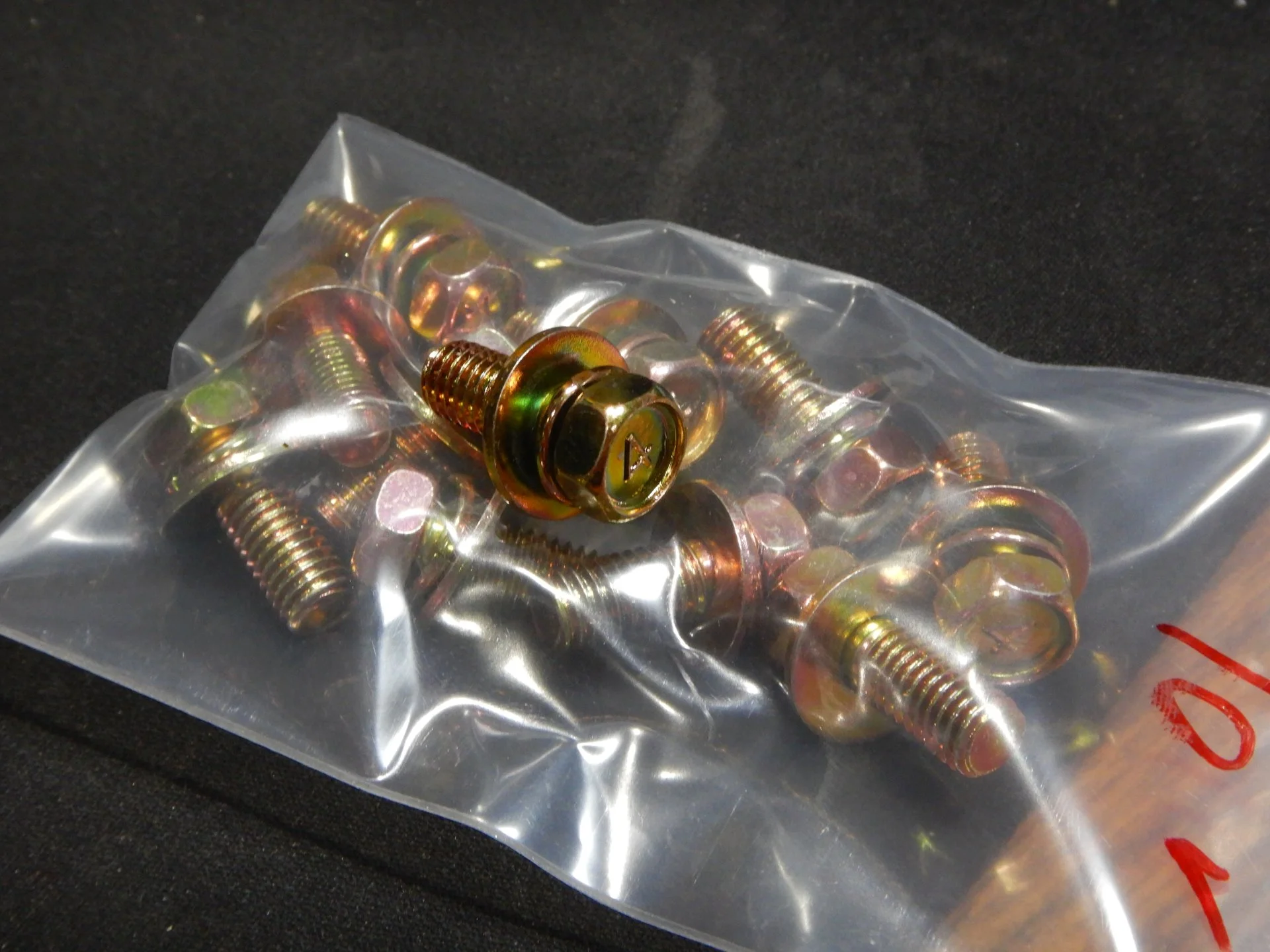

I have the following Thread Pitches and Diameters ONLY :

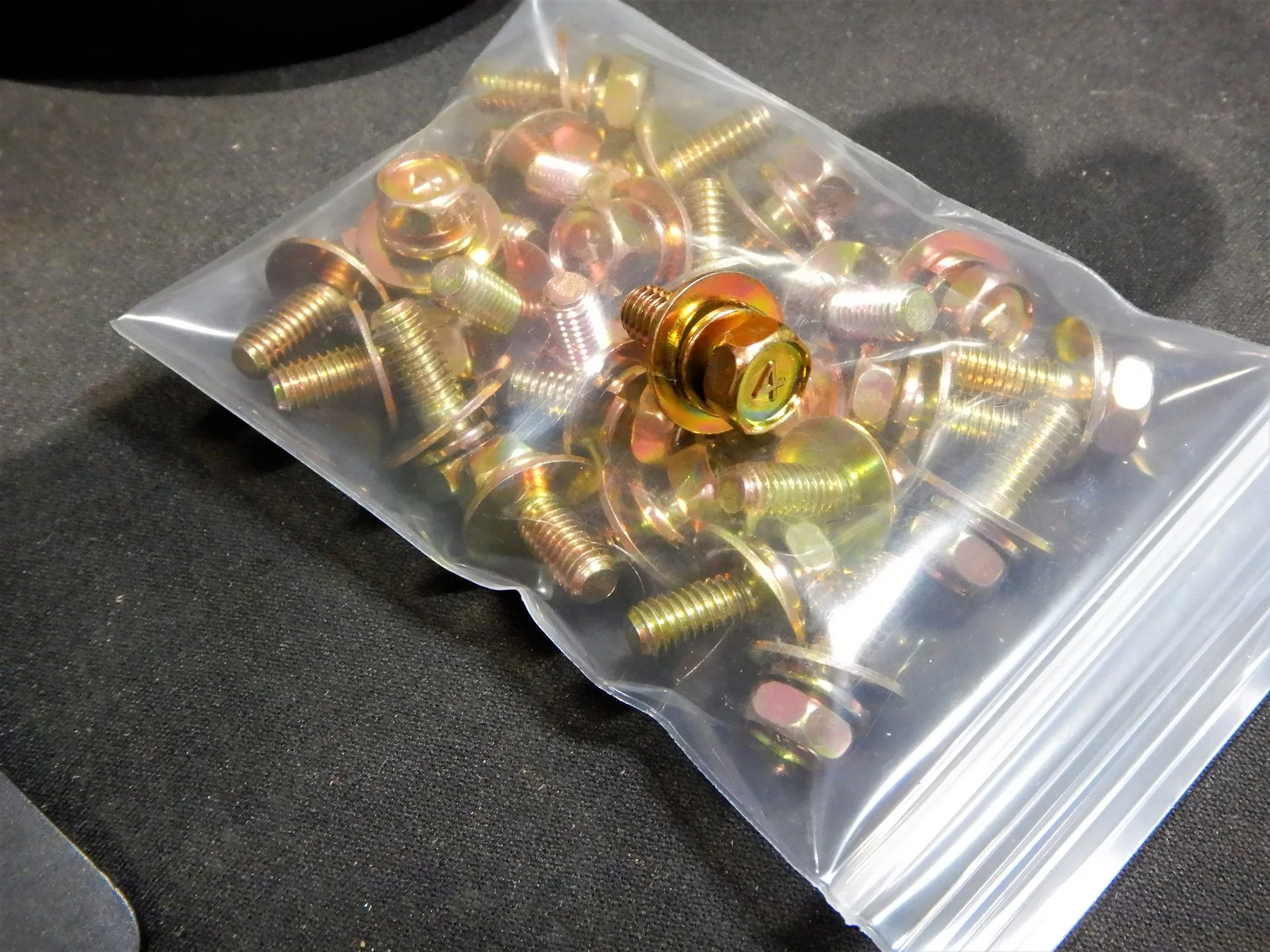

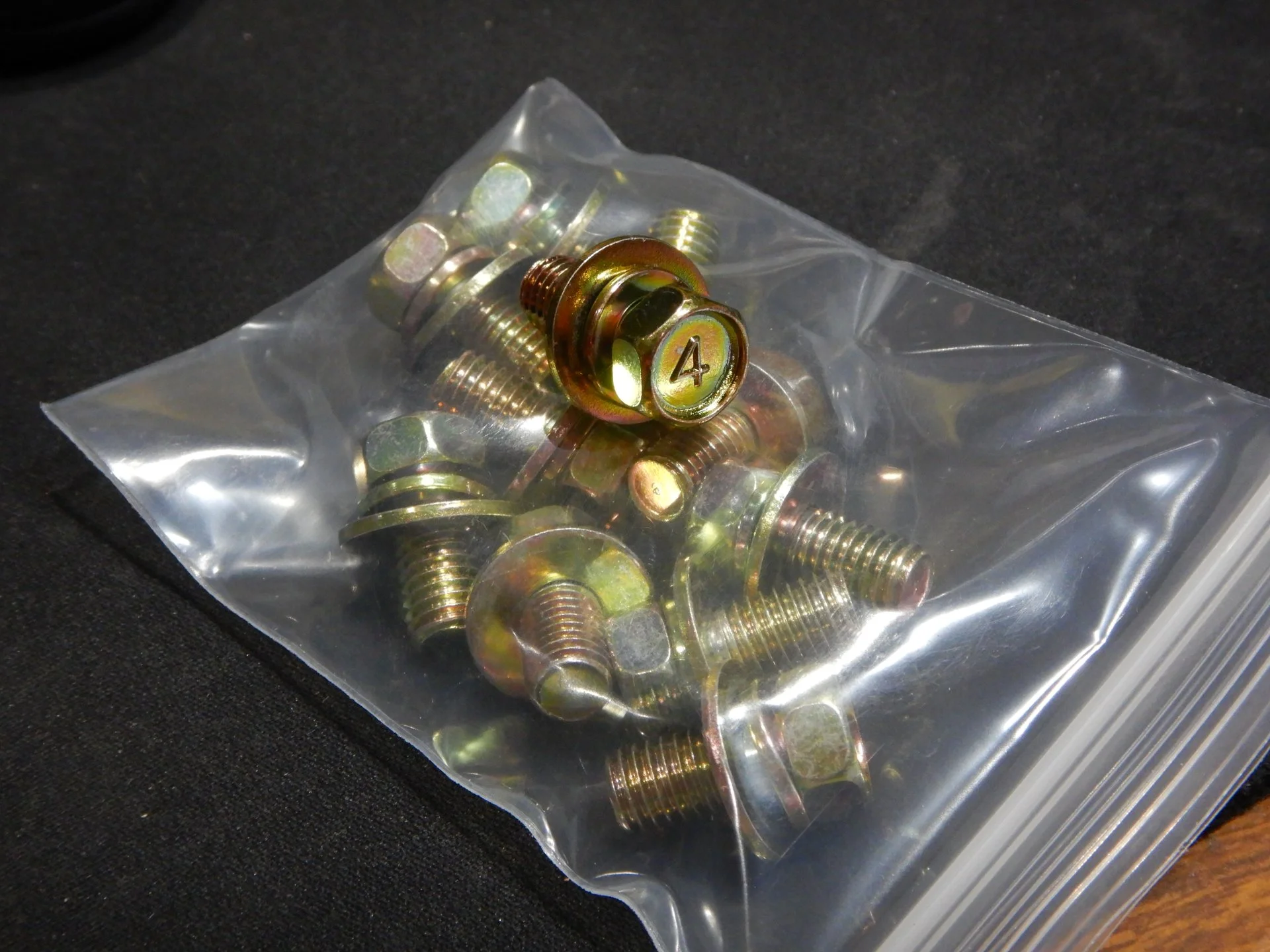

- 6mm x 1.0 x 16mm long bags of 25 pcs

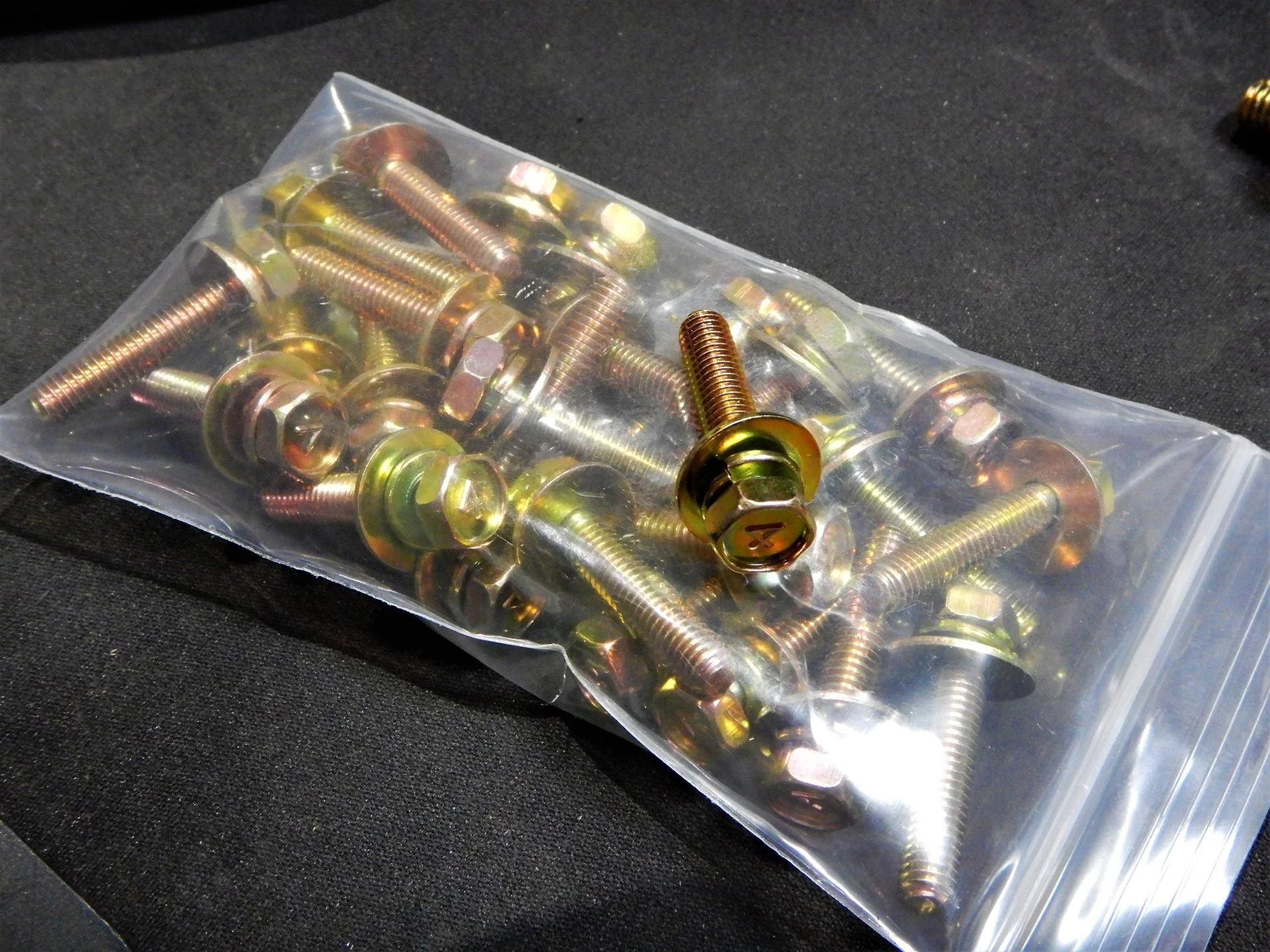

- - 6mm x 1.0 x 25mm long bags of 25 pcs

-
- 6mm x 1.0 x 30mm long bags of 25 pcs

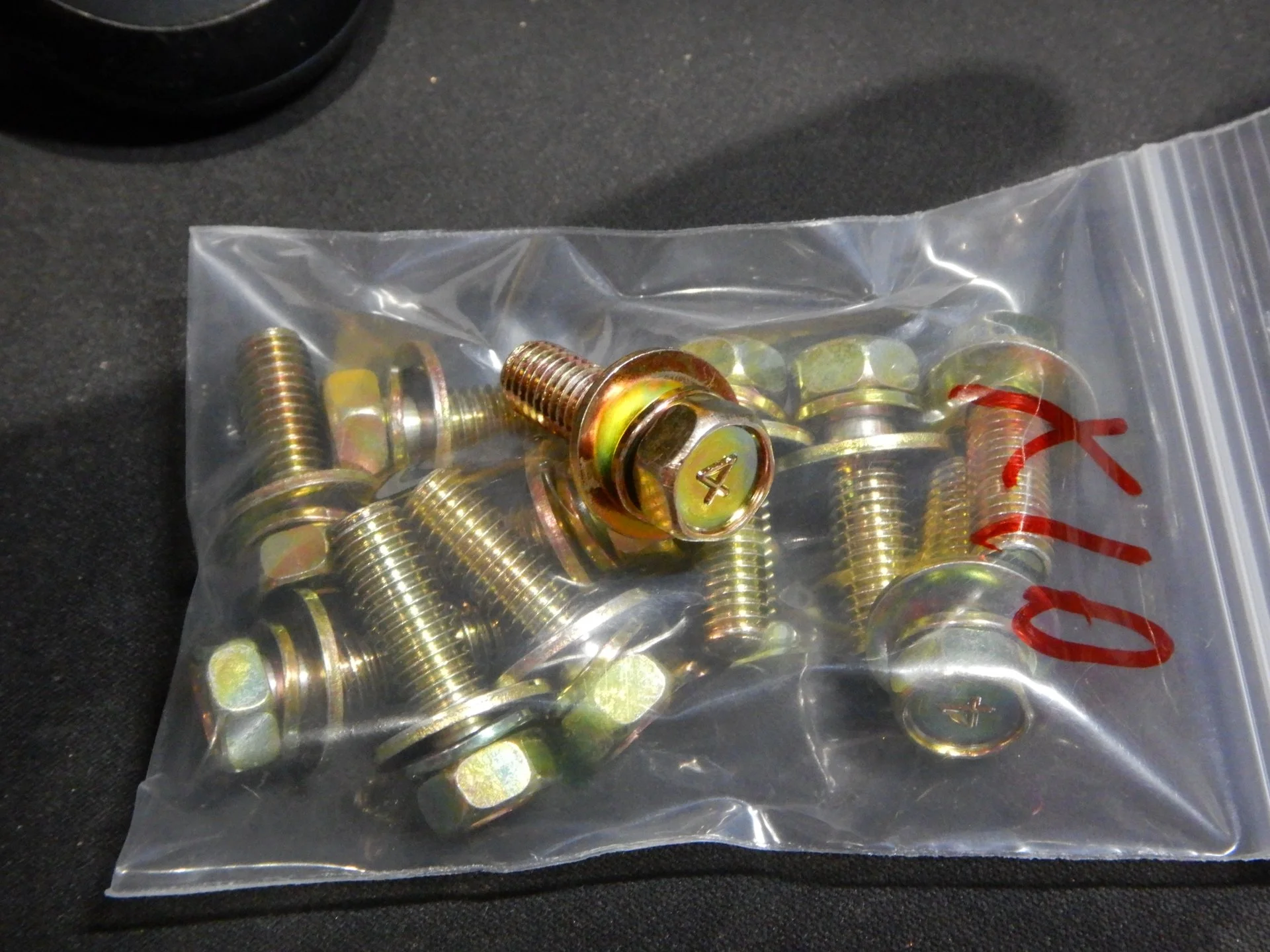

- 8mm x 1.25 x 16mm long 10pack bags

- 8mm x 1.25 x 20mm long 10 pack bags


- 8mm x 1.25 x 25mm long 10 pack bags



[ToyotaMatt]



[ToyotaMatt]



[ToyotaMatt]



[MDH33]

Matt, silly question, but what did the numbers designate originally? Some of the oem bolts are the same size and thread pitch, but have different numbers, 4,5,7 etc.



[ToyotaMatt]

Matt, silly question, but what did the numbers designate originally? Some of the oem bolts are the same size and thread pitch, but have different numbers, 4,5,7 etc.

stand by ill post some TECH here

GOOD question !


stand by



[ToyotaMatt]

Matt, silly question, but what did the numbers designate originally? Some of the oem bolts are the same size and thread pitch, but have different numbers, 4,5,7 etc.

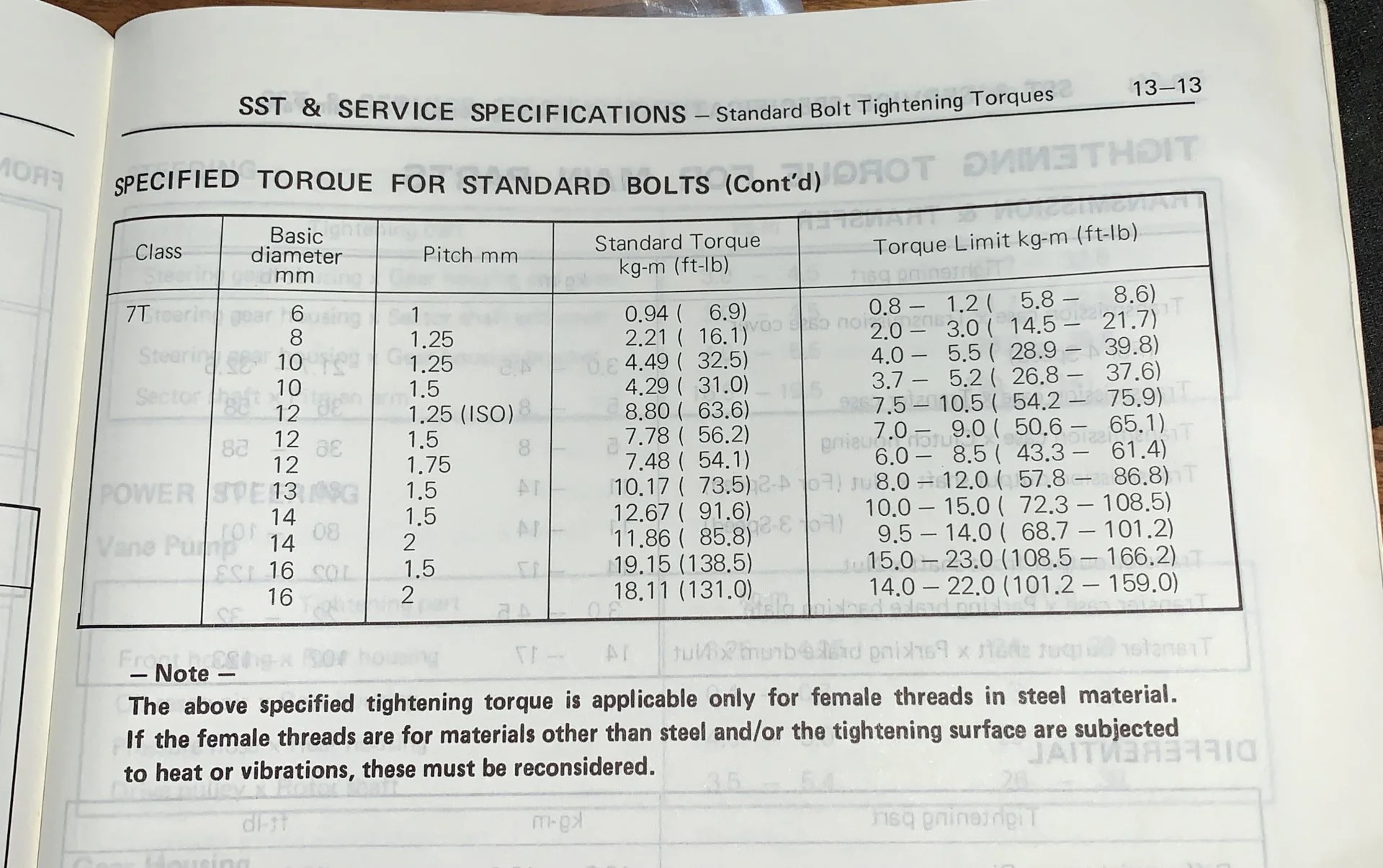

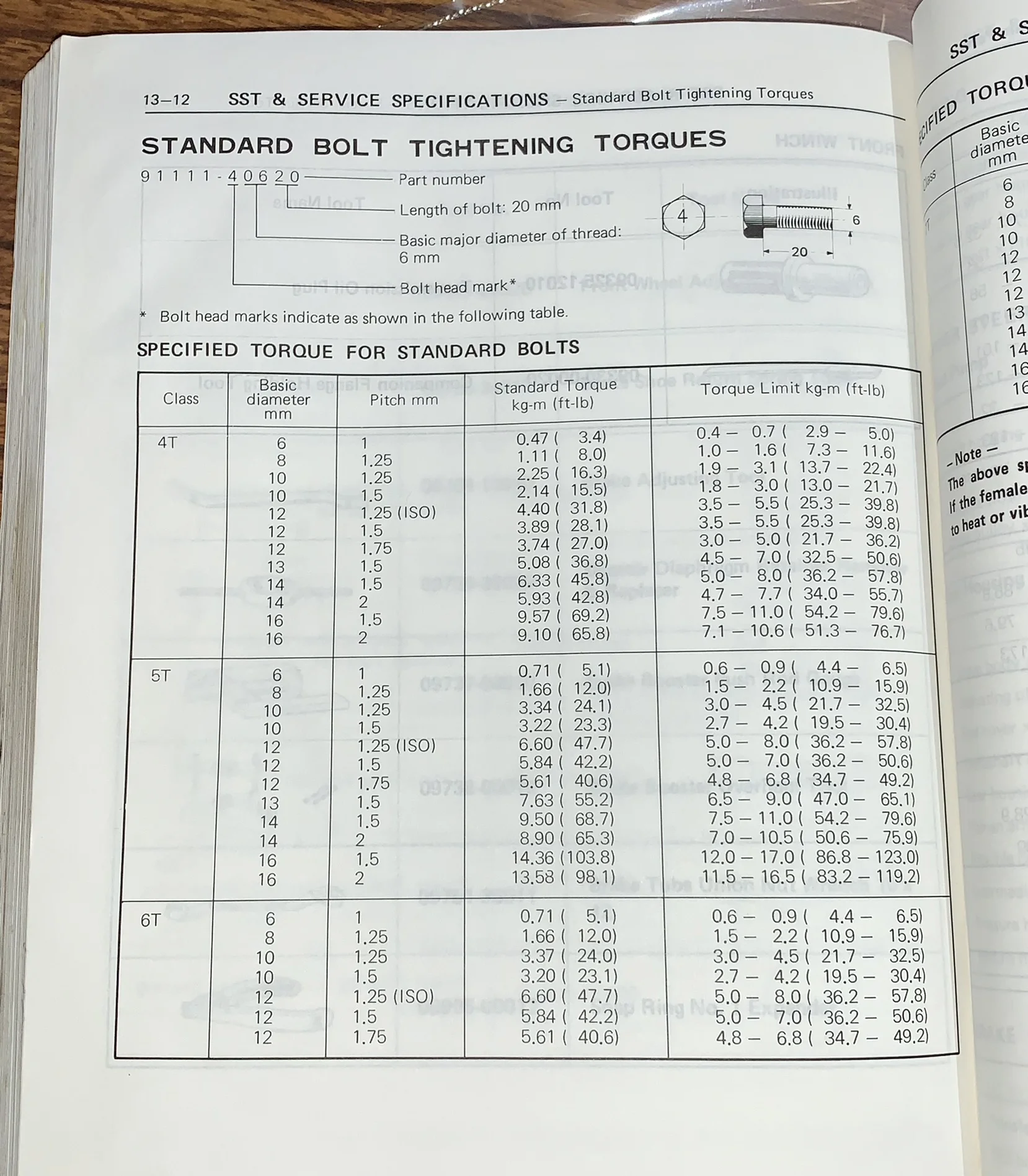

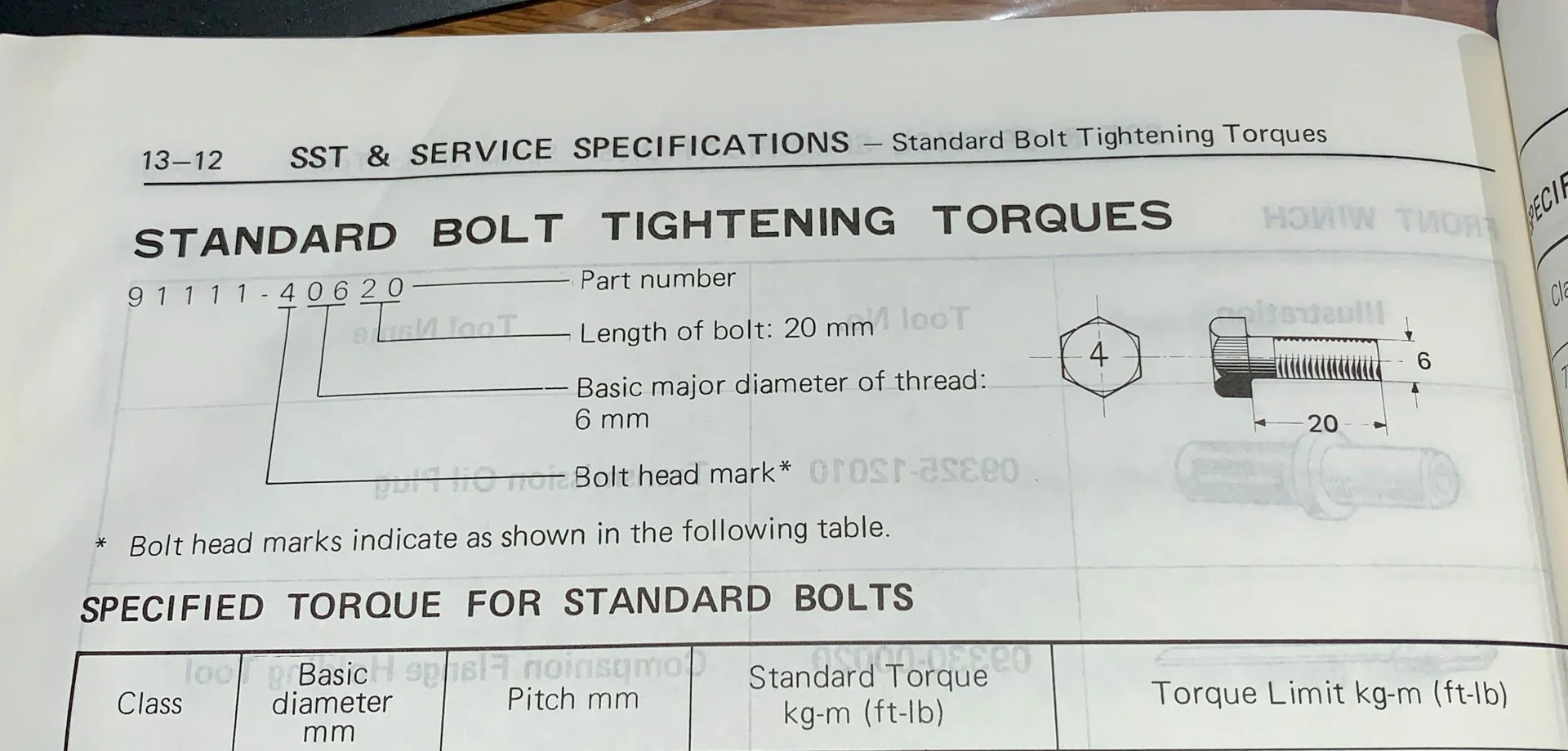

The higher the number the stronger the JIS fastener basicly

But study the below hard

It’s a bit tricky at first



[65swb45]

Those charts just qualified your classifieds post for status as a FAQ sticky! Good on you Matt.



[ToyotaMatt]

Those charts just qualified your classifieds post for status as a FAQ sticky! Good on you Matt.

Empowerment thru Education

​



[65swb45]

Only needed one word: infomercial!



[ToyotaMatt]



[MDH33]

Thanks for the explaination, Matt!

So, if the numbers correspond to strength/torque specs; do your new bolts meet all the same specs?



[ToyotaMatt]

Thanks for the explaination, Matt!

So, if the numbers correspond to strength/torque specs; do your new bolts meet all the same specs?

ok , kool thanks


YES ,

ALL MY bolts i offer here on MUD or ONLINE parts store / same ones


- are 100% MADE IN JAPAN , period NO grey area here what so ever to be krystal klear

- some are OEM TOYOTA NON USA hardware , others are simply i purchase from a OEM parts Japanese main land specialty company direct

- 100% of the stamped #'s heads #4 #7 #8 and so on are made in special runs or batches for me per my order request / there minimum order amount they require


- so ............

- to clarify they are 100% JIS / JDM correct for the year 2022 TODAY , and prior as well , the JIS numbering system for hardware has been the same since i was age 15 in 1989 that im aware of and has not changed


- only HOW they mark the heads now they use dots and dashes


- TAKE note , the #7 and #8 ones have smaller diameter washers SEMS

- the #4 have more of a fender washer set up both SEMS



SEMS defined is " PRE-Assembled in JIS terminology


JIS = Japanese Industry standard much like SAE is in the USA



[ToyotaMatt]

SEMS - Wikipedia

en.wikipedia.org

SEMS​

From Wikipedia, the free encyclopedia



Jump to navigationJump to search
SEMS may refer to:

• Self-expandable metallic stent, a medical tube to hold open the gastrointestinal tract
• A Screw with pre-asSEMbled washer
• A nut with a pre-as""SEM""bled washer
• Stock Exchange of Malaysia and Singapore (SEMS)

This disambiguation page lists articles associated with the title SEMS.
If an internal link led you here, you may wish to change the link to point directly to the intended article.



[ToyotaMatt]

JIS - Wikipedia

en.wikipedia.org

JIS​

From Wikipedia, the free encyclopedia



Jump to navigationJump to search

Look up jis or JIS in Wiktionary, the free dictionary.

JIS may refer to:

Standards[edit]​

• Japanese Industrial Standards
  • JIS screw drive
  • JIS semiconductor designation
  • JIS encoding



[ToyotaMatt]

THIS IS THE WAY

​



[wester11]

ok , kool thanks


YES ,

ALL MY bolts i offer here on MUD or ONLINE parts store / same ones


- are 100% MADE IN JAPAN , period NO grey area here what so ever to be krystal klear

- some are OEM TOYOTA NON USA hardware , others are simply i purchase from a OEM parts Japanese main land specialty company direct

- 100% of the stamped #'s heads #4 #7 #8 and so on are made in special runs or batches for me per my order request / there minimum order amount they require


- so ............

- to clarify they are 100% JIS / JDM correct for the year 2022 TODAY , and prior as well , the JIS numbering system for hardware has been the same since i was age 15 in 1989 that im aware of and has not changed


- only HOW they mark the heads now they use dots and dashes


- TAKE note , the #7 and #8 ones have smaller diameter washers SEMS

- the #4 have more of a fender washer set up both SEMS



SEMS defined is " PRE-Assembled in JIS terminology


JIS = Japanese Industry standard much like SAE is in the USA

What does the little “f” in front of the M6 or M8 on your webpage?



[ToyotaMatt]

What does the little “f” in front of the M6 or M8 on your webpage?

typo i just corrected

thanks
