LC 250 Parts Thread (3 Viewers)

[LCQ]

LC 250 part numbers

Starting a thread where people can throw in part numbers they find. Kicking it off with one I found today looking at a First Edition.

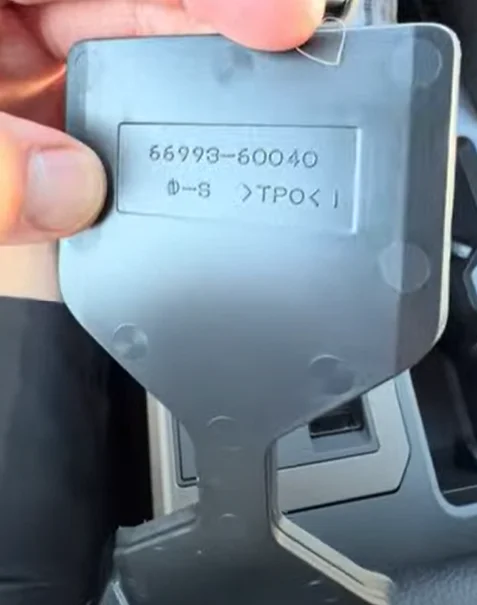

Cup Holder Tray - 66993-60040 (this is not included on 1958). Saw it in person on a First Edition. Not sure about LC trim.

Front skid plate - PT228-60242
Transmission skid plate - PT228-35241
Oil filter - 90915-YZZN1
Oil drain plug gasket/washer - 90430-12031
Engine air filter - 17801-31180

All weather floor mats - PT908-60240-20
Luggage Cover - PZ317-60013
Driver side knee pad sub-assy - 55402-60360-C0
Panel Assembly Front Door - 67610-6AB70-C8
Panel Assembly Front Door - 67620-6AC90-C6
LC grade Dash Trim - 55011-60190-C1



[ryanjl]

Need the part number for the oil drain plug washer. Is there a generic part that everyone uses?



[Dixon Santana]

Front end conversion to LC or FE front end:

52411-60250 Front Bumper Lower Valance panel
52115-60901 Front Bumper End Cap (paint reqd.)
52116-60901 Front Bumper End Cap (paint read.)
53101-60P40 Grill Assy
89348-60180 Retainer for parking sensor x2
***Will need new parking sensors to match body color. Part number will depend on color code.
New sensor will require calibration with GTS Plus, failure to do so will result in loss of parking sensors and other safety sense features***

Rear bumper and hatch LC and FE conversion parts:

52951-60050 RH lower bumper trim
52952-60050 LH lower bumper trim
76811-60910 Hatch Garnish (paint reqd.)
76822-60080 Protector Garnish
76821-60060 Protector Garnish
76825-60350 Protector Back Door x2
76825-60340 Protector Back Door
76812-60400 Garnish Back Door No.2

LC and FE Wheel Moldings

75601-60100 RH FR Molding
75602-60100 LH FR Molding
75061-60380 Door Molding
75062-60070 Door Molding
75605-60170 Quarter Molding RH
75605-60170 Quarter Molding LH
76621-60270 Mudguard RH FR
76622-60220 Mudguard LH FR
76625-60470 Mudguard RH RR
76626-60470 Mudguard LH RR

LC Trim NON-JBL Door Panels (Black)

67610-6AB30-21 Front Right
67620-6AC70-21 Front Left
67630-60Y60-C8 Rear Right
67640-60Y60-C8 Rear Left



[Dixon Santana]

Need the part number for the oil drain plug washer. Is there a generic part that everyone uses?

90430-12031



[mhead]

Have the 1958...think it is great. A return to the roots of the Land Cruiser. My opinion...having said that, there are a few things that could help.

Is there a part number for the Hood Insulation Pad? 1958 does not have it.

There was also a part that you can use for the trailer hitch when the cover was removed...it seemed to provide a trim above the receiver that cleaned things up a bit.

...and on the wish list...It would have been truly cool if they put rubber floor liners in the 1958 ...like they did on the FJ.



[Dixon Santana]

Have the 1958...think it is great. A return to the roots of the Land Cruiser. My opinion...having said that, there are a few things that could help.

Is there a part number for the Hood Insulation Pad? 1958 does not have it.

There was also a part that you can use for the trailer hitch when the cover was removed...it seemed to provide a trim above the receiver that cleaned things up a bit.

...and on the wish list...It would have been truly cool if they put rubber floor liners in the 1958 ...like they did on the FJ.

The 1958 model will have the hood insulation from the assembly plant as well. Here is mine for reference.

Trailer hitch Bumper Trim:

52169-60230



[turbo8]

Is there an easy way to determine if any of the TRD pro parts from the Tacoma will fit the 250?
Like upper control arms, rear jounce stops, shocks, etc?

I assume if the Taco and 250 share the stamped steel upper arms, the TRD billet aluminum ones would fit the 250?



[OffRoadScott]

Is there an easy way to determine if any of the TRD pro parts from the Tacoma will fit the 250?
Like upper control arms, rear bounce stops, shocks, etc?

I assume if the Taco and 250 share the stamped steel upper arms, the TRD billet aluminum ones would fit the 250?

The Tacoma Pro parts more than likely wont fit. Check out Westcott Designs Moab Cruiser. They used Tundra Pro shocks with some custom parts. But definitely worth the look.



[Dixon Santana]

Is there an easy way to determine if any of the TRD pro parts from the Tacoma will fit the 250?
Like upper control arms, rear bounce stops, shocks, etc?

I assume if the Taco and 250 share the stamped steel upper arms, the TRD billet aluminum ones would fit the 250?

Most of the suspension components in the EPC look identical. Only odd thing I’ve noticed is the same part has a different part number from LC to Tacoma. My thought is, different suppliers for both vehicles, but the suspension looks the same in the EPC.

The UCA will fit no problem, along with the front struts and rear shocks. As far the bump stops for the rear, have yet to take a look at those.



[mhead]

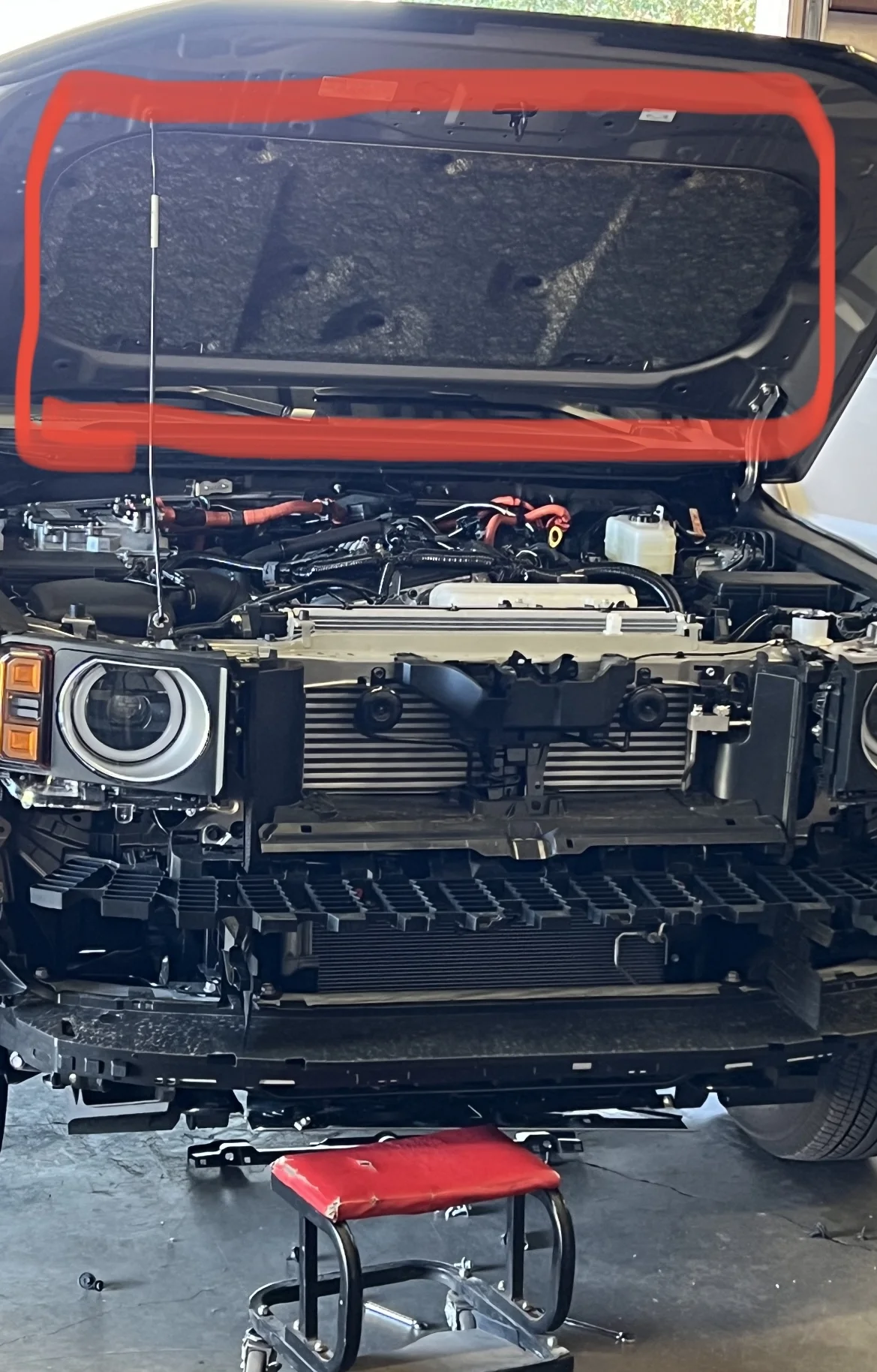

The 1958 model will have the hood insulation from the assembly plant as well. Here is mine for reference.

Trailer hitch Bumper Trim:

52169-60230

View attachment 3675398

Interesting ... My 1958 does not have the Hood Insulation...wonder if here was an oversight? Will need to find out if there is a part number for that.



[LCQ]

Interesting ... My 1958 does not have the Hood Insulation...wonder if here was an oversight? Will need to find out if there is a part number for that.

My 1958 has the hood insulator. I'd be getting in touch with the dealer if I were you. I heard Sheldon (Tacoma engineer) say they went away from an engine cover to go with the hood insulator (on Tacoma). So you'd think that it would be on every LC as well.



[turbo8]

Most of the suspension components in the EPC look identical. Only odd thing I’ve noticed is the same part has a different part number from LC to Tacoma. My thought is, different suppliers for both vehicles, but the suspension looks the same in the EPC.

The UCA will fit no problem, along with the front struts and rear shocks. As far the bump stops for the rear, have yet to take a look at those.

I wasn't so sure on the front coilovers, as the 250 has the lower mount in single shear and the Taco has it in double shear.

250

Taco



[Dixon Santana]

I wasn't so sure on the front coilovers, as the 250 has the lower mount in single shear and the Taco has it in double shear.

250
View attachment 3675440

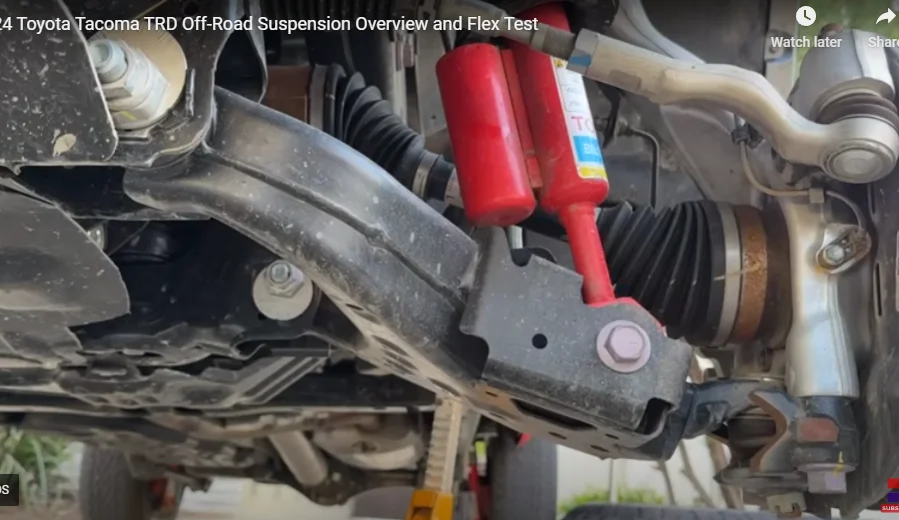

Taco
View attachment 3675441

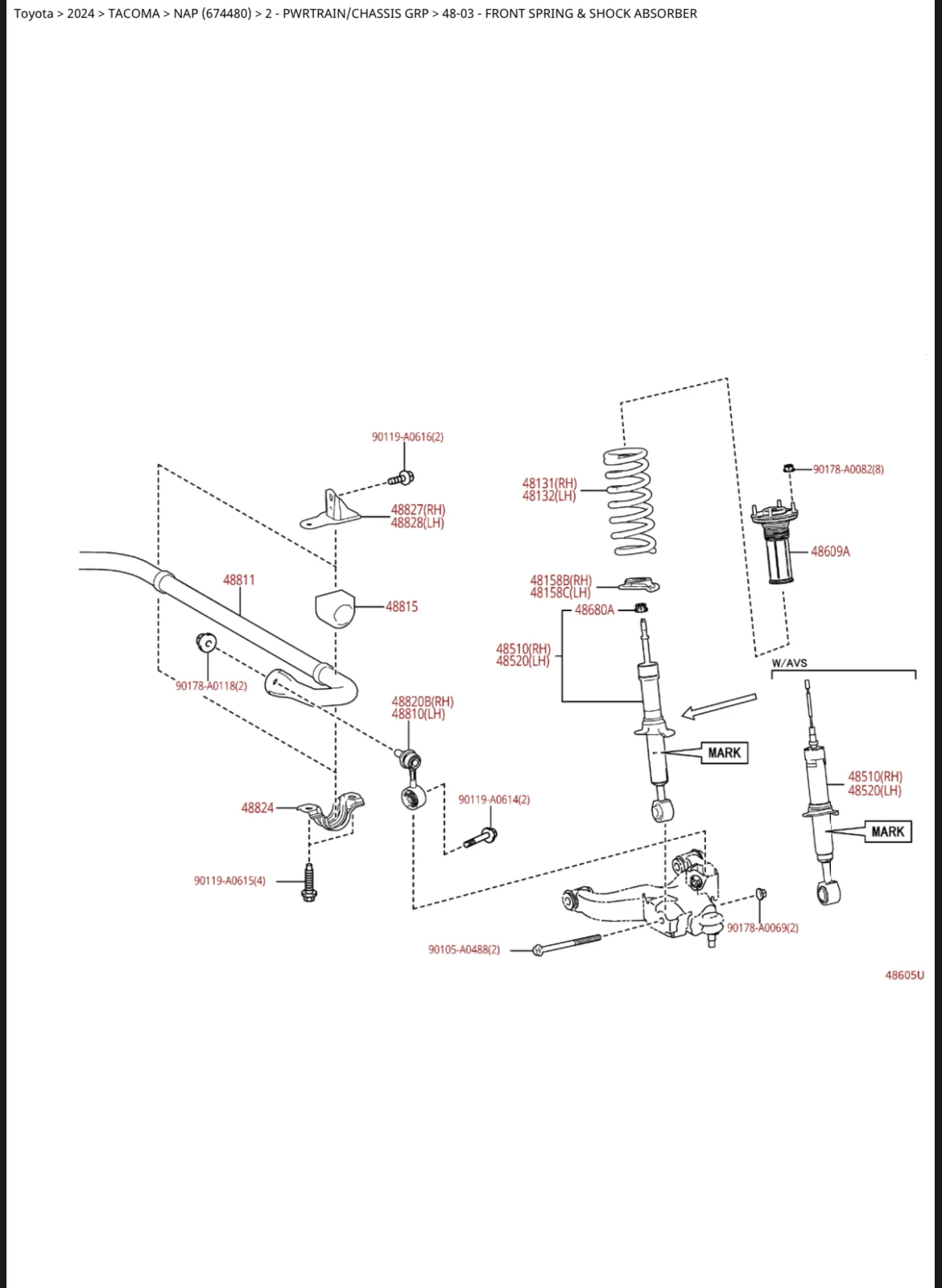

The diagrams on both look almost identical. Only thing that changes is the lower shock mount from what I can see.

The TRD PRO and Trail Hunter parts are so new, the parts inventory locator does not recognize the numbers yet. Those will be a while before they become readily available.



[HeadacheManNYC]

Here's a semi parts # related question.. would the TRD exhaust fit the 250?
I know the tail pipe exits off to the side - that seems workable enough if its the only difference..



[ryanjl]

There was also a part that you can use for the trailer hitch when the cover was removed...it seemed to provide a trim above the receiver that cleaned things up a bit.

...and on the wish list...It would have been truly cool if they put rubber floor liners in the 1958 ...like they did on the FJ.

Mine came with both of these things.



[ALcruiser222]

Can anyone with parts diagram access confirm for me the plugs/clips that occupy the weldnuts for units without Predator steps? There are dozens of other threads on this matter on other model Toyota boards but I would like final confirmation for LC250.

Should be (6 or 8) m8 weld nuts per side.



[4les]

Do you have part numbers for the door moulding accessory which fits the middle of the door. I found a part number online but all the links end up in a 404



[Dixon Santana]

Do you have part numbers for the door moulding accessory which fits the middle of the door. I found a part number online but all the links end up in a 404

Those are color code specific. Would need a VIN to get the correct part number.



[4les]

Those are color code specific. Would need a VIN to get the correct part number.

Black color



[Dixon Santana]

Black color

Black Molding

PT29A-60240-35
