Interior Part# ID help...

[Gnarwgn]

Hey Team -

I can't seem to ID the part numbers for the following, despite staring at schematics AND having the local Toyota parts counter guy try to figure it out...at this point I suppose its possible that they don't exist, but I suspect something exists to cover these bolt heads?

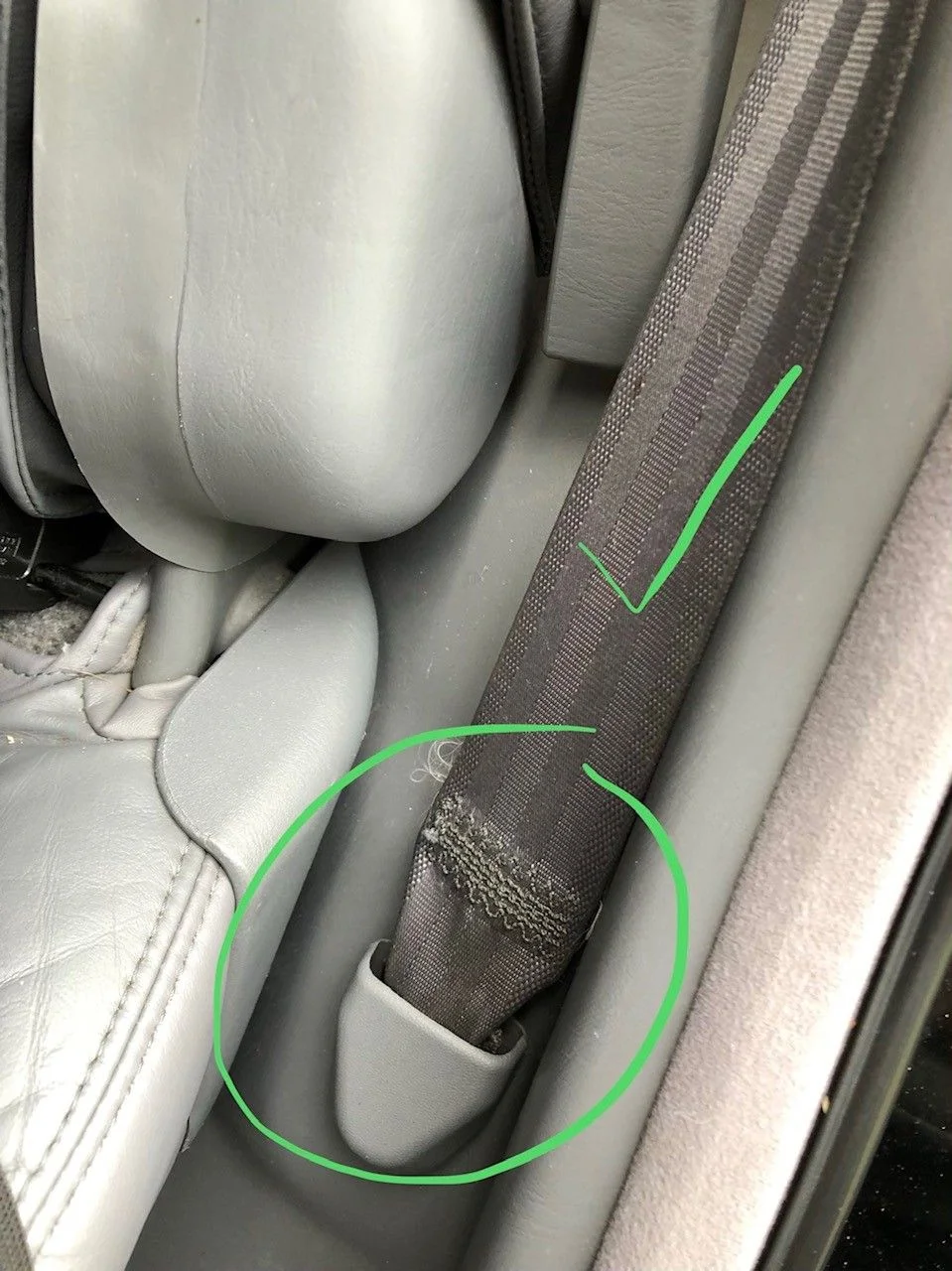

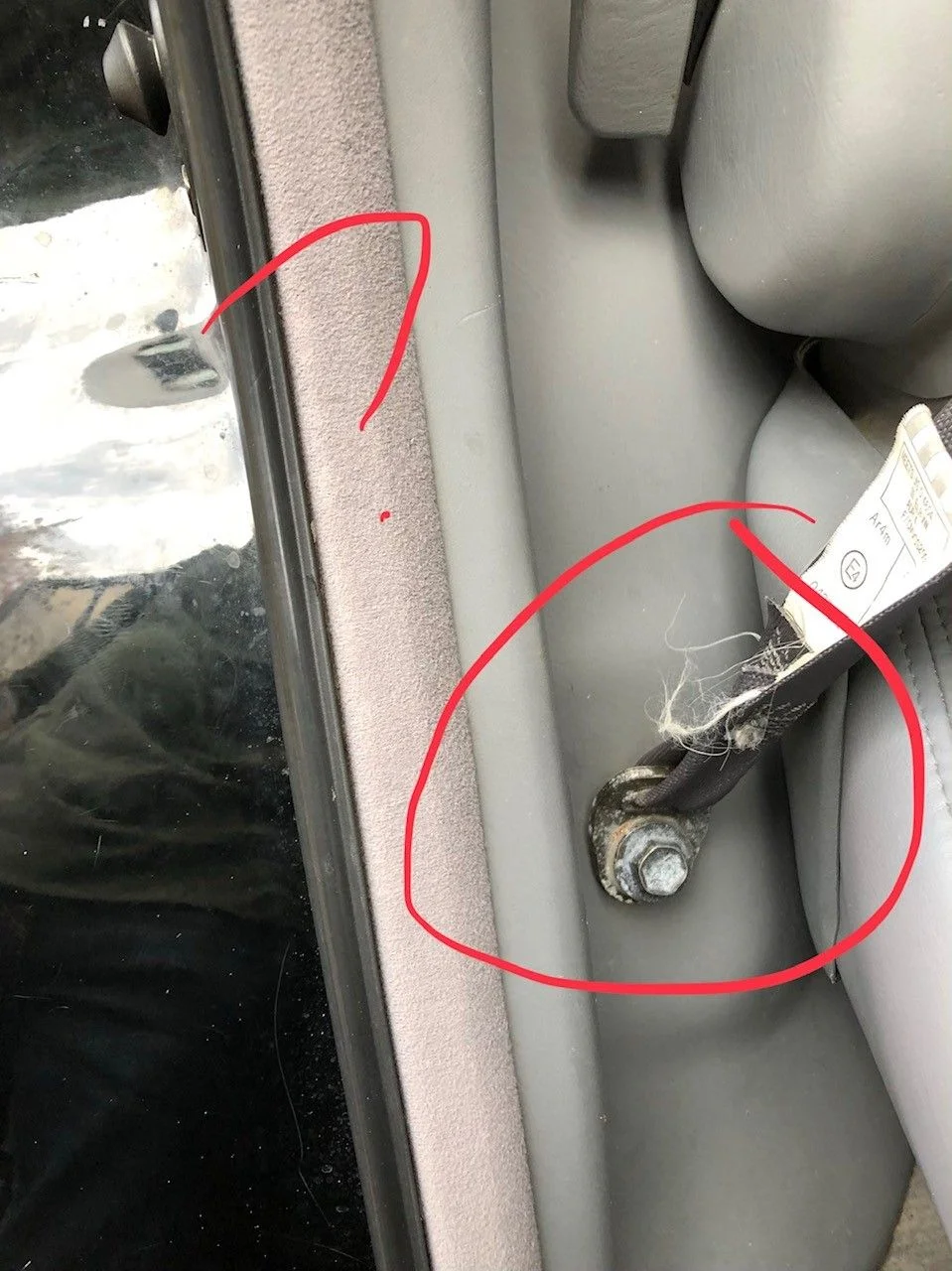

1. 2nd row passenger side - seat belt anchor cover/trim (pic with red circle showing missing part, pic with green circle showing correct part on the 2nd row driver side)

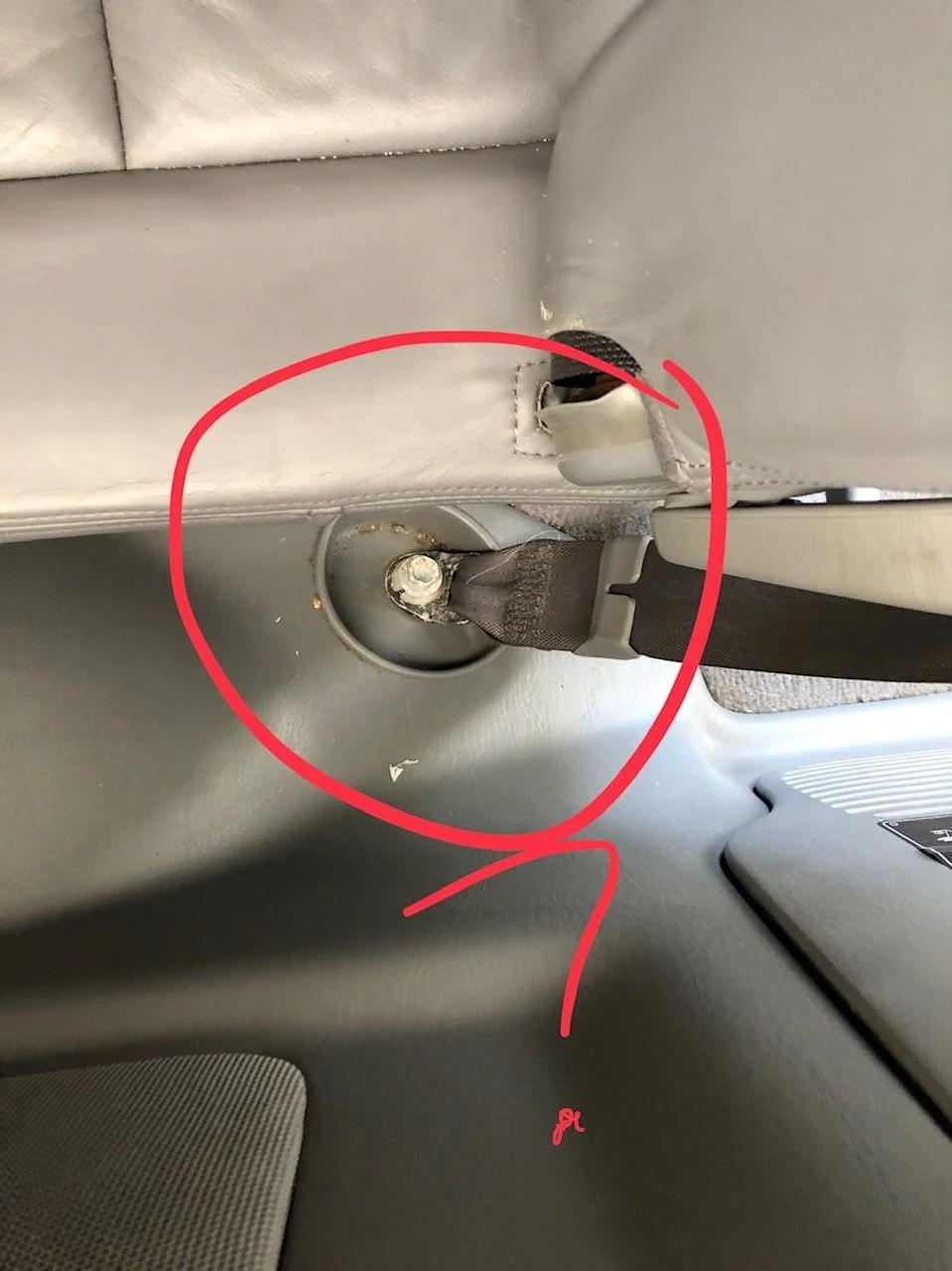

2. 3rd row jump seats - circular seat belt anchor cover/trim (pic with red circle showing missing part)

Anyway - if anybody can provide these part #'s, I'd be super stoked!

Thanks



[AndersN]

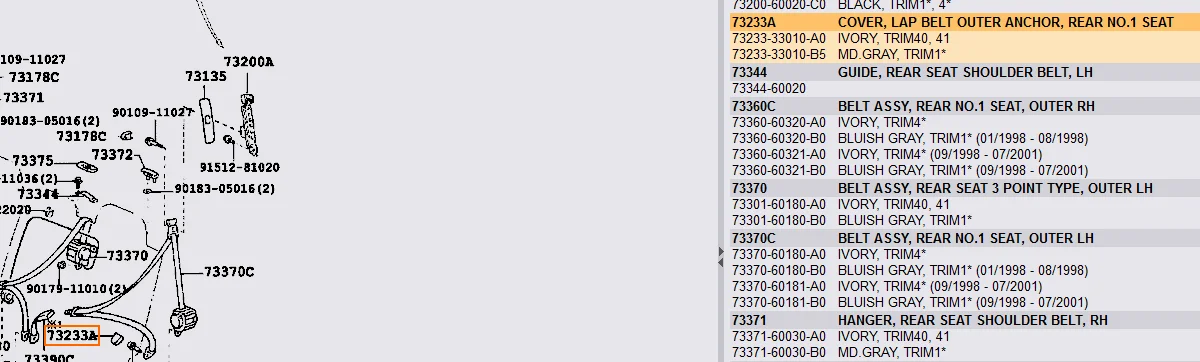

Third Row Diagram

SEAT BELT | LEXUS LX470 UZJ100L-GNPGKA UZJ100 | Lexus | Genuine Parts Catalogs | PartSouq Auto Parts Around the World

Second Row Diagram

SEAT BELT | LEXUS LX470 UZJ100L-GNPGKA UZJ100 | Lexus | Genuine Parts Catalogs | PartSouq Auto Parts Around the World


Second Row Seatbelt Part # 7337060181A0
Third Row Seatbelt Part # 7357060121A0

I think the issue may be that those covers are included in the entire seatbelt assembly? That is my hypothesis at least.



[Trunk Monkey]

Same part no. for 2nd and 3rd row.



[Dwight S]

Here's the page from the local Toyota Dealer.
It's under ELECTRICAL>REAR SEAT BELTS

This is under 1998, but you can change the years as needed.

Rear Seat Belts for 1998 Toyota Land Cruiser | Fred Anderson Toyota



[CloudCity]

1. 2nd row passenger side - seat belt anchor cover/trim (pic with red circle showing missing part, pic with green circle showing correct part on the 2nd row driver side)

I will have to verify but I may have that second row cover in grey and you're welcome to it if so. I ordered it by mistake when trying to buy the seat belt holder clip. Send me a DM if you still need it and that will be my reminder to check when I get into the garage a bit later. I can confirm today for you.



[Gnarwgn]

Thanks @ga89hoss @Trunk Monkey @Dwight S for the great answers! My goal for the last year has been to fix/find/replace all the broken/missing parts/pieces, and these are some of the final missing pieces. A great moment for my hundy!

@CloudCity - that would be great, let me know!
