Ignition Tumbler (cylinder) change

This site may earn a commission from merchant affiliate
links, including eBay, Amazon, Skimlinks, and others.

Joined
Jun 25, 2017
Threads
13
Messages
37
Location
Spokane, Wa.
Anyone point me either to a thread, or an FSM scan of the right page for getting the ignition tumbler swapped out?

Mine is toast.

Either I cannot search worth a damn, or this doesn't happen often to our rigs.

I've only owned this thing for 2 months trying to get it road ready, so I've never even pulled the dash apart.

Any link to a procedure would be super helpful!

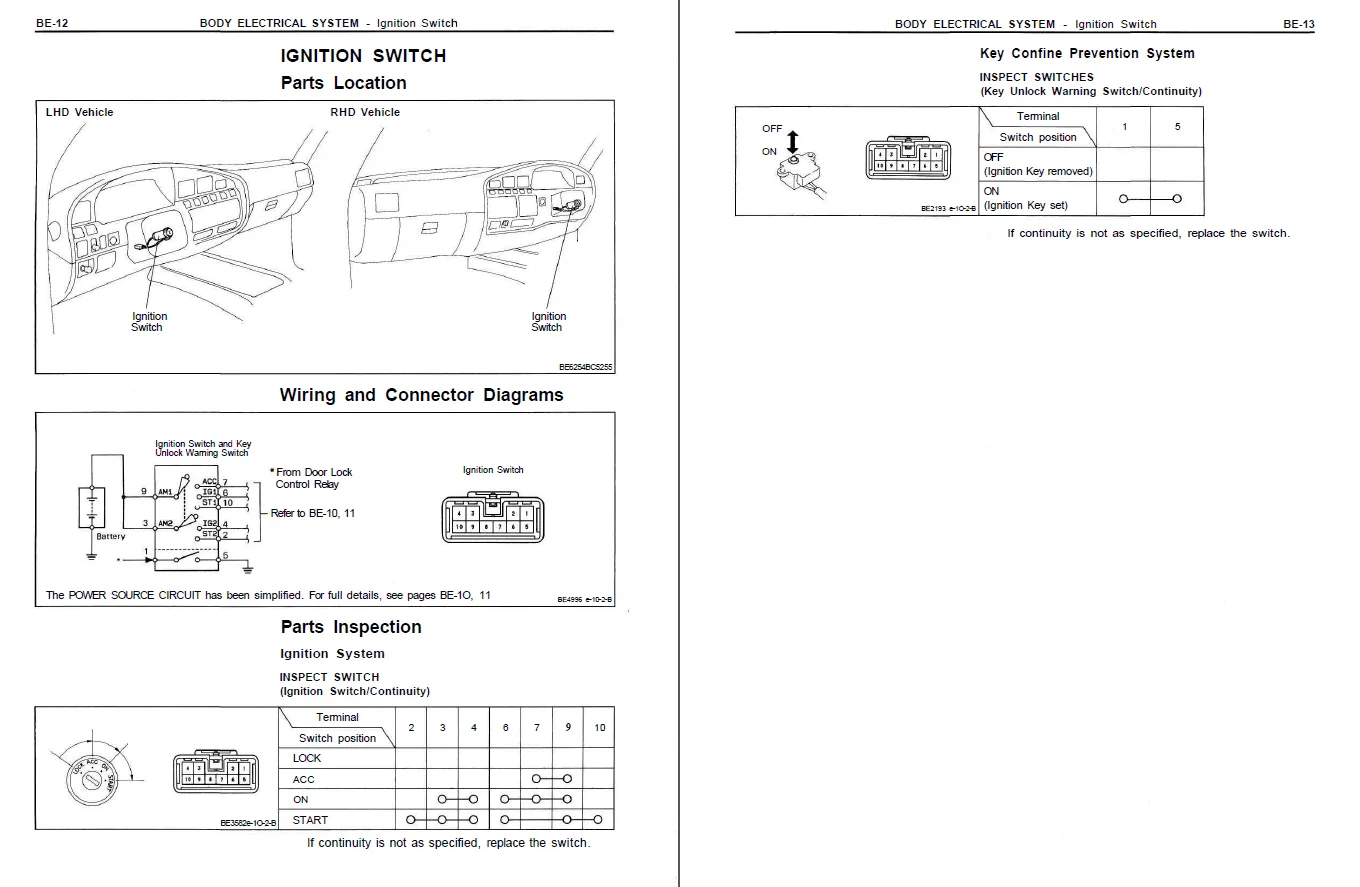

I know this is really late, but I was looking back through old posts for something else, and saw your question. Here's a typical answer from FSM:


It seems there is no special procedure required, so I'd look behind the dash. HTH.
