Hi,

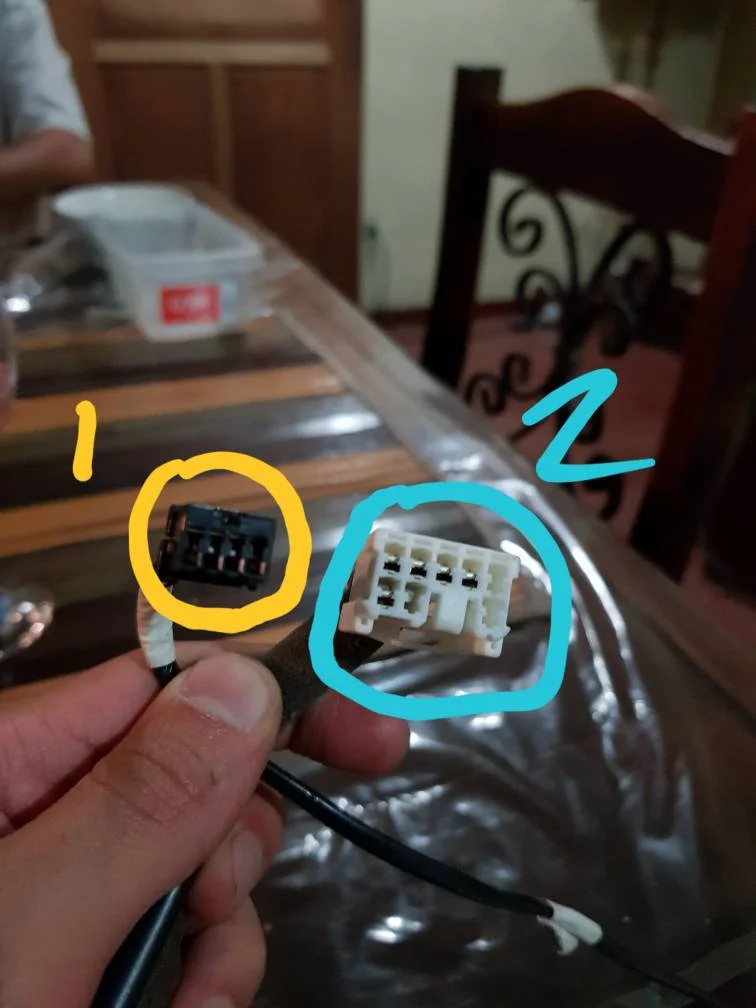

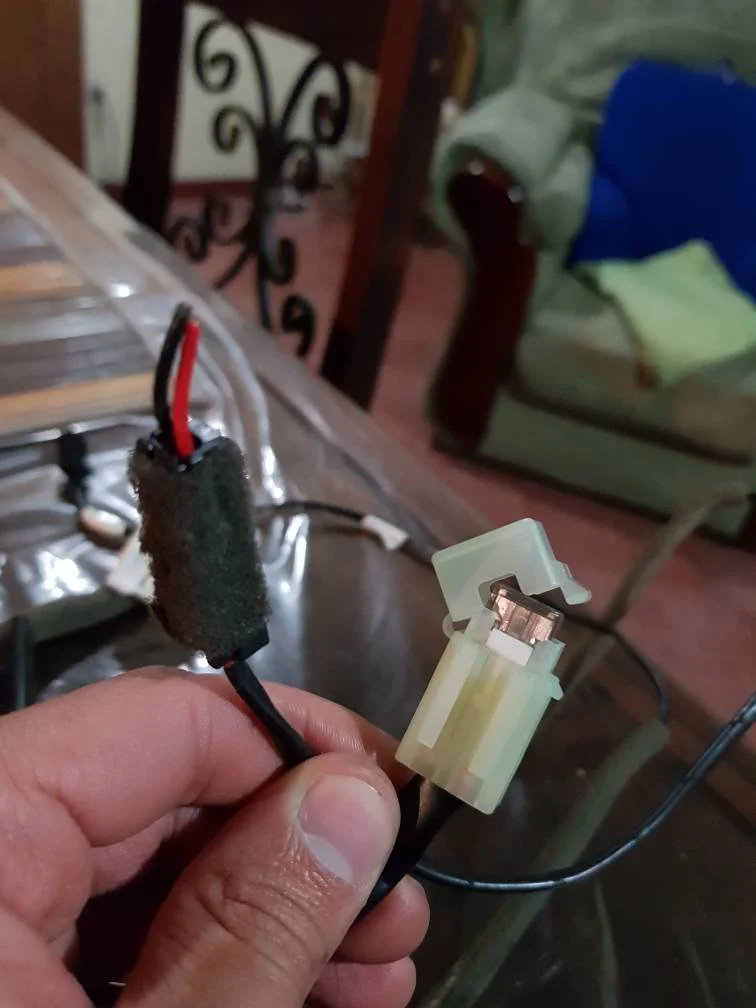

I want to install this 2011 Ford ranger Wildtrack multimeter cluster in my 2008 Mazda BT-50, this cluster have these plugs but i dont know if i need to buy an extra harness because i dont know where to connect plugs 1 & 2 of the picture to my car (see atachments)

Anyone can help me? I really appreciate any help to continue build my project :)

Regards.
