Front driveshaft grease fitting (Zerk) sheared off (1 Viewer)

S.CarolinaFZJ80

SILVER Star
Joined
Oct 4, 2008
Messages
3,972


Doing some PM today and noticed that the front driveshaft grease fitting has been sheared off! So I ordered one from the local Toyota dealer. It should be here tomorrow but in the meanwhile, I want to get the remaining portion out and ready for the new piece.

I searched for a "How To" on this but found nothing specificly related. Is it pressed in the driveshaft or threaded. If threaded, what is the thread size for the zerk?

Also, do any of you have any suggestions on how to get the remaining piece out?

I have already filed a small slot in the remaining potion of the grease fitting. I tried to use a screw driver to extract the broken piece. However, it did not budge and only deformed it more.

I could try drilling it but want to make sure that it is not press fit like the u-joints are.

Any thoughts or advice are appreciated!


S.CarolinaFZJ80

SILVER Star
Joined
Oct 4, 2008
Messages
3,972


Thats the thing, it's not so easy to get out.

Are you refering to it being "pressed" into the shaft?


rover67

SILVER Star
Joined
Sep 5, 2006
Messages
1,376
Location
Boulder, Co

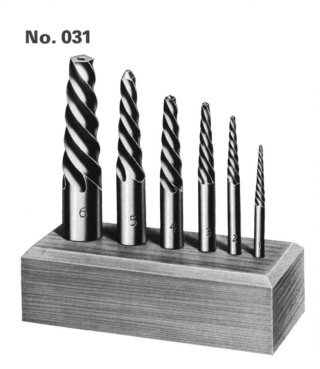

He is saying use and "easy out" or otherwise known as a screw extractor. Go to your local HW store and pick one up. It should fit the hole left in the zerk fitting and unscrew it easily. I have had to do it a bunch of times on my 60.


S.CarolinaFZJ80

SILVER Star
Joined
Oct 4, 2008
Messages
3,972


Ahh, thanks. Never heard of a screw extractor called an easy out. I have a few in the garage. I'll give it a try.

Joined
Dec 26, 2009
Messages
2,512
Location
808


You can also drill it out with a according size bit and then tap a Allen head in there and turn it out. Worked good for me when I broke a bleeder screw.


CycloSteve

SILVER Star
Joined
Mar 16, 2009
Messages
2,720
Location
Stuck between a rock and a hard place


Be careful with EasyOuts as they can be brittle and break easily, especially if they are small-diameter, such as needed with your repair. If it breaks in the Zerk, you will be in deep manure. Don't ask how I know (different vehicle, 30 years ago). The Alan Head solution sounds pretty good for this situation; good call Rwhat.

:cheers:

Steve

Joined
Aug 31, 2010
Messages
162
Location
Palmyra,PA


FYI: Lowes has automotive zerk fittings. Actually, the store by me has a rather impressive automotive fastener selection.


rover67

SILVER Star
Joined
Sep 5, 2006
Messages
1,376
Location
Boulder, Co


Be careful with EasyOuts as they can be brittle and break easily, especially if they are small-diameter, such as needed with your repair. If it breaks in the Zerk, you will be in deep manure. Don't ask how I know (different vehicle, 30 years ago). The Alan Head solution sounds pretty good for this situation; good call Rwhat.

:cheers:

Steve
Yeah don't just wail on it... if it feels "springy" when you are turning it, stop... you are about to snap it off. *Usually* the zerk remminants come out pretty easily though.

Joined
May 26, 2005
Messages
7,828
Location
Phoenix



Breaking an Easy Out or screw extractor is a concern where the original bolt head breaks off because the threads are frozen. I highly doubt the grease fitting threads are frozen. Obviously some care should always be taken but this is the perfect tool for this job, it should take more time to get under the truck than to extract the broken fitting.

Joined
Aug 22, 2010
Messages
2,409
Location
Jersey, 07740


get the small screw extractors from home depo and use the smalest in the pack. if the shaft has been greased before than it shouldnt be a problem getting it out.


S.CarolinaFZJ80

SILVER Star
Joined
Oct 4, 2008
Messages
3,972


Thanks for all of the suggestions. I appreciated it.

I held off on drilling out the broken fitting until I picked up the grease fitting from Toyota today...

Well, the parts guy ordered me the wrong one! He had one for the u-joint waiting for me! Jeez

Oh well, it should be in tomorrow. So I will confirm the thread size before drilling.


rover67

SILVER Star
Joined
Sep 5, 2006
Messages
1,376
Location
Boulder, Co


you don't have to drill, if you look the broken off grease nipple should have left the threads in there with the hole for the grease to pass through in them. Just stick a small screw extractor that fits in there and turn it out... then you'll have the threads in your hand.


S.CarolinaFZJ80

SILVER Star
Joined
Oct 4, 2008
Messages
3,972


No need for a screw extractor at all.

If this ever happens to anyone just tap a Torx T-15 bit into the zerk fitting and use a small ratchet to gently remove and install the new Toyota zerk with a 7mm 6-point socket.

Here's a pic of the part number tag too.
FZJ80 DS grease fitting.jpg

Joined
Feb 2, 2016
Messages
41
Location
Atlanta Ga
Just went through this myself...sheared off the zerk on the rear driveshaft. Figured I'd report here the size since in my searching for the size/pitch I came up empty handed and had to do some trial and error until I found the correct size....anyway all that to say it's size/pitch is M6/1.0
