FJ60 (AUSTRALIAN) vacuum lines

[hunt0ss60]

so, i’m fairly new to the cruiser community and fear i have a vacuum leak, im trying to chase down a diagram for vacuum lines in my 84 fj60 but all im finding is of the american versions with the crazy ridiculous emissions system which my vehicle does not have, is there an australian version which exists? thanks.



[Gerry McGerry]

This may help.

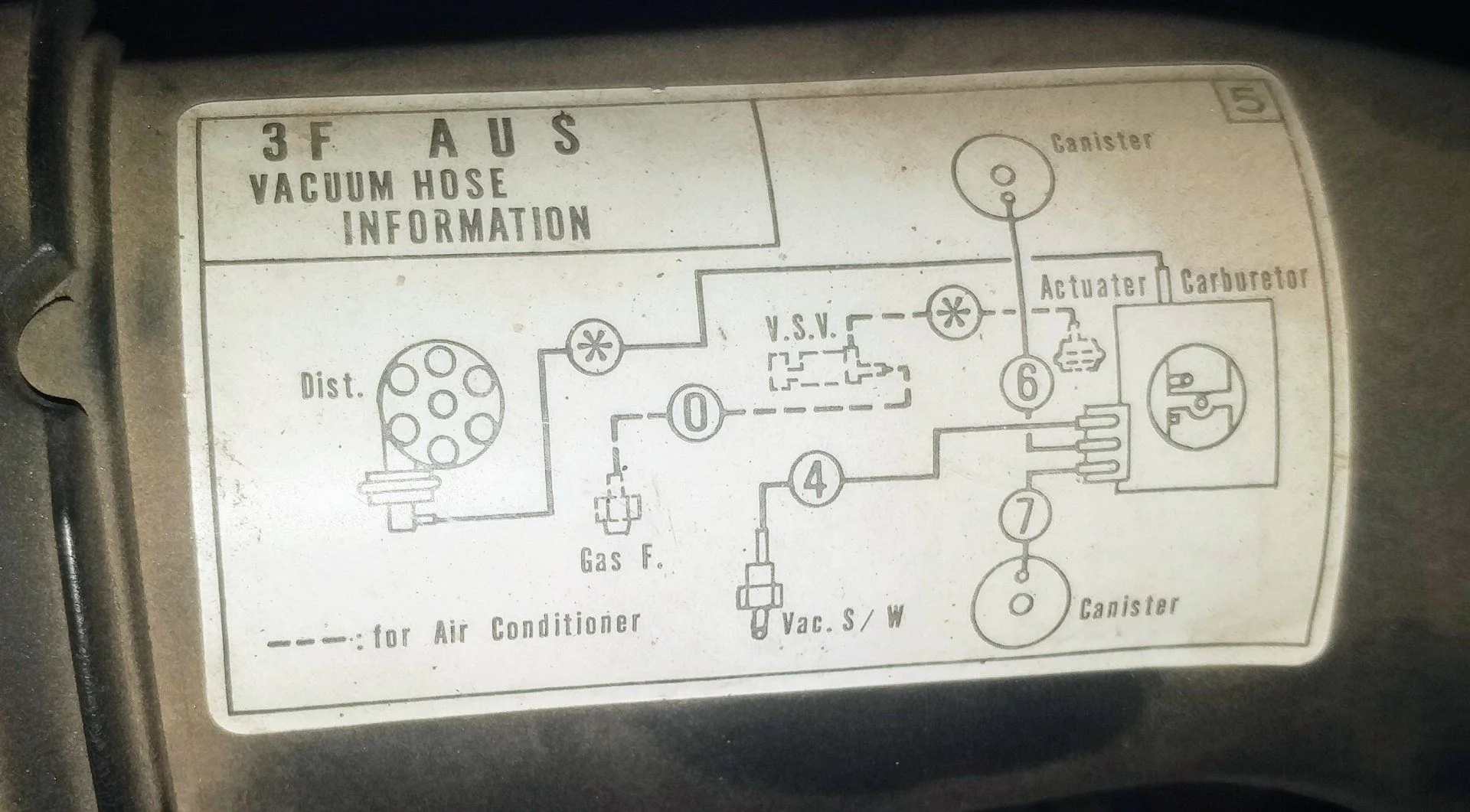

Australian 3F FJ62 Vac routing diagram found!

If you've been in the same boat as me, you couldn't find a picture of the Australian 1988 FJ62 GX 3f Vacuum routing diagram online. Wait no longer! Found this one on a 1988 Fj62 where the owner nicely let me take some photos of the engine bay! Turns out I had a line wrong because I was running...

forum.ih8mud.com

The disposable vapes all the cool kids are smoking now make for good cheap smoke testers when chasing vacuum leaks.



[hunt0ss60]

This may help.

Australian 3F FJ62 Vac routing diagram found!

If you've been in the same boat as me, you couldn't find a picture of the Australian 1988 FJ62 GX 3f Vacuum routing diagram online. Wait no longer! Found this one on a 1988 Fj62 where the owner nicely let me take some photos of the engine bay! Turns out I had a line wrong because I was running...

forum.ih8mud.com

The disposable vapes all the cool kids are smoking now make for good cheap smoke testers when chasing vacuum leaks.

mm alright thanks mate i’ll keep chasing.
