Installing LX 460 98’ seats that appear to have electric heat in them—working on wiring low-off-high switches but the switches dont come with instructions
Here’s the switch top view;
Here’s the backside; 6-prong

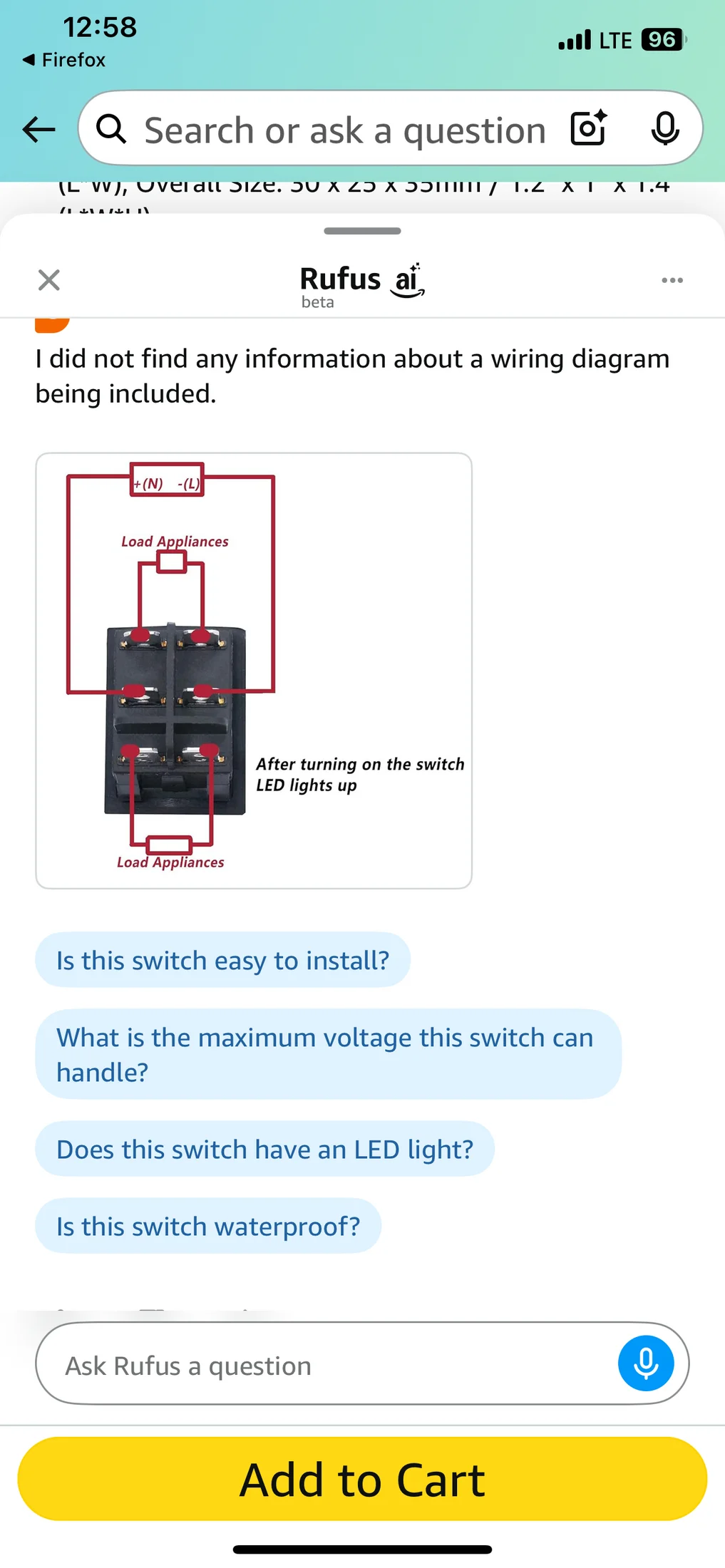

I found this diagram from another mfg;
So here is where I’m unsure/confused;
?-two blades for low and two for high switch position; I’m guessing one spade for each is the power wire to the seat heater….what is the spade adjacent to the power spade for?—ground or common the the seat heater?
OR; does one spade go to the relay and the other spade to power coming out of relay ?
Thankyou again ahead of time for your help
