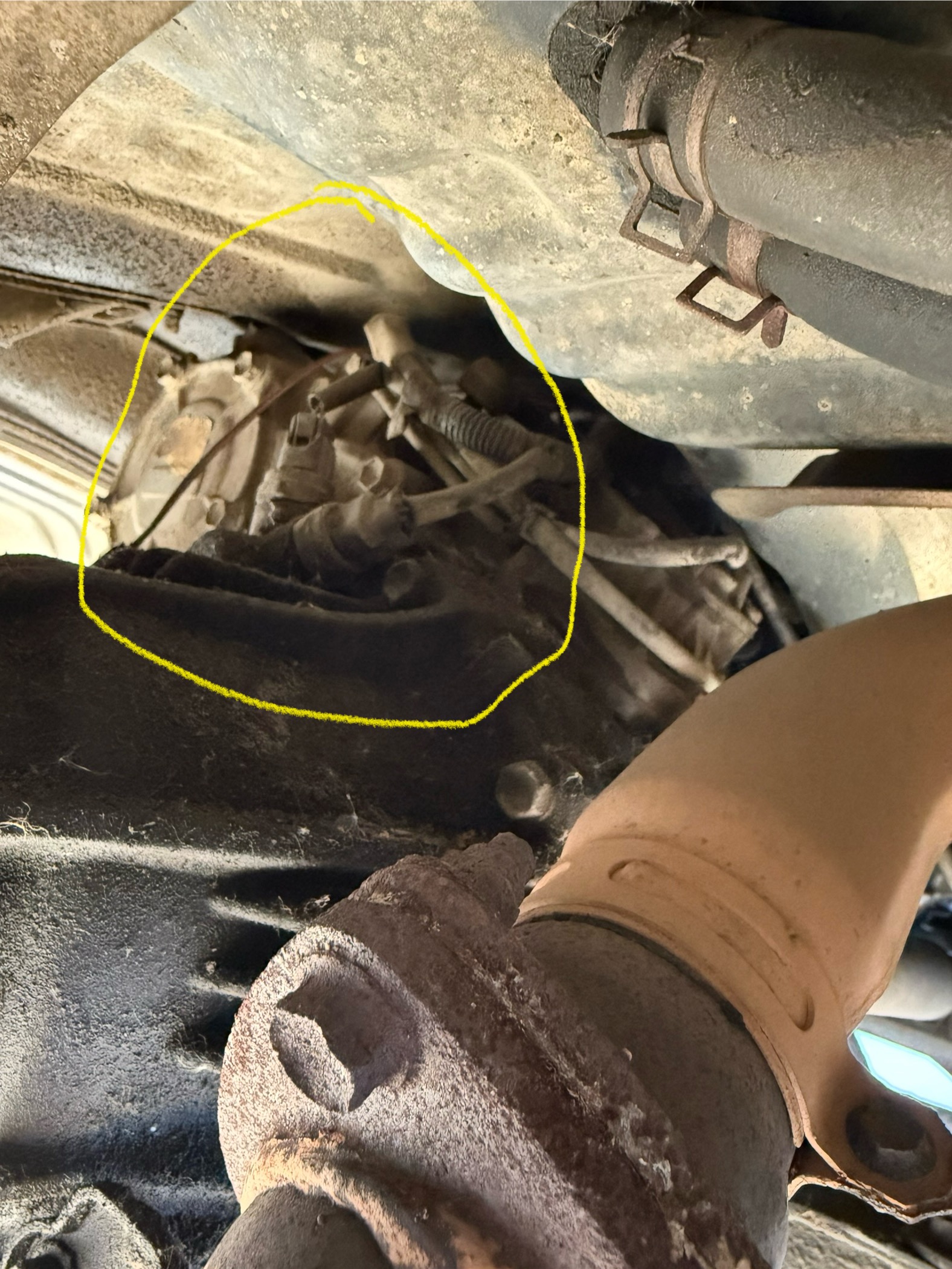

Can someone confirm that this is the transfer case center lock actuator motor please? This is on my 1994 cruiser
Center lock actuator (1 Viewer)
- Thread starter sierra1boy
- Start date
This site may earn a commission from merchant affiliate
links, including eBay, Amazon, Skimlinks, and others.
NeverFinis
SILVER Star

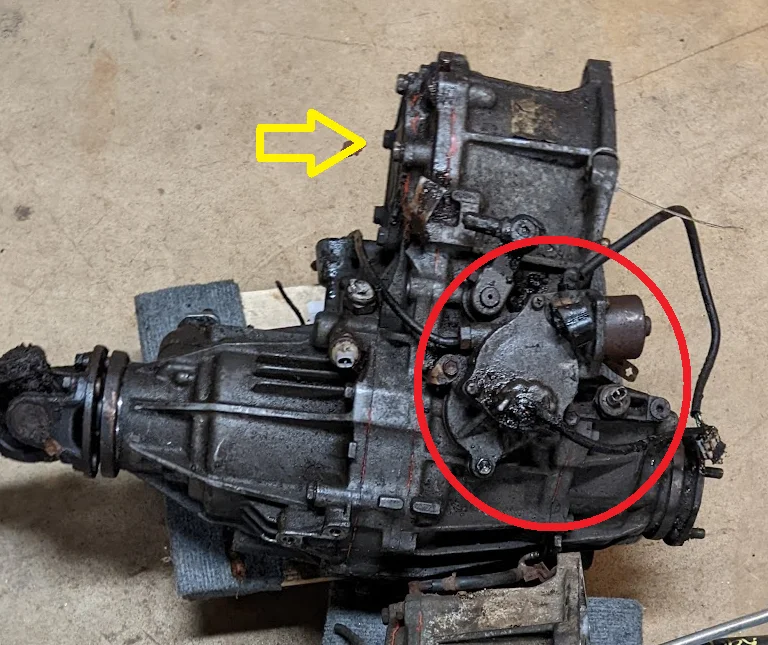

No. The arrow is what you circled and that is not the center diff lock actuator.
It is circled in red and it is on top of the transfer case.
It is circled in red and it is on top of the transfer case.
- Thread starter
- #3
Thank you
- Thread starter
- #4
mudgudgeon
Resident galah
Wait, it’s held in by philips-head screws?
The motor is yes, the whole actuator assembly is bolted in with 10mm bolts
The motor is yes, the whole actuator assembly is bolted in with 10mm bolts
NeverFinis
SILVER Star

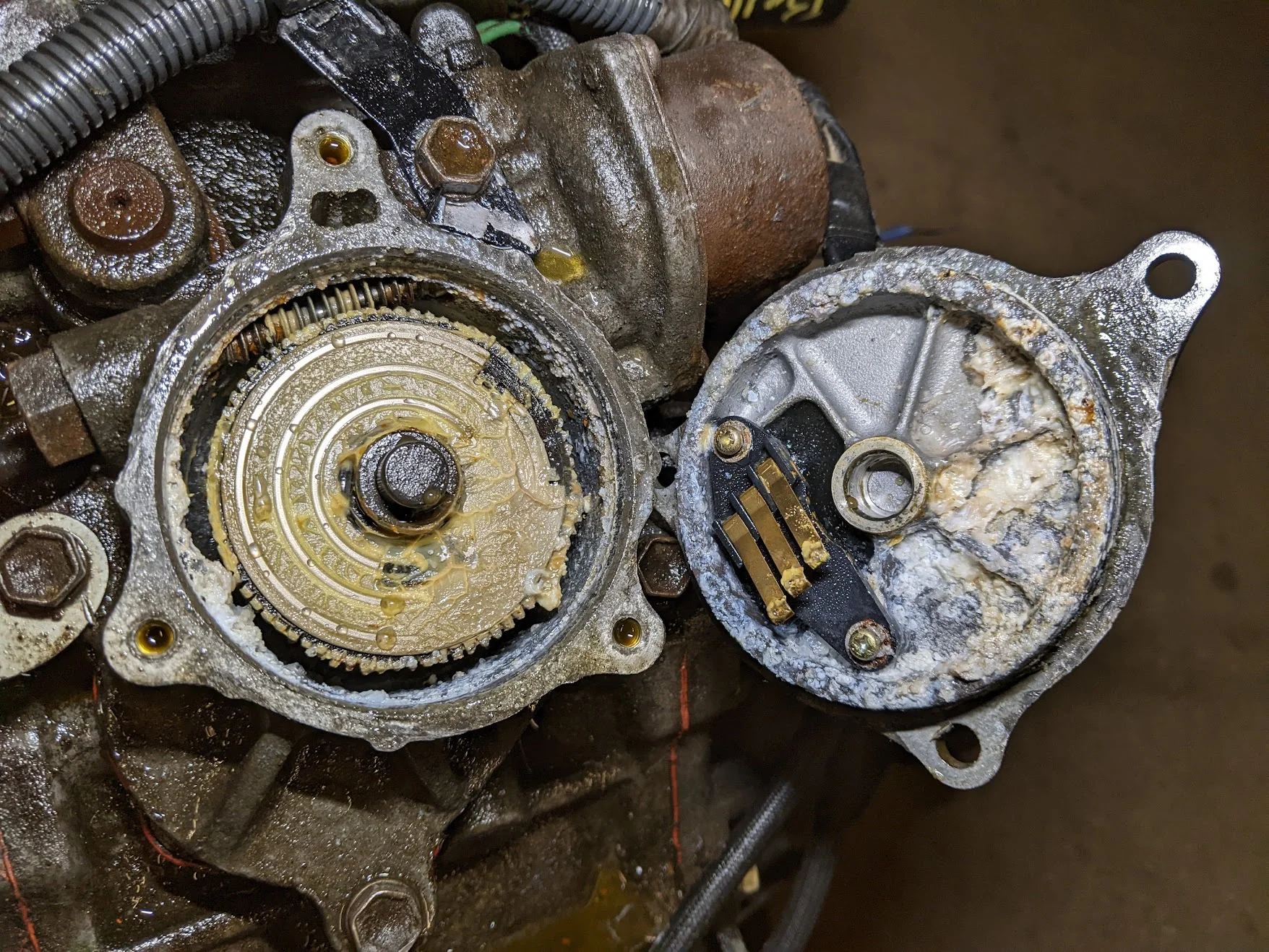

As @mudgudgeon wrote. 3 4 10mm bolts, can be seen in the attached photo.
The 3 JIS screws are for the cover.
The 3 JIS screws are for the cover.
Last edited:
Squash
SILVER Star
If you want to remove the actuator lock it if possible.
You will find it easier if you remove the cross member, this will give you some much needed room to get your hands up there. You must support transmission and only drop it enough to gain access.
You will find it easier if you remove the cross member, this will give you some much needed room to get your hands up there. You must support transmission and only drop it enough to gain access.
ppc
M Go Blue

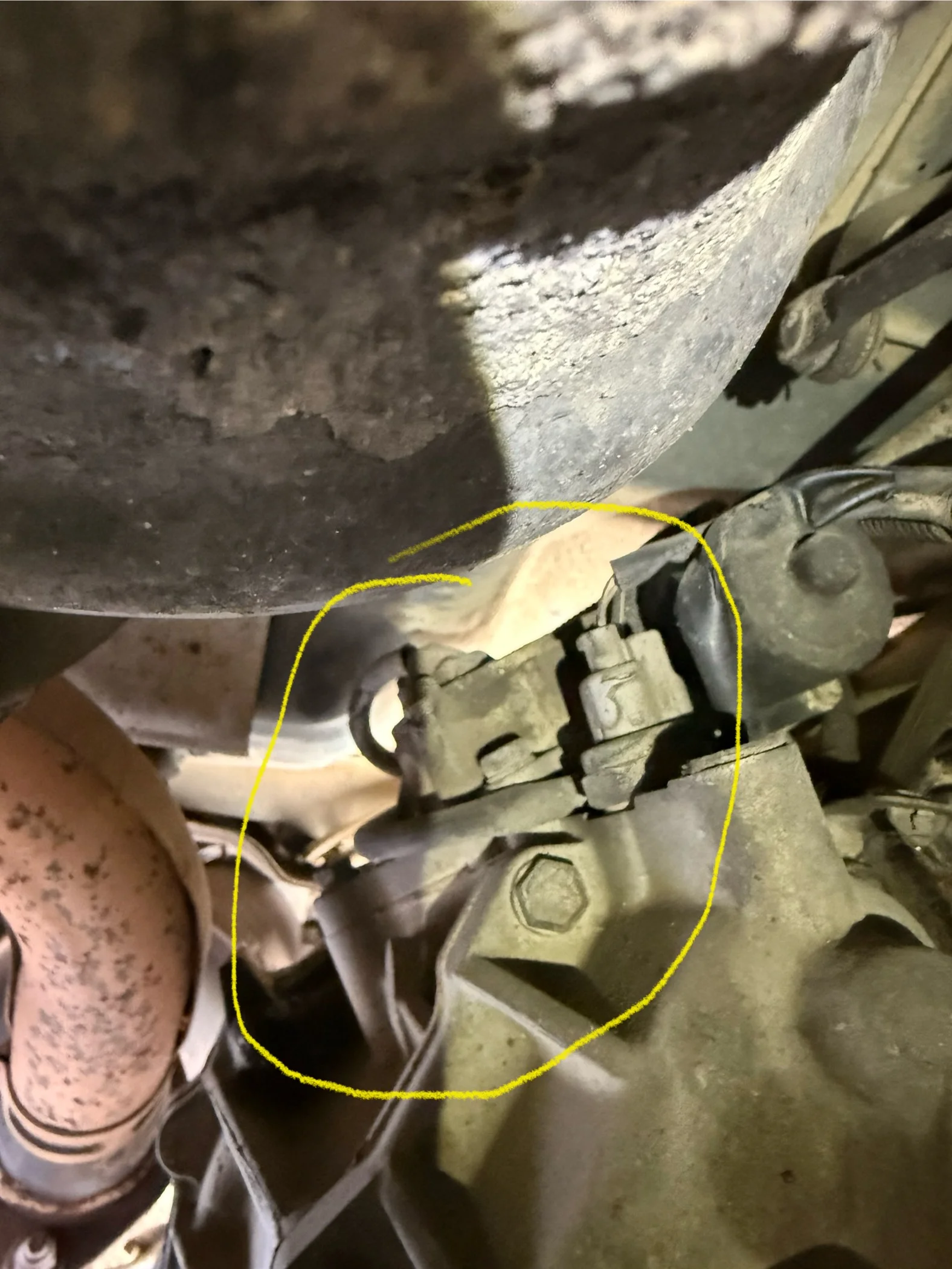

Poor picture but that looks to be the rear of the transfer case and what is shown is the cover where a PTO is attached. A PTO is only available in foreign markets. The wiring connectors in the picture is in the rear extension housing.
The CDL actuator is located on the top front close to the front driveshaft.
The CDL actuator is located on the top front close to the front driveshaft.
ppc
M Go Blue
Yes, it has one electrical connector for the actuator, the second connector is for the CDL Sensor that drives the CDL dash light.
FYI - If your actuator is shot you can use one from a 100 series and get the wiring adaptor for plug n play. Cruiser Teq.
cruiserteq.com
Transfer Case CDL Actuator - Fits 1998-2007 100/470 Full-Time T-Case Applications (ELEC3641010X)
Transfer Case CDL Actuator - Fits 1998-2007 100/470 Full-Time T-Case Applications (ELEC3641010X)
cruiserteq.com

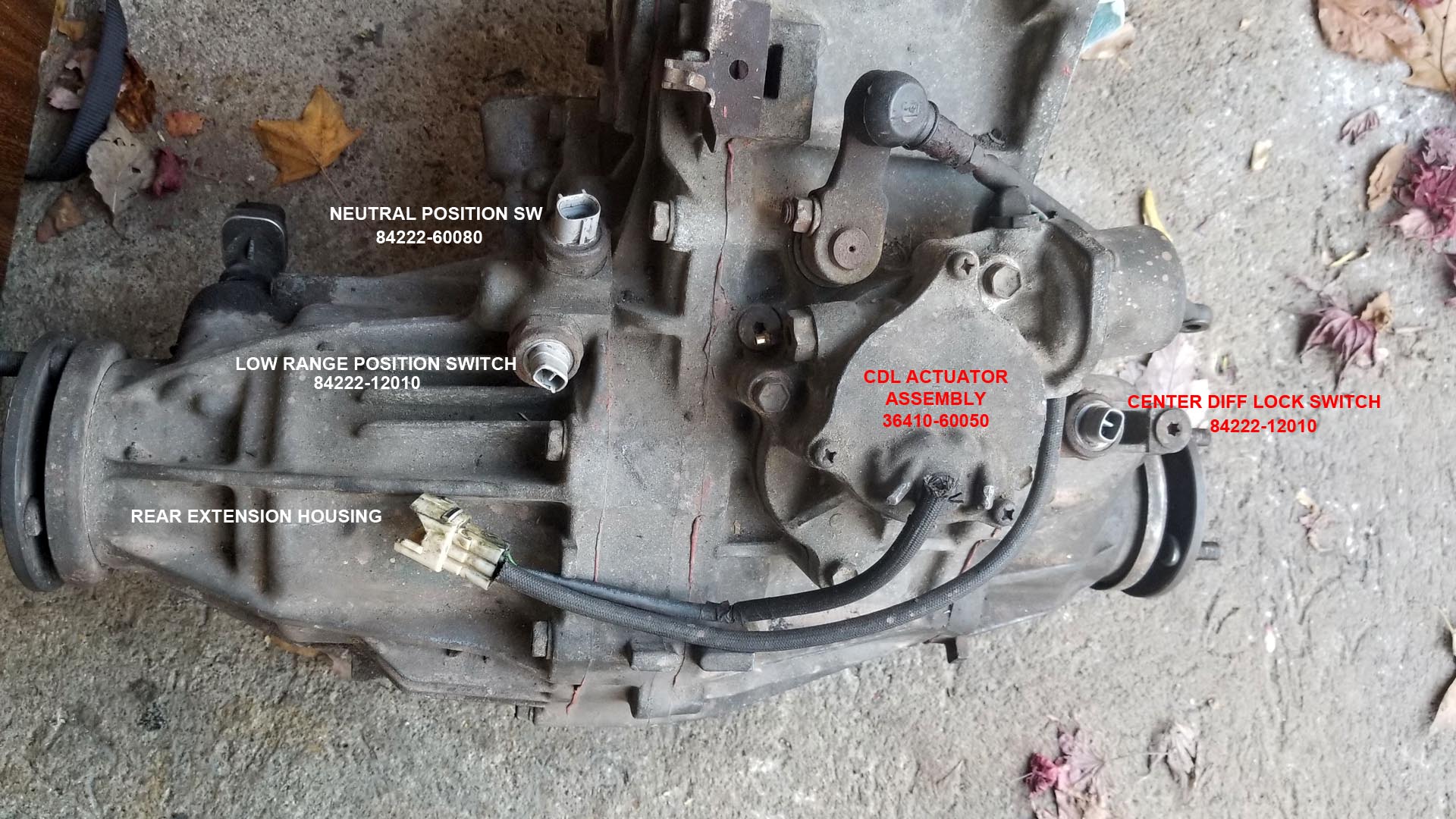

Top view of the transfer case.
Thread jack here: I am regearing my transfer case and I left the CDL unlocked when I pulled the T case and removed the CDL motor. The little gear under the CDL motor which resides in the top of the T case moves about 90 degrees left and right by hand. I didn't record what position it was in when I removed it. How should I reinstall that gear - so that it has slack to turn clockwise or counterclockwise 90 degrees? Also, in OTRAMM's video he's shown using a pick to manipulate something under the CDL lock motor before he reinstalls it - but he doesn't explain what he's doing there.
Basically - what do I need to do before I reinstall the CDL motor assembly to the top of my T case after regearing?
Thanks.
Basically - what do I need to do before I reinstall the CDL motor assembly to the top of my T case after regearing?
Thanks.
IMO removing the CDL actuator in either position makes no difference. The only thing you're concerned with is that both the internal mechanism and the motor assembly are in sync.
If the motor has not been run or disassembled since removal, then simply unlock the diff by rotating the gear in the transfer case by hand. When it's unlocked you should be able to rotate the front and rear drive flanges independently with some effort as there is a VC in there. If it's locked then you will not be able to do this. Giving a little jiggle to the drive flanges will allow you to move the gear into the fully unlocked or locked position.
The motor can be run with a 9V battery on pins 2 and 3 of the connector.
Great. Thanks so much. That's very helpful.
Can anyone help identify part numbers for the four bolts attaching the CDL to the transfer case?
Three are short and one is longer, so maybe they're just two part numbers?
Three are short and one is longer, so maybe they're just two part numbers?
mudgudgeon
Resident galah

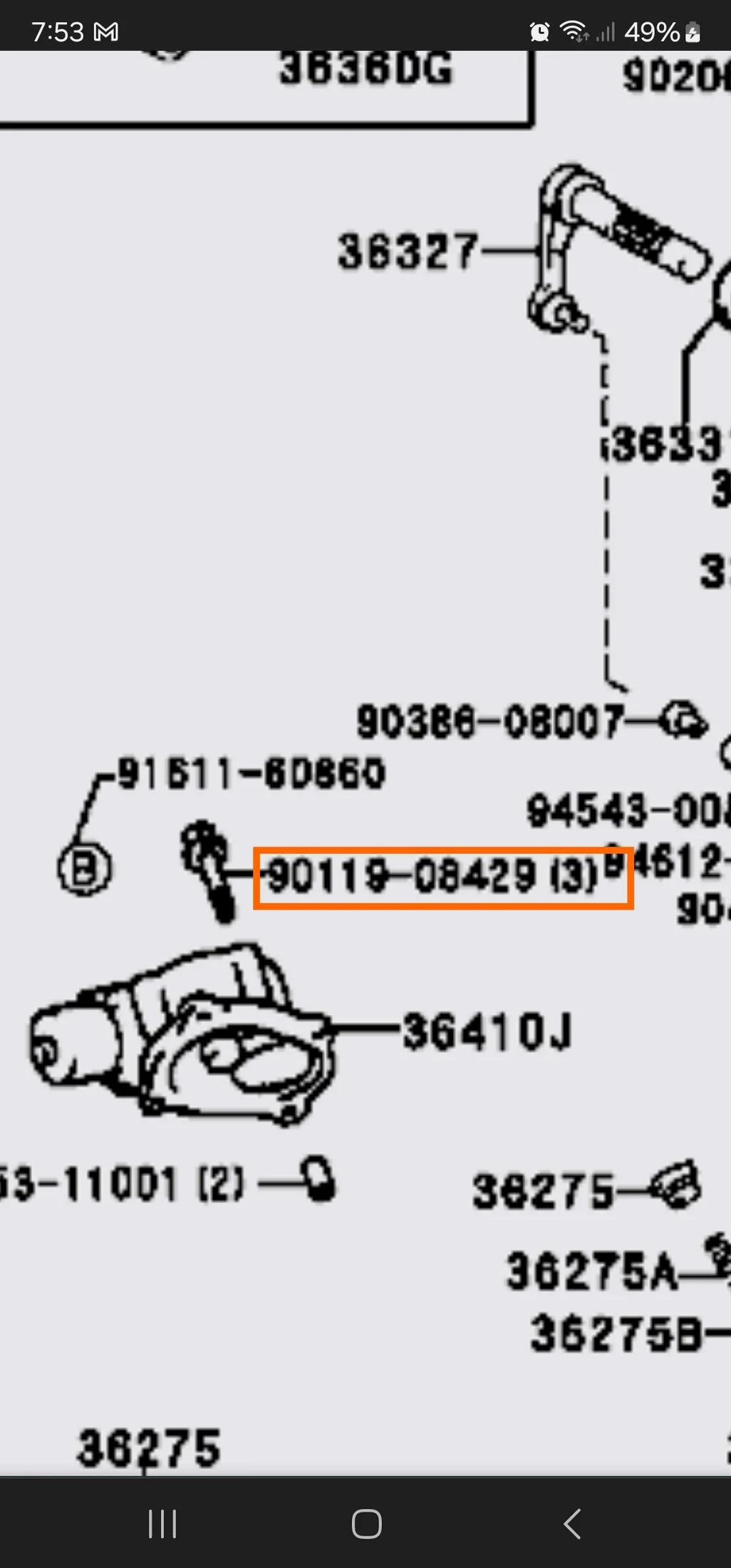

90119-08429
Parts diagrams show 3 the same
Plus 1 91611-60860
Parts diagrams show 3 the same
Plus 1 91611-60860
mudgudgeon
Resident galah
Thanks! Not sure why the Partsouq diagrams don't show those. Where are you looking?
mudgudgeon
Resident galah
Toyodiy
