Trying to locate my pitman arm on the steering box.

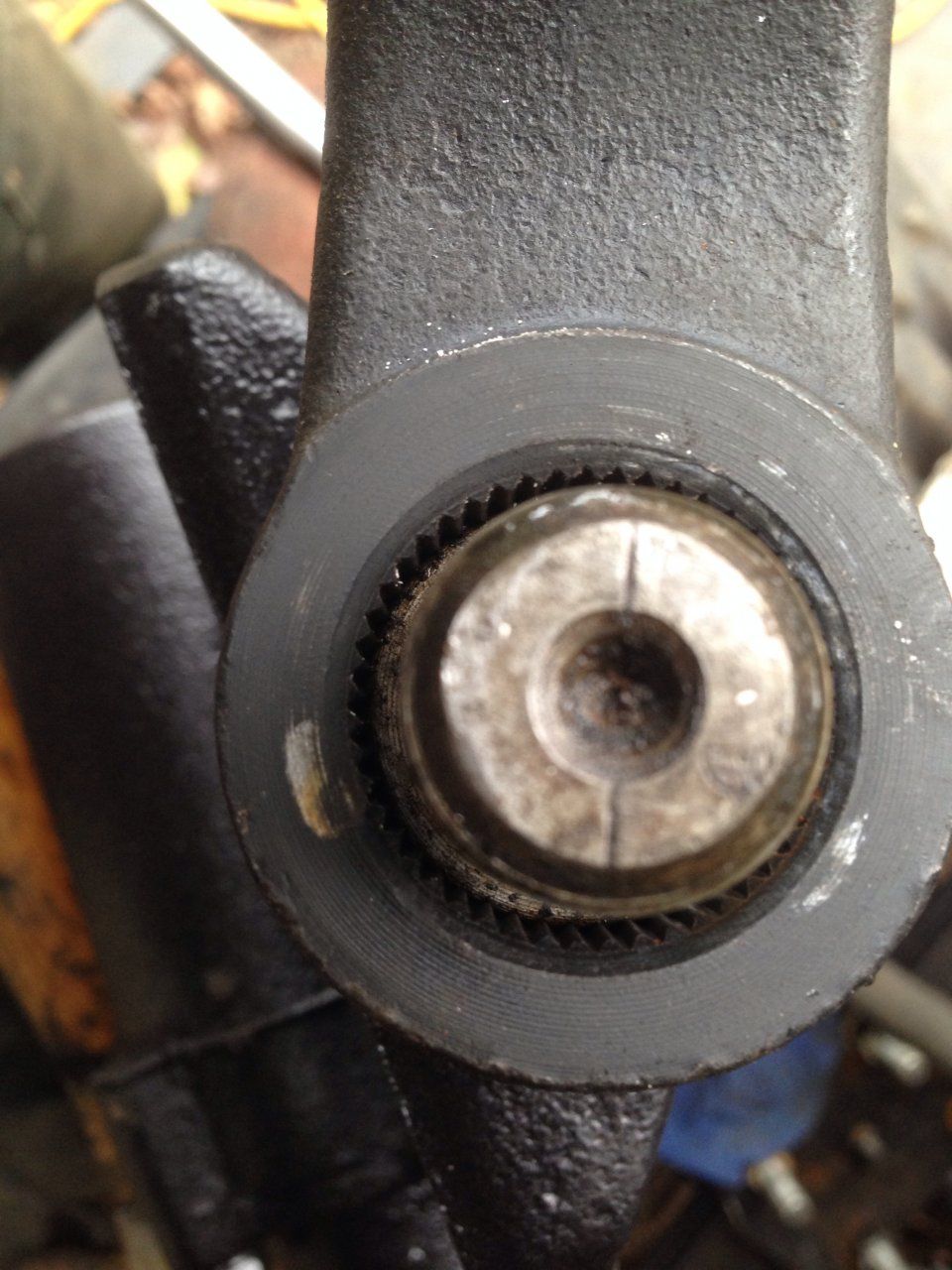

Do these marks on the bottom serve any purpose?

Joined
Mar 31, 2014
Messages
4,468
Location
Gone
Those are the alignment guides for the steering cross shaft. When those marks are lined up fore & aft with the housing, the shaft is at it's center position. My steering box is off right now (I'm painting it) and I just checked. Ideally, the pitman arm should be installed in a straight line with those marks if the rest of the steering system was originally set up that way.
