Anyone have a Prinsu rack on their gx550? Thoughts? (1 Viewer)

This site may earn a commission from merchant affiliate
links, including eBay, Amazon, Skimlinks, and others.

Joined
Mar 21, 2004
Threads
61
Messages
1,033
Location
MT & ND
Curious on what you think of it

Japanese hearse

Looks the same to me😅

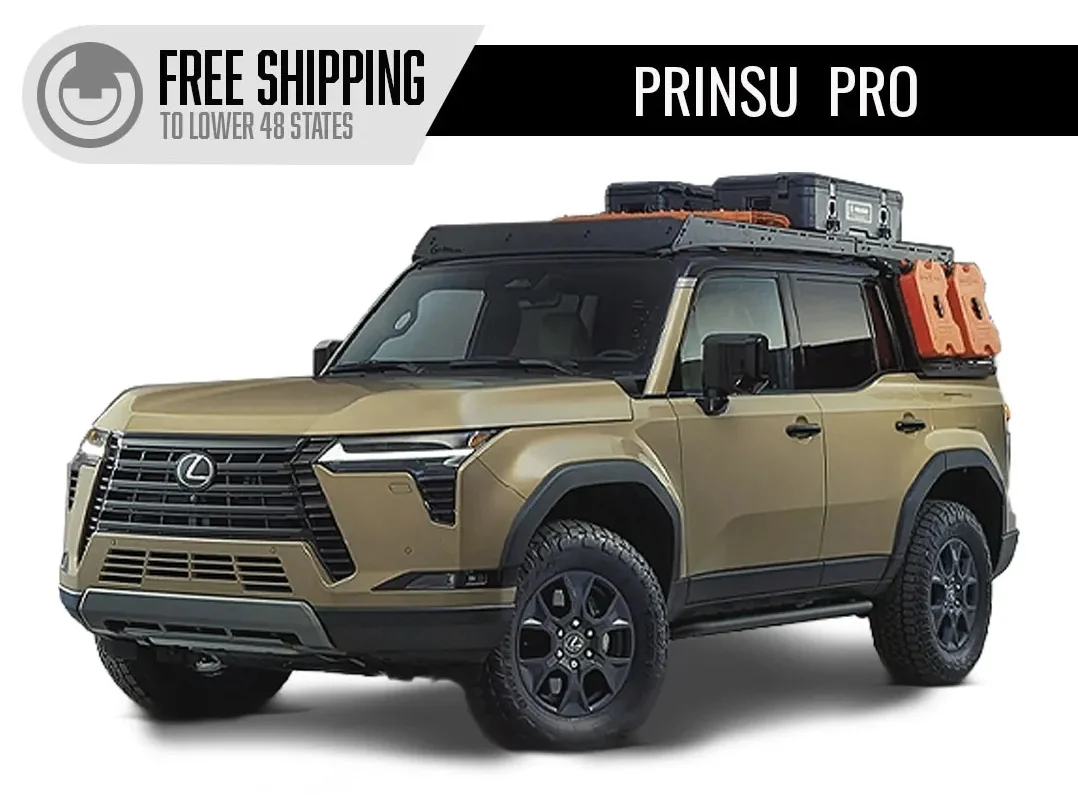

Prinsu

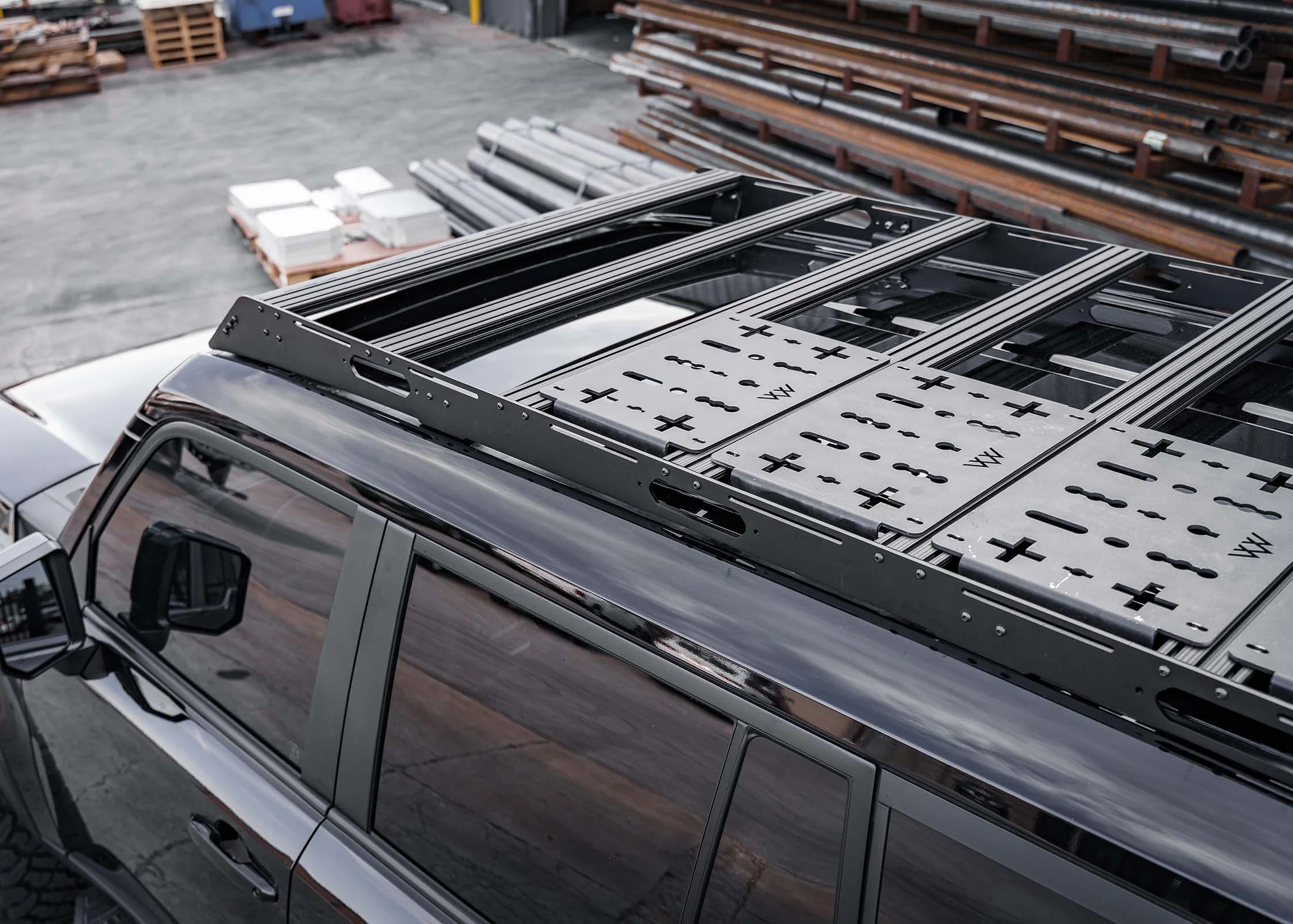

Wescott Designs much lower profile


Not a fan of either one. This style been so over played. Need a fresh look.

Prinsu pro suppose to be stronger but the mount to the roof still look flimsy. The 90°z bend on the side does make the rack stronger but not the mount. Sherpa still the strongest mount to me.

I wish they were shorter - maybe the sunroof? Is wescott actually lower profile or just the angle?

Prinsu pro suppose to be stronger but the mount to the roof still look flimsy. The 90°z bend on the side does make the rack stronger but not the mount. Sherpa still the strongest mount to me.

On the Prinsu racks the load path from any of the crossbars is out to the side plates, then down to the roof mounts. For the Sherpa rack and others that same style the load path from any of the other crossbars has to go through the side plates, then through the 3 crossbars that mount to the roof. Doesn't make the most sense to me, I think its mostly done to get the side plates lower to the roof line.

That said I dislike the multiple pieces that the Prinsu Pro racks are made from now, just more fasteners to rattle loose.

Going off of the G Professional / Land Cruiser 1958 edition comparison in the other thread, I'd like to see a G Professional - style roof rack for the 250.



The function of the sides are a bit different on the G as it's a gutter-mount rack, but it does make it look a bit more complete and less like a small skull cap.

On the Prinsu racks the load path from any of the crossbars is out to the side plates, then down to the roof mounts. For the Sherpa rack and others that same style the load path from any of the other crossbars has to go through the side plates, then through the 3 crossbars that mount to the roof. Doesn't make the most sense to me, I think its mostly done to get the side plates lower to the roof line.

That said I dislike the multiple pieces that the Prinsu Pro racks are made from now, just more fasteners to rattle loose.
The reason i said sherpa is the strongest becaue it direct mount to cross bar. The cross bar have a lot higher rigidity compared to the flat 3/16-1/4" aluminum flat plate. It does still use the side plates to transfer to the other cross bar, but the main 3 are direct mount to cross bar.

Prinsu use thin right angle plate to connect to the roof. This bracket probably would bend first bedore the other part. If the bolt holes are right next to the bend, it would be much stronger. But the roof are always different width front and rear. I saw some bracket the the bolt holes are pretty far from the bend and I think this is very weak design. Most of other similar roof rack are using similar bracket style.

The reason i said sherpa is the strongest becaue it direct mount to cross bar. The cross bar have a lot higher rigidity compared to the flat 3/16-1/4" aluminum flat plate. It does still use the side plates to transfer to the other cross bar, but the main 3 are direct mount to cross bar.

Prinsu use thin right angle plate to connect to the roof. This bracket probably would bend first bedore the other part. If the bolt holes are right next to the bend, it would be much stronger. But the roof are always different width front and rear. I saw some bracket the the bolt holes are pretty far from the bend and I think this is very weak design. Most of other similar roof rack are using similar bracket style.
Only if your load is attached to those 3 crossbars. Otherwise the load path is through the side plates either way.

Only if your load is attached to those 3 crossbars. Otherwise the load path is through the side plates either way.
Agreed, but the mount to the body need to be stable. My concern is the flimsy L bracket with a couple inches of cantilever. Load it much and the roof would twist. It's not going to be straight down force. It would create leverage to bend.


Sherpa and Ganivity mount are much more stable to maintain that rigidity. They do not have that cantilever force as the bolt are right next to the bend.

Last edited:
I cancelled the Prinsu order. I will wait and see what the market comes up with. Plus I wasn’t happy with the last rack I bought from Prinsu for my 200

Going off of the G Professional / Land Cruiser 1958 edition comparison in the other thread, I'd like to see a G Professional - style roof rack for the 250.


The function of the sides are a bit different on the G as it's a gutter-mount rack, but it does make it look a bit more complete and less like a small skull cap.

@nakman at gamiviti kinda started this trend with his Expo racks which you can run upside down


@nakman at gamiviti kinda started this trend with his Expo racks which you can run upside down
yes indeed, thanks! We do more "expo down" racks than any other style... and good comments on the roof attachment above, nice to see others notice that stuff. ;)

yes indeed, thanks! We do more "expo down" racks than any other style... and good comments on the roof attachment above, nice to see others notice that stuff. ;)
Yes, but how long before we can expect to see a Gamiviti for the LC 250? :)

Yes, but how long before we can expect to see a Gamiviti for the LC 250? :)
Should be later this summer... just waiting to get my hands on one to start the process.
