ABC'S of 80's Cooling Part IV - Hood Vents

Discussion in '80-Series Tech' started by SUMOTOY, Aug 13, 2006.

  1. SUMOTOY

    SUMOTOY

    Messages:
    1,836
    Likes Received:
    3
    Joined:
    Jun 1, 2005
    Location:
    Chicago
    The saga continues... In Part I, II, and III, I identified the need for aux cooling, the options in terms of fan hookup, and the relay install using the A/C pressure switch. In Part IV, I will put in hood vents to relieve the higher underhood heat created by a supercharger and the Aux Fan install.

    In Part III I posted some data regarding underhood temps with the Aux Fan installation. My main concern is the Airbox heat soaking, as I measured 200F airbox temps at 95F at idle with the A/C and Aux fan on. As intake Air Temp increase is effectively the same as driving the truck at higher altitudes, it is now apparent that the convective heat release under the hood at low speeds is not at all optimal. To get rid of that trapped heat, my target is to now use hood venting. This should help with both running (active/forced) convectiive heat, and shut down (passive/free) convective heat.

    Originally, I chose the Z34 Hood Vents because they have a huge surface area, and they are metal, and look aweswome on just about any hood. The problem I ran into right away was the Hood Frame dictated that the placement of these vents would be in line with the HVAC intake. Previous experience has taught me that engine fragrances into the HVAC system can cause trouble with peace in the cabin. And it's a safety concern IMO. Smoking engines will fill a cabin quickly. These concerns caused me to ditch the Z34 in deference to another set of vents I had on the shelf (working on the app, but see pics.

    After testing low pressure zones on the hood with yarn taped to the hood, I determined that the brick-like 80 has a lot of low pressure zone on the outside of the hood bump. This allowed me to put the vents outboard of the diagnal hood brace, below the hump, and quite a bit forward (15in to back of vent) of the rear hood line.

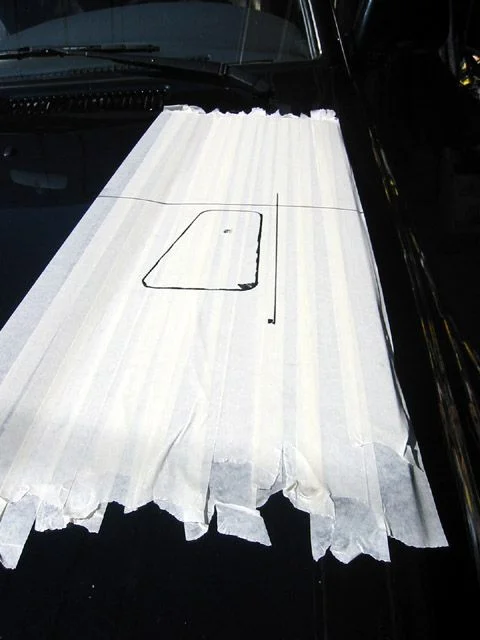

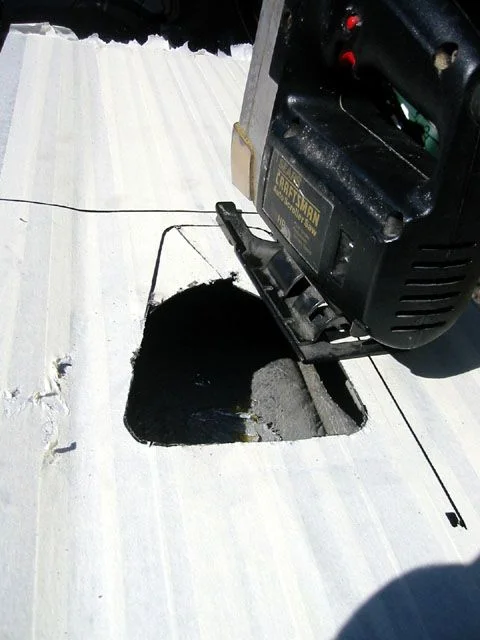

    Ok, for the install. I used painters tape doubled up to protect the paint from scratches. Then I measured forward of the rear hood line 15in and inbound of the hood edge 4in to clear the hood frame. I traced the vent template onto the tape, drilled a couple holes to insert the scroll saw, and started cutting. The first one took about 1.5 hours (measure 6 times cut once), the second one was under 30 minutes. I still have to figure out what I'm doing with the hood insulation, but I'll put some sort of high temp edging on it to keep it from getting water soaked.

    I installed the DS first, then waited a day and installed the passengers side. IMO and measures, the PS is the key, but the vent temps equalized during measures today. At 81 degrees ambient, A/C on, Aux fan running, parked and at idle, I got peak temps from both vents (identical max temps) of 153F (+72F over ambient!!).

    The supercharger has a noticeable reduction in tip in throttle response, and reastarts result in a much smoother idle immediately. I'll data log some high speed runs when I can, but this appears to be a good modification to the 80. Attached are the install pics

    Scott Justusson
    QSHIPQ Performance Tuning
    Chicago IL
    FZJ 80 Supercharged and vented hood

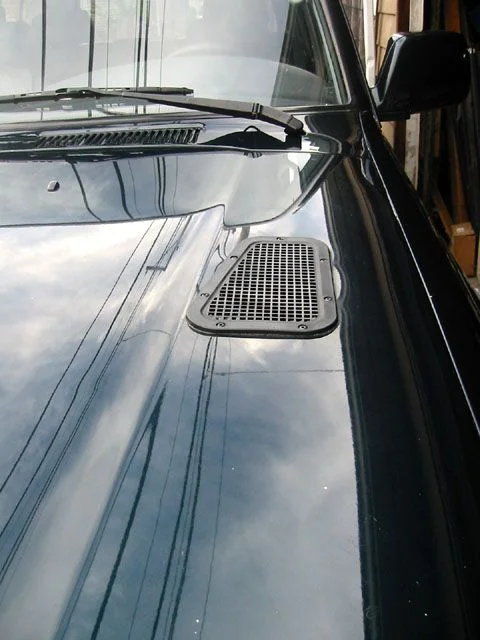

    LAYOUT 1.jpg CUTTING STEEL.jpg DS CLOSE.jpg

    Last edited: Aug 15, 2006
  2. SUMOTOY

    SUMOTOY

    Messages:
    1,836
    Likes Received:
    3
    Joined:
    Jun 1, 2005
    Location:
    Chicago
    More Hood Vent Pics

    Final product.

    Scott Justusson
    FZJ80 Supercharged and vented
    FRONT VIEW II.jpg

    Last edited: Sep 25, 2006
  3. Cattledog

    Cattledog

    Messages:
    812
    Likes Received:
    3
    Joined:
    Jun 22, 2004
    Location:
    Portsmouth NH
    Nice cutting. So what are the temps inside the engine compartment DS and PS? What is the total reduction in temp after cutting the hood.

  4. Moby

    Moby

    Messages:
    1,238
    Likes Received:
    4
    Joined:
    Aug 25, 2005
    Location:
    Trying to stack dimes
    Could elaborate on the yarn technique for identifying low pressure spots? What does the yarn look like in a low pressure area as opposed to a high pressure area?

    Excellent set of write ups, I really appreciate the effort to document your work on this!

  5. re_guderian

    re_guderian SILVER Star

    Messages:
    4,326
    Media:
    33
    Albums:
    6
    Likes Received:
    1,568
    Joined:
    Jun 17, 2005
    Location:
    Arizona
    Do your vents have any kind of drip tray? Jusk askin', cause it rains like 5-6 times a year here... :D

  6. SUMOTOY

    SUMOTOY

    Messages:
    1,836
    Likes Received:
    3
    Joined:
    Jun 1, 2005
    Location:
    Chicago
    I used the same technique described here, and have done so for years
    http://www.oman4x4.com/hoodvents.htm

    And I'd bet the same hood vents he used would work pretty well too
    http://www.oman4x4.com/hoodventinstall.htm

    HTH

    Scott Justusson

    Last edited: Aug 14, 2006
  7. alia176

    alia176

    Messages:
    10,268
    Albums:
    1
    Likes Received:
    715
    Joined:
    Aug 21, 2003
    Location:
    Tijeras, NM
    Scott,

    Nice job! Are those LR vents by any chance? If not, they look very similar! What about a drip tray and a pic from underneath?

    Thanks.

    Ali

  8. SUMOTOY

    SUMOTOY

    Messages:
    1,836
    Likes Received:
    3
    Joined:
    Jun 1, 2005
    Location:
    Chicago
    CD:
    Haven't taken the 'after' temps yet. The before temps were 200F at the airbox, and 175F peak on both sides of the motor at the firewall. 95F ambient, aux fan, A/C running. I'll try to get up some underhood data today, but were forcasted for upper 70's weather, probably not ideal for this.

    I will note, IME, the temps on both sides of the motor were measured the same, and the release temps I measured at the vents were also the same.

    SJ

  9. SUMOTOY

    SUMOTOY

    Messages:
    1,836
    Likes Received:
    3
    Joined:
    Jun 1, 2005
    Location:
    Chicago
    I put the vents as far back as I could on the hood, no drip trays yet. Below The PS is part of the air can. Below the DS are the ABS line/box. I really see no use for drip trays as installed, maybe some strategically placed rubber sheeting, btdt on other installs. Part of all my hood vent application testing, is to use a garden hose and a car wash "operations check".

    SJ

  10. SUMOTOY

    SUMOTOY

    Messages:
    1,836
    Likes Received:
    3
    Joined:
    Jun 1, 2005
    Location:
    Chicago
    Thanks Ali... Could be LR vents, not sure. I accumulate a wide assorment of vents since I do this operation quite often in my shop.

    Again, no drip tray, I have mild concerns on the DS regarding the coil, but it can't rain directly on it, so I doubt I'll have to install any. Assuming it passes the water tests today.

    I'm trying to figure out how to seal up the hood insulation hole. I tried duct tape, and it didn't work.

    SJ

  11. re_guderian

    re_guderian SILVER Star

    Messages:
    4,326
    Media:
    33
    Albums:
    6
    Likes Received:
    1,568
    Joined:
    Jun 17, 2005
    Location:
    Arizona
    Exhaust repair tape?

  12. SUMOTOY

    SUMOTOY

    Messages:
    1,836
    Likes Received:
    3
    Joined:
    Jun 1, 2005
    Location:
    Chicago

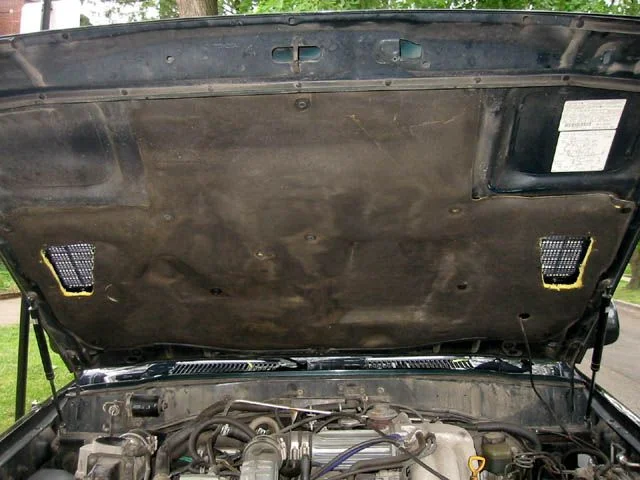

    Here is a pic from underneath the hood. I see no reason to put a drip tray on the PS as it sits over the airbox. On the DS it's over the ABS lines, which I'll probably just spray with undercoating to keep corrosion at bay.

    Rob G thanks for the exhaust tape idea, I'll probably try that with some sealant, since sticking to that insulation is the tough part.


    Scott Justusson
    UNDERSIDE 1.jpg

  13. Walking Eagle

    Walking Eagle

    Messages:
    3,225
    Likes Received:
    31
    Joined:
    Sep 6, 2003
    Location:
    Tulsa, OK
    Or you could cut a piece of sheetmetal to use as a big, vent shaped washer, and just sandwich the insulation between it and the hood.

    Last edited: Aug 14, 2006
  14. SUMOTOY

    SUMOTOY

    Messages:
    1,836
    Likes Received:
    3
    Joined:
    Jun 1, 2005
    Location:
    Chicago
    Good suggestion, and if the exhaust tape doesn't work, most likely my plan B.

    Thanks

    SJ

  15. slowpoke

    slowpoke

    Messages:
    6
    Likes Received:
    0
    Joined:
    Jul 8, 2006
    If you have a couple more of those vents laying around, I'd like to buy a pair from you.

    :popcorn:

    (They do look like Land Rover Defender vents)

  16. citadel

    citadel

    Messages:
    950
    Likes Received:
    306
    Joined:
    Apr 1, 2006
    Location:
    Dallas, TX
    SUMTOY,

    what is the problem with cutting into the hood bracing? What issues will this cause?

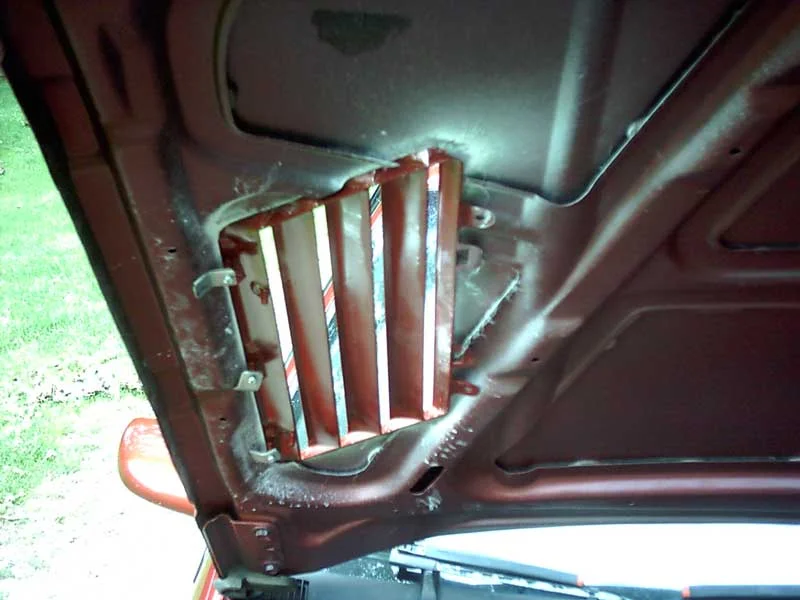

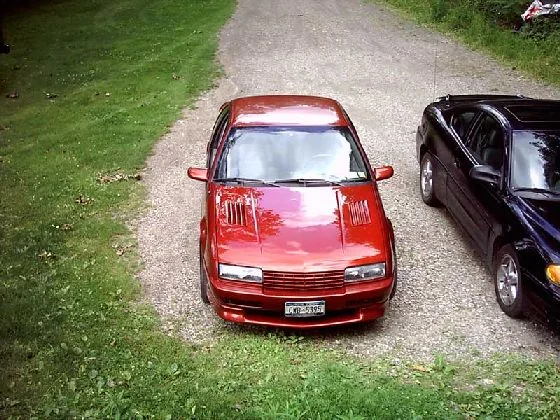

    complete3.jpg complete2.jpg complete4.jpg

  17. LandCruiserPhil

    LandCruiserPhil Peter Pan Syndrome Supporting Vendor

    Messages:
    20,072
    Media:
    55
    Albums:
    3
    Likes Received:
    9,457
    Joined:
    Mar 10, 2004
    Location:
    Scottsdale Arizona
    What are those vents off of?

    SJ - Photoman also cut the braces on his 80 hood IIRC

  18. citadel

    citadel

    Messages:
    950
    Likes Received:
    306
    Joined:
    Apr 1, 2006
    Location:
    Dallas, TX
  19. airlaird

    airlaird

    Messages:
    1,346
    Likes Received:
    4
    Joined:
    Jan 7, 2005
    Location:
    Dallas, Texas
    You know, LX-Extreme caught a lot s*** from the list for having his turbo vent in the EXACT SAME place Sumotoy put his PS vent. LX-Extreme.... you were right all along. Nice install Sumo!!
    airlaird

  20. SUMOTOY

    SUMOTOY

    Messages:
    1,836
    Likes Received:
    3
    Joined:
    Jun 1, 2005
    Location:
    Chicago
    One word: Safety

    In my shop, I do it on race cars and actually cut out the bracing for the additional weight savings. For street cars it compromises the front end crash engineering characteristics. Hoods are designed to fold up, not guillatine the occupants of the vehicle. My concern with cutting braces is in a front end impact, the hood will most likely sever at the cut brace and potentially do bad things afterwords. More specifically, it just won't do what it was designed to do, whatever that means...

    Make another visit to IDougs writeup of his brothers front end collision. I believe that cutting braces in that truck would have yielded a quite different front end picture, and possibly a more tragic chilling story.

    Z34 vents are some of the best production vents to be had, and color matched, they look awesome on just about any vehicle. I use them whenever I can. The hood bracing on the 80 is extensive, and dictates a lot of modification to add z34 vents to the outside of the hood bump. You will cut a lot of bracing to make that z34 vent work in the 80. So much so, I'd wonder if the hood could support itself without adding bracing.

    Citidel, I just accepted the compromise that another set of vents would do the job, and could be installed in an hour without even removing the hood insulation. I'll find another hood home for the Z34's, I always do.

    Cheers

    Scott Justusson

    Last edited: Aug 15, 2006
