77' FJ40 - Fuel Line Union at Carburetor

[GA Architect]

I'd like to locate a 77' fuel line union at the carb, see the photo below - the left union adaptor. Mine has a banjo fitting with a small rubber fuel line run between it and the hard line. I can't seem to locate one and I'd like to replace the entire fuel line, as I have the nut for that missing union.

I have looked all over the internet and can't find one.



[Weber Sarge]

Get the part numbers off Toyodiy.com , those parts are still available as I ordered a set for my '77 when installing a new THC carb . The one line isn't available but easily made by using the oem fittings/ferrules/nuts and bending your own steel fuel line .
Sarge



[Pin_Head]

I'm not sure what you want. Union? A union joins two pipes together.

The fuel inlet fitting on the stock carb is straight thread on both ends. The end that goes in the carb seals on a washer while the other end is a compression fitting. Like Sarge said, it is not that hard to make up a new fuel line. You just need a nut and ferrule on the carb end.



[GA Architect]

Thanks.....The typical parts store I get my stuff from toyotaonlineparts.com couldn't find the part and another Toyota site said the part was discontinued. I see that quickparter.com shows some stores that have the part. I'll check with them tomorrow.

Yes, I plan on making my own fuel lines and have the nuts & ferrules....now I just need the union fitting.

Per the parts listing, the piece I need (21894-61020) is called a union, nipple

SOR part number (042-143E) says discontinued - not available at this time. But their part number (028-070A-U) looks to be the same piece and they have that one. I'll call them tomorrow and find out.



[Pin_Head]

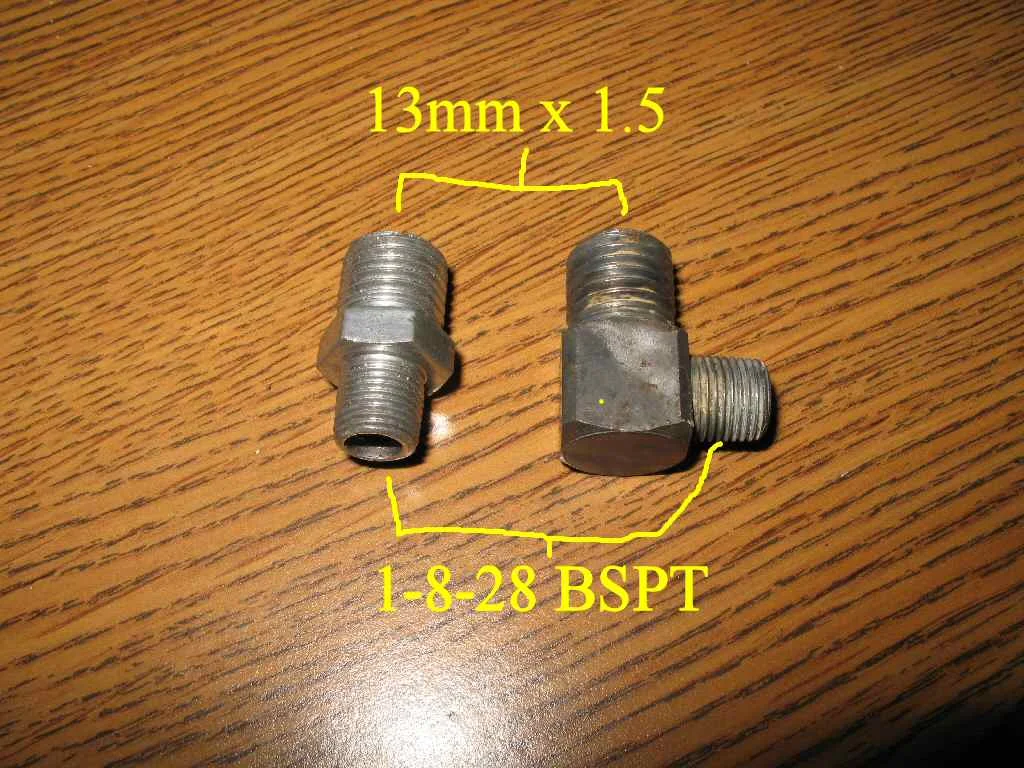

The stock fitting is not a union, which may be why you are having trouble finding it. If it was a union, it would have a compression fitting on both ends. It is an inlet nipple. It has 13 x 1.25 of the carb end with a flat sealing surface on the hex base and a 9mm - 3/8 inch compression on the other. I may have a couple in my junk box if SOR doesn't have it.



[GA Architect]

The stock fitting is not a union, which may be why you are having trouble finding it. If it was a union, it would have a compression fitting on both ends. It is an inlet nipple. It has 13 x 1.25 of the carb end with a flat sealing surface on the hex base and a 9mm - 3/8 inch compression on the other. I may have a couple in my junk box if SOR doesn't have it.

Pin Head - sent you a PM

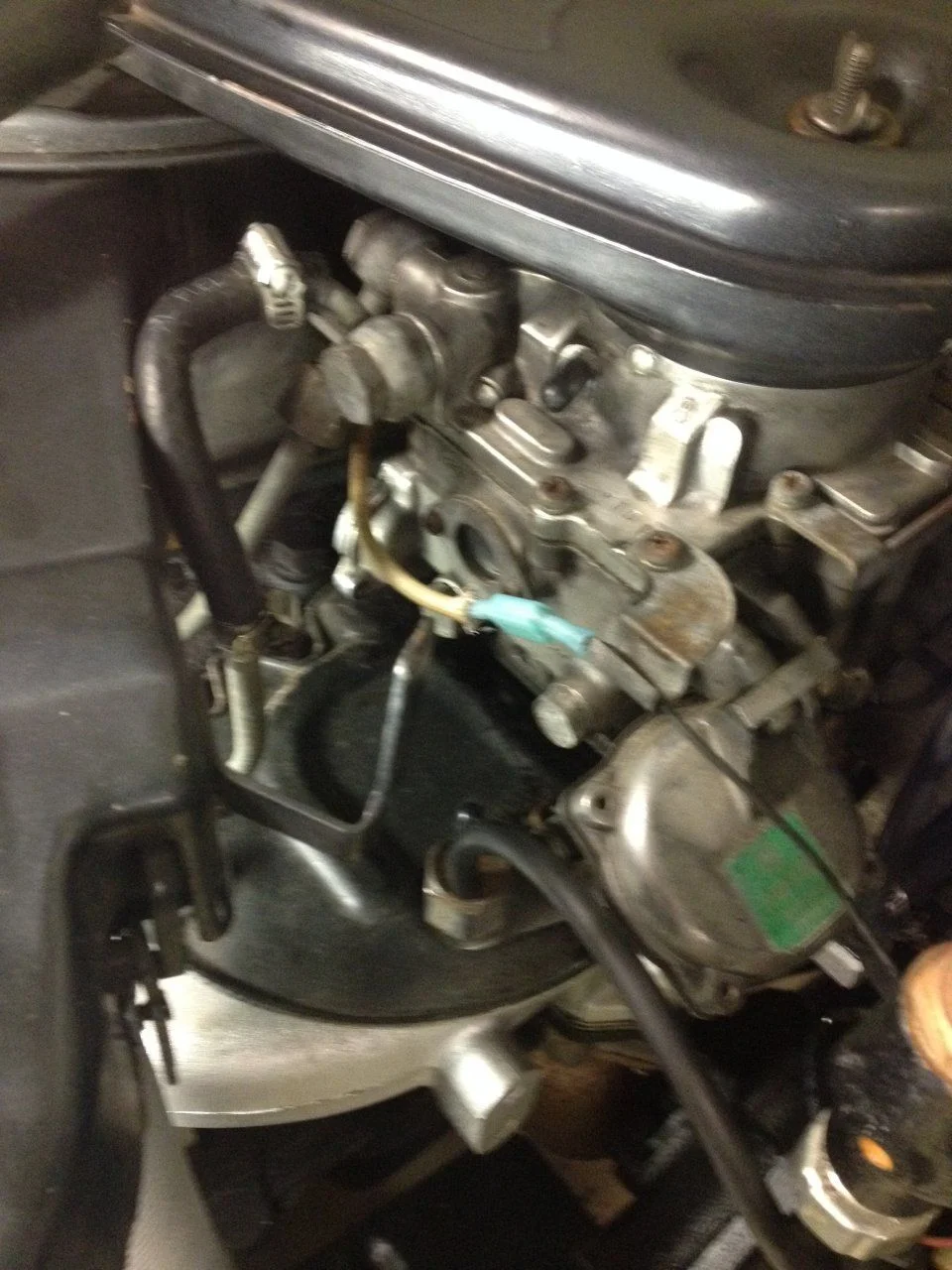

Here is a photo showing the banjo fitting I'd like to replace.



[Pin_Head]

I have one and I dropped it in the mail. The thread is 1.25. "easy come, easy go"



[GA Architect]

I have one and I dropped it in the mail. The thread is 1.25. "easy come, easy go"

Thank you, Muchas gracias, Merci mille fois....From GA



[chuckost]

Pin_Head, you're good people. I'm so used to seeing people hoard every little thing it restores my hope for mankind!!!



[John Smith]

For future reference, I'm pretty sure the carb side is 12mmx1.25. You can use this Earl's fitting meant for a Del Orto Carb to convert to -6AN and run a nice braided fuel supply line.



[Fast Eddy]

View attachment 908855 convert to -6AN and run a nice braided fuel supply line.

Eew.
