5 pin relay test (1 Viewer)

[Rigamortis]

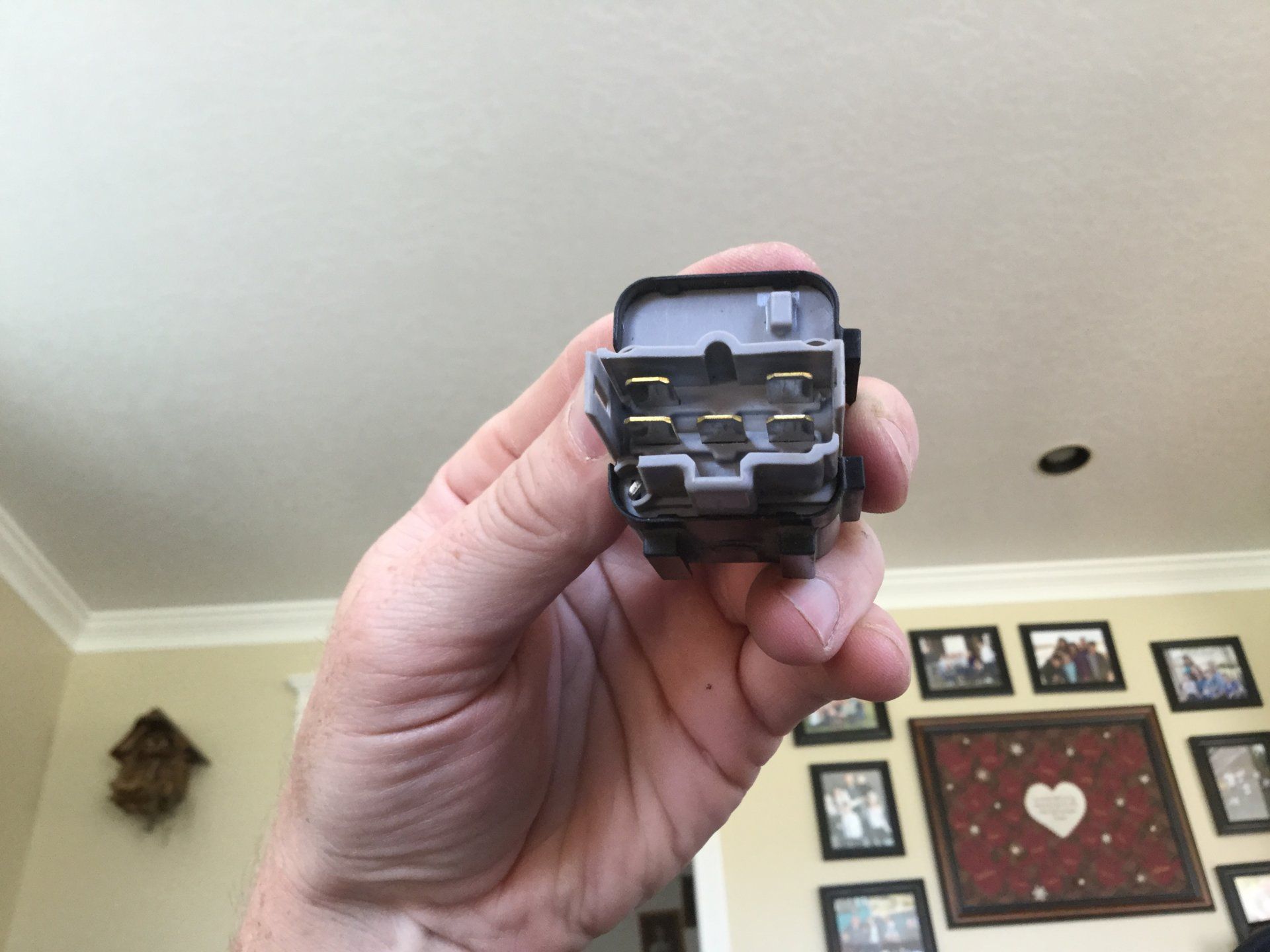

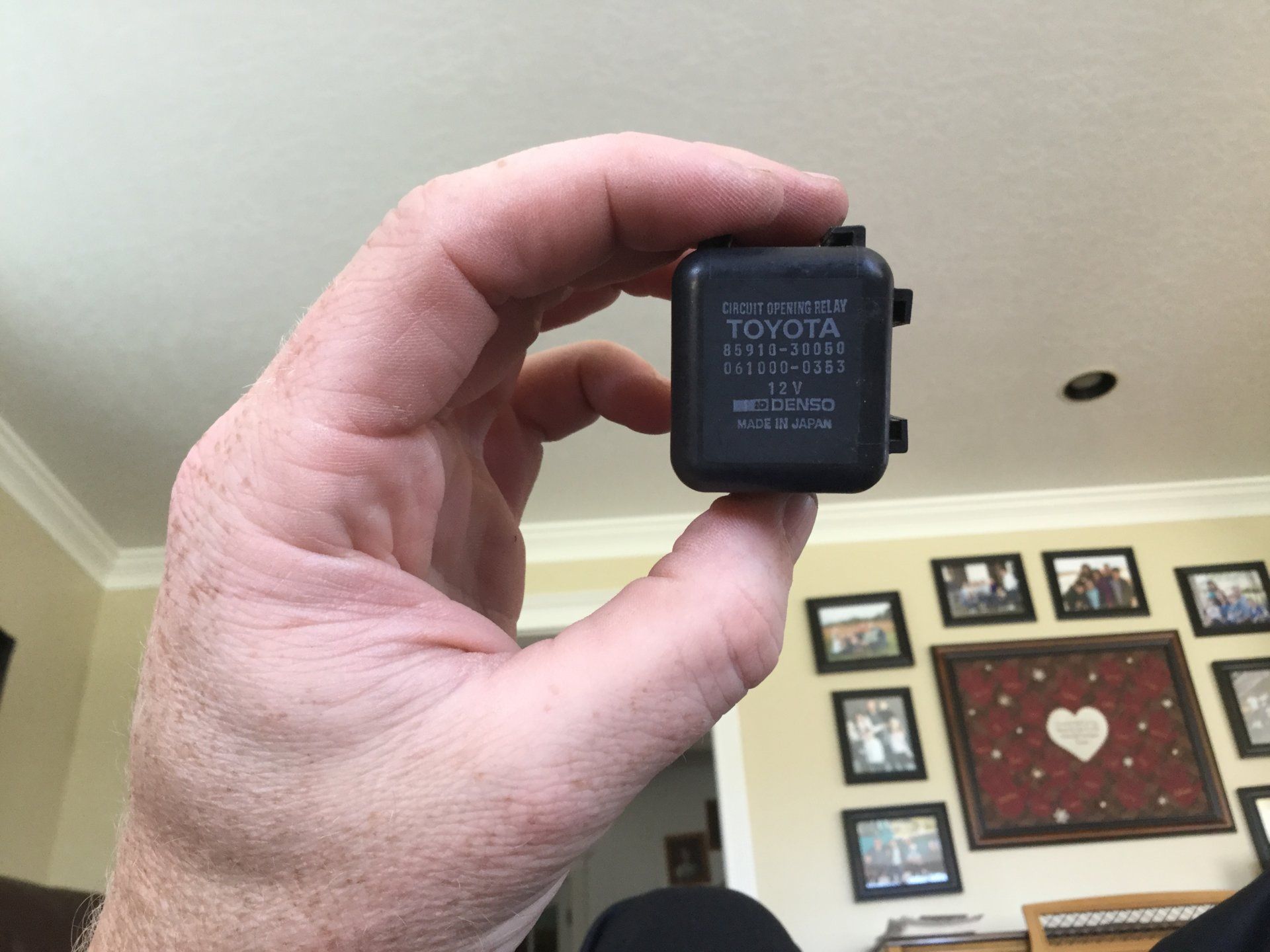

Anyone have instructions for testing this 5 pin openings relay? I’m having starter problems with my 92 LC, and I can hear this guy clicking down by my feet when I try to start. I’ve tested all my grounds, fusible links, starter, and battery are new. I’ve also unplugged my aftermarket security system.



[Can1979]

Doesnt have a map on it from a side so you can diagnosis it



[Rigamortis]

Doesnt have a map on it from a side so you can diagnosis it

Nope



[Can1979]

Check the attachment. U can Google it for more info



[jonheld]

Circuit opening relay is triggered from the starter circuit, but will not prevent the starter from working.
What diagnostics have you done?



[jonheld]

From an old post:
"The starter circuit is very simple.
The logic side of the starter solenoid: battery positive terminal; fusible link AM1; fuse AM1; ignition switch; neutral start switch; starter solenoid.
The load side of the starter motor is a direct connection to the battery positive terminal."

Nothing else effects the starter circuit."



[Rigamortis]

ok fella's, I'm a dumbass, my new battery terminals were reversed, so in the process of swapping the wiring, I connected the starter wire to the negative terminal of the battery. Thanks for the help regardless



[NLXTACY]

ok fella's, I'm a dumbass, my new battery terminals were reversed, so in the process of swapping the wiring, I connected the starter wire to the negative terminal of the battery. Thanks for the help regardless

oh damn! So sorry to hear



[Rollinns]

in case you need a new one, I usually like OEM parts, but if you're on a budget, here's some options cheaper than $100+ from a dealer:
