$12 Rear heater motor alternative, no permanent modification. (1 Viewer)

Joined
Jul 26, 2020
Messages
148
Location
WA, USA
Figured I would post this here, after tinkering over the last couple days trying to figure out a way to rebuild my old rear heater motor that is quite corroded, and brush holder destroyed, I figured I would try to find a modern replacement alternative as a stopgap measure until suitable OEM parts became available (or a bit more affordable). After taking some measurements I wound up with the following small electric gear reduction motor from amazon: Amazon.com - https://www.amazon.com/gp/product/B072R5G5GR/ref=ppx_yo_dt_b_asin_title_o01_s00?ie=UTF8&th=1

After playing around with mounting options I decided to simply mount the new motor inside the old motor housing. The magnets still being glued to the housing meant that the motor was quite firmly held in place, with about a 1mm gap around the new motor, not bad. The tabs that used to secure the cap and brush housing on the motor work excellent to center the new motor, new wiring was soldered onto the new motor as well and routed out the top of the housing.


The fan fits the existing shaft on the motor without modification, the new motor has a "D" shaft instead of the original round shaft but the grub screw seats on the new shaft without issue. I added rubberized and adhesive backed pipe insulation foam (two pieces back to back making a thicker piece with no exposed adhesive) and it centers the motor well. A zip tie was added for wire routing away from the fan.


Testing the security of the motor:
Install is no different than the OEM unit, I used a section of the old wiring and bullet connector for visual originality.

Its summer and I have not tested the output of the unit, I also have no working OEM motor to compare it to. If I had to do it again I would have found a 750-1000 rpm motor instead. Hope this helps someone get their rear heater motor working again. I am also not an expert with electronics I don't know if the original magnets inside the housing with effect the performance or longevity of the new motor, time will tell.

Joined
Jun 10, 2017
Messages
268
Location
Washington
Figured I would post this here, after tinkering over the last couple days trying to figure out a way to rebuild my old rear heater motor that is quite corroded, and brush holder destroyed, I figured I would try to find a modern replacement alternative as a stopgap measure until suitable OEM parts became available (or a bit more affordable). After taking some measurements I wound up with the following small electric gear reduction motor from amazon: Amazon.com - https://www.amazon.com/gp/product/B072R5G5GR/ref=ppx_yo_dt_b_asin_title_o01_s00?ie=UTF8&th=1

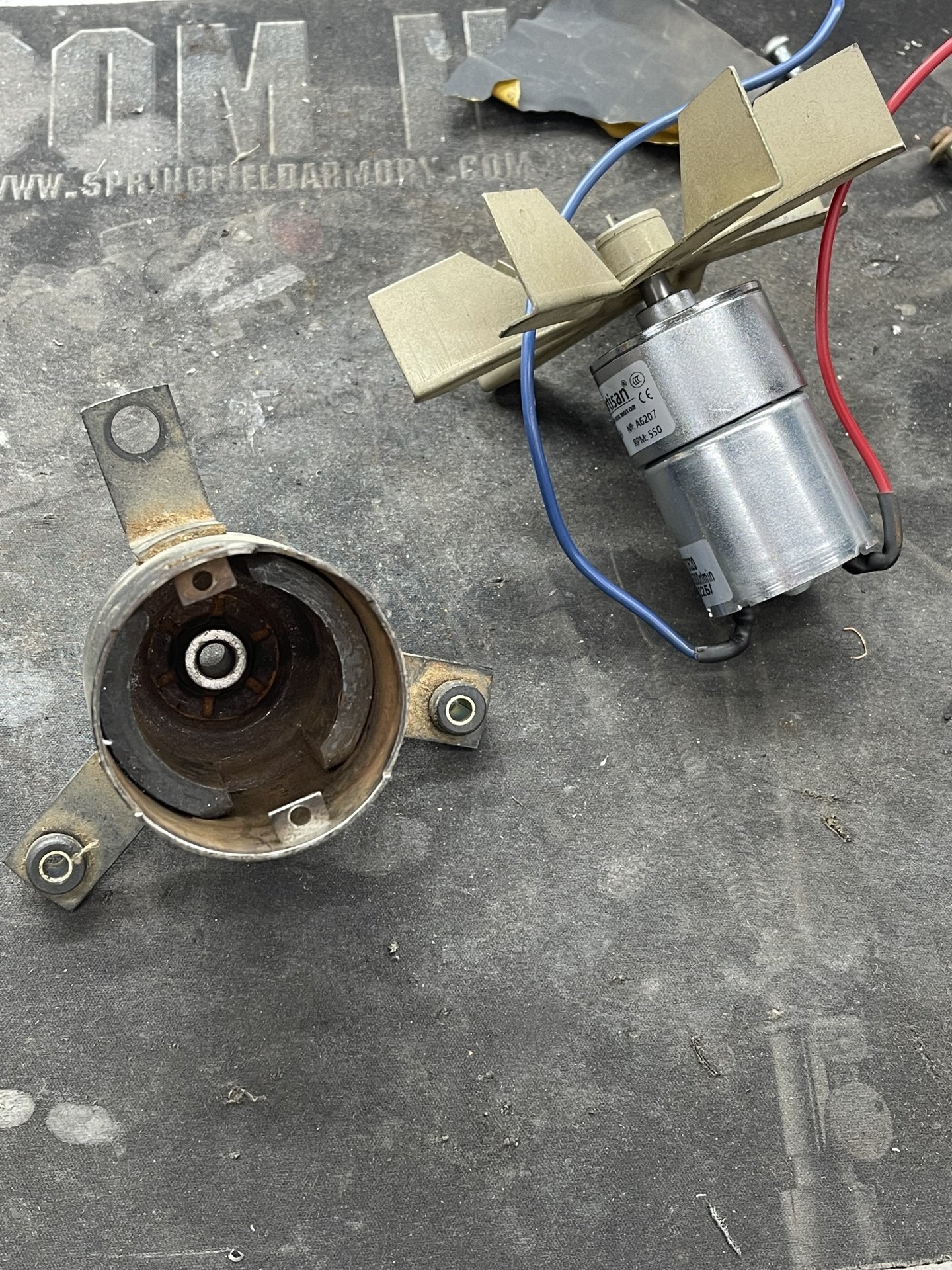

After playing around with mounting options I decided to simply mount the new motor inside the old motor housing. The magnets still being glued to the housing meant that the motor was quite firmly held in place, with about a 1mm gap around the new motor, not bad. The tabs that used to secure the cap and brush housing on the motor work excellent to center the new motor, new wiring was soldered onto the new motor as well and routed out the top of the housing. View attachment 2712108
View attachment 2712110

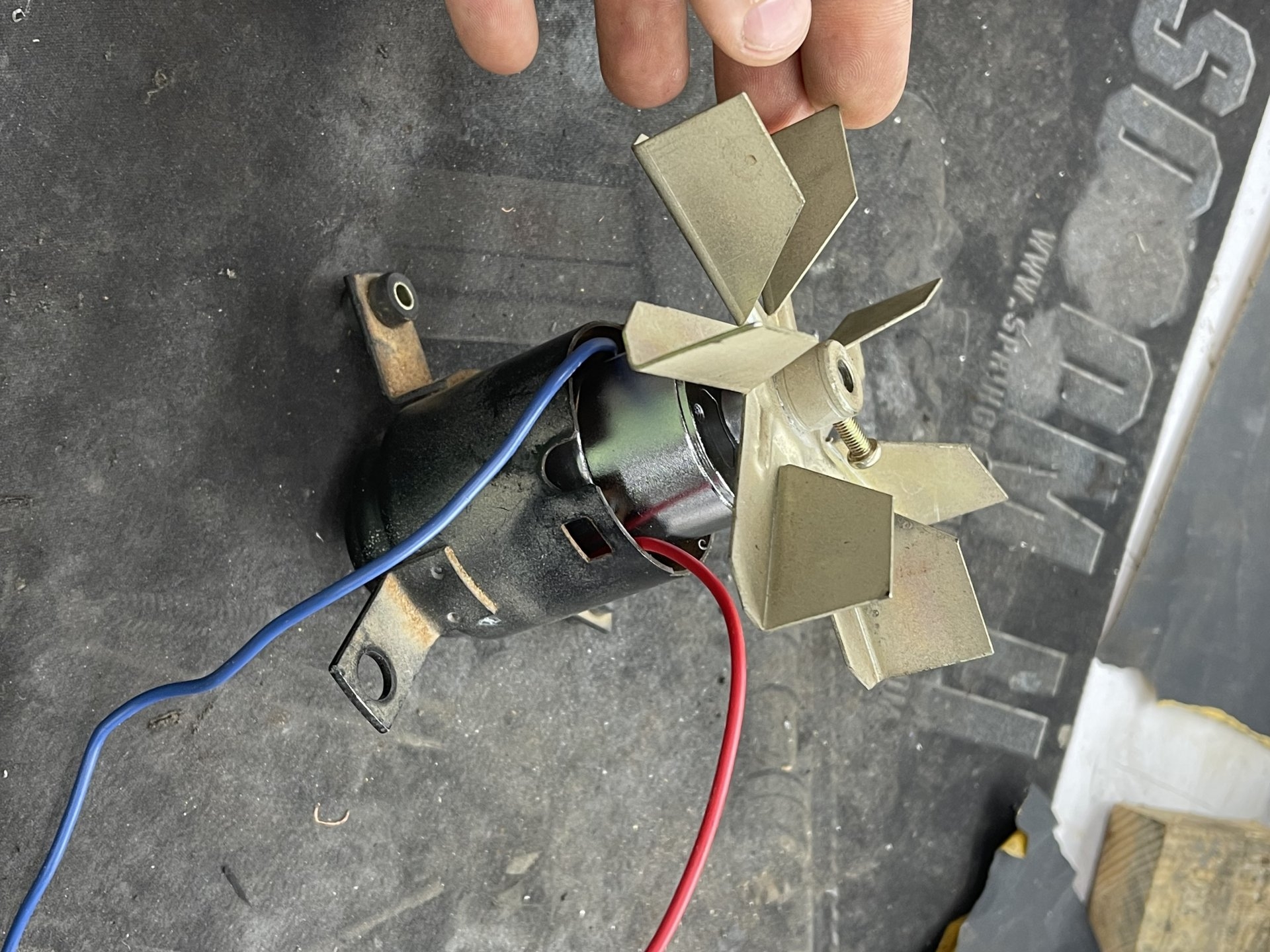

The fan fits the existing shaft on the motor without modification, the new motor has a "D" shaft instead of the original round shaft but the grub screw seats on the new shaft without issue. I added rubberized and adhesive backed pipe insulation foam (two pieces back to back making a thicker piece with no exposed adhesive) and it centers the motor well. A zip tie was added for wire routing away from the fan.


Testing the security of the motor:
Install is no different than the OEM unit, I used a section of the old wiring and bullet connector for visual originality.

Its summer and I have not tested the output of the unit, I also have no working OEM motor to compare it to. If I had to do it again I would have found a 750-1000 rpm motor instead. Hope this helps someone get their rear heater motor working again. I am also not an expert with electronics I don't know if the original magnets inside the housing with effect the performance or longevity of the new motor, time will tell.

Very very Cool Beans!!!!!


ToyotaMatt

Factory Focus-Point Mind-Set Approach
Supporting Vendor
GOLD Star
Joined
Aug 12, 2007
Messages
15,281
Location
EAST COAST
Figured I would post this here, after tinkering over the last couple days trying to figure out a way to rebuild my old rear heater motor that is quite corroded, and brush holder destroyed, I figured I would try to find a modern replacement alternative as a stopgap measure until suitable OEM parts became available (or a bit more affordable). After taking some measurements I wound up with the following small electric gear reduction motor from amazon: Amazon.com - https://www.amazon.com/gp/product/B072R5G5GR/ref=ppx_yo_dt_b_asin_title_o01_s00?ie=UTF8&th=1

After playing around with mounting options I decided to simply mount the new motor inside the old motor housing. The magnets still being glued to the housing meant that the motor was quite firmly held in place, with about a 1mm gap around the new motor, not bad. The tabs that used to secure the cap and brush housing on the motor work excellent to center the new motor, new wiring was soldered onto the new motor as well and routed out the top of the housing. View attachment 2712108
View attachment 2712110
The fan fits the existing shaft on the motor without modification, the new motor has a "D" shaft instead of the original round shaft but the grub screw seats on the new shaft without issue. I added rubberized and adhesive backed pipe insulation foam (two pieces back to back making a thicker piece with no exposed adhesive) and it centers the motor well. A zip tie was added for wire routing away from the fan.


Testing the security of the motor:
Install is no different than the OEM unit, I used a section of the old wiring and bullet connector for visual originality.

Its summer and I have not tested the output of the unit, I also have no working OEM motor to compare it to. If I had to do it again I would have found a 750-1000 rpm motor instead. Hope this helps someone get their rear heater motor working again. I am also not an expert with electronics I don't know if the original magnets inside the housing with effect the performance or longevity of the new motor, time will tell.


OUTSTANDING !

Joined
Apr 2, 2008
Messages
9,967
Location
Victoria, BC
Now all you need is a resistor to it do that you can have two speeds.

I've posted about it… original was something like 4 ohms if my memory is correct.

Joined
Jul 26, 2020
Messages
148
Location
WA, USA
Now all you need is a resistor to it do that you can have two speeds.

I've posted about it… original was something like 4 ohms if my memory is correct.
I was under the impression that the rear fan only operated on the "high" fan switch speed

Joined
Apr 2, 2008
Messages
9,967
Location
Victoria, BC
I was under the impression that the rear fan only operated on the "high" fan switch speed

Earlier rigs had a second fan switch with high and low speeds. On low speed the fan is almost silent… at least compared to the rig it’s in.
