Hi all
This thread is for the sale of parts, sub-assemblies and complete beds for the FJ45 LPB long bed truck. The bed only – at this time I have no components for the cab or front clip, or for the short bed.
Some of you may have read my original thread, “I can make LPB box sides” in the FJ45 Owners section. In that thread I went through the prototyping of all the components required to build a long bed for the FJ45. I had made the side skins for a customer at work before and so I started that thread offering them up for sale. After several requests for other parts of the bed I decided to re-produce the entire bed assembly.
This thread will serve as a catalogue for the FJ45 LPB bed parts that I make. I will list all the parts with prices and photos to reduce the risk of anyone purchasing the wrong part – assuming I sell any
. I offer these parts as an alternative to the un-fun task of cutting, patching and welding or to the other more expensive options out there.
About me:
My name is Kevin and I have been in the sheet metal manufacturing industry for about 15 years. While that industry is more directed at making things like computer chassis and industrial heater cabinets, many of the skills and tools translate into what I have done here. I have a Canadian 1978 FJ45 that I am currently rebuilding into a daily driver with expedition capability. I used my bed as a template to measure and layout these parts. I am located in Calgary, Alberta Canada.
The parts:
My parts are hand made replicas of the original Toyota pieces. I faithfully follow their original design in all dimensions as much as possible. All of my parts can be used as replacement pieces on an original bed. Because I don’t have a factory full of tooling specifically designed to make these parts I have to be creative in the way I make them. This requires some welding and grinding in places. I do have access to some machinery and use a CNC turret punch, 4’,6’ and 10’ CNC form press and MIG/TIG welders to help make parts as close to the originals as I can. All of the individual parts will have any required welding and grinding done. All sub-assemblies will be welded together fully and can be incorporated into your build without and further welding.
Custom changes:
I can make the bed any length (within reason) and move the axle location where you need it. Bobbed beds or one off quad cab beds – you think it up and I’ll make it. A nominal charge will apply to cover programming and designing.
Quality:
While I strive to do the best I can, and I do use some machines, these are hand made pieces. As such they are not like something you can get at a dealership parts counter. They may require some fitment, grinding, hammering, sanding or other treatment for that perfect fit. They are also raw steel and will need to be protected from corrosion and prepared for paint with body filler on certain parts.
Payment:
All pricing is in Canadian Funds.
There will be no tax added – all sales are a private transaction.
Paypal is preferred for ease of use but requires a 3% surcharge to cover the Paypal service charges. This 3% surcharge also applies to any shipping charges I pay and then you reimburse.
Duty charged on any cross boarder shipment will be the buyer’s responsibility.
Orders over $500.00 will require a 50% down payment to cover material and the balance when ready to ship.
Shipping:
Shipping is decided on a case by case basis and is fully paid by the buyer. Depending on size Canada Post and USPS are the cheapest. I’ll send it via UPS, DHL, FedEx, Mule or bicycle – any way you want, after all you’re paying for it.
Pricing:
I charge no more than is required to cover material, forming, welding, grinding and loss of my family time as I do the work after hours and on weekends. Two parts may be the same size but if one requires an extra bend and weld it may cost much more than the other. To be honest I should charge more but I’d rather help fix your rusty trucks. I do however reserve the right to change pricing as required.
As of August 9, 2009 the prices below in post 1 through 36 are in effect
Prices may change without warning
Loose Parts: Individual parts – you can buy just what you need!

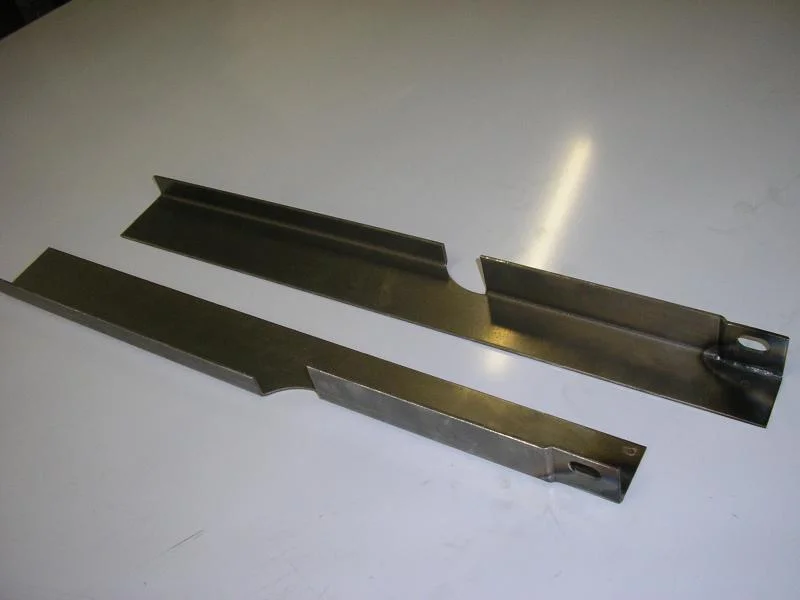

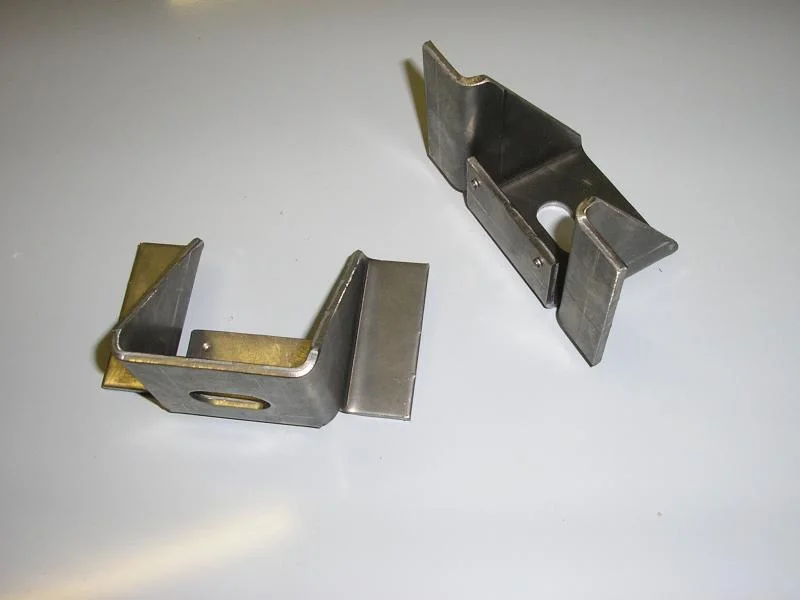

Type 1 frame mounts - 8 required per bed – these are for the forward four x-members.
$10.00 ea
Type 2 frame mounts - 2 required per bed – these are the ¼” thick ones for the rear-most x-member.
$15.00 ea
Cross-member #1 - this is the front x-member that the bulkhead sits on and the floor ends on – includes 2 stainless steel captured M8 nuts for the front corner floor section.
$45.00 ea
Cross-member #2 - this is the x-member that the front of the wheel hump bolts to – includes 6 captured stainless steel M8 nuts for the wheel humps.
$45.00 ea
Cross-member #3 - this x-member that bolts to the rear of the wheel humps – includes 6 captured stainless steel M8 nuts for the wheel hump.
$45.00 ea
Cross-member #4 - this x-member has one bolt through the floor near the side wall - includes 2 captured stainless steel M8 nuts for the rear floor sections.
$45.00 ea
Cross-member #5 - this x-member is the closest to the back, uses type 2 frame mounts, has 5 large holes and one bolt through the floor - includes 2 captured stainless steel M8 nuts for the rear floor sections.
$45.00 ea
Front Hump x-member - this is the forward, shorter x-member over the frame axle hump.
$40.00 ea
Rear Hump x-member - this is the rear, taller x-member over the frame axle hump.
$40.00 ea

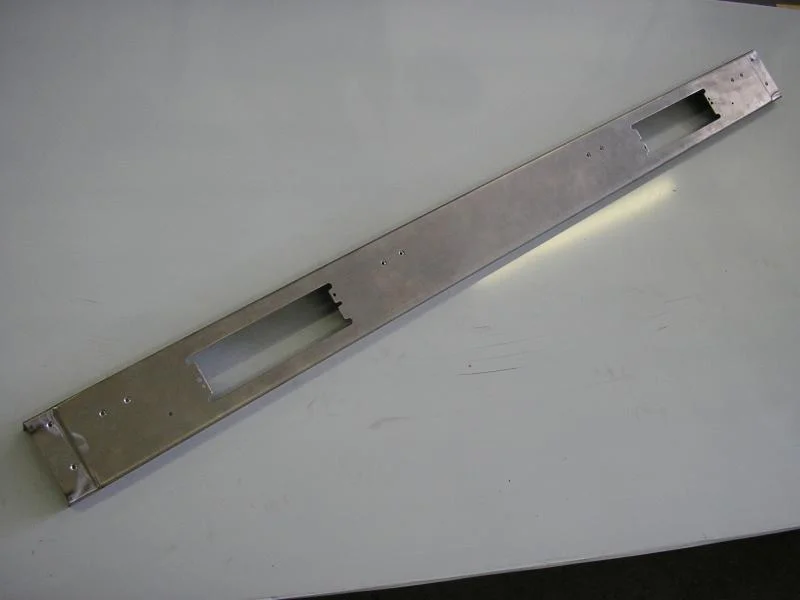

Rear valence - this is the tail light bar/ tailgate hinge mount – technically the rear most cross-member though it does not attach to the frame - specify year of truck or number of hinges – includes 4 x M8 and 12 x M6 stainless steel captured nuts for the rear corner post and tailgate hinges (10 x M6 for the three hinge style).
$90.00 ea
Center floor section - this is the main floor section between the wheel wells.
$220.00 ea

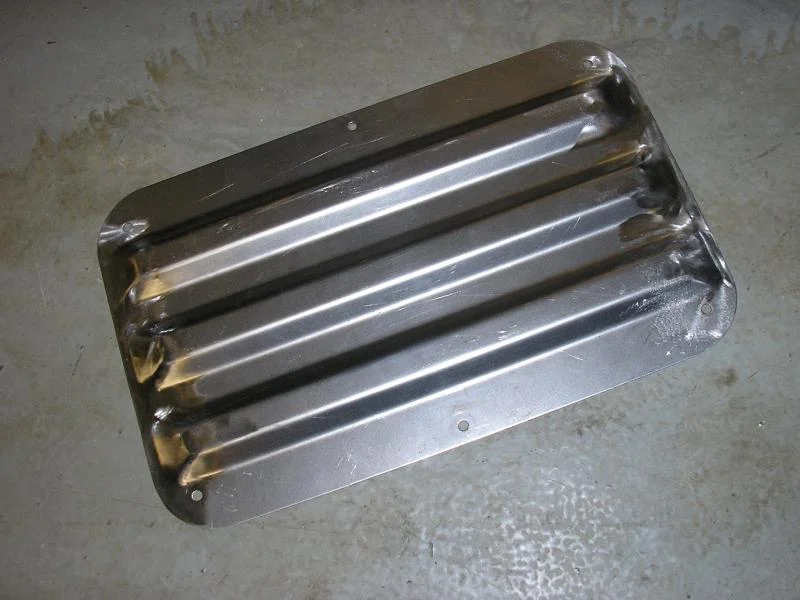

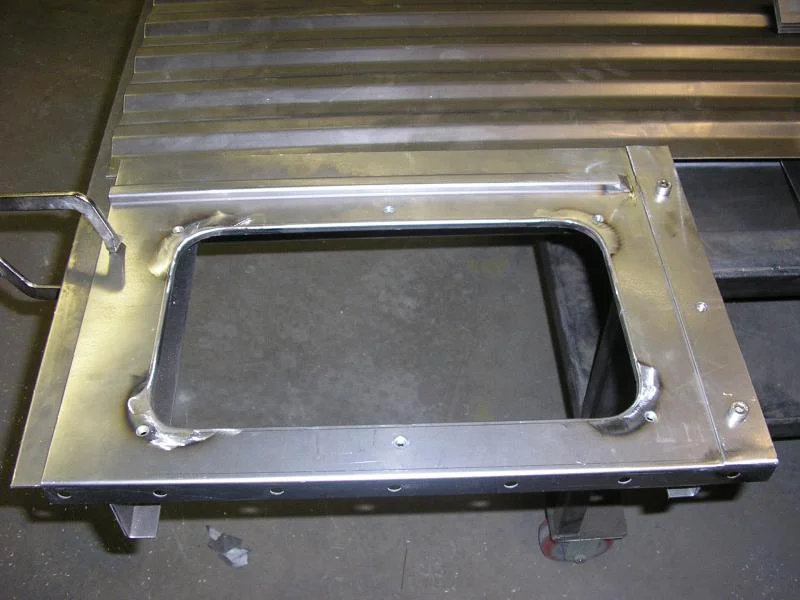

Front corner floor late model - with access opening and captured stainless steel M6 nuts for the cover – left or right. (I will be doing the early style with no access – maybe you’ll get the first one
)
$85.00 ea
Access cover plate - cover for late model front corner – two per bed.
$45.00 ea
Rear corner floor - left or right.
$75.00 ea
Wheel humps - universal – left or right.
$125.00 ea

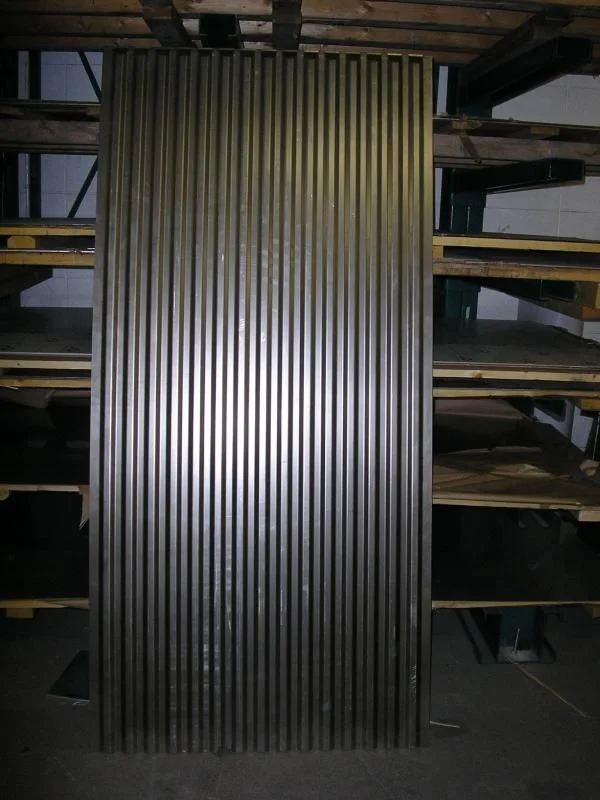

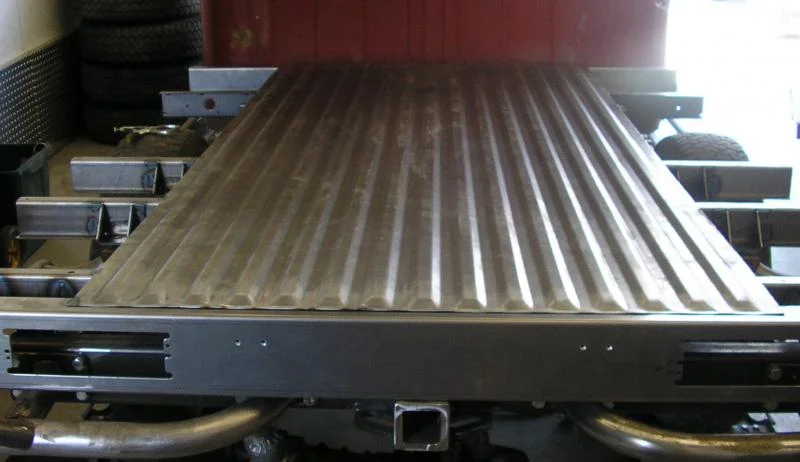

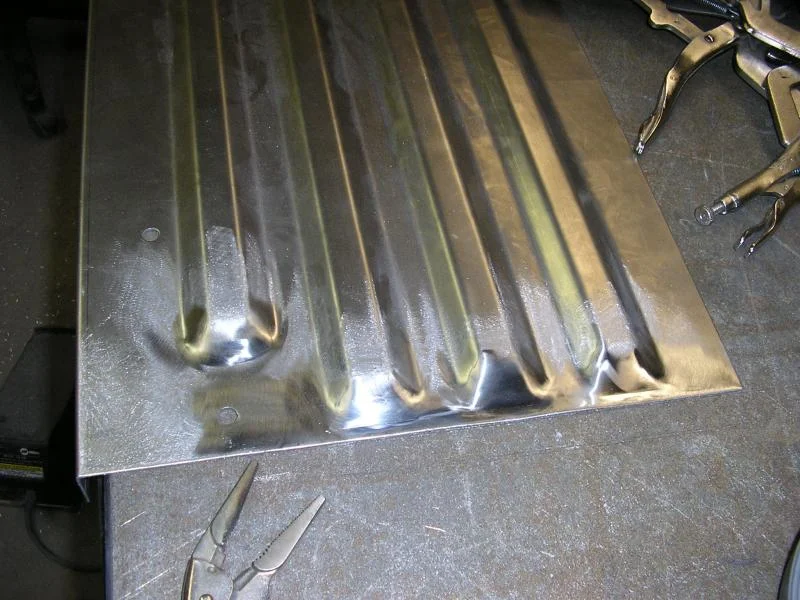

Front wall skin - ribbed front bulkhead skin.
$60.00 ea

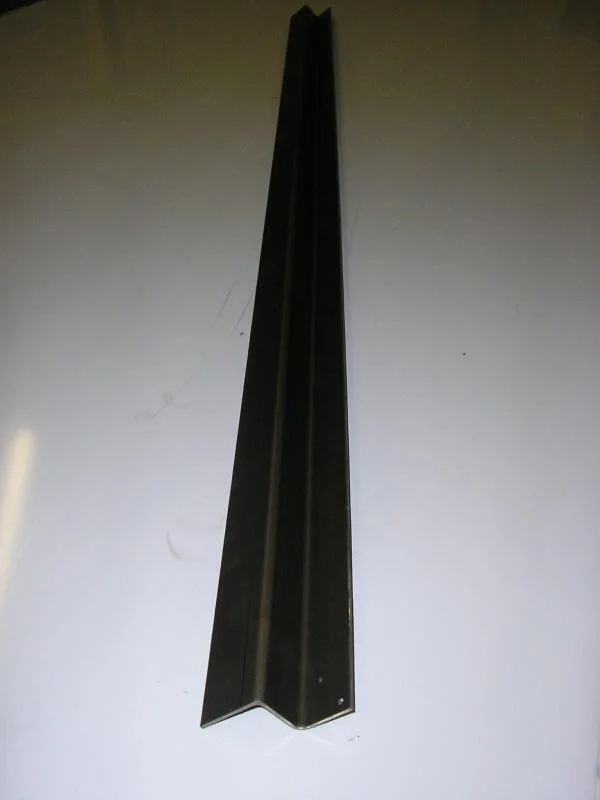

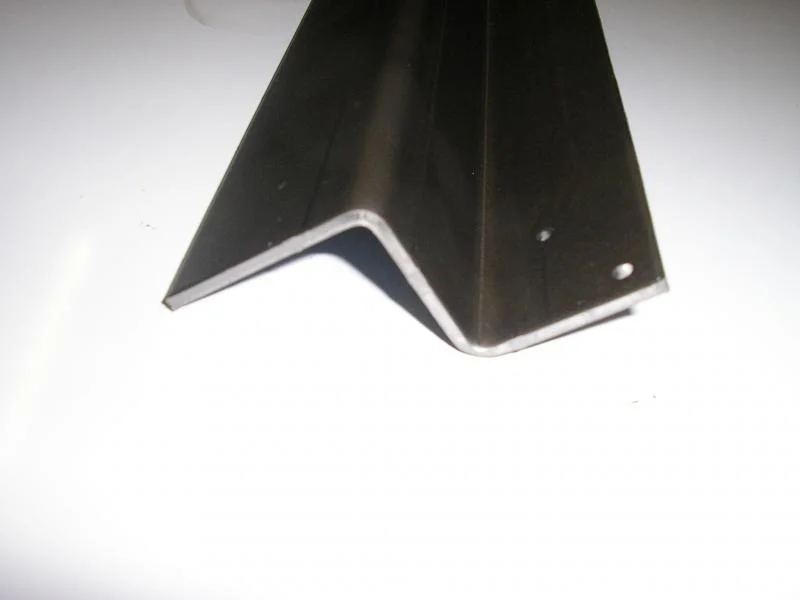

Front wall top rail - “Z” shaped channel for the top of the front bulkhead.
$42.00 ea
Front wall stiffener - stiffeners for the front bulkhead – two required.
$45.00 set of two
Front wall end - “C” shaped end channels of the front bulkhead – left and right.
$40.00 set of two
Front corner post – angle bracket that goes between the side skin and the front bulkhead – left and right.
$75.00 set of two
Bed side Skin – the outer skin of the bed including the wheel well arch rib. This skin is year and region specific – headache rack, rear clearance light hole, hook dimples all vary – specify model year of truck – left or right.
$350.00 ea
Rear corner post – this is the main structural member that keeps the bed solid when the tailgate is open. The gate chains hang from it and the latch hook keeps the gate closed – left or right.
$90.00 ea
Bed side top rail – this is the heavy gauge rail that forms the top of the bed side – the bed hooks attach to it – including end caps and holes for the headache rack – left or right.
$95.00 ea

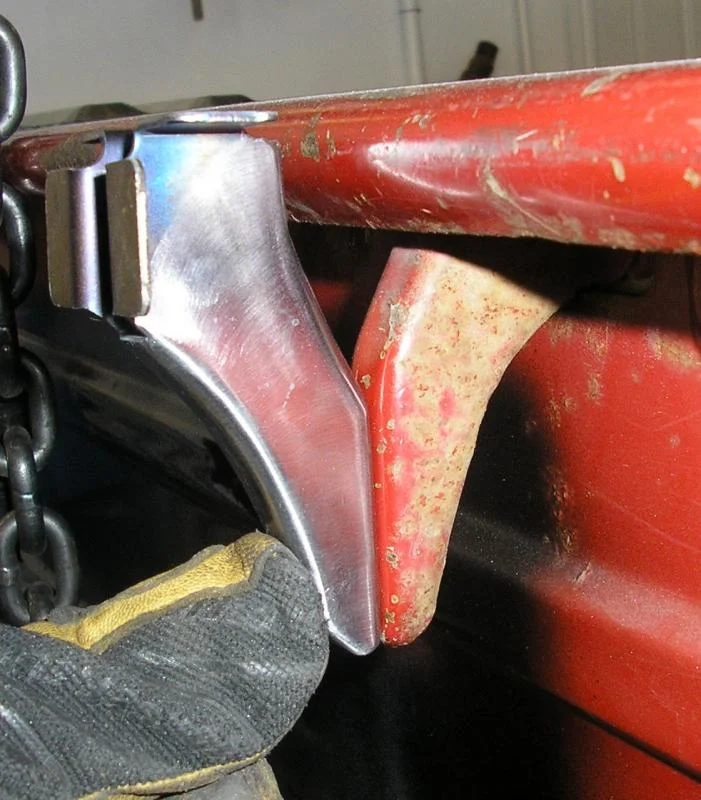

Bed hooks – these are faithful copies of the iconic bed side and tailgate hooks – 10 required for the bed plus 3 on the tailgate.
$10.00ea
Tailgate bottom channel – this is the bottom structure on the tailgate that the hinges bolt to – includes captured stainless steel M6 nuts for the hinges.
$50.00 ea
Tailgate end channels – left and right
$45.00 set of two
Tailgate top rail – the top rail that the hooks weld to.
$70.00 ea
Tailgate skin – this skin has the large raised rectangular area but no embossed letters or sticker oval. It is available plain or with the TOYOTA text scribed in.
$95.00 ea
Tailgate stiffener – these are the two rounded stiffeners on the inside of the tailgate.
$45.00 set of two
Tailgate anchor plate – this is the plate where the tailgate chains hook into at the top inside of the gate – left and right.
$30.00 set of two
Tailgate chain assembly – includes the chain, hook and mounting tab – universal left and right.
$52.00 ea
Tailgate latch hook – this is the heavy hook that bolts to the rear corner post and the latch catches onto.
$5.00 ea
Sub-assemblies: Convenient groups of parts or pre-assembled sections of the bed.
Tailgate – fully welded and ready to install. Specify 3 or 4 hinge.
Includes:
Tailgate bottom channel (1)
Tailgate end channels left and right
Tailgate top rail (1)
Tailgate skin (1)
Bed hooks (3)
Tailgate stiffener (2)
Tailgate anchor plate left and right
$490.00
Set of cross-members – full set of 5 x-members with mounts welded to the x-members.
Includes:
Cross-members 1 through 5
Eight type 1 mounts
Two type 2 mounts
$300.00 per set
Center floor assembly – all welded as one piece.
Includes:
Cross-members 1 through 5
Eight type 1 mounts
Two type 2 mounts
Front Hump x-member (1)
Rear Hump x-member (1)
Rear valence (1)
Center floor section (1)
$815.00
Full floor assembly no humps – all welded. So you can use your original wheel humps.
Includes:
Cross-members 1 through 5
Eight type 1 mounts
Two type 2 mounts
Front Hump x-member (1)
Rear Hump x-member (1)
Rear valence (1)
Center floor section (1)
Front corner floor late model left and right
Access cover plate (2)
Rear corner floors left and right
$1335.00
Full floor assembly – all welded.
Includes:
Cross-members 1 through 5
Eight type 1 mounts
Two type 2 mounts
Front Hump x-member (1)
Rear Hump x-member (1)
Rear valence (1)
Center floor section (1)
Front corner floor late model left and right
Access cover plate (2)
Wheel humps (2)
Rear corner floors left and right
$1625.00
Front wall assembly – fully welded front bulkhead.
Includes:
Front wall skin (1)
Front wall top rail (1)
Front wall stiffeners (2)
Front wall end channels left and right
$200.00
Bed side assembly – replace the whole side – specify which side.
Includes:
Front corner post (1)
Bed side skin (1)
Rear corner post (1)
Bed side top rail (1)
Bed hooks (5)
$675.00 per side
The Rusty Special – the factory beds like to bulge the spot welds between the side skin and floors. Then they just keep rusting. With this assembly you can keep your floor, cross-members and front bulkhead and replace the corner floors, wheel hump and entire bed side. Basically this is a Bed side assembly with the corner floors and wheel hump attached. Specify left or right side.
Includes:
Front corner post (1)
Bed side skin (1)
Rear corner post (1)
Bed side top rail (1)
Bed hooks (5)
Front corner floor late model (1)
Access cover plate (1)
Wheel humps (1)
Rear corner floor (1)
$1052.00 per side
And the “piece of resistance”, the whole bed without tailgate.
$3250.00
