Yet another JUMP SEAT query!

Joined
Sep 10, 2004
Messages
954
Location
coastal empire
Little help... Could someone post a picture on how the LONG STYLE seats are mounted in a 40? Specifically the bottom mounts?

Thanks!

Last edited:
Joined
Sep 10, 2004
Messages
954
Location
coastal empire
Thanks squinty20!!

Ok... Everybody was probally shaking their heads thinking that I was on crack because it's so simple. But here's my "hole" deal. I have 2 holes for each leg. The jump seat legs fit between each of the two holes which leads me to believe that there was either a bracket that the seats sat on and then bolted to the well OR- there is a different style seat.





FWIW, I purchased two used jumps because while dragging my tub to my new house, the original jumps fell out the back of the tub! So if anybody found some jump seats on I95 around Fayettville, NC...

On another note, for the soft top there are 4 bolts for a factory bow bracket vs. 2 in your picture.

So if someone has a 68 tub (the bastard year) with long seats, let me know how they are installed before I drill some more holes in my tub and call it good.

Joined
Sep 10, 2004
Messages
954
Location
coastal empire
Post a picture of your mounted long style jump seats with the two hole configuration as in my picture and win a prize!

Joined
Sep 10, 2004
Messages
954
Location
coastal empire
Nevermind! here's a picture of a set for a '69 and you can see that there are 2 mounting points for each leg. Jeeze!~ :D



Joined
Sep 10, 2004
Messages
954
Location
coastal empire
Nevermind! here's a picture of a set for a '69 and you can see that there are 2 mounting points for each leg. Jeeze!~ :D




65swb45

Elder Statesman
Supporting Vendor
Joined
Apr 14, 2004
Messages
28,597
Location
818-953-9230



Yes, and the earlier 40s also did use softtop bow brackets with 4 holes instead of two. Kinda hard to come by those tho. ;)

Joined
Jan 31, 2005
Messages
543
Location
Atascadero, CA

the four holes with bolts in them are for the soft top mounts. mine had a flat peice wiht a hole that held that soft top bar from sliding around

Joined
Nov 14, 2004
Messages
3,399
Location
PNW

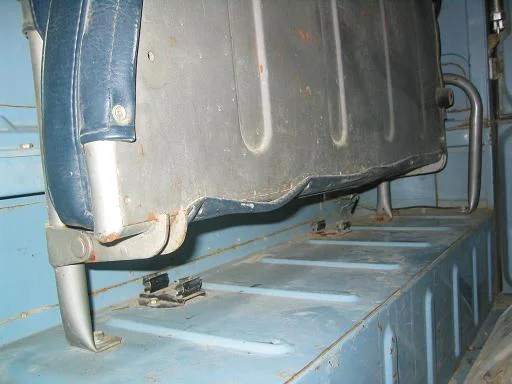

I'm not sure these will help you, and apology for the blurry view, but this is how the long jumpseat and the factory soft top mount in my unrestored '77:


ed: something else: there are a few unused threaded holes along the upper rail (whatever it's called where top meets tub). All I can figure is that they are generic installed to allow each cruiser to be configured in different ways. So I don't worry about 'extra' holes.

Last edited:
Joined
Sep 10, 2004
Messages
954
Location
coastal empire
THanks all for the pics and information. Seems that '68 and prior (at least in the US) there are diff's in the mounting configuration for seats. I have a set of seats for >'69 to short style seats and although they would easily work and nobody would know the differance - except me!


Living in the Past

SILVER Star
Joined
Apr 21, 2005
Messages
19,000



Quote: trekker "So if someone has a 68 tub (the bastard year) with long seats, let me know how they are installed before I drill some more holes in my tub and call it good."

There are six different types of long jump seats imported in to the US. My FJ25s have four legs with two bolts each leg (tall arm rest on each side). 1961 FJ40 four legs with two bolt holes (short arm rest each side). 1962 FJ40 three legs two bolt holes ( back arm rest only) On my 1968 three legs two bolt holes, plus brackets to bolt to the sides, four bolts each side (not sure when the brackets to the side started but it was after 1963). Mid 1969 has five mounting points but drop to one bolts at each location. In 1972 the bottom of the seat change with a angle cut in the front (for the 1973 bucket seats?). The 77BJ40 non USA still had long jump seats with no roll bar. It would be nice if 68 was the only bastard year (1968 and early 1969 were the same). Back thirty years ago when Toyota still supported the early Land Cruisers you needed to know production date because of so many little changes made during the year.



Quote 65swb45 " Yes, and the earlier 40s also did use softtop bow brackets with 4 holes instead of two. Kinda hard to come by those tho."

Gee Mark I've always found it easier to find the four bolt type :rolleyes:

PS I don't want to sell the jump seats out of my 68 but I might have another set with two bolt holes that I would sell.

John

Joined
Feb 20, 2005
Messages
213
Hello, I just pickup a 68 40 anyway the jump seats are there & the frame's are in very good shape but need's new covers let me know if you still need them. Thanks

Joined
Sep 10, 2004
Messages
954
Location
coastal empire
Still looking with irons in the fire. One coming from sonoranfun hopefully but will take the first set that comes along.

If I come across another, I'll let you know wesintl and if you could do the same for me that'll be kool.
