Vacuum Air Cleaner - Stumped

[BigTreesFJ60]

Stumped - I’ve looked at the vacuum diagrams and emissions manuals and can’t seem to figure out where to connect the small white valve under the air cleaner and the connection on top of the air cleaner. Do they connect to each other? Any help is greatly appreciated. I’m stuck!

***

Apologies for the double up, I posted this in my build thread as well, but not sure many ppl check those out.



[mattressking]

See attached. This is according to FSM. There is some debate on whether it is truly correct from a functionality standpoint. @OSS I believe has some input here.



[BigTreesFJ60]

Thank you, super helpful. I’ll be interested to hear thoughts on functionality. If it can impact smog testing I’ll definitely listen closely.



[mattressking]

Thank you, super helpful. I’ll be interested to hear thoughts on functionality. If it can impact smog testing I’ll definitely listen closely.

No it will not affect smog testing. The debate is whether the routing Toyota developed is causing the valve to fail prematurely.



[BigTreesFJ60]

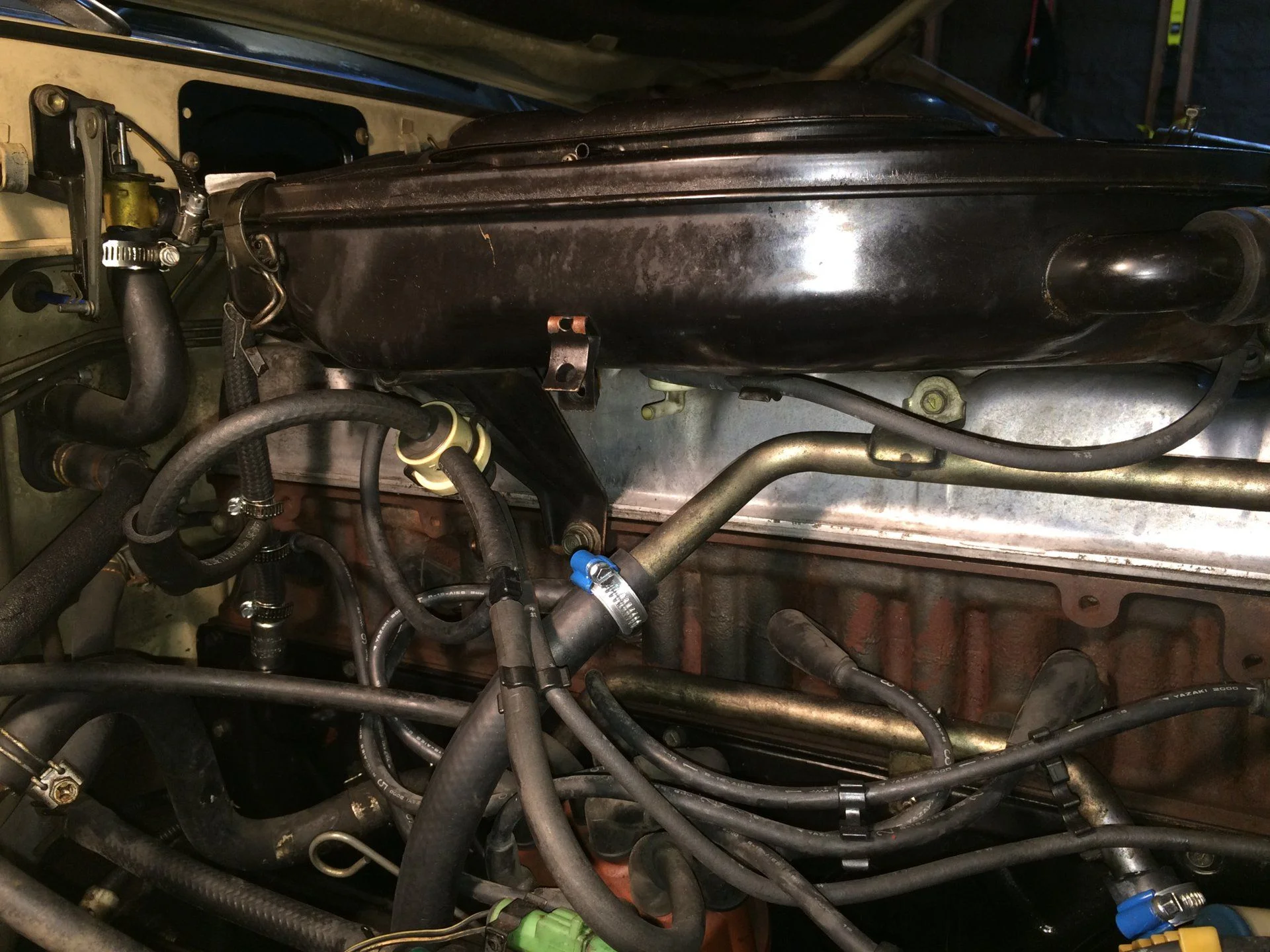

Gotcha - I believe this is “correct” now



[mattressking]

Gotcha - I believe this is “correct” now

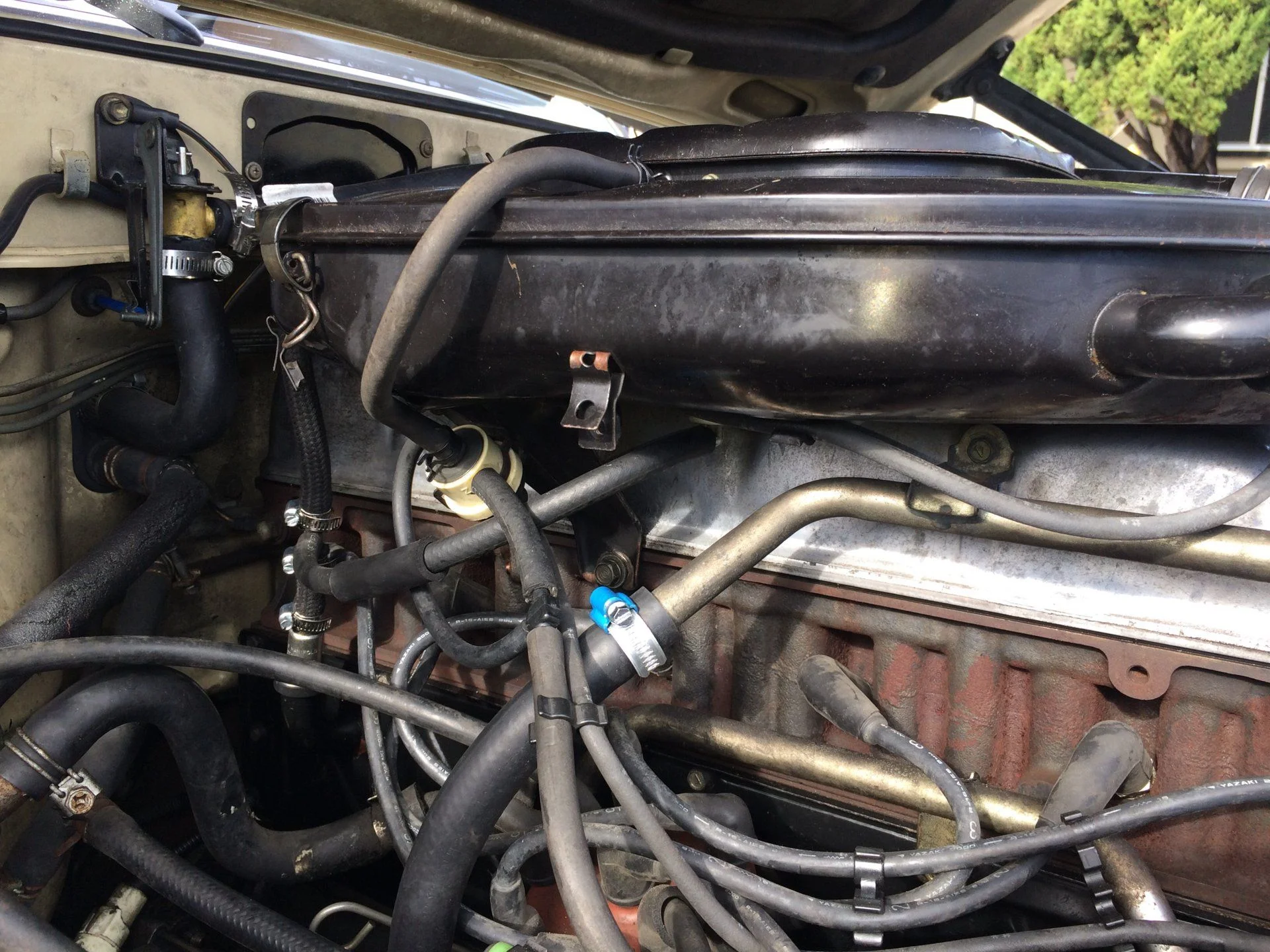

View attachment 1627136

Nailed it. Good job.



[BigTreesFJ60]

Thank you sir
