Troopy Schematic

[PVCruiser]

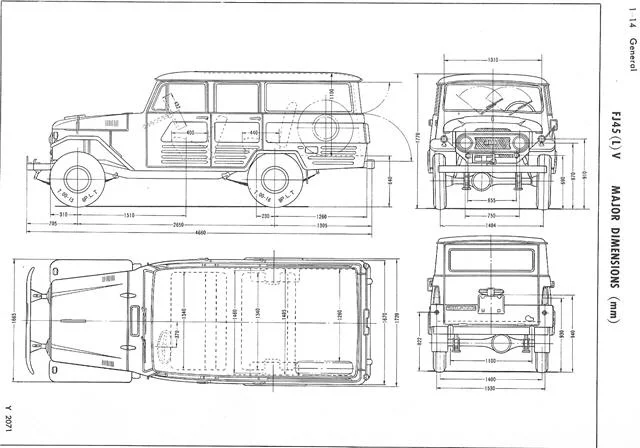

Hi- I'm trying to do a floor layout of a Troopy. Does anyone have a scan like this FJ45LV, but for the 45/47 series troopy? Please send it to me at seth ( at ) pvcruisers dot com....


I'll mail you a free set of late model 40 series door handles for your trouble...



[orangefj45]

i just spent a very frustarting hour looking for my troopie brochures. found most of them, but not the one i was really looking for. let me get the scanner working and i'
ll post up what little i have, although i think you need more deatils than this.



[orangefj45]

still can't find it.

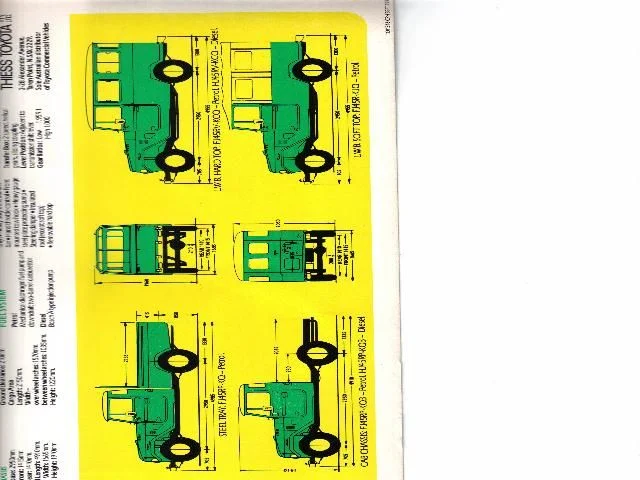

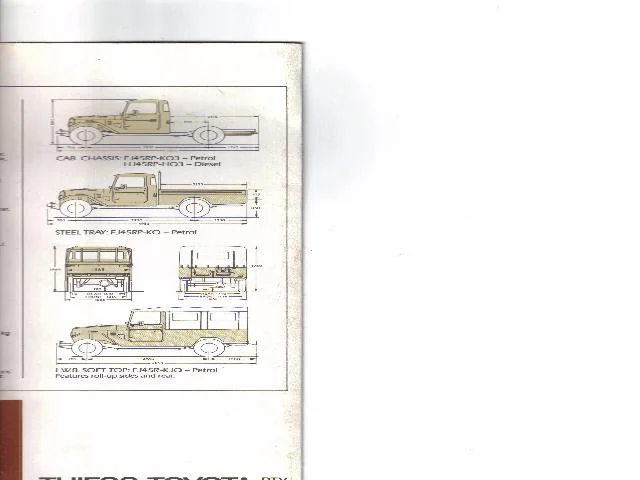

this is the best i can do for now, but i'll look some more tonight. maybe landpimp has some useful info on this....



[PVCruiser]

Paging Landpimp...........................
