Rear heater wiring (1 Viewer)

[raymond2335]

Could somebody look at their fj40 rear heater and follow the wiring up under the dash to find out where it plugs into? It shouldn’t be this confusing!!!!!



[rkymtnflyfisher]

Year?



[GA Architect]

Could somebody look at their fj40 rear heater and follow the wiring up under the dash to find out where it plugs into? It shouldn’t be this confusing!!!!!

Try these:

76 FJ40 Wiring Harness

78 FJ40 Wiring Harness



[raymond2335]

Sorry folks... mine is 7-71



[rkymtnflyfisher]

My 74 had a pigtail coming off of wires that plug into the fan switch if I remember correctly. That may not be totally right due to the fact I also have a rear fan switch. Bit was pretty simple to find and hook up though, it was all plug and play on mine.



[thebigredrocker]

Right near your hazzard branch and courtesey light switch wires. Rear heater fan wires are L & LR together in a female bullet. Front switch is a flat rubber plug with 3 wires( LW, LB, L)

FYI
There is an inline 10A fuse up near those branches. I think it is turn related.



[Living in the Past]

Thru 73 model the rear heater had it's own switch. After that it worked on high speed of the front blower. Been many years since I added a rear heater to my 68. As I remember the rear heater switch got it power from the wiring for the front heater switch. It was all plug and play. Heater may have been from a 71 or 72. This was in the eighties and just remember I got the rear heater and wiring from a wrecking yard.



[73tlcv8]

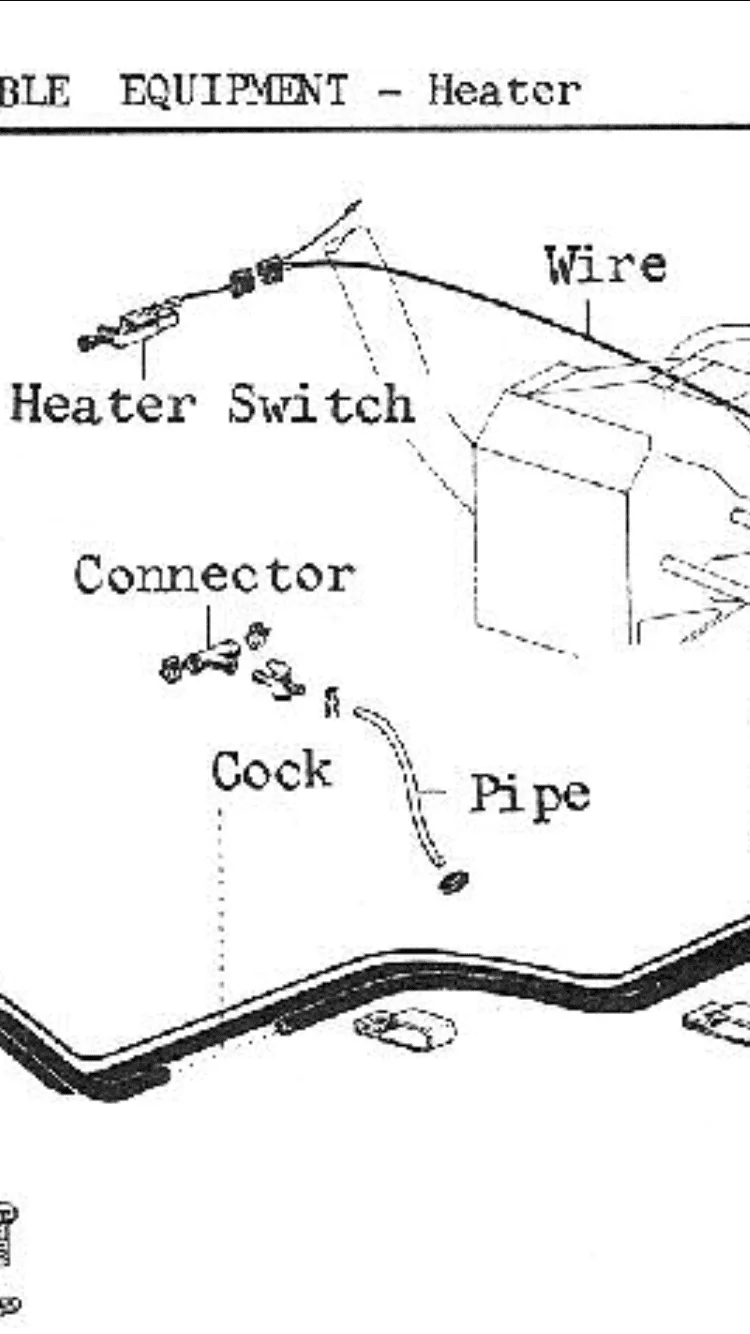

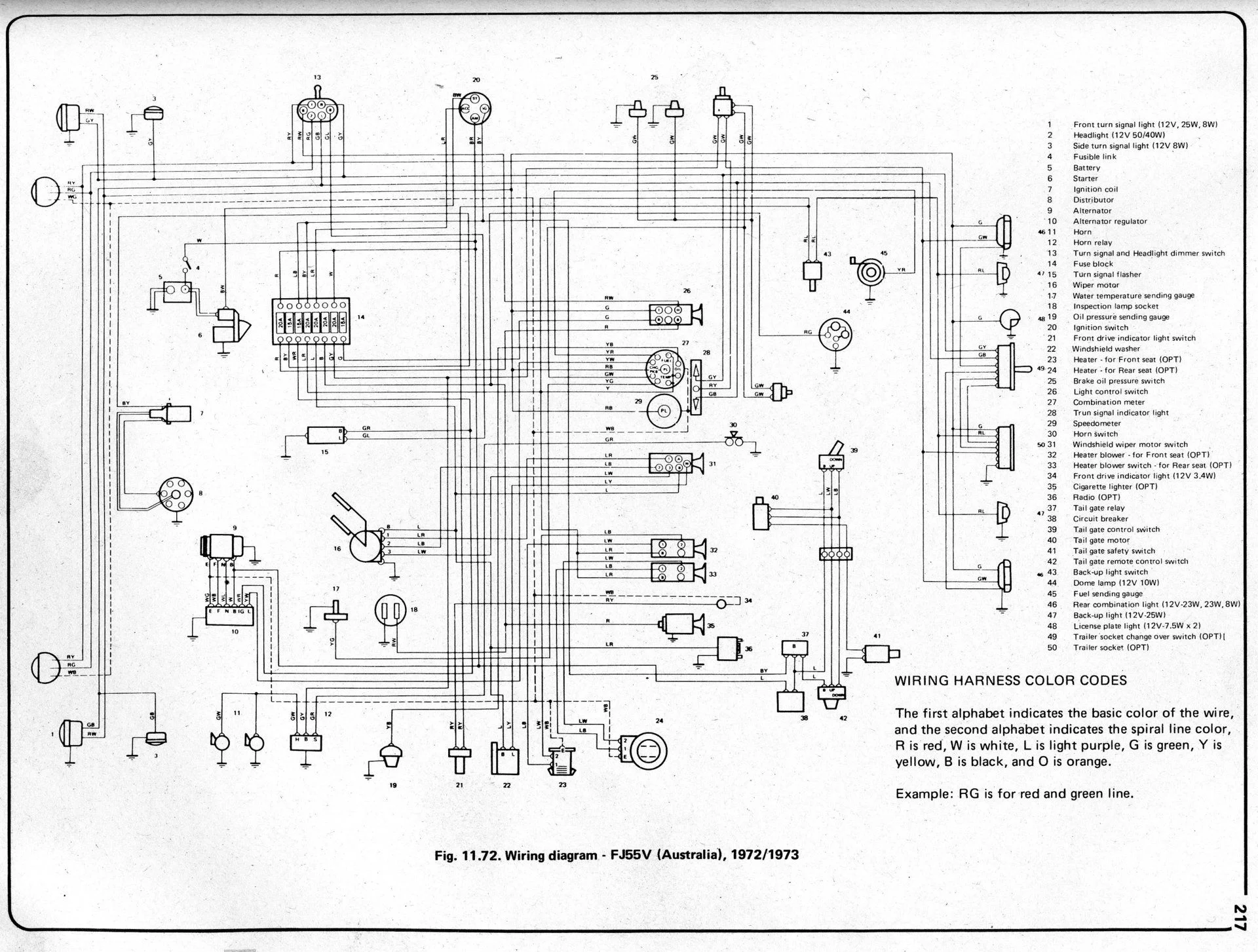

My 10/72 is wired like this, 2 speed rear heater with its own switch.



[thebigredrocker]

Ok Raymond, I dug out a 71 rear heater fan sub-harness. It runs in between both hoses. Note the male bullet that connects to the main harness and rubber plug to the switch.



[raymond2335]

Finally!! In retrospect, it’s so obvious. right there in front of me LOL thanks for everybody’s help. A small victory but a victory nonetheless



[73tlcv8]

do you have a 2 speed rear fan?



[raymond2335]

It is a two speed fan. I straightened it out.....I was missing that little pig tail off of the wire harness going from the front heater switch that powers the rear heater fan.
