Can anyone point me to one? I'm reattaching mine and it does not seal. I've got copper washers as well as a part that looks like two thin washers that are connected together that slip onto the banjo bolt. I suspect I've put them on in the wrong sequence.

I would pull the other side off and compare, but I don't have enough jack stands. I'll go get a couple more if I have to, but thought I would ask. Thanks!

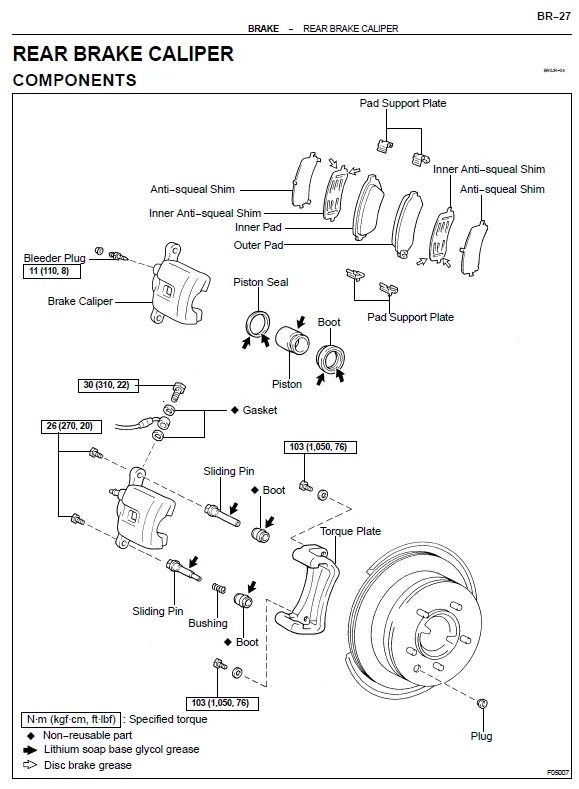

You mean like this?


You can download the service manual from the Resources section for free.

LMK if your year isn't there and I'll post one for you.

The part you're looking for in the diagram is labelled "gasket".

The original copper crush washers (gasket) have been replaced with much better aluminum jointed washers, so you don't have to have three hands to put the thing together anymore.

You need either
1) two copper washers, or
2) one aluminum joined washer that will fit on either side of the banjo bolt.

You do not need both.
