( NEW PRODUCT RELEASE )

FJ80 & FZJ80
​

1/90 - 8/92 3FE FJ80 ​

&​

FZJ80 1FZ-FE 8/92-12/97​

​

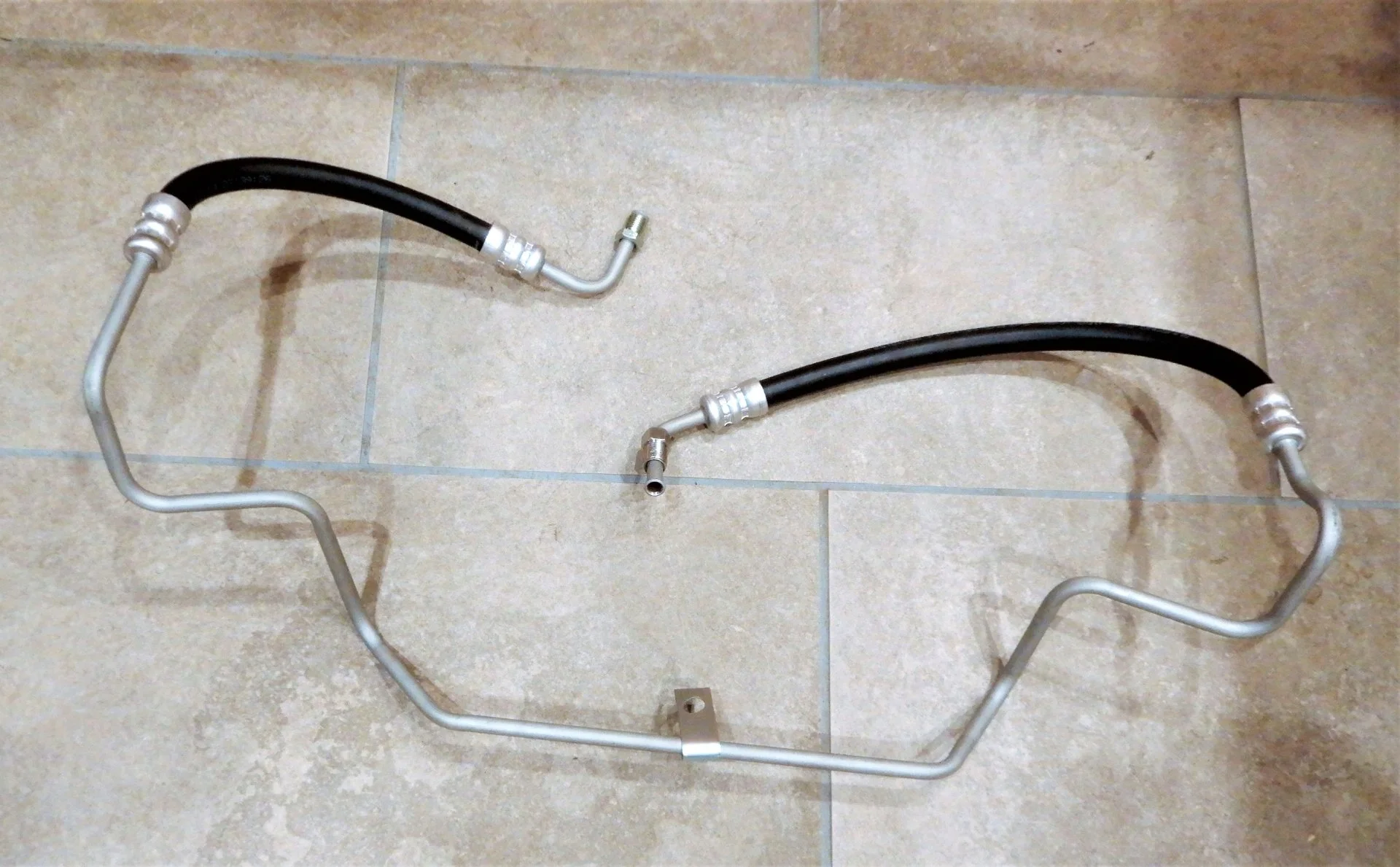

High Pressure Power Steering Line Hose TUBE FEED​

​

44410-60200 ​

​

44411-60430​

​

90430-16168​

qty x 2 ​

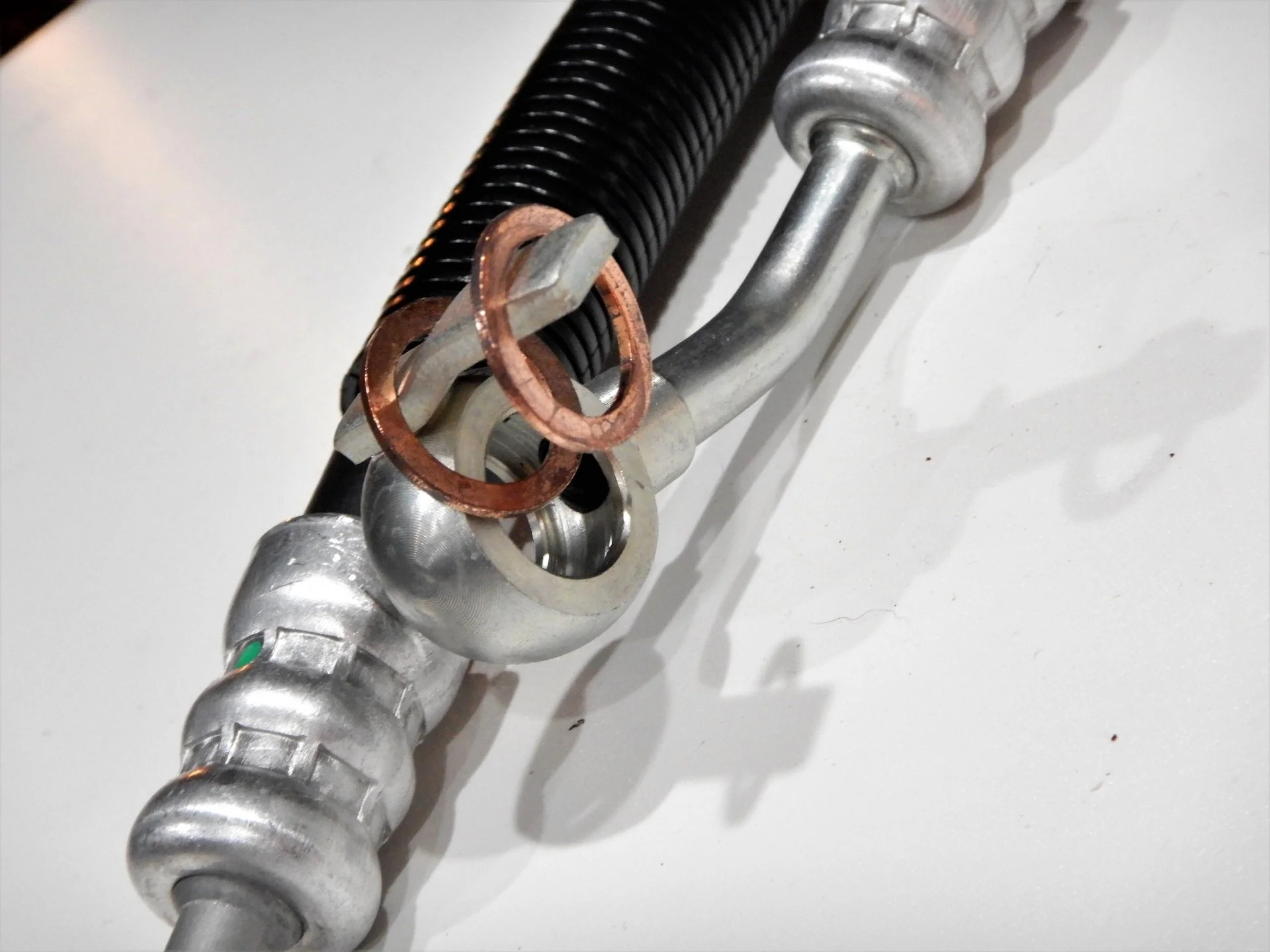

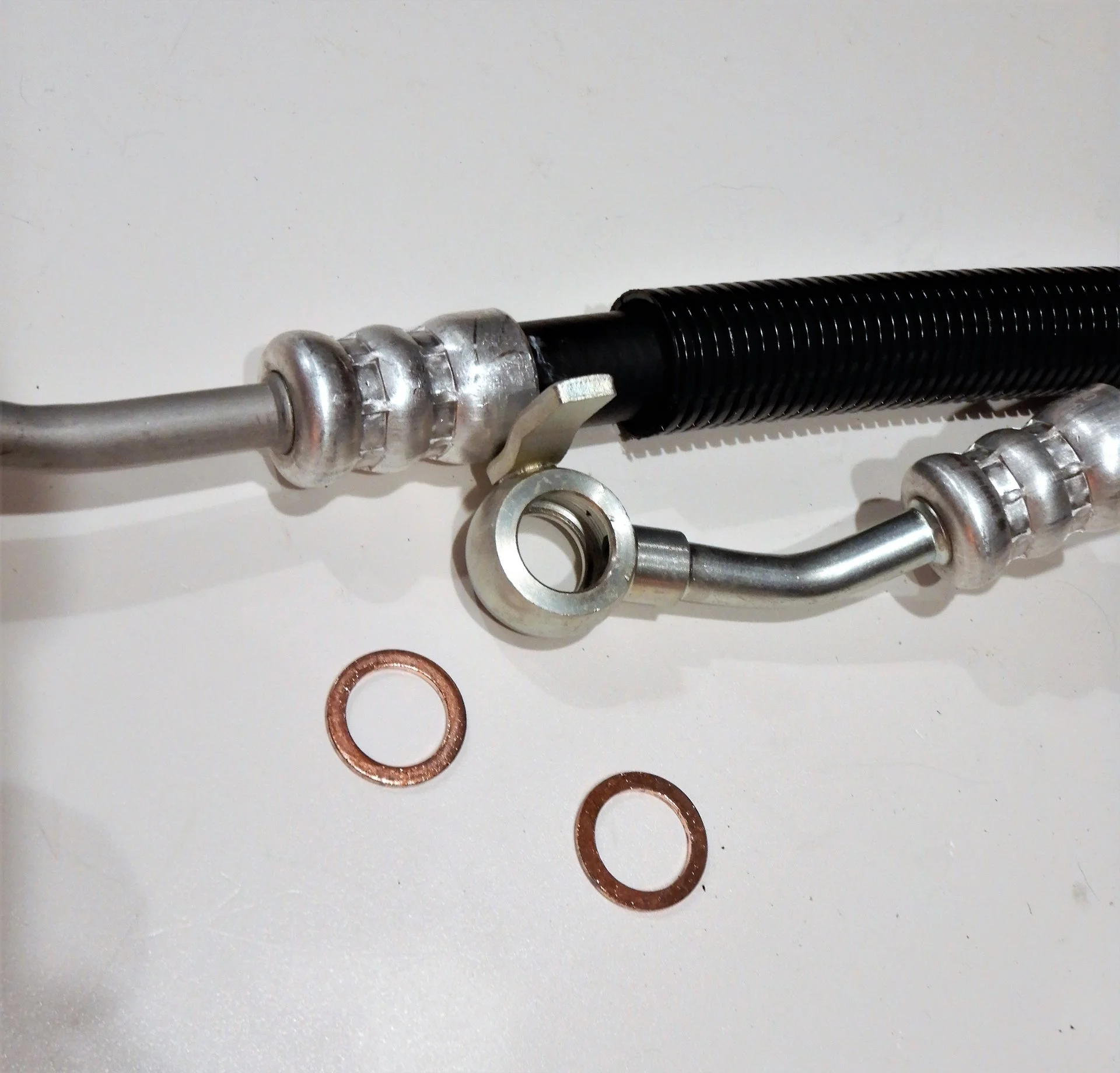

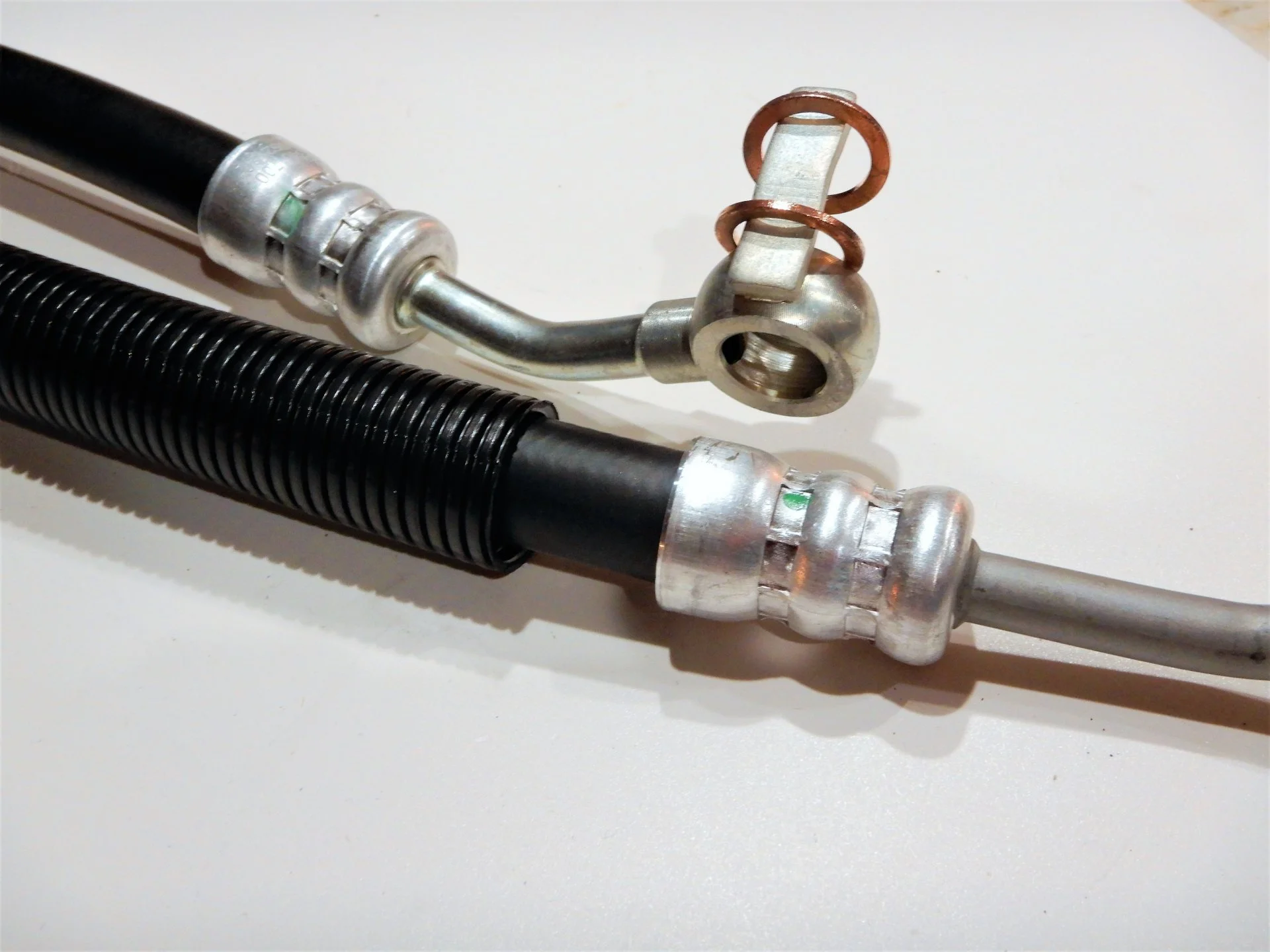

OEM COPPER CRUSH RINGS Gaskets TOO of course ​

LINKS To PURCHASE :

FJ80 3FE High Pressure Power Steering P/S LINE HOSE TUBE Feed 1/90 - 8/92 - VintageTEqParts.com

FJ80 3FE High Pressure Power Steering LINE HOSE TUBE Feed P/S Fits 1/90 - 8/92 FJ80L-GNPNEA - SPECIALTY MADE...

vintageteqparts.com

​

​

FZJ80 1FZ-FE High Pressure Power Steering Line Hose TUBE FEED Fits 08/1992-12/1997 FZJ80 FJ80 - VintageTEqParts.com

HEAVY DUTY High Pressure Power Steering Line / Hose Made to Exceed Toyota Cold Climate / Arctic Specifications TECH. in...

vintageteqparts.com



[ToyotaMatt]

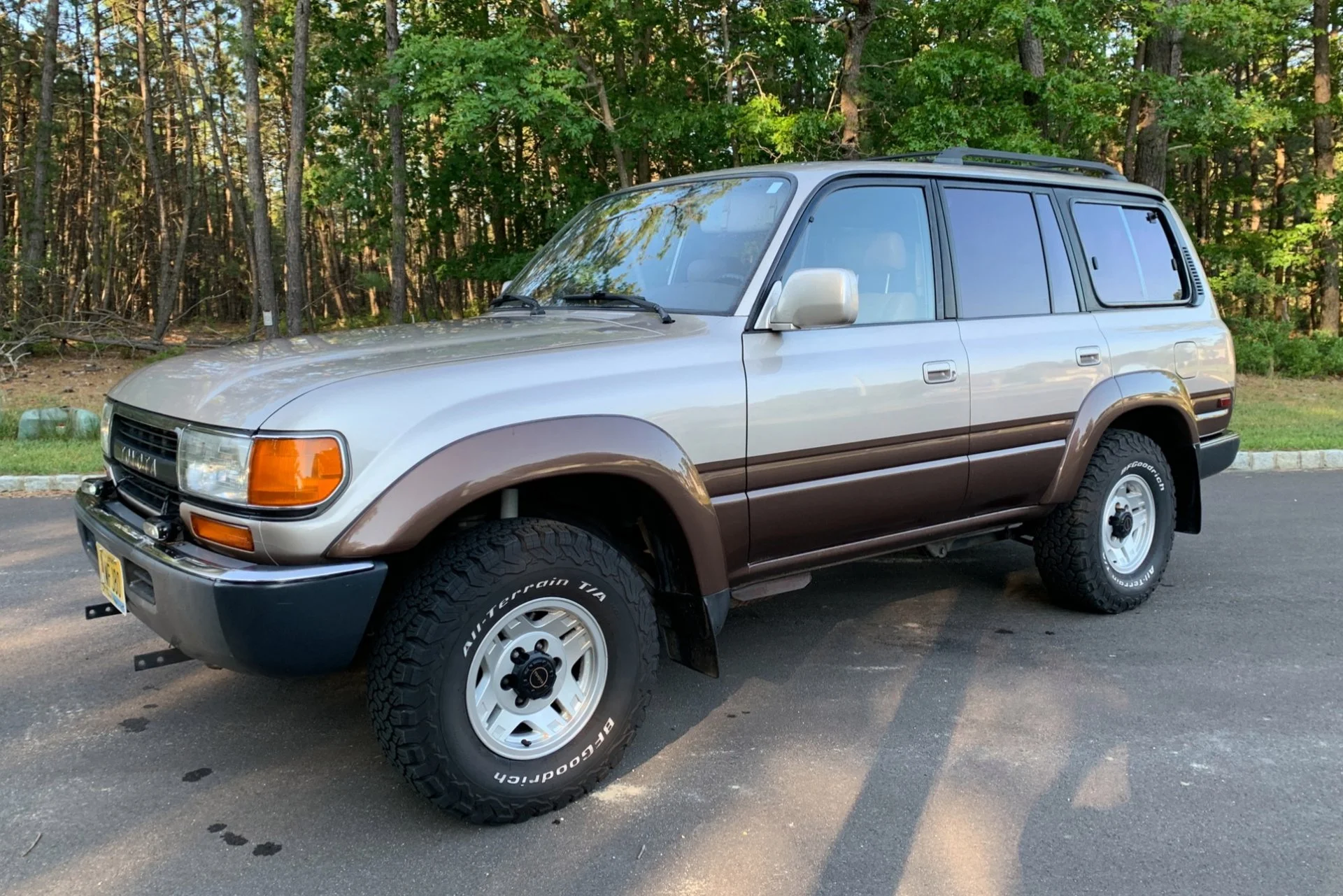

FJ80 3FE :

FJ80 3FE High Pressure Power Steering P/S LINE HOSE TUBE Feed 1/90 - 8/92 - VintageTEqParts.com

FJ80 3FE High Pressure Power Steering LINE HOSE TUBE Feed P/S Fits 1/90 - 8/92 FJ80L-GNPNEA - SPECIALTY MADE...

vintageteqparts.com

FJ80 3FE High Pressure Power Steering P/S LINE HOSE TUBE Feed 1/90 - 8/92 - VintageTEqParts.com

FJ80 3FE High Pressure Power Steering LINE HOSE TUBE Feed P/S Fits 1/90 - 8/92 FJ80L-GNPNEA - SPECIALTY MADE...

vintageteqparts.com

--------------------------------------------------------------------------------------------------------

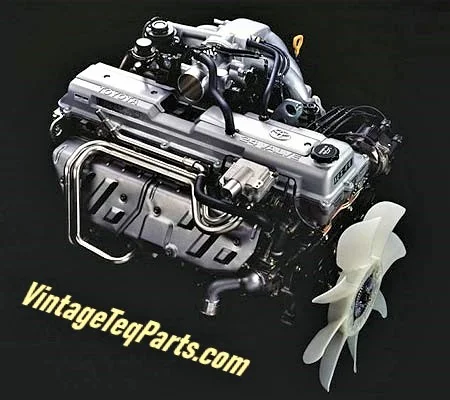

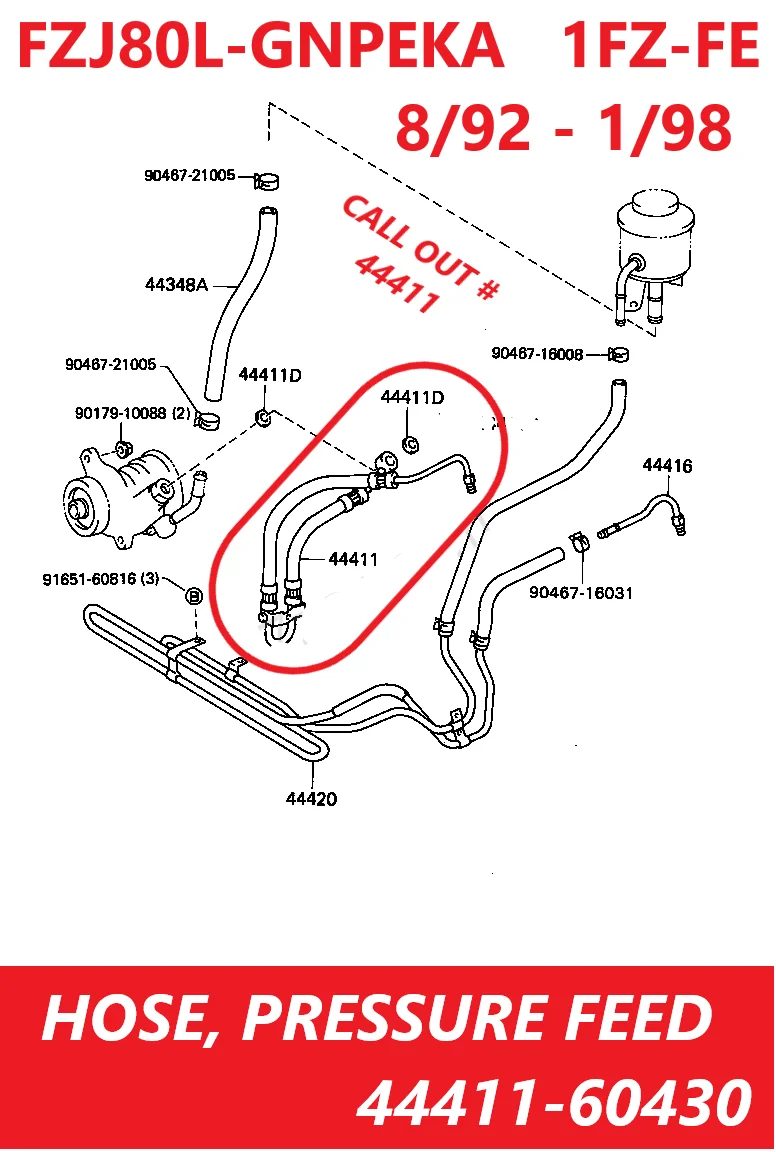

FZJ80 1FZ-FE :

FZJ80 1FZ-FE High Pressure Power Steering Line Hose TUBE FEED Fits 08/1992-12/1997 FZJ80 FJ80 - VintageTEqParts.com

HEAVY DUTY High Pressure Power Steering Line / Hose Made to Exceed Toyota Cold Climate / Arctic Specifications TECH. in...

vintageteqparts.com

FZJ80 1FZ-FE High Pressure Power Steering Line Hose TUBE FEED Fits 08/1992-12/1997 FZJ80 FJ80 - VintageTEqParts.com

HEAVY DUTY High Pressure Power Steering Line / Hose Made to Exceed Toyota Cold Climate / Arctic Specifications TECH. in...

vintageteqparts.com

​



[ToyotaMatt]

FJ80 3FE :

​



[ToyotaMatt]

FZJ80 1FZ-FE :

​



[ToyotaMatt]



[ozarkmud]

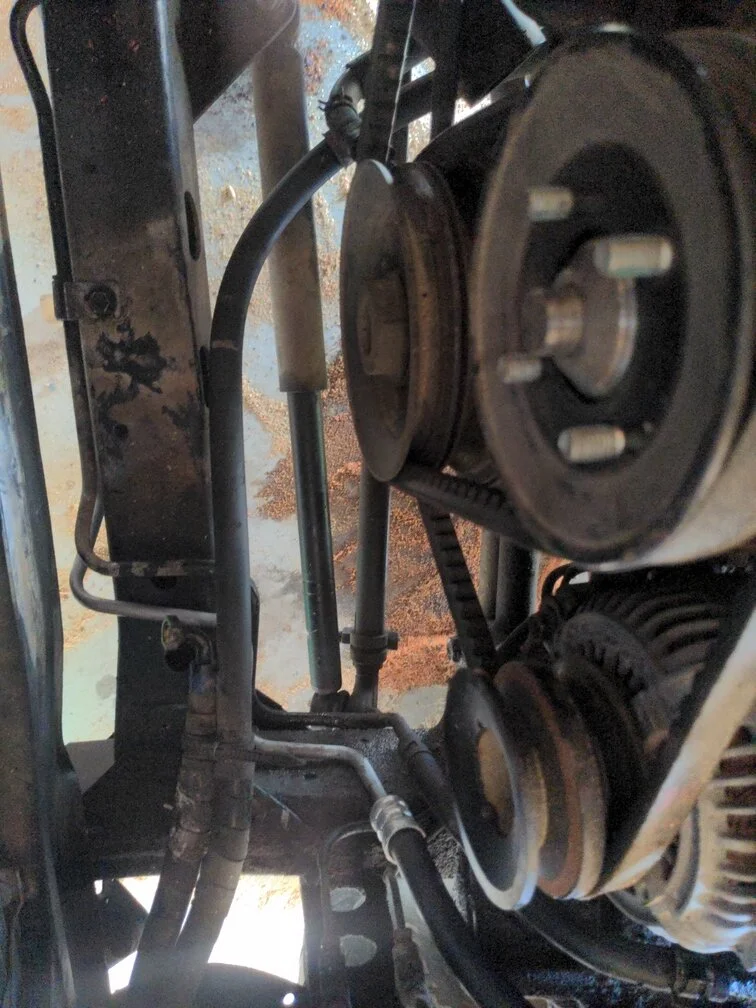

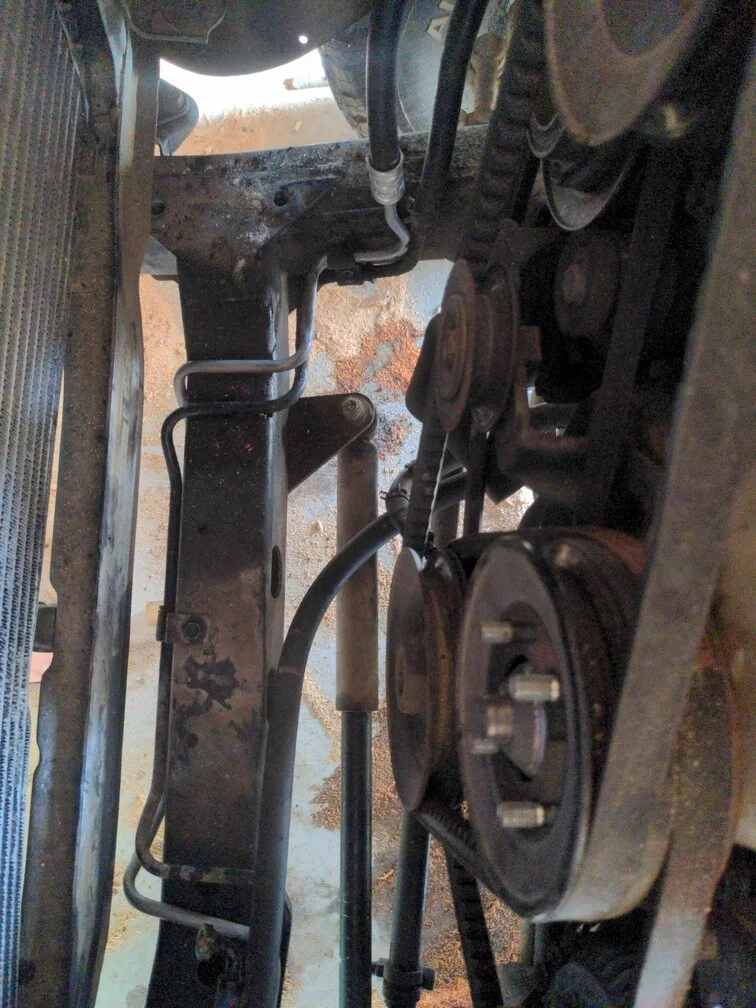

I finally got around to installing ToyotaMatt's 3FE high pressure P/S line. I wanted to share some pictures and feedback.

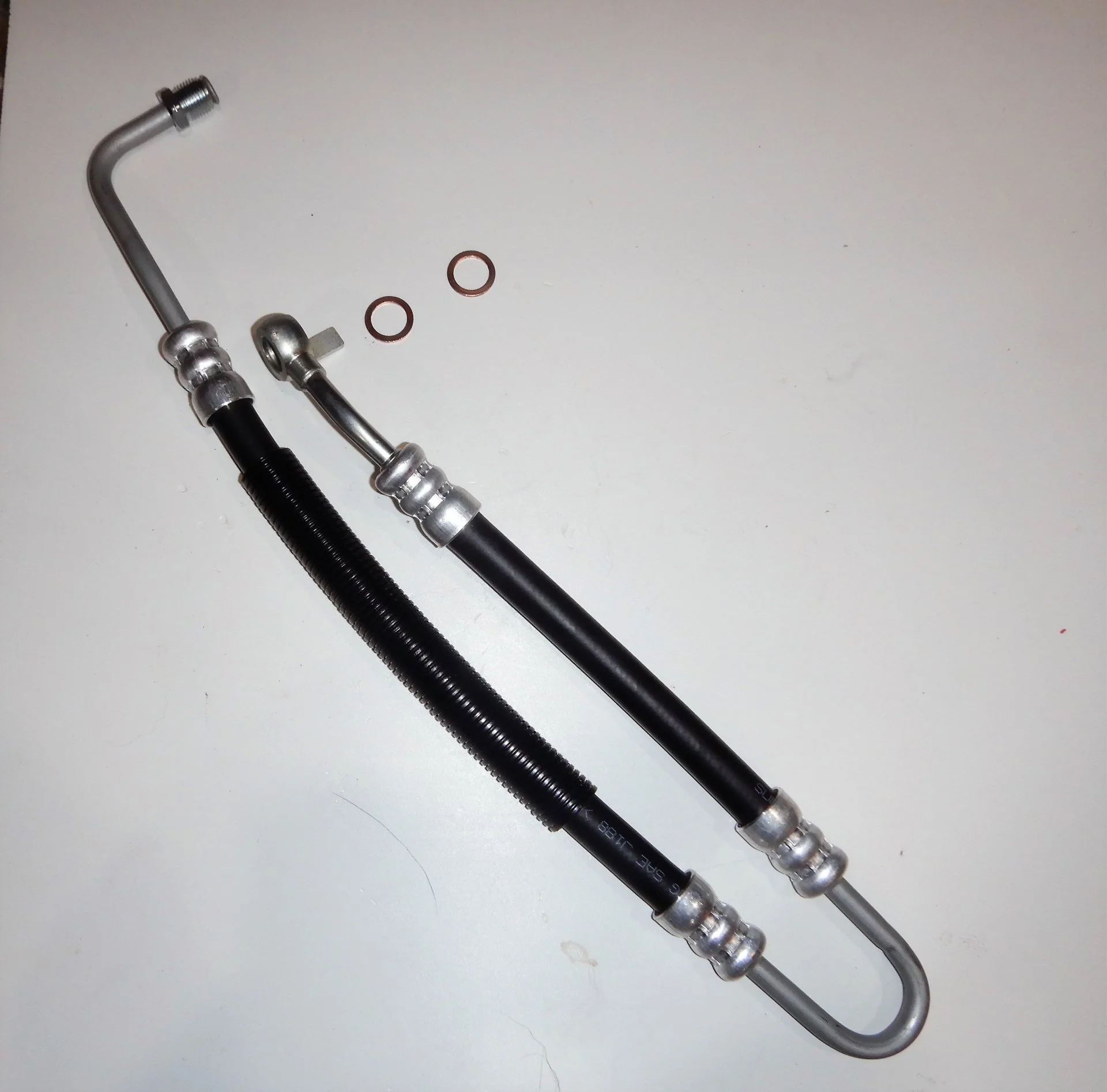

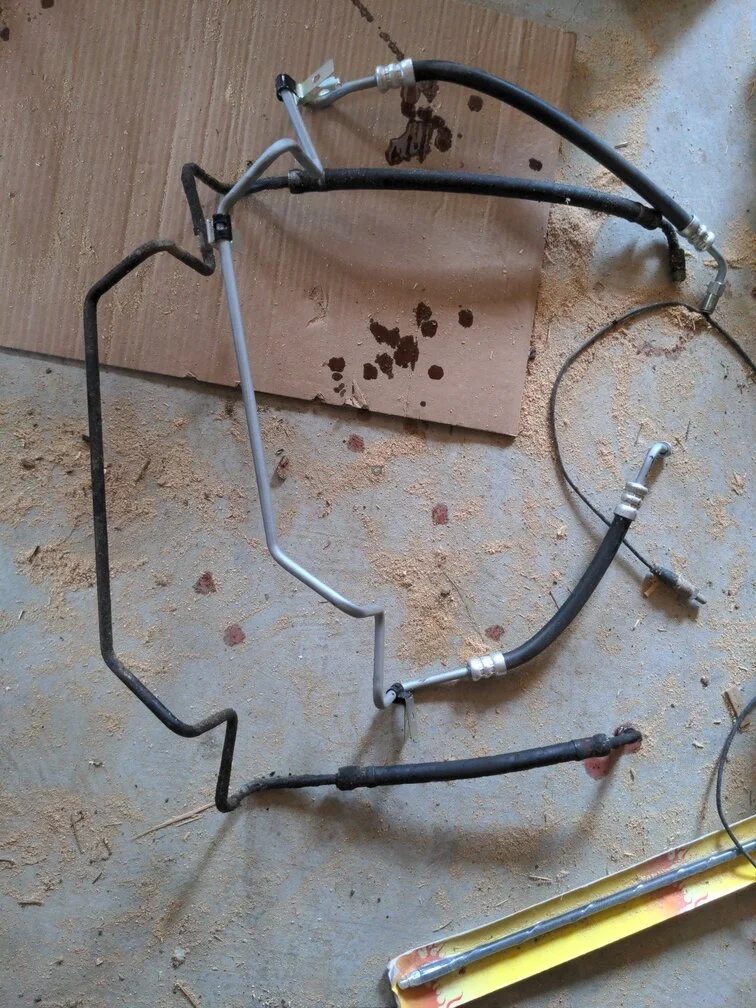

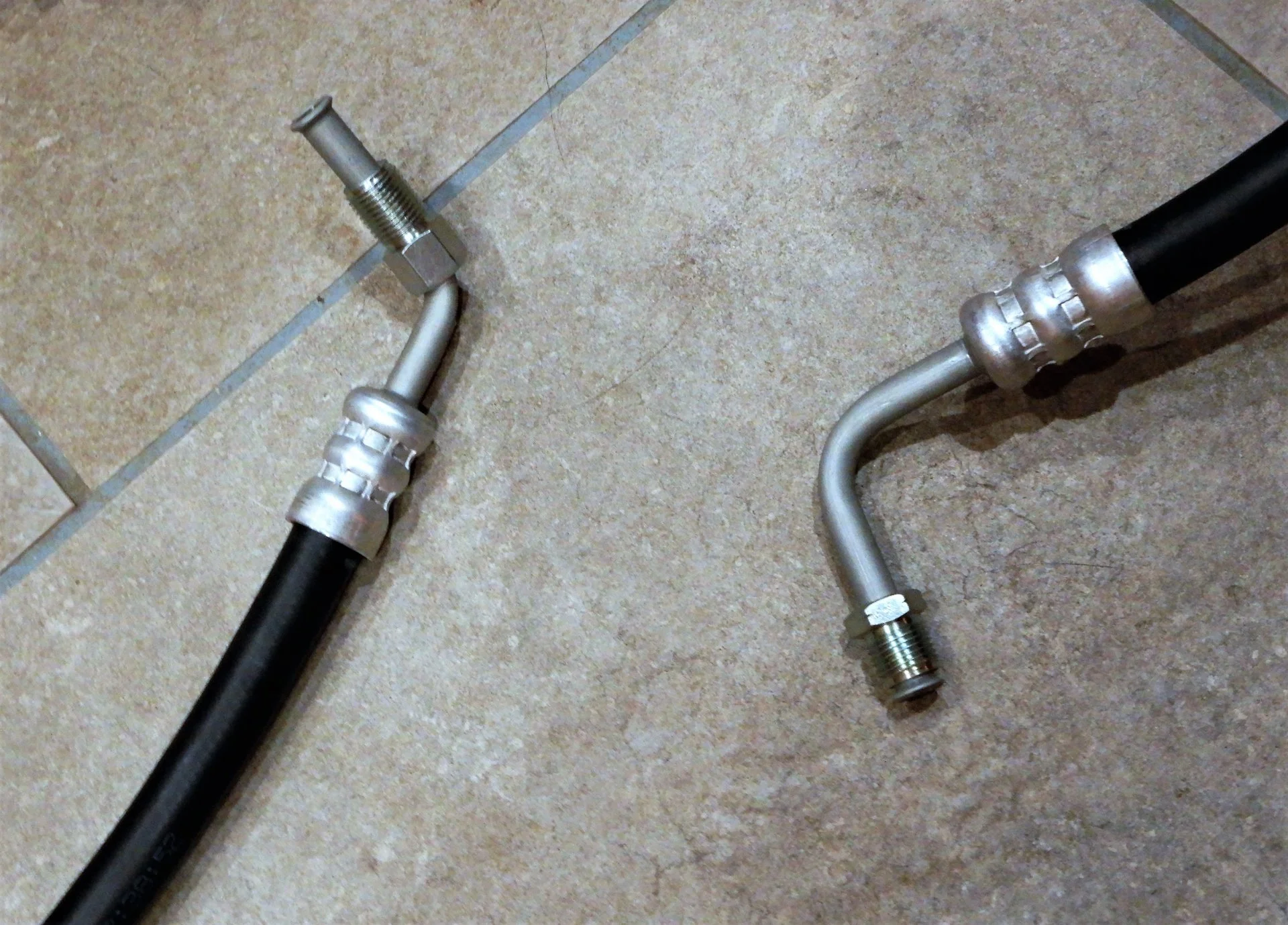

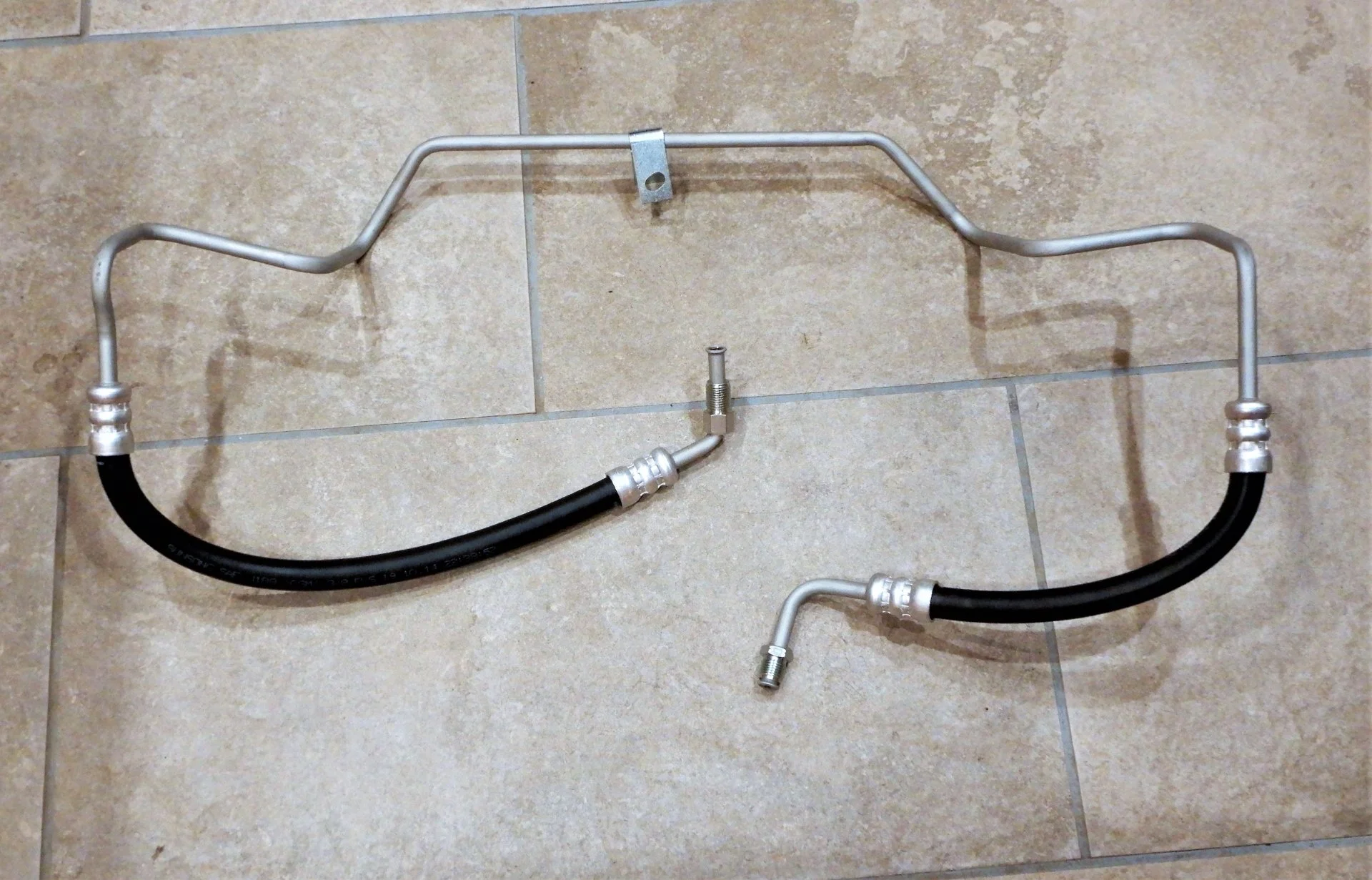

This first picture is to compare the new and old lines.

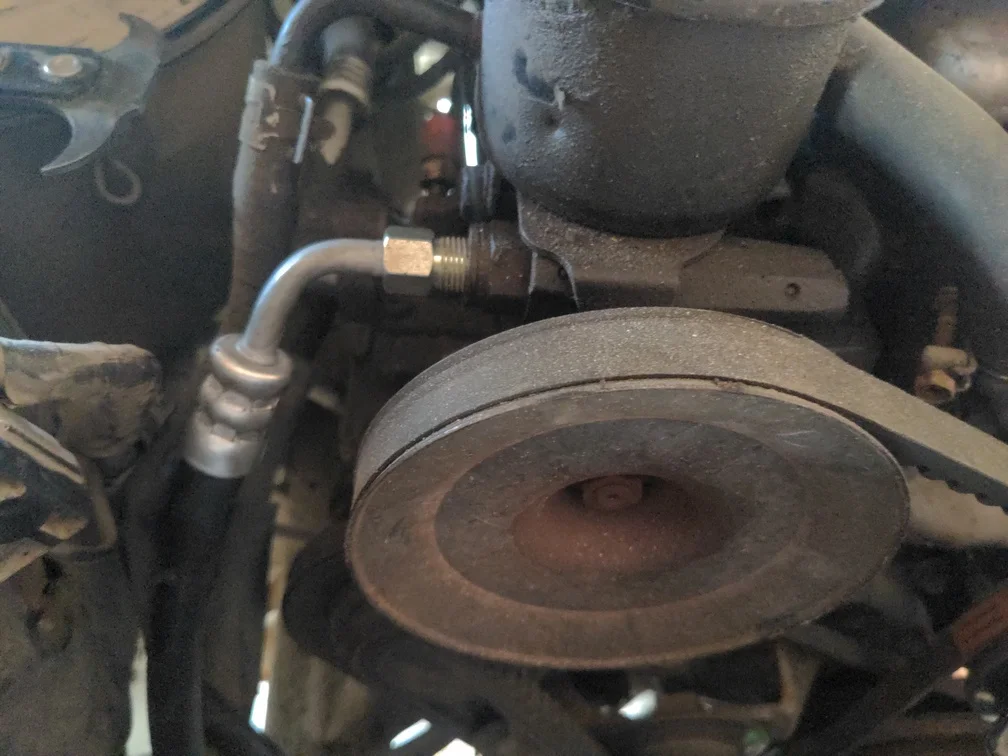

ToyotaMatt's P/S hose seems to have just the right bends and dimensions. It fit up perfectly.

It does include some mounting brackets, which I removed. I don't understand why they are there. It doesn't seem possible to install the pressurized line and the return line when using them.

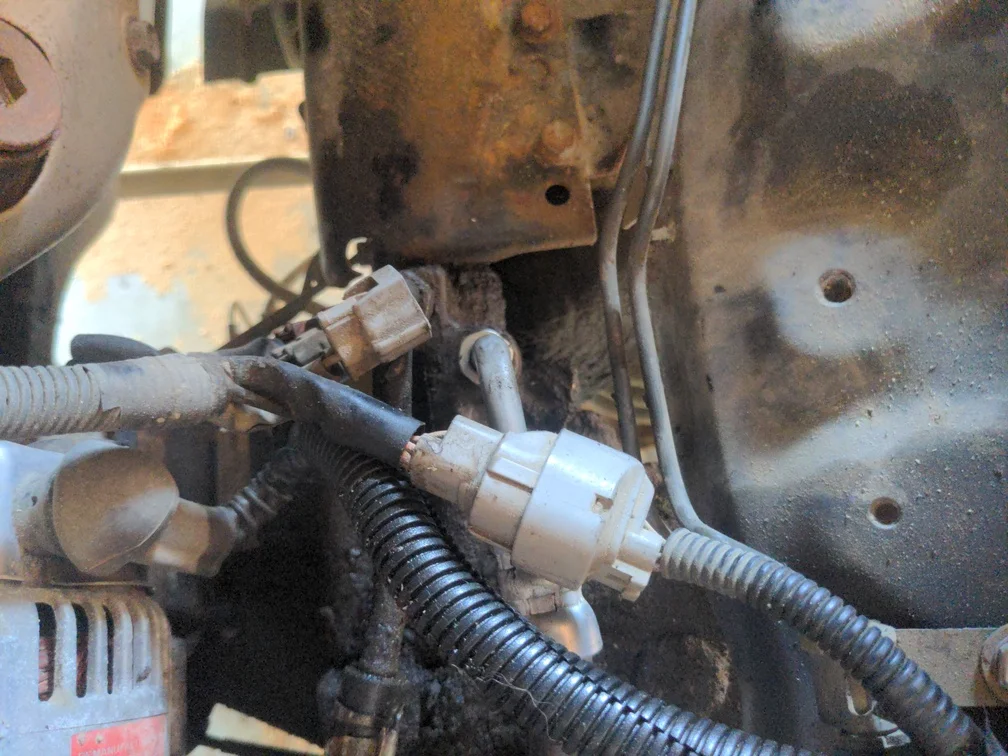

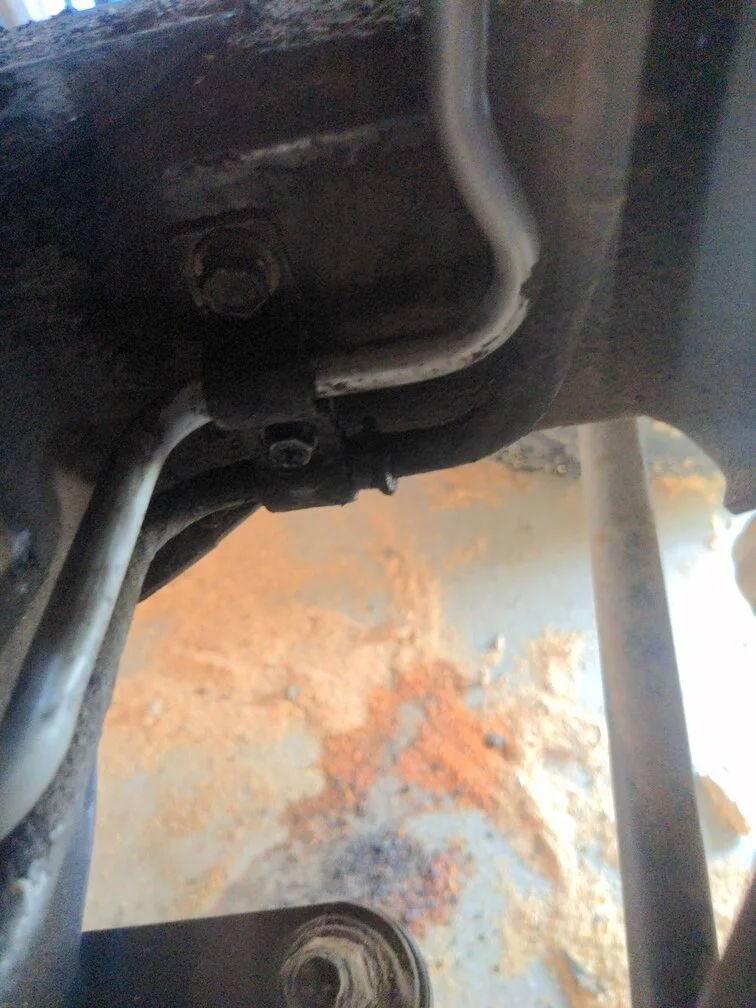

Some of my rubber mounts for the P/S lines have gone bad, so I need to replace them and remount the lines.

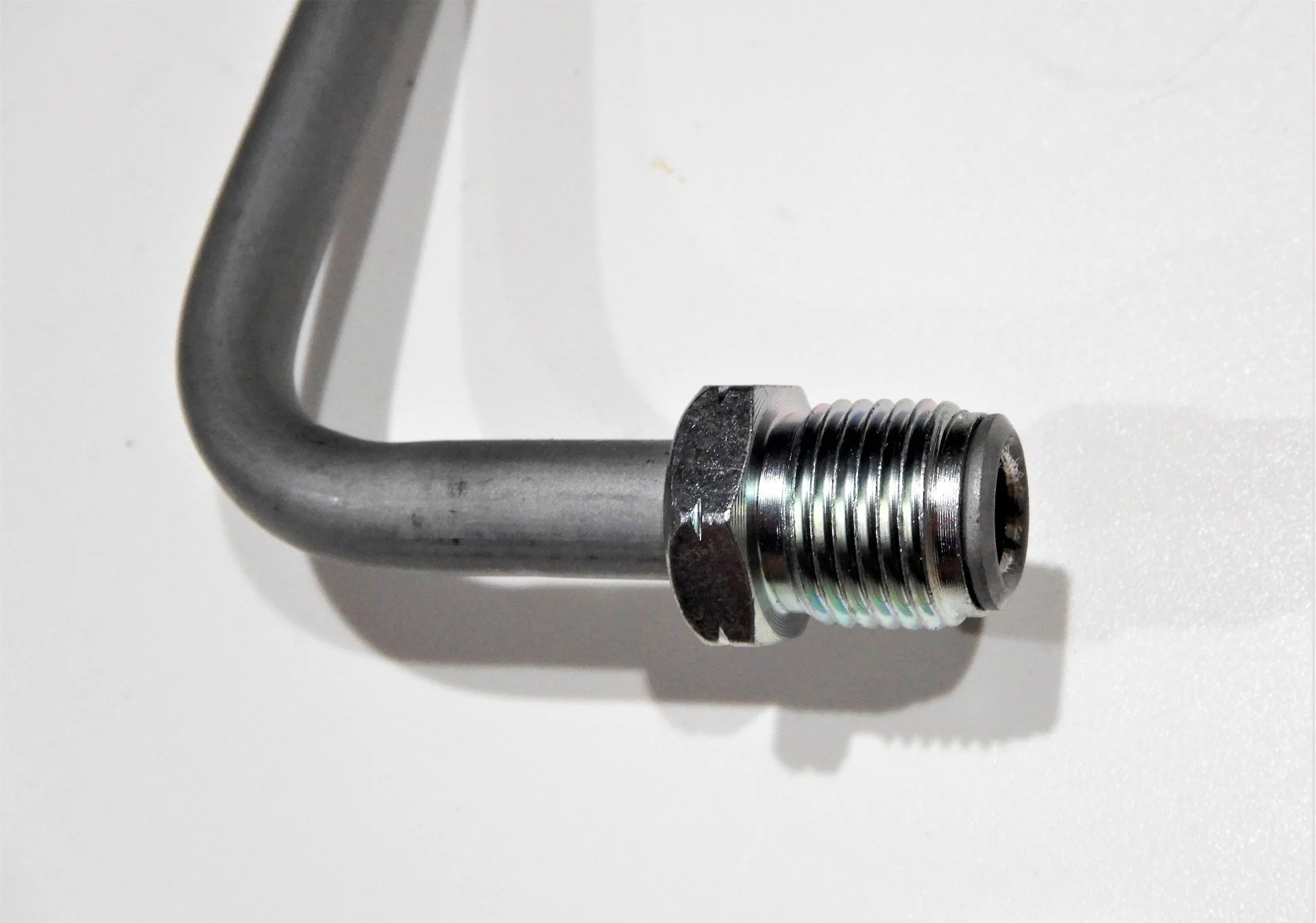

The only "functional" difference I could find is that ToyotaMatt's has 18mm nuts on the ends, instead of 17mm like the originals. Not a big deal to me.

Thank you, ToyotaMatt!
