Need help with small hardtop seal. Where does it go?

[ColoradoFJ40]

Like the title says where does this gasket go?

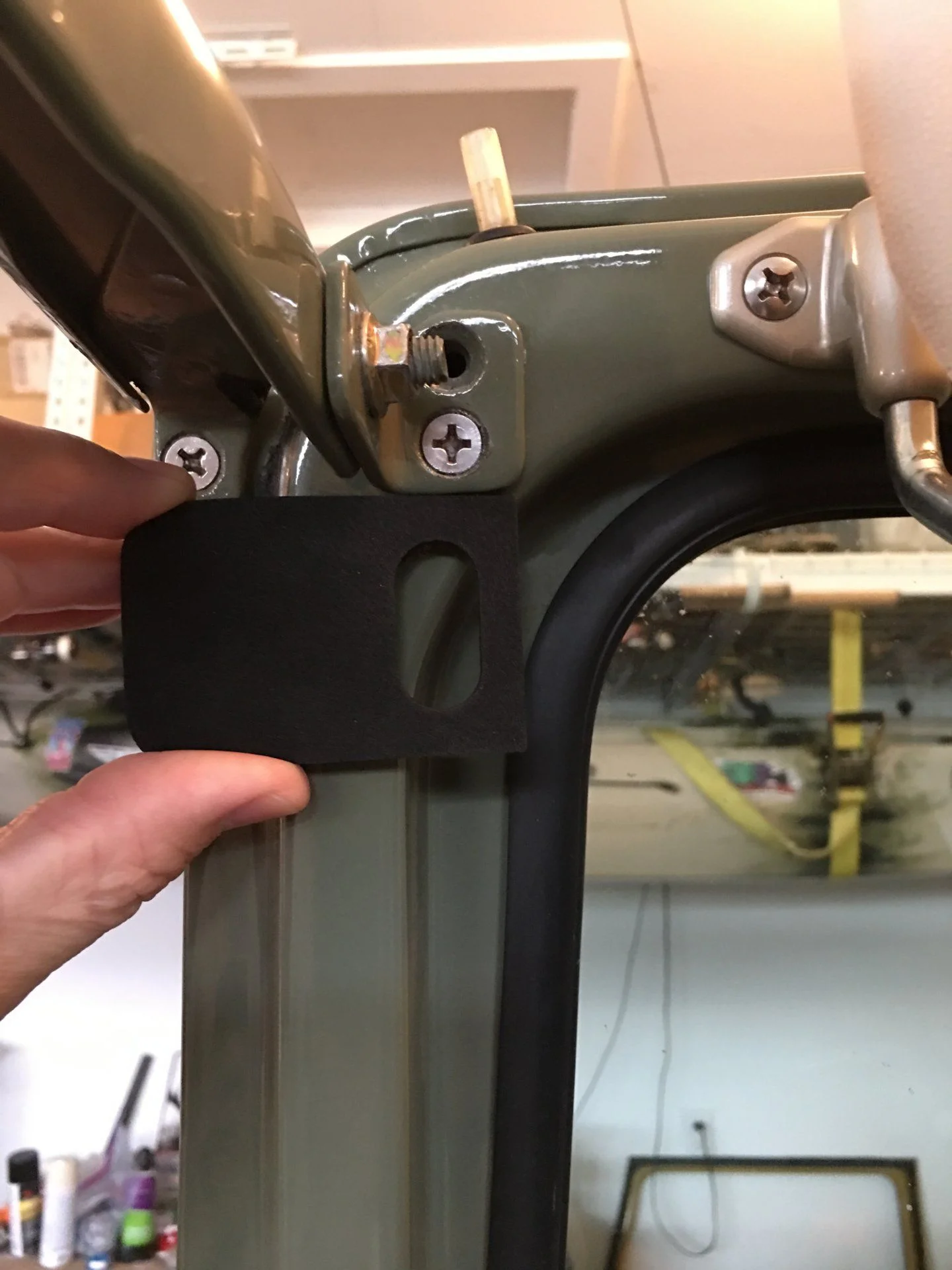

I've looked at 100s of pictures and can't tell it's orientation. Am I right in where I am holding it? Please advise. A picture would be awesome. Thanks

Mark



[Ming89FJ62]



[Ming89FJ62]



[ColoradoFJ40]

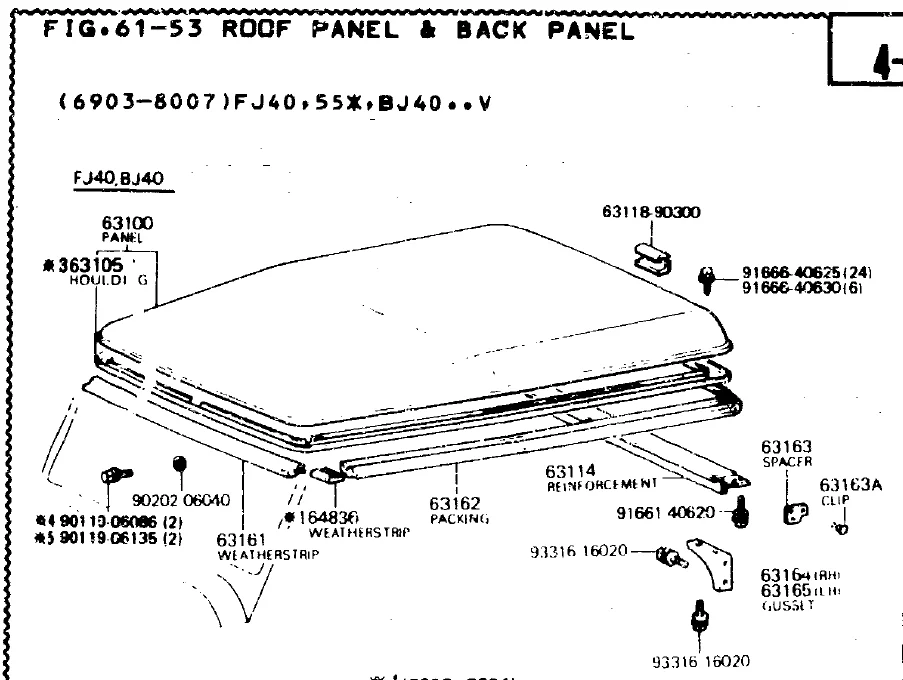

Still needs to be more specific. The diagram shows no orientation.



[ginmtb]

It appears to be the top corner pad:

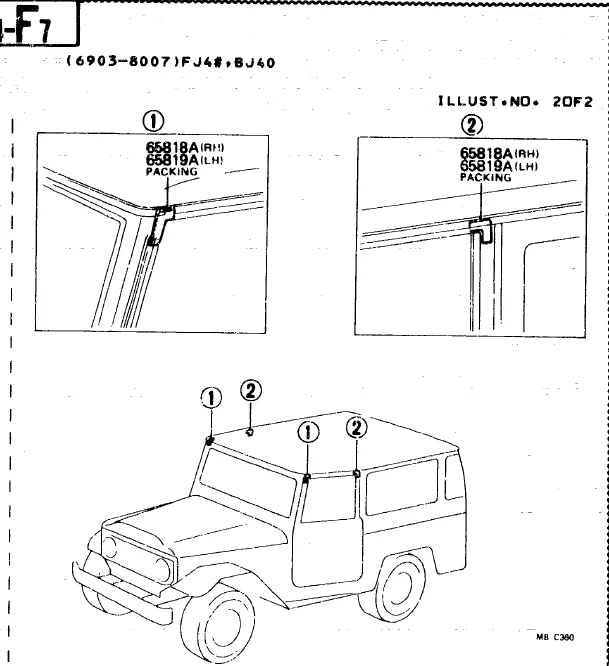

Page 108 Land Cruiser Hardtop & Side Panels - 40 Series

Looks like it lays flat on the top per the diagram. I just redid my top and did not use this. Perhaps @Racer65 can chime in?



[Racer65]

That gasket overlays the front portion of the U shaped roof gasket. If you've replaced your roof gasket with the currently available version, you can toss these gaskets.



[ColoradoFJ40]

That's what I needed to know. I have all new gaskets so I will set these aside.

Thank you



[tstepp920]

That's what I needed to know. I have all new gaskets so I will set these aside.

Thank you

Do you have a build thread? I would love to see some photos that show more of the paint color (6h9 ?)
