Need help with radio install and enlarged dash cutout (1 Viewer)

Rock Slide

SILVER Star
Joined
Jul 29, 2008
Messages
182
Location
Alabama
Need some help on a radio install for my ‘76 40. Looking to install either a stock HU or period correct HU w/ modern features. Either way, I want it to fit the stock slot, not a modern sized HU in the enlarged opening.

Currently my 40 has:
- a new antenna mounted, but no radio.
- factory speaker mounting plate in the glove box, but no speaker.
- dash opening, but was "enlarged" by the PO to fit a modern HU.

First, the dash cutout needs repairing. Thus, what are the original dimensions of the opening? Second, what lies inside the factory opening when the radio is removed? Such as, frame and/or brackets needed to mount the HU? Anyone have any pix you can share of this?

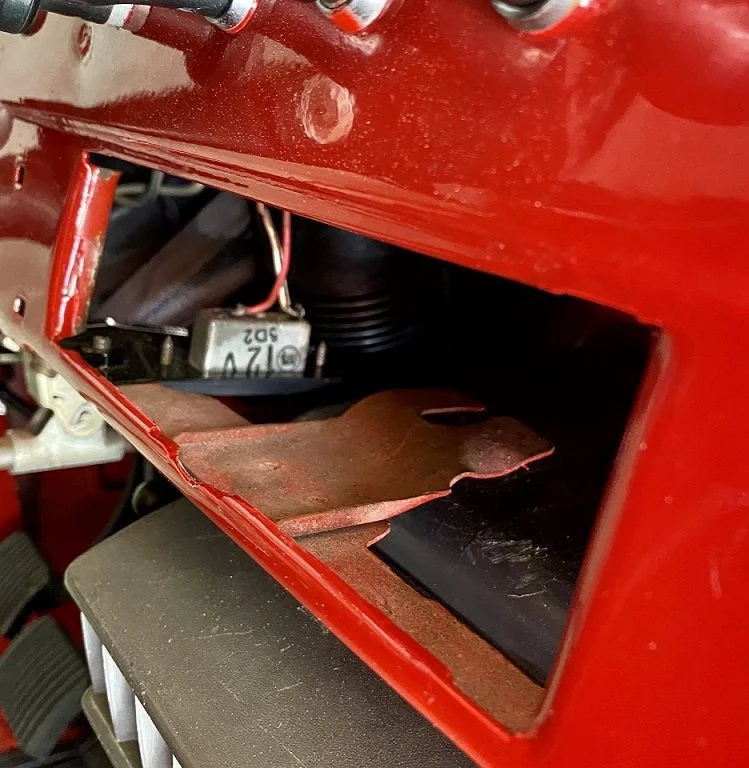

Here's my dash opening below. Both left and right side of the sheet metal was not removed, but rather cut top and bottom and rolled back inside the opening (thanks PO). Reaching inside, the metal that needs to be pulled back out, has the feel of a frame to it for a radio to bolt to. I have a delete plate to cover up this eye sore for the time being-

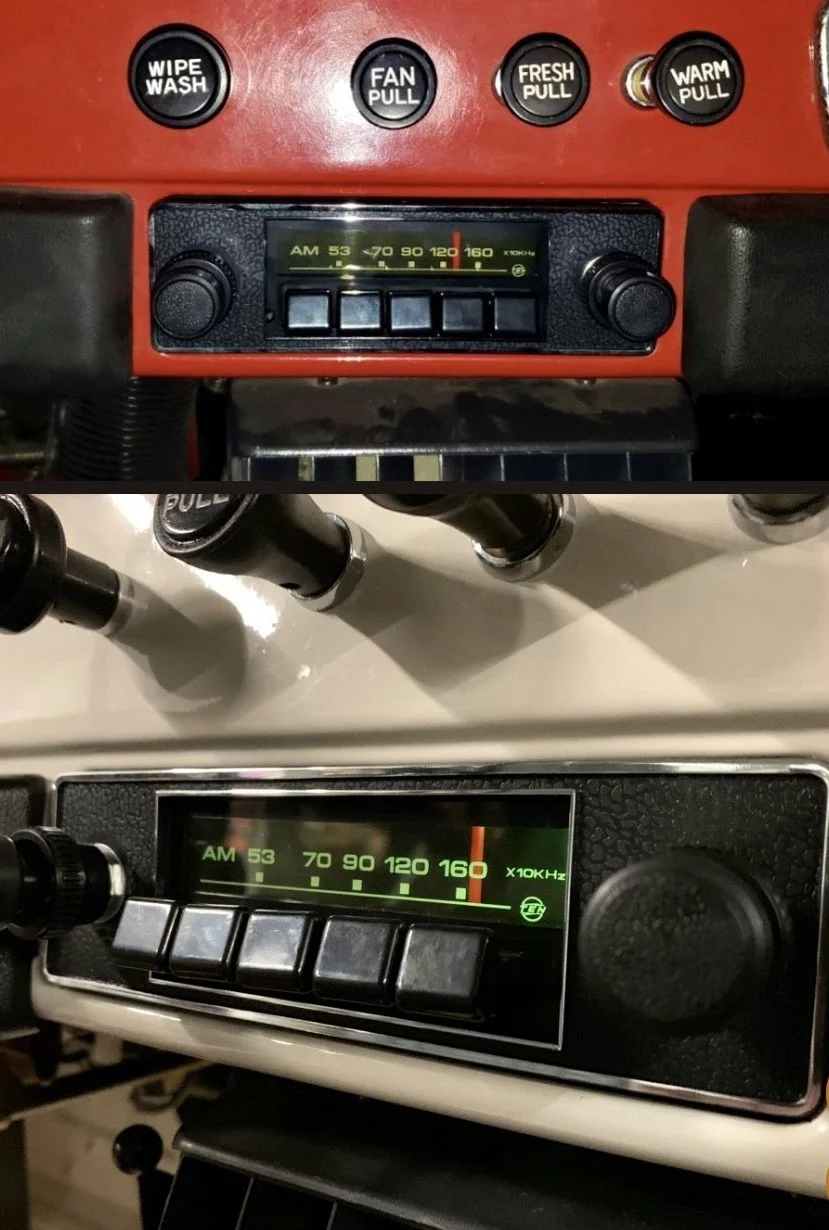

This is more or less the outward appearance I'm shooting for:


Joined
May 14, 2016
Messages
1,619
Location
Arizona
Well, I like your idea. Most people wanting what you want, go to the link. Also, please read as the dimensions for the slot are included. These are nice radios.



Rock Slide

SILVER Star
Joined
Jul 29, 2008
Messages
182
Location
Alabama
Well, I like your idea. Most people wanting what you want, go to the link. Also, please read as the dimensions for the slot are included. These are nice radios.



Ah, thanks for the info. You’re a lifesaver. Exactly what I needed. That solves The HU and dimension issue.

You don’t happen to have any pix of how the frame inside the dash opening should look without the HU installed do you? I’d like to know/see how a HU is mounted.

Joined
May 14, 2016
Messages
1,619
Location
Arizona
Ah, thanks for the info. You’re a lifesaver. Exactly what I needed. That solves The HU and dimension issue.

You don’t happen to have any pix of how the frame inside the dash opening should look without the HU installed do you? I’d like to know/see how a HU is mounted.

Sorry , my rigs are so old a radio was not even an issue. I do not have a rig with a radio hole. Hope you fix it and use the "new" modern radio. I wish mine had the blank.


Engineer8000

Supporting Vendor
Joined
Aug 16, 2019
Messages
460
Location
SOUTHPORT NC

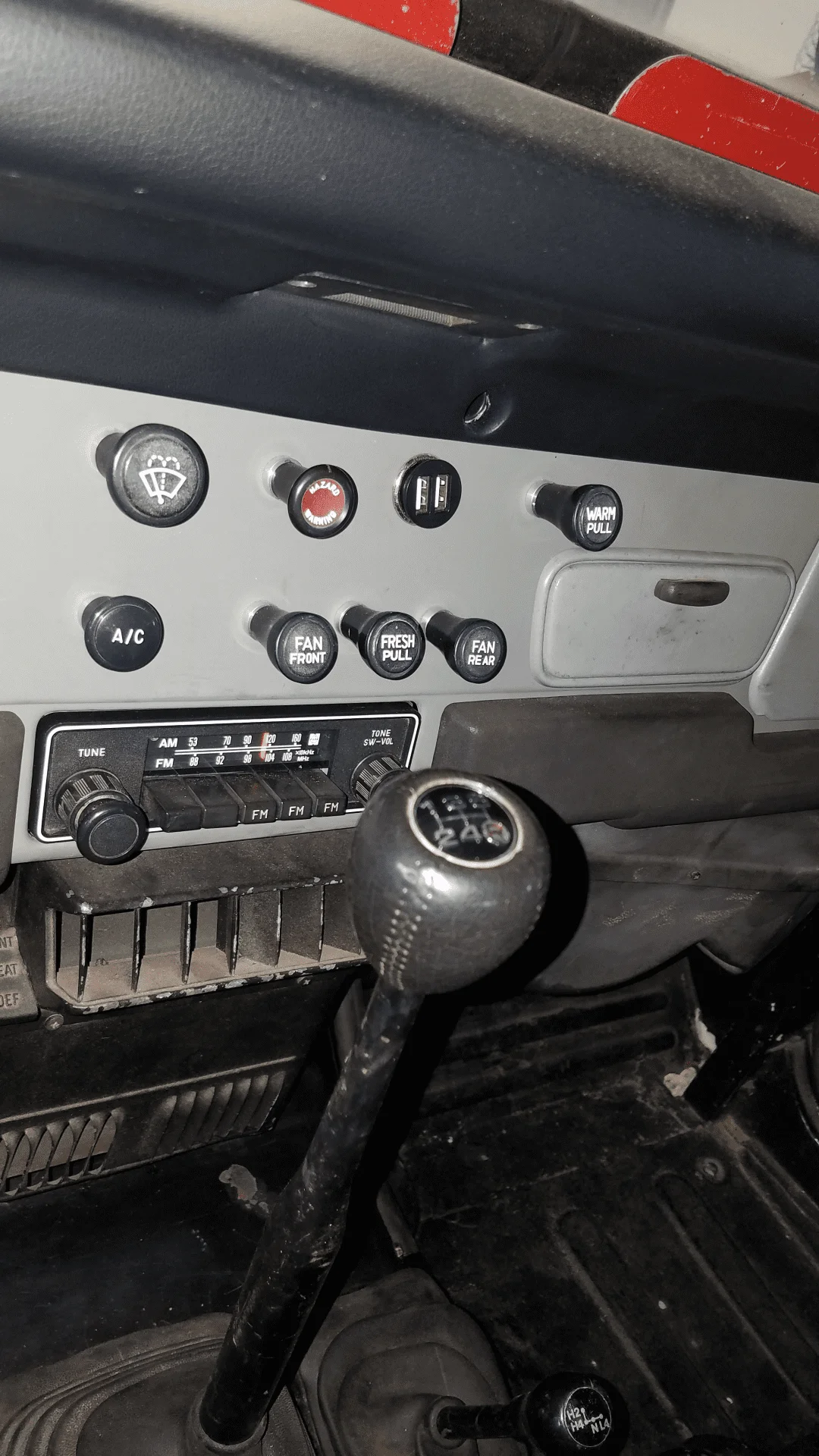

The stock radio face plate fits neatly inside the dash cutout. The pictures you have above are not stock radio face plates, they are too wide to fit in the hole. This is a stock face plate (one version) fit to a later am/fm stereo radio. I run it to a soundstream amp that also has Bluetooth connectivity for streaming from a phone or tablet.



Rock Slide

SILVER Star
Joined
Jul 29, 2008
Messages
182
Location
Alabama

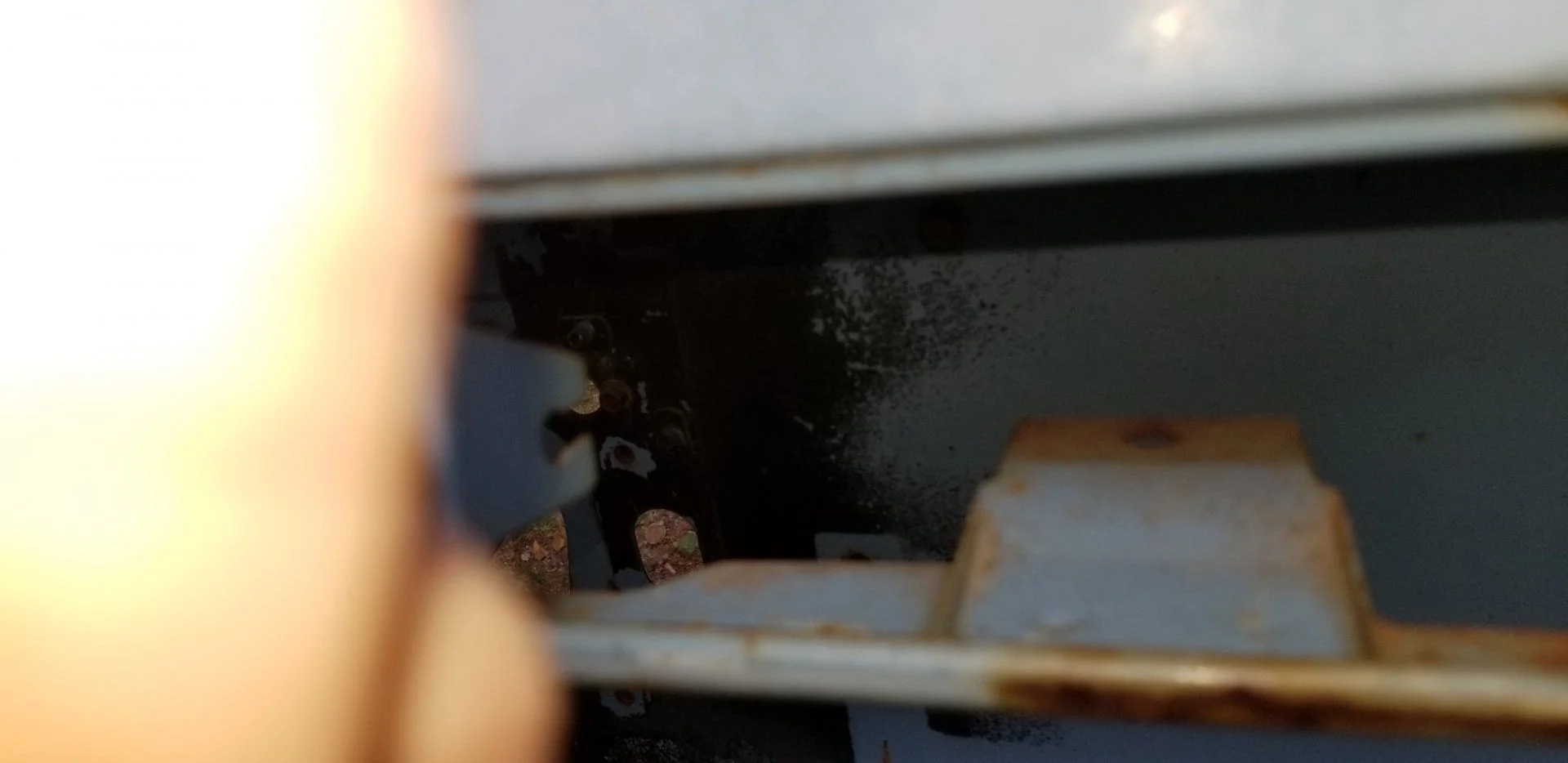

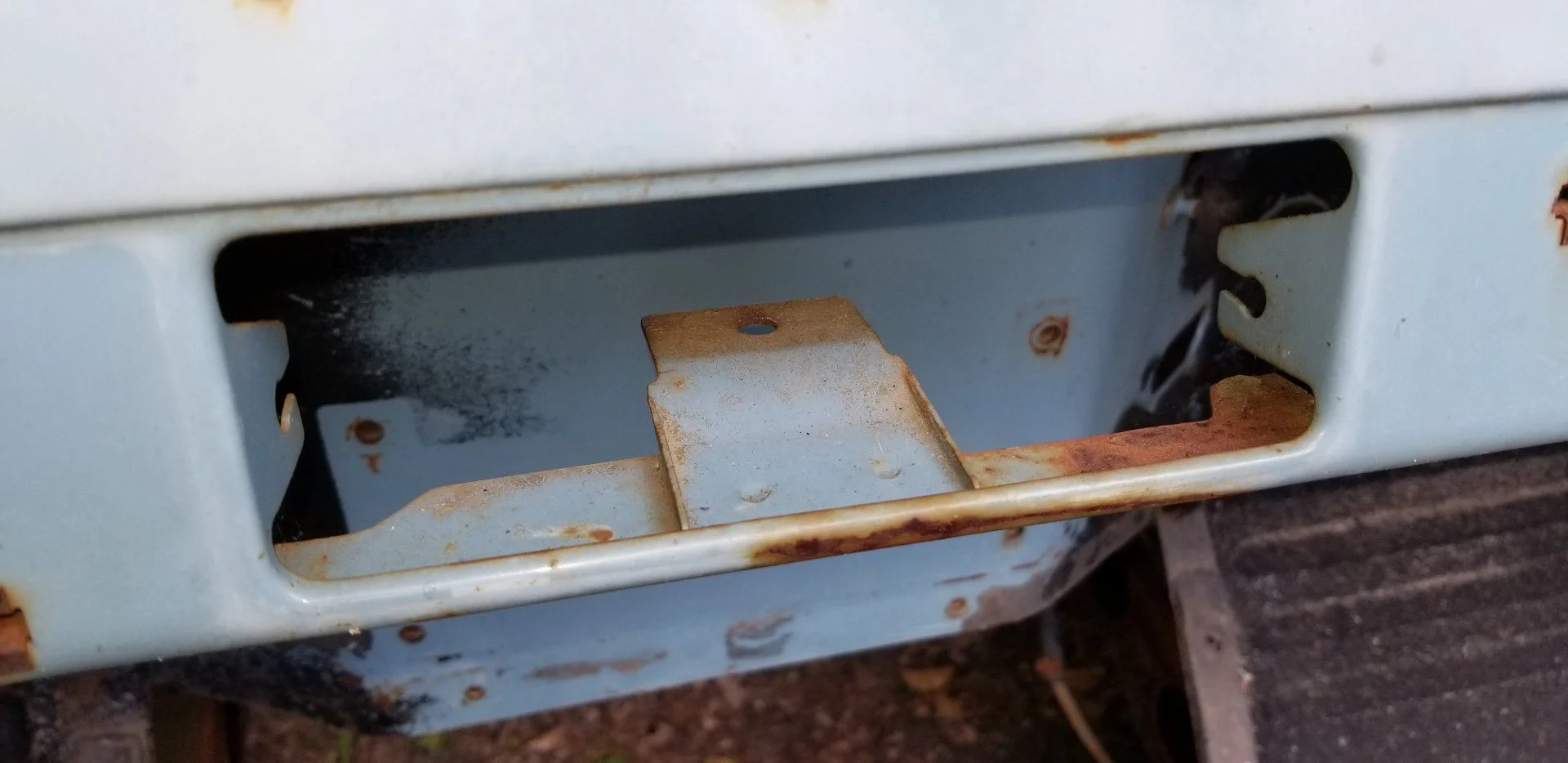

The folded back part should look like this when repaired, the stock radio is mounted with a screw on each side, fit in that slot

Nice. Thanks. At least the PO didn’t remove those tabs altogether. Should be able to pry them back out and repair the opening itself. Glad I’m not missing any framing inside there.

Was not aware the HUs sat in the hole like the one you pictured. I just figured they overlapped the opening. Very good to know!
