If anyone has a link to it?, ... need to trace AHC ECU harness from ECU connectors to damping force actuators, and the connectors at ECU are not marked ... need back of AHC ECU connector view.
Thx!
Thx!
MY06LX EWD needed badly (1 Viewer)
- Thread starter goldigital
- Start date
This site may earn a commission from merchant affiliate
links, including eBay, Amazon, Skimlinks, and others.
Dropbox - 2004_LC_FSM.zip
Here is a 2004 FSM w/EWD. I am not sure if this will hit the mark but I have an 06 LC and has met my needs to date.
Good luck!
Here is a 2004 FSM w/EWD. I am not sure if this will hit the mark but I have an 06 LC and has met my needs to date.
Good luck!
your best option is TIS for one day, download each section you need. There are going to be too many differences from 2004 LC VS LX and also the LX differences from the LC alone, regardless of year.
I have lots of 2007 LX sections but not the ones you're looking for. They are different all around comparatively.
I have lots of 2007 LX sections but not the ones you're looking for. They are different all around comparatively.
- Thread starter
- #4
Thanks Icanklim, ...
jerryb, Yes, I believe 04LC has no AHC where the 06LX has one ... that would major difference. and that where my AHC harness diagram need is. You’re right TIS can be real live saver!
jerryb, Yes, I believe 04LC has no AHC where the 06LX has one ... that would major difference. and that where my AHC harness diagram need is. You’re right TIS can be real live saver!
I have a hard copy for the 07LC. EWD's are cheap ($10), I haven't bought the hard copies of the FSM's yet...need to find the right price
- Thread starter
- #8
Thanks a million! ... it makes more and more sense every minute, but how do I reference these diagrams and physical ECU connector, the are no markings on the connector, ... do you have a page with AHC ECU pinout ???

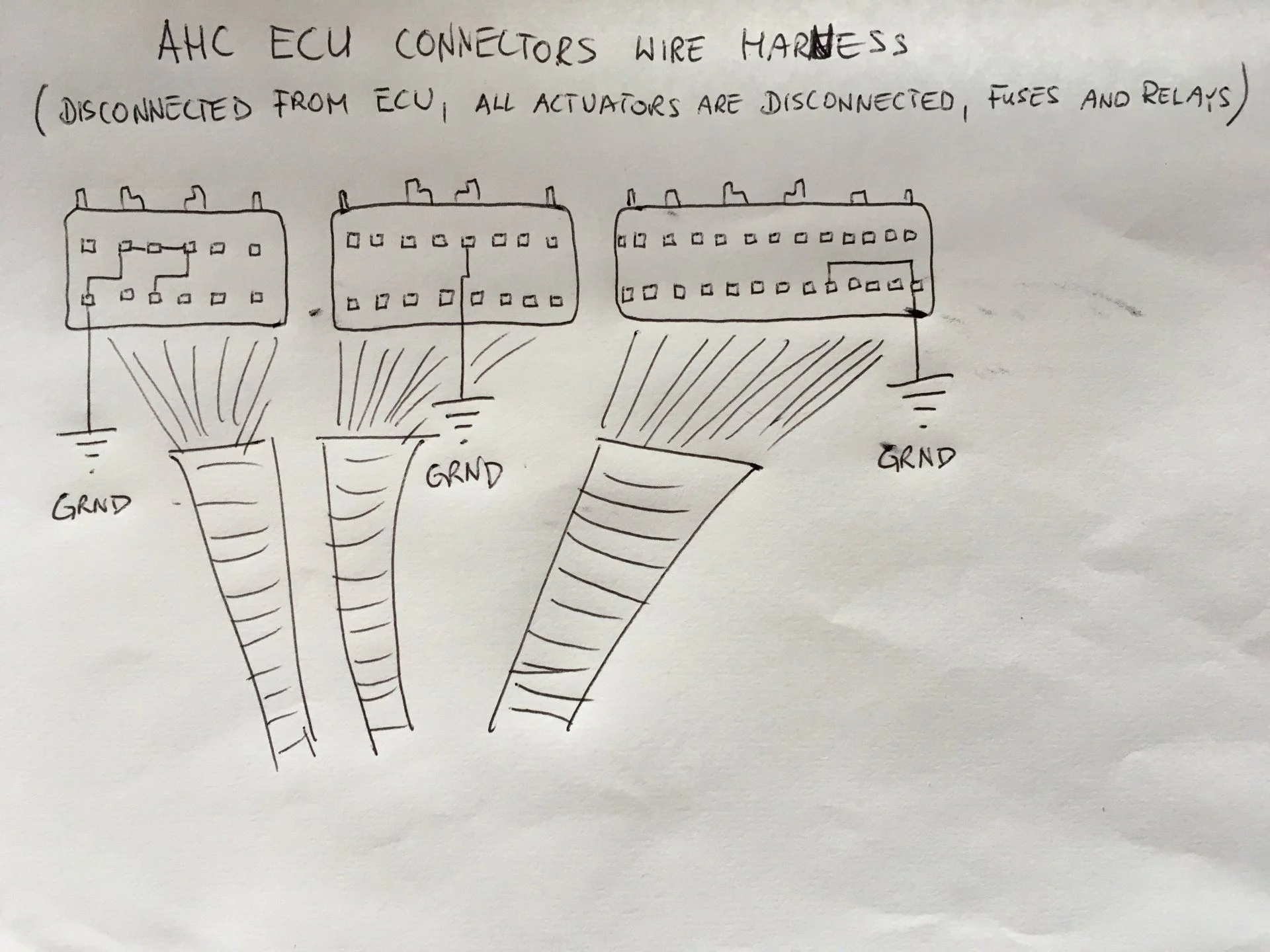

Measuring the resistance on the wire harness that goes to EHC ECU between all pins (with everything disconnected; ECU, Actuators fuses and relays) ... and are getting few pins that are connected to ground ??? is this normal state ???
Measuring the resistance on the wire harness that goes to EHC ECU between all pins (with everything disconnected; ECU, Actuators fuses and relays) ... and are getting few pins that are connected to ground ??? is this normal state ???
jLB
Another one followed me home. Can we keep it?

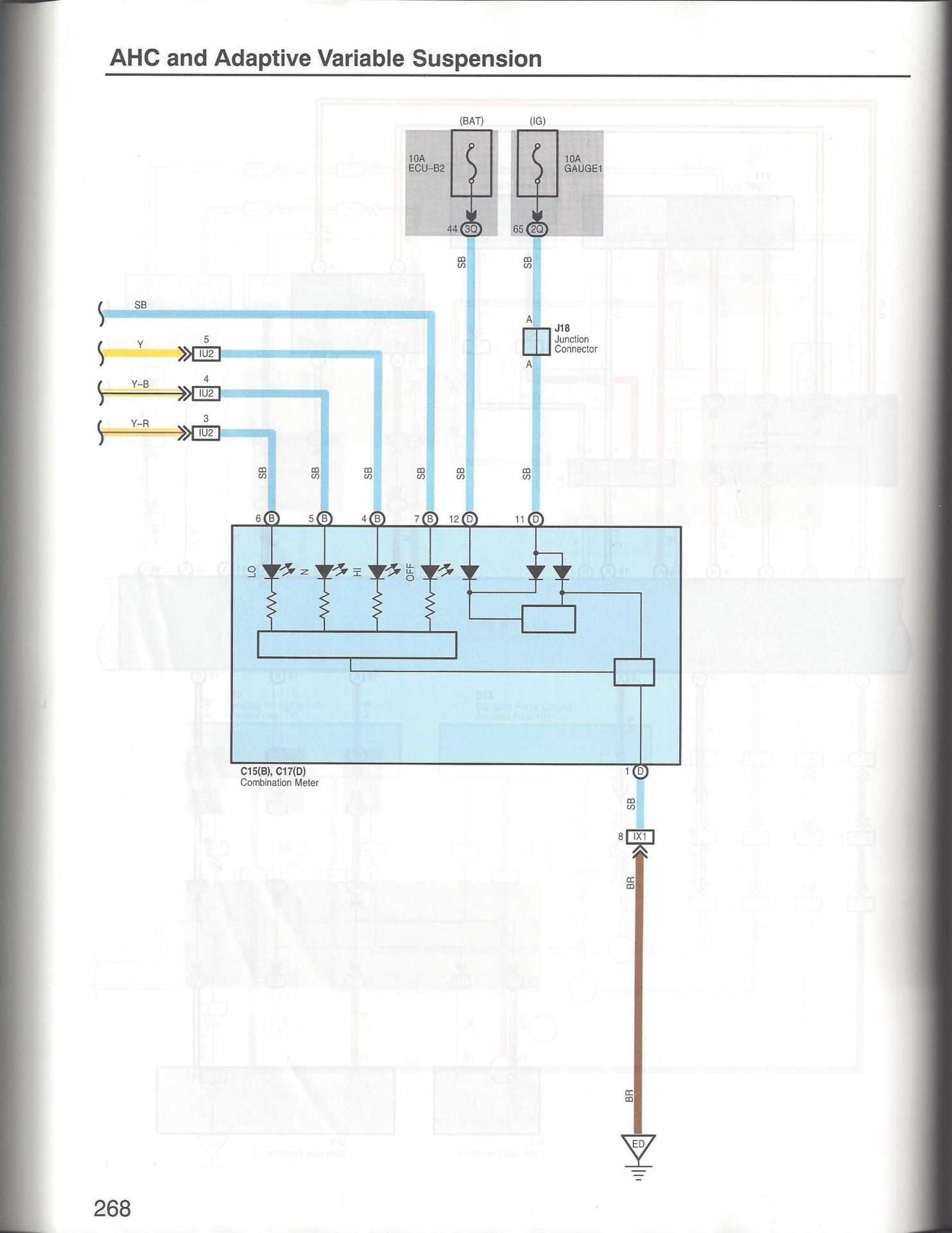

If you look at the "Suspension Control ECU" in the drawings above, each connection to it appears to show a "connector" (A/B/C) and a pin number. From this, you should be able to map a pinout for the relevant pins.
- Thread starter
- #10
Got it thx! ... the connectors on ECU are A, B and C largest to smallest one, and harness connectors are S6 S7 and S8 accordingly
Last edited:
- Thread starter
- #11

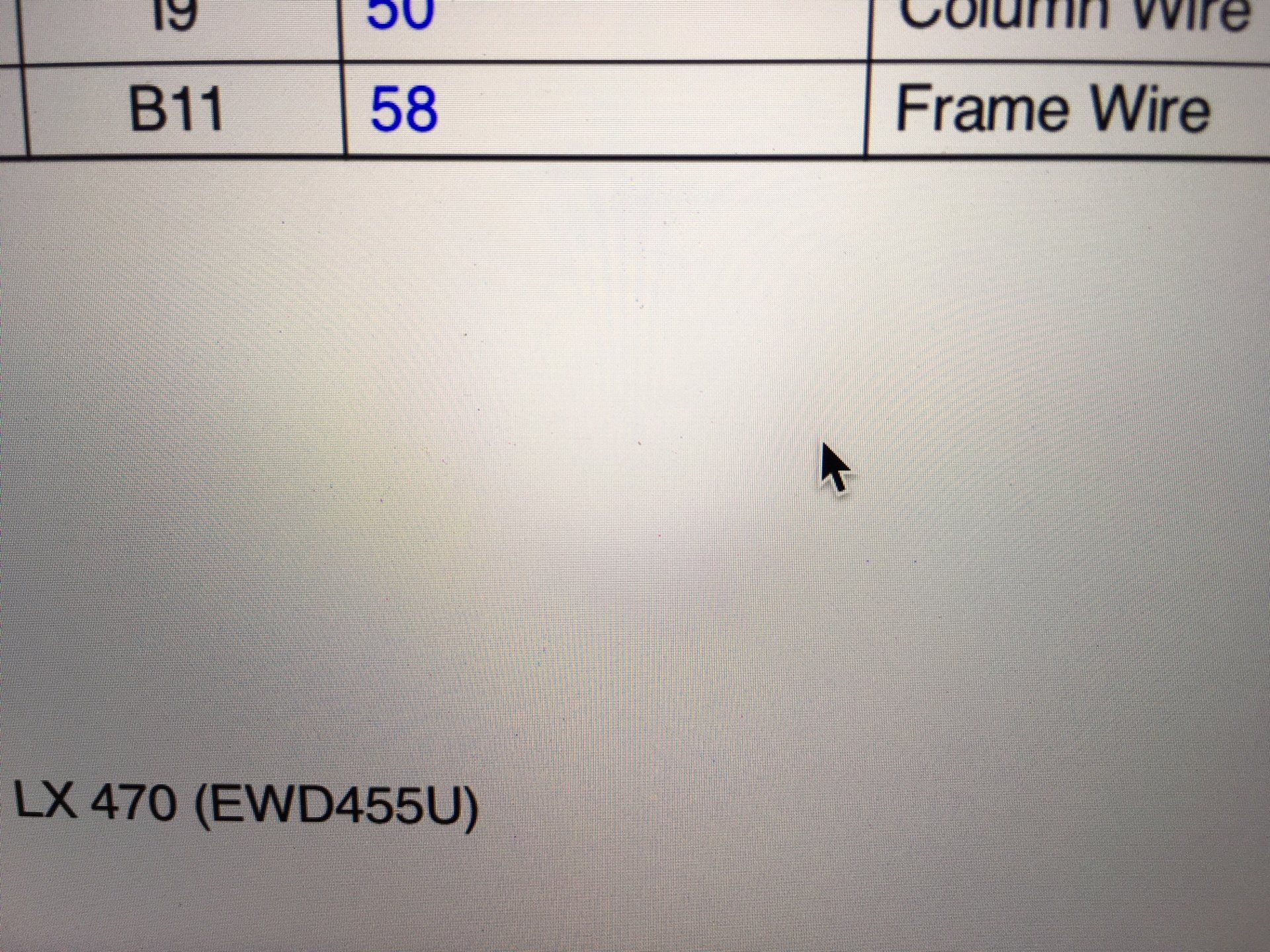

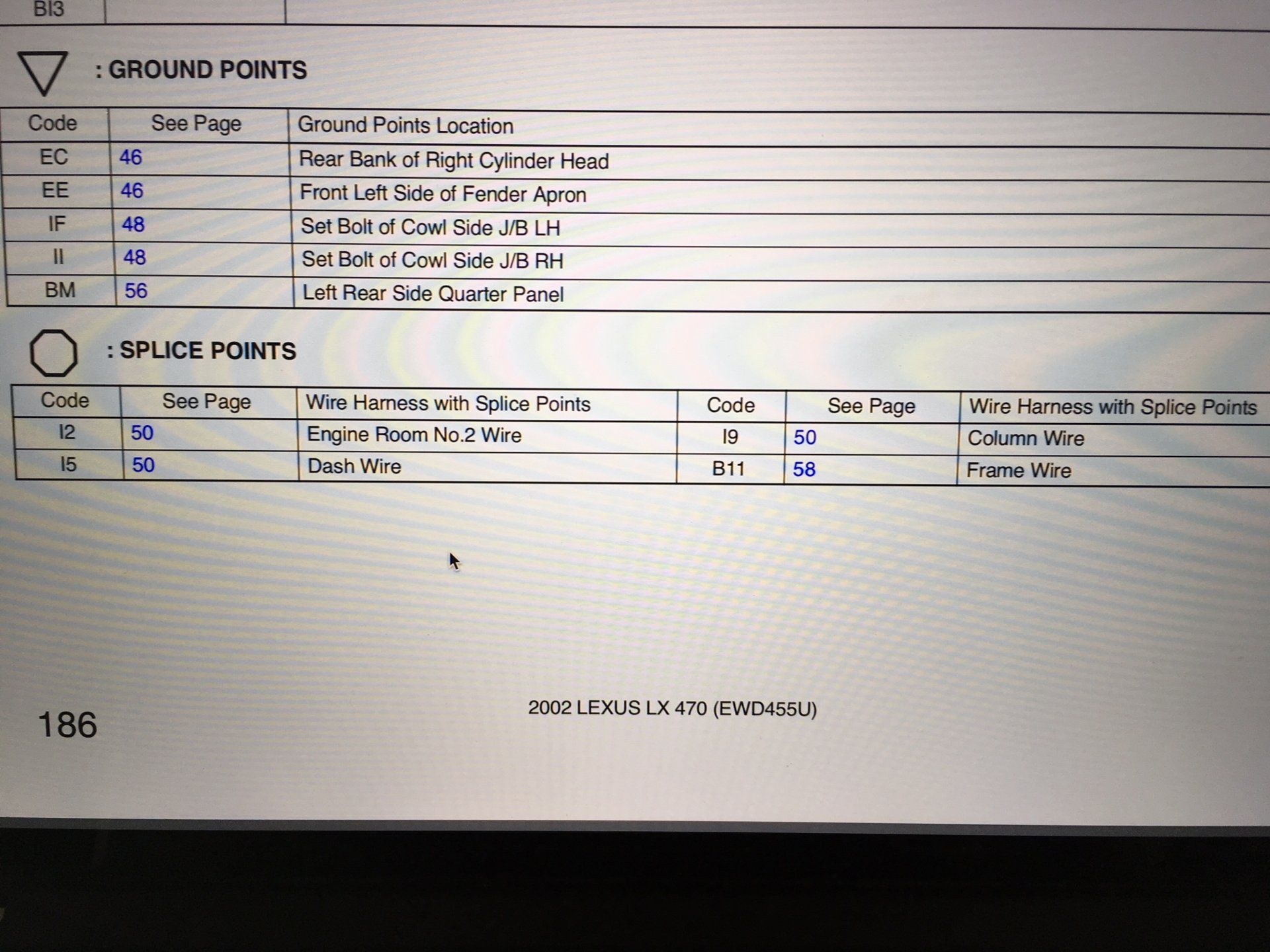

Ok, anyone has a page 58 from EWD ... or maybe know where the B11 junction (splice point) is in the frame? ... seems to be the point where i may have SHORT circuit !!!!

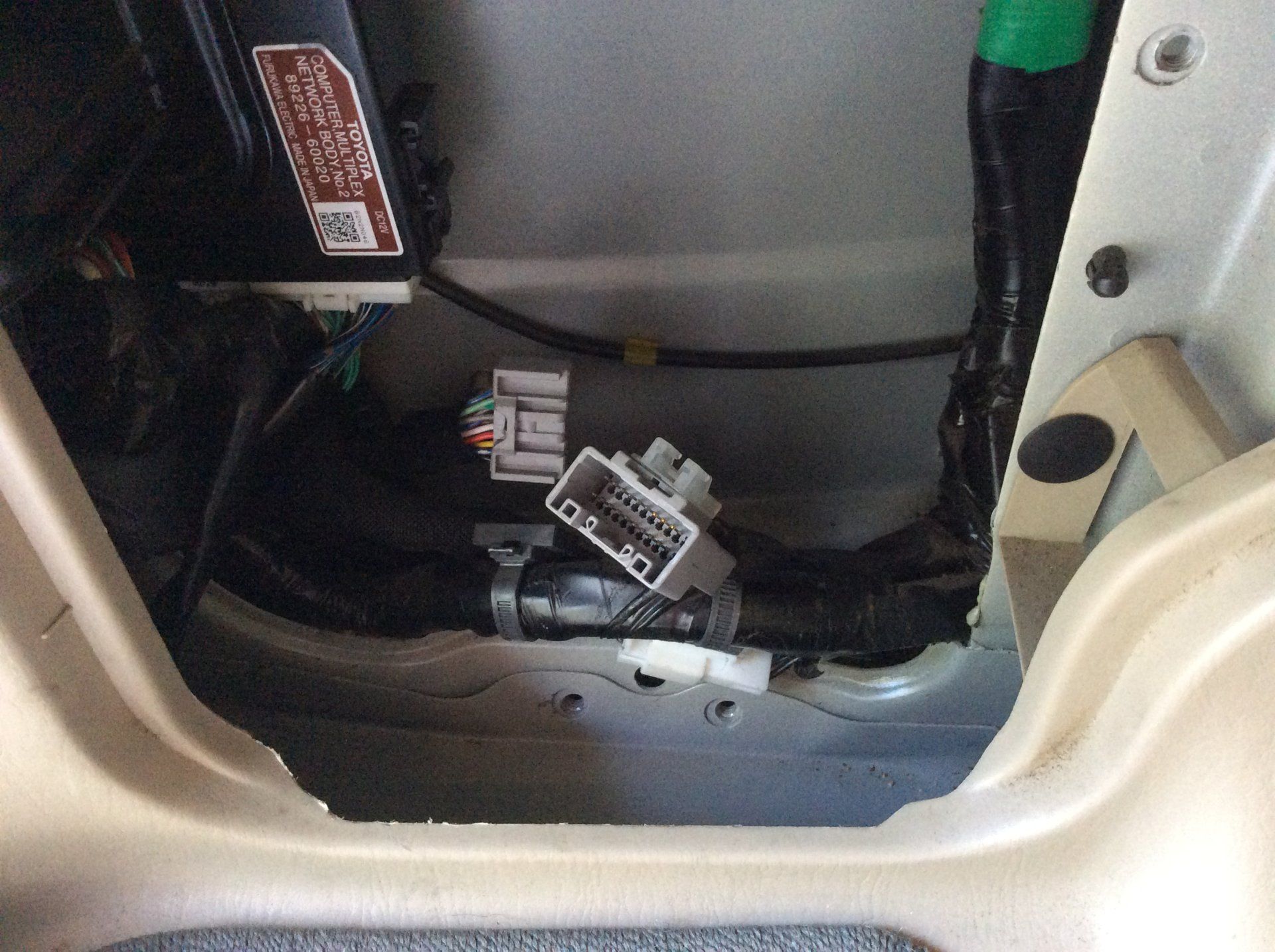

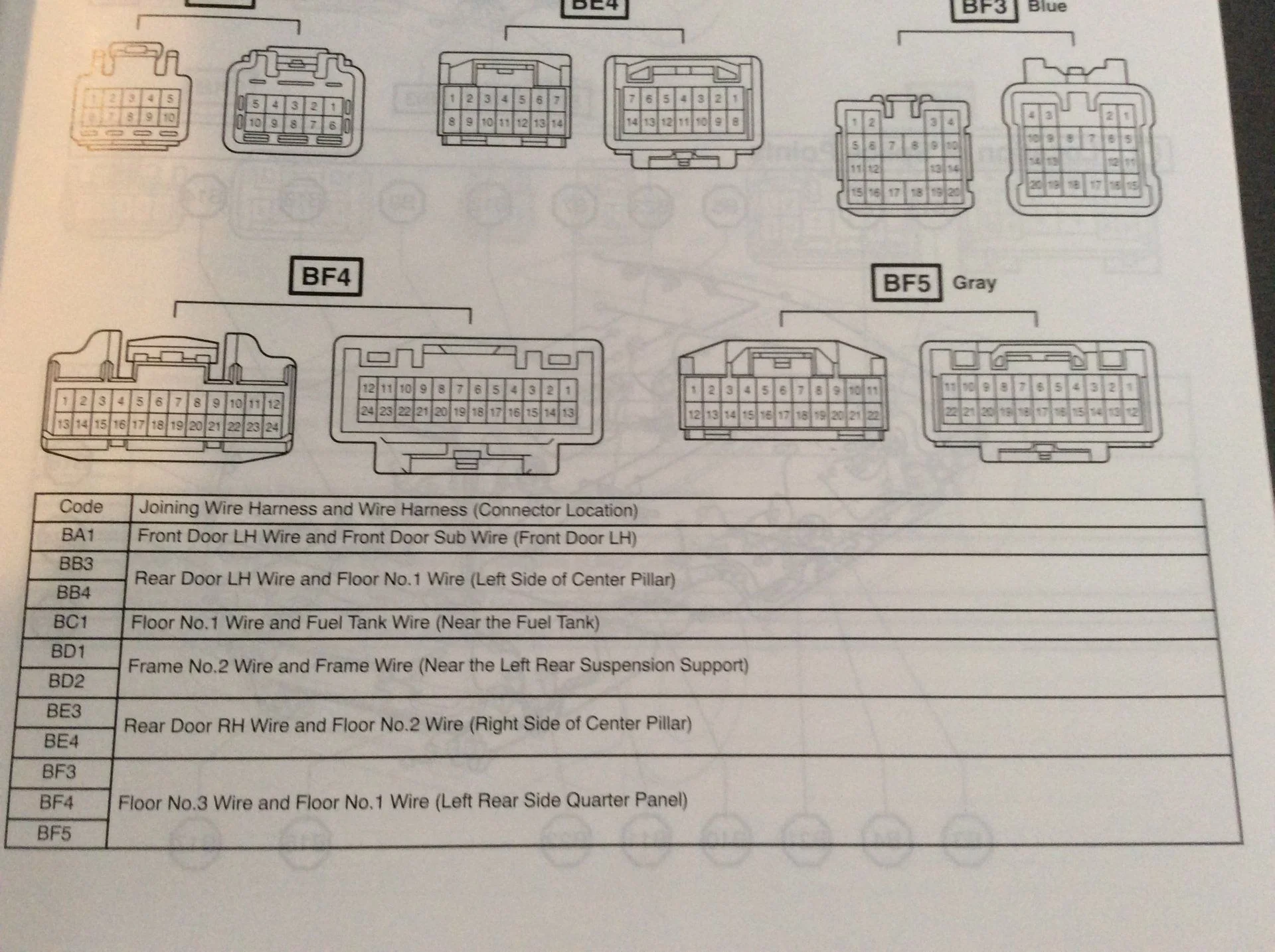

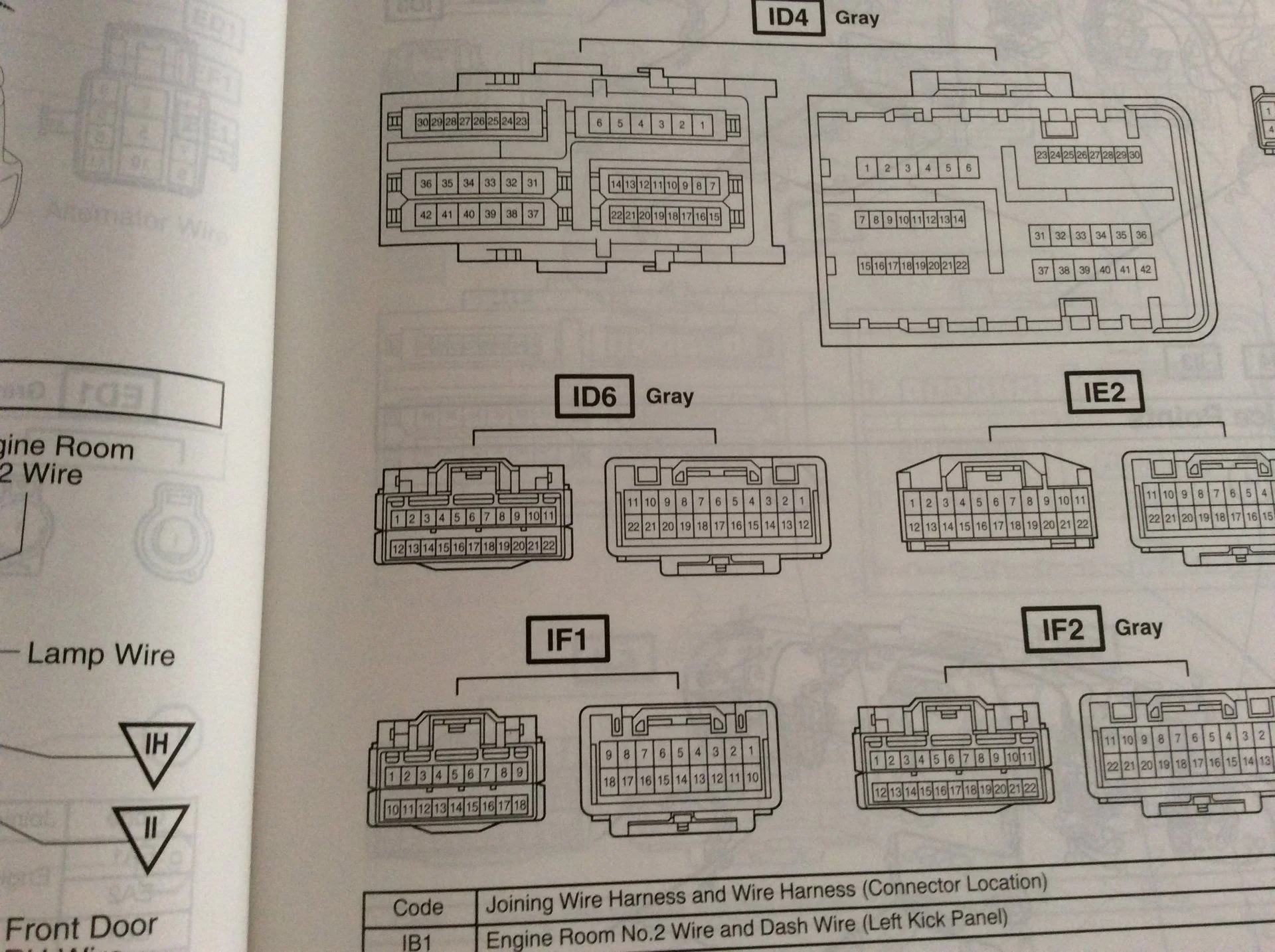

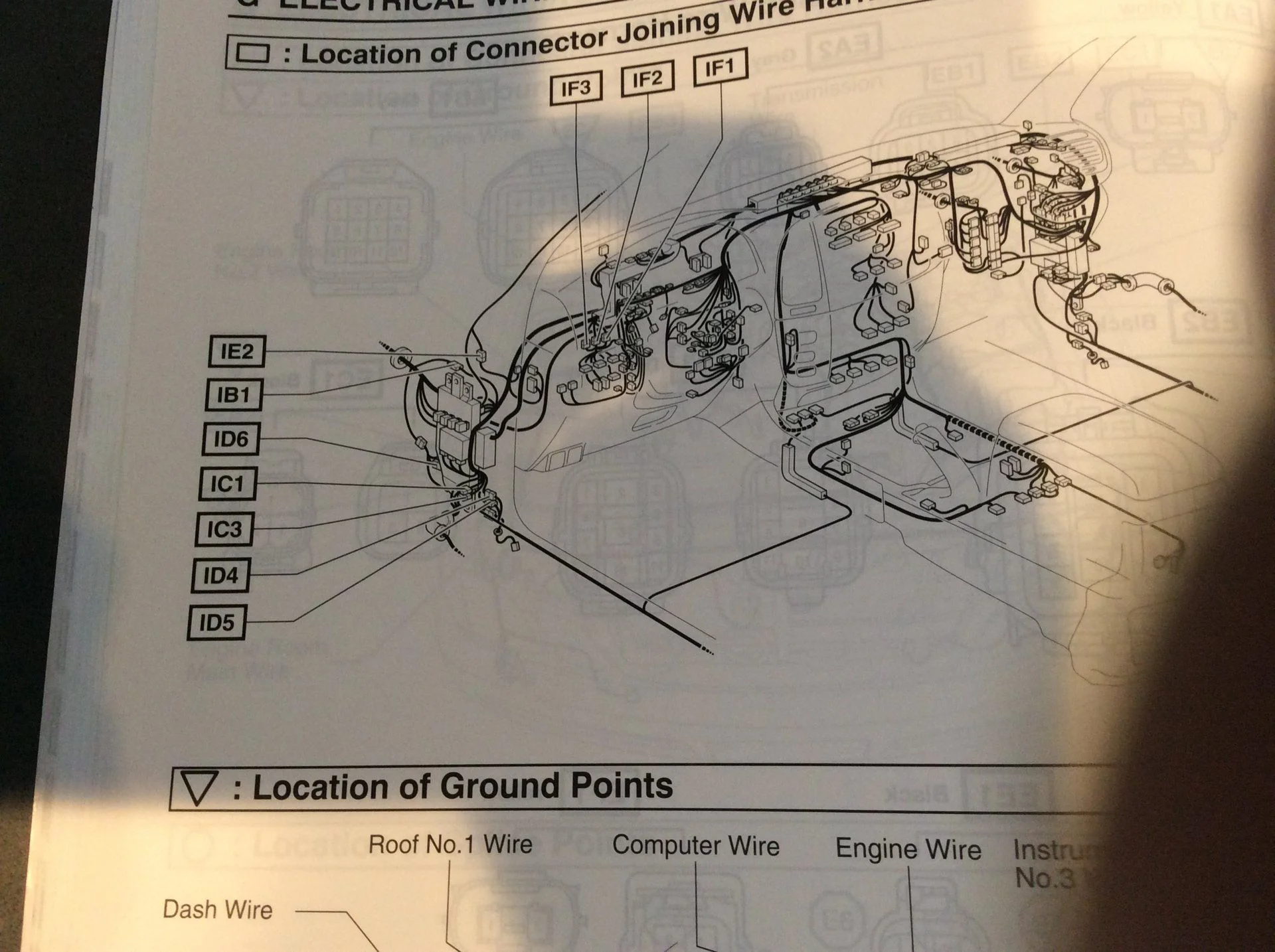

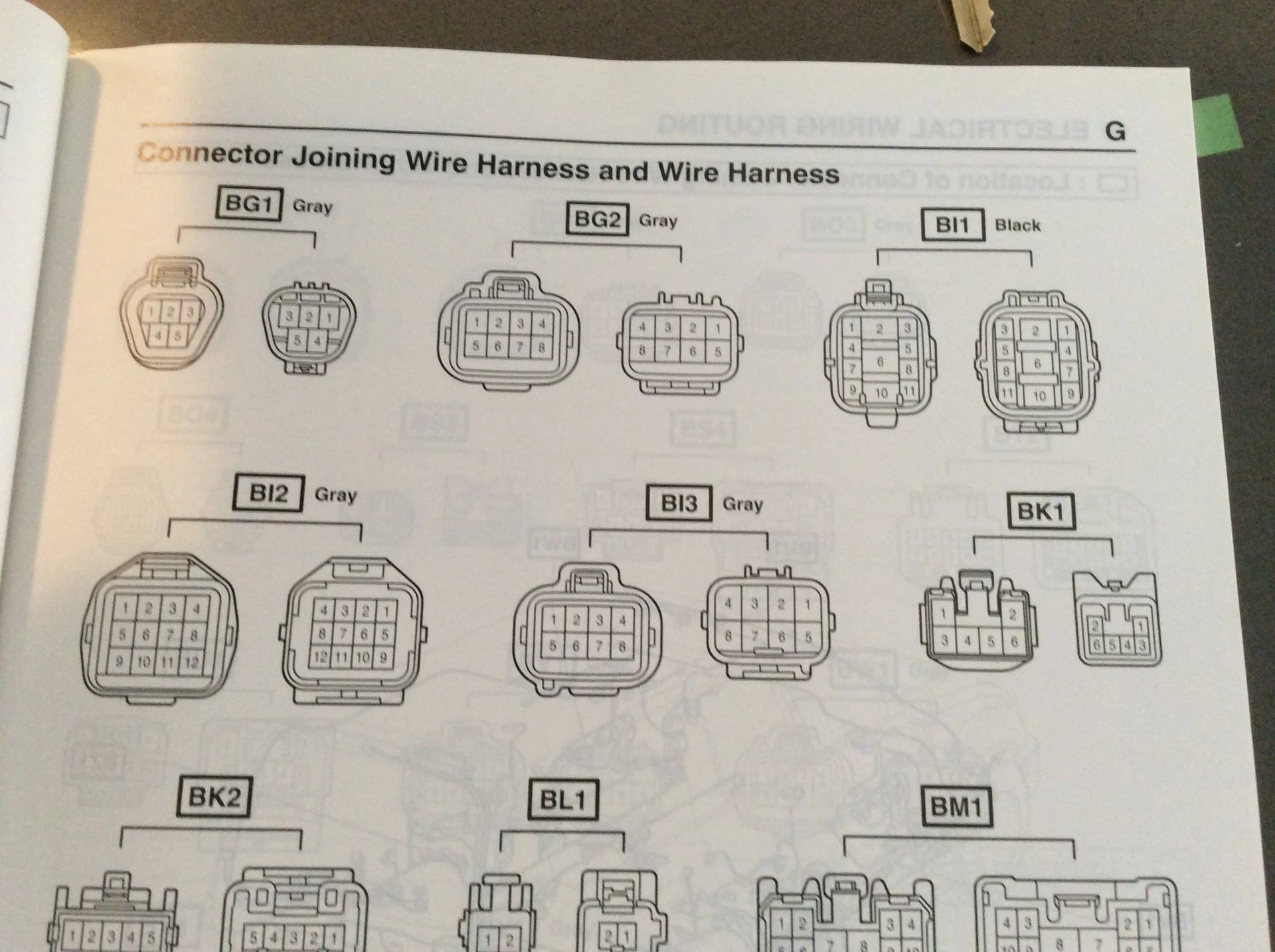

Ok you’re doing some good work here. Let me throw this in. On your first image with the 2x6 pinout thats S8 or connector C, it’s the one that’s carrying the signals in question. From top left it’s numbered 1-6 and bottom row is 7-12. Pin 7 is always ground, correct, but your pins 2,3,4,9 should not be ground. Now from the ECU that harness goes to the left footwell connector ID6 and from there to your left rear interior quarter panel BF5 (under and behind the jack mount panel) and from there to BI1 and BI2. Now those 4 wires that seem to be grounded have a common connection at BF5 so that’s where I’d disconnect the harness and see if the ground lifts. If it does then the problem is at that connector or further downstream, if it stays then it’s upstream. Here are some pics and the grey 22 pin connector I’d split the circuit at.

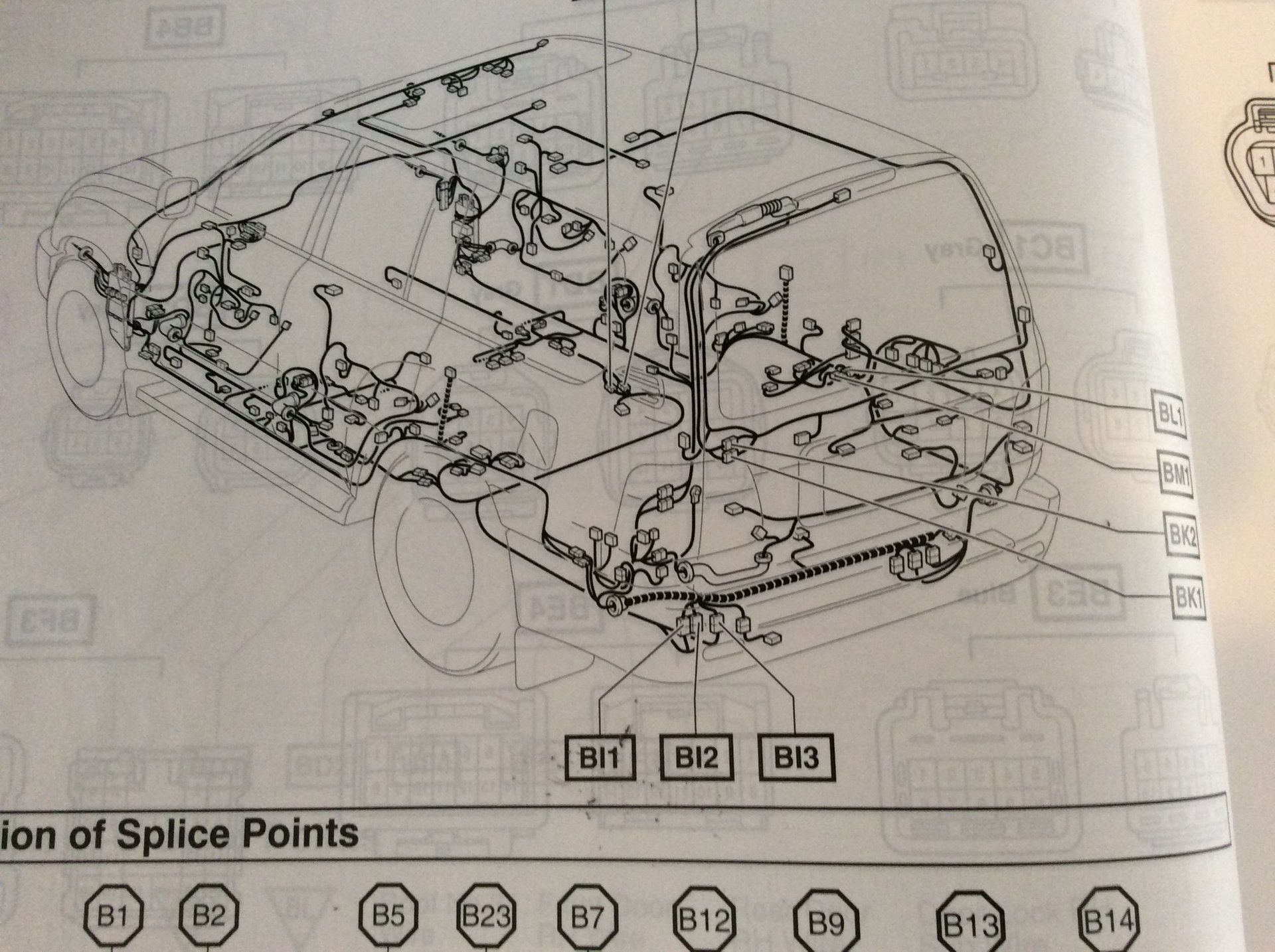

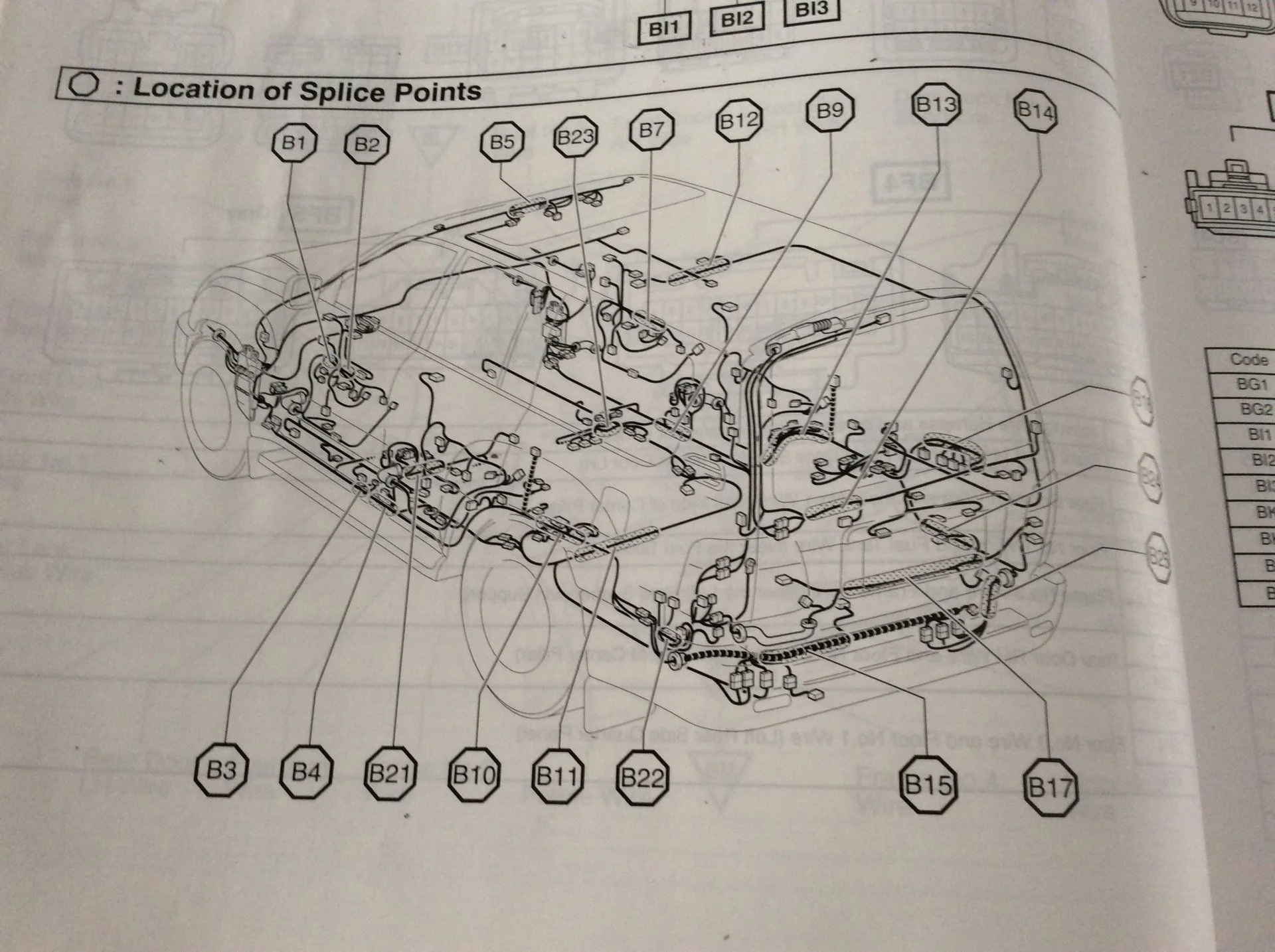

Last pics, edited to add B11 splice point which is a definite candidate
Last edited:
- Thread starter
- #14
Thank you very much Paddo! ... no luck, or success yet, got to let it go today, still have a full time job got to go to ... will have a closer look at these connectors soon again !!! vehicle is drivable but with hard suspension. I will report whatever i will come up with. Have a nice weekend guys!
... will have a closer look at these connectors soon again !!! vehicle is drivable but with hard suspension. I will report whatever i will come up with. Have a nice weekend guys!
- Thread starter
- #15
Ok, i was able to troubleshoot it to the BI1 and BI2 connectors, i did disconnected the BF5 and got ground lifted from my ECU harness.
I have the fault between the BI1/BI2 and the actuator connectors which points at the large chunk of the B11 splice (checked visually and looks very clean and untouched) it is in super, super tight spot, nicely fixed and very well protected with cable shroud, etc ... and I’m not sure if it make much sense to start ripping it apart ???

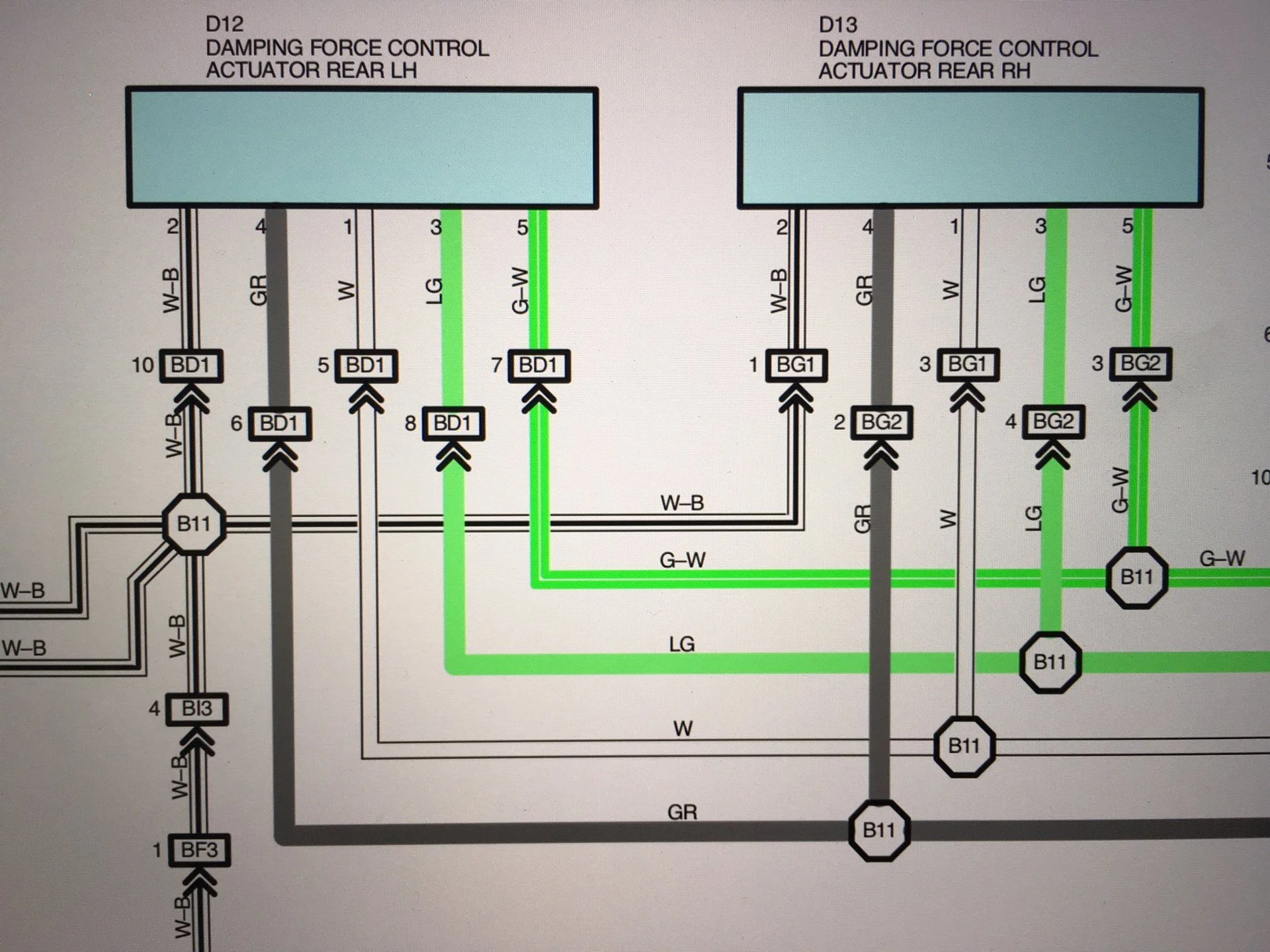

Anyway, there is still something on the end I don’t fully understand; the damping force actuators have different connector designations on the drawing such as BD1, BG1 and BG2 ... from the electric diagram drawing I see location of BD1 and BD2 only, ... where is the BG2 located? and is it BG1 same as the actuator's harness? ...or is there another bunch of connectors with the same name somewhere else? HELP !!!
I have the fault between the BI1/BI2 and the actuator connectors which points at the large chunk of the B11 splice (checked visually and looks very clean and untouched) it is in super, super tight spot, nicely fixed and very well protected with cable shroud, etc ... and I’m not sure if it make much sense to start ripping it apart ???
Anyway, there is still something on the end I don’t fully understand; the damping force actuators have different connector designations on the drawing such as BD1, BG1 and BG2 ... from the electric diagram drawing I see location of BD1 and BD2 only, ... where is the BG2 located? and is it BG1 same as the actuator's harness? ...or is there another bunch of connectors with the same name somewhere else? HELP !!!

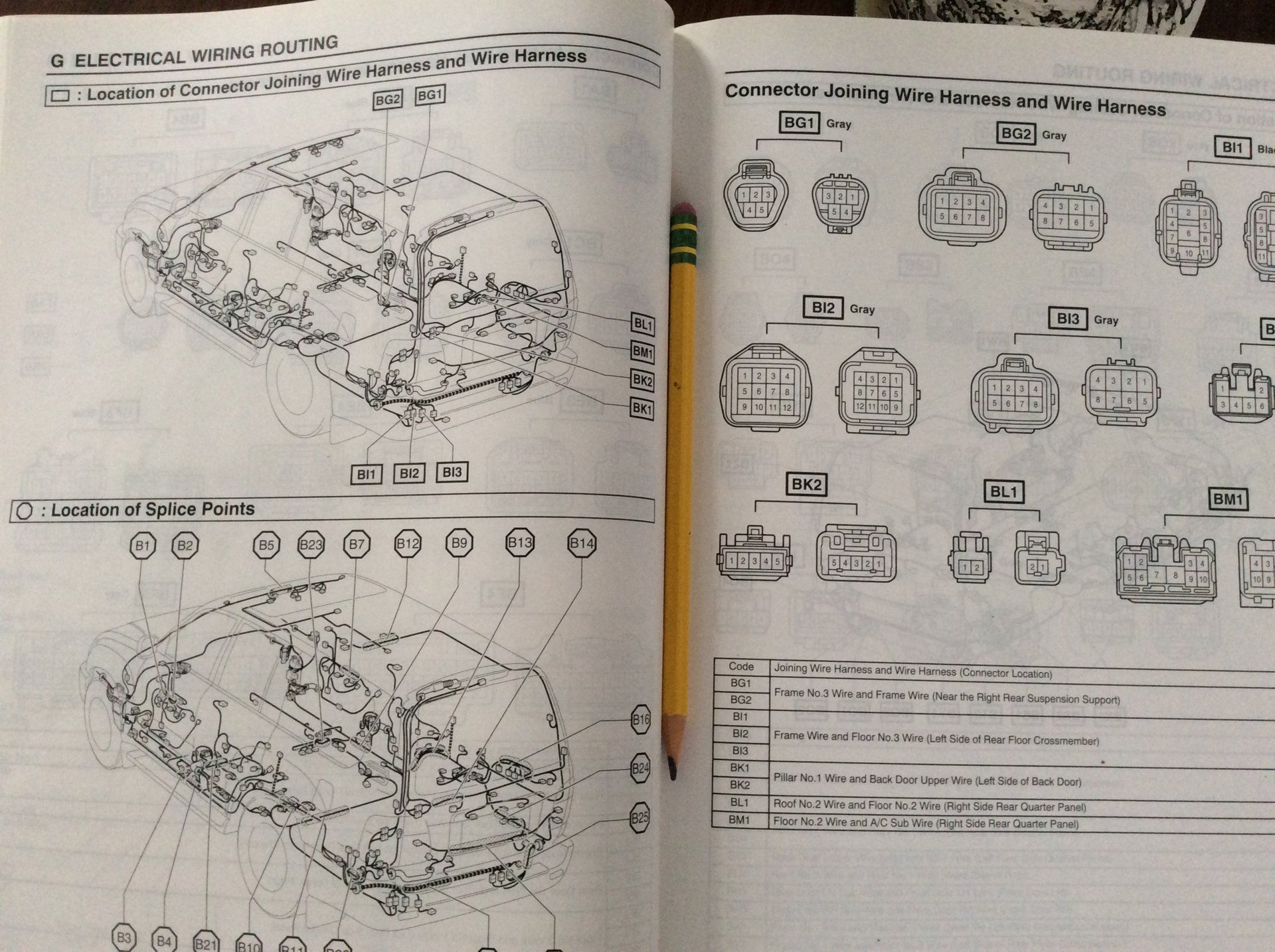

BG2 & BG1 -> frame #3 wire and frame wire near the right rear suspension support.
The last point of commonality for the front and rear circuits is B11 splice point however BG2 & BG1 are easier to access I believe.
The last point of commonality for the front and rear circuits is B11 splice point however BG2 & BG1 are easier to access I believe.
- Thread starter
- #17

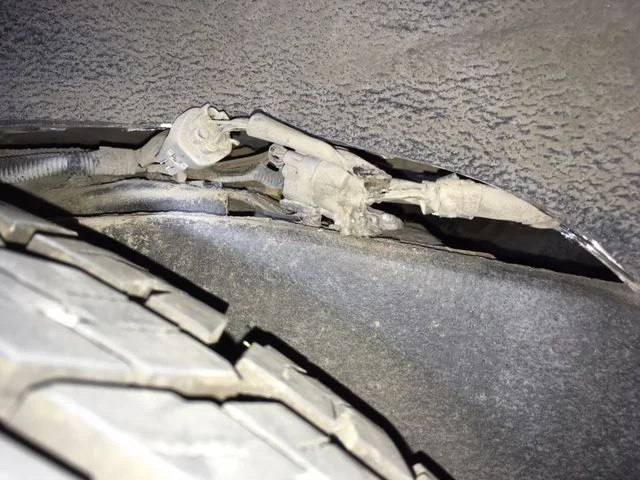

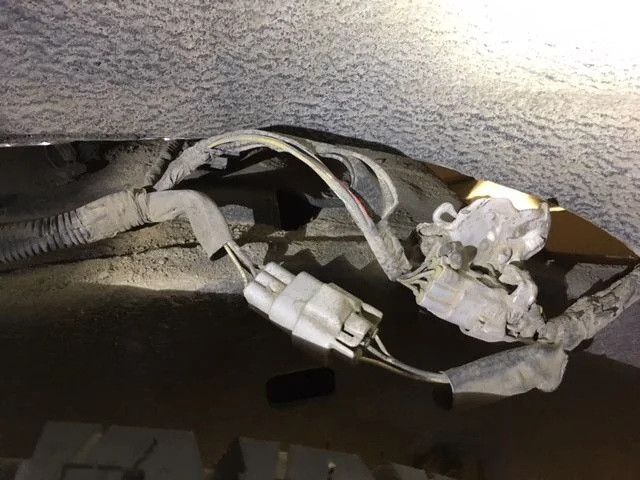

I think I got it ... found connectors BG1 and BG2 totally melted which would precisely explain my signal to ground short, and of course DTC 1721 and 1723 ... I would suspect that in the past salty water got inside these and previous owner used 50A instead of 20A ... there is a reason these were designed to handle safely probably half of the 20Amps considering the wire of 18-20 AWG

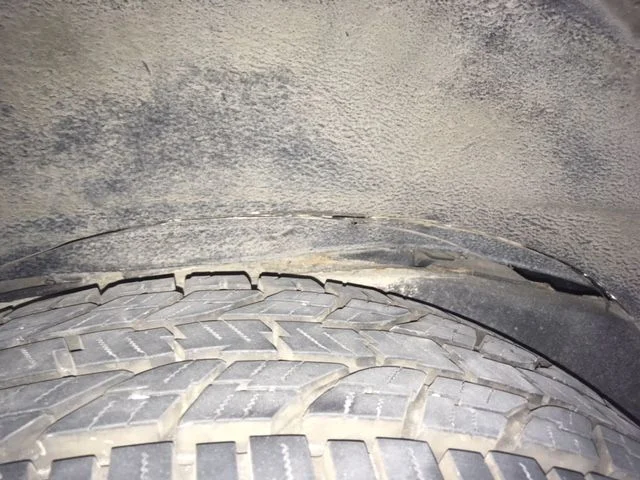

Either way, i have to say to access these connectors is next to impossible! ... no joke! ... unless you remove the entire truck off the frame, they sit right on the frame and under the right suspension support. Worst location to work on ever, so, to access these little guys I had a choice of cutting the floor under the rear seat, ... or option two, cut a 1” sliver arch off the wheel well inside where the tire is ... and it actually worked very nicely. Checked the resistance all around and the only GRND i get now is pin7 at the AHC ECU harness connector.

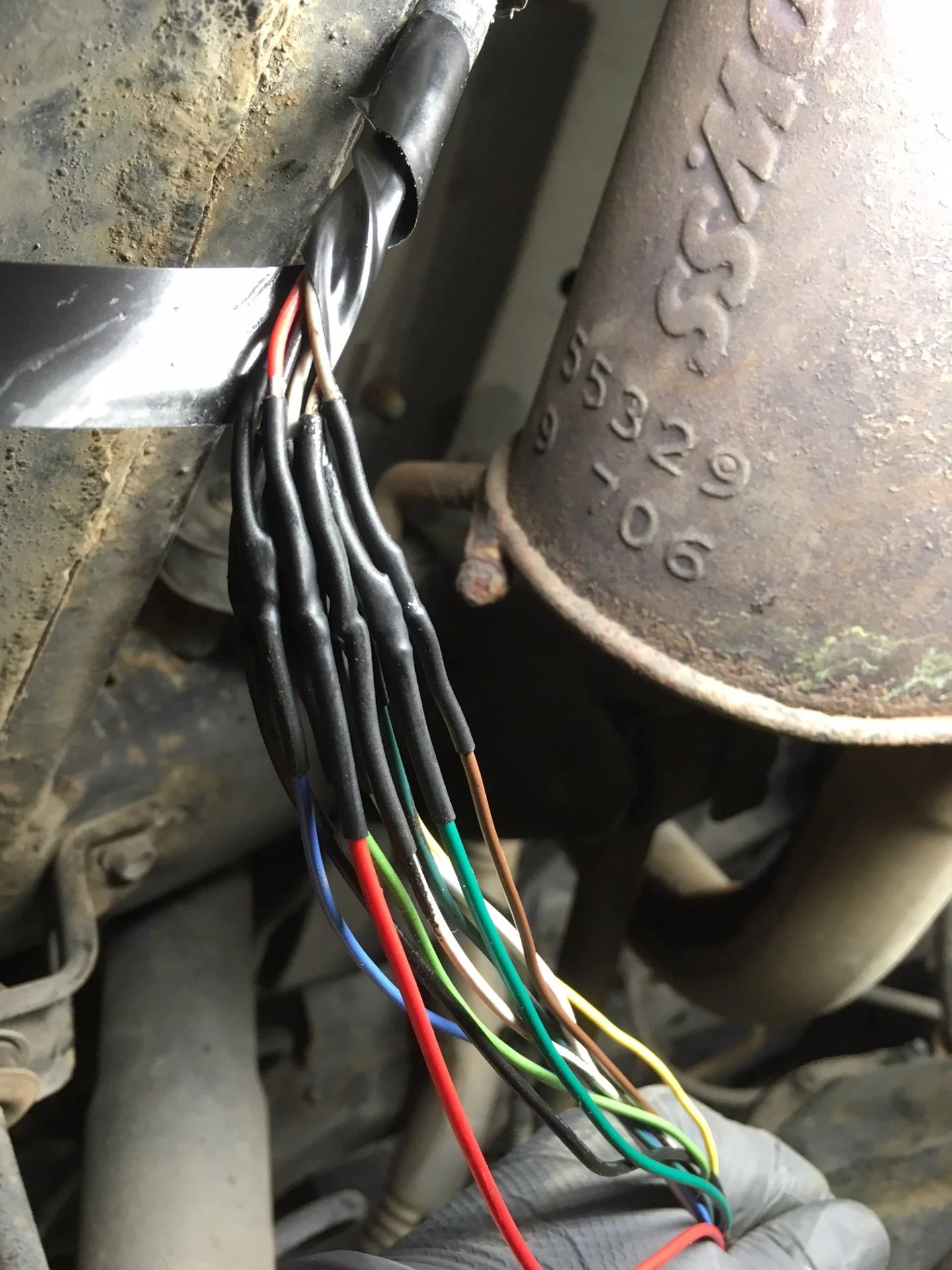

At this point all I have to do is splice is (solder, heat shrink, and plastic shroud) few black zip ties with some rustproofing with rubberized spray paint on the cut surfaces and it will be just like new Will test it tomorrow, can’t wait!
Big THANKS to PADDO !!!
... found connectors BG1 and BG2 totally melted which would precisely explain my signal to ground short, and of course DTC 1721 and 1723 ... I would suspect that in the past salty water got inside these and previous owner used 50A instead of 20A ... there is a reason these were designed to handle safely probably half of the 20Amps considering the wire of 18-20 AWG Either way, i have to say to access these connectors is next to impossible! ... no joke! ... unless you remove the entire truck off the frame, they sit right on the frame and under the right suspension support. Worst location to work on ever, so, to access these little guys I had a choice of cutting the floor under the rear seat, ... or option two, cut a 1” sliver arch off the wheel well inside where the tire is ... and it actually worked very nicely. Checked the resistance all around and the only GRND i get now is pin7 at the AHC ECU harness connector.
At this point all I have to do is splice is (solder, heat shrink, and plastic shroud) few black zip ties with some rustproofing with rubberized spray paint on the cut surfaces and it will be just like new
Will test it tomorrow, can’t wait! Big THANKS to PADDO !!!
Last edited:
- Thread starter
- #18
Ready for some splicing !!!
Nice job breaking the defect down and locating it
- Thread starter
- #20
Just test drove and .... we have a WINNER !!!! ...
What a fantastic ride now! I can’t say wasn’t much work and time spent on it, but by end of the day HUGE satisfaction! can’t say how different the truck rides, just like new LOVE it !!! ...
Is there a place here on IH8MUD I can get rid of my old Globes (since they weren’t the reason the ride was harsh) ... they are 2006 globes with 105K miles.
Once again thanks guys!, and PADDO you ROCK! ...
What a fantastic ride now! I can’t say wasn’t much work and time spent on it, but by end of the day HUGE satisfaction! can’t say how different the truck rides, just like new
LOVE it !!! ...Is there a place here on IH8MUD I can get rid of my old Globes (since they weren’t the reason the ride was harsh) ... they are 2006 globes with 105K miles.
Once again thanks guys!, and PADDO you ROCK! ...
