Hi, Whose bought an MAF recently for a 1991 fj80 ? Did you use one from a 1993 Camry ? Where did you get one and was it new? Thanks, Mike
MAF for 1991 land cruiser
- Thread starter Michael Hanson
- Start date
This site may earn a commission from merchant affiliate
links, including eBay, Amazon, Skimlinks, and others.
- Thread starter
- #2
If I remember correctly there are 7 wires. Starting from the left side we test wires 4,5,6. Testing for volts,ground and vaf signal. Is that correct? Thanks, Mike
I read a few things on it last few days and just bought one for 93 camera v6. For it off rock auto. I’m running out of things to replace on mine to make it run right lol

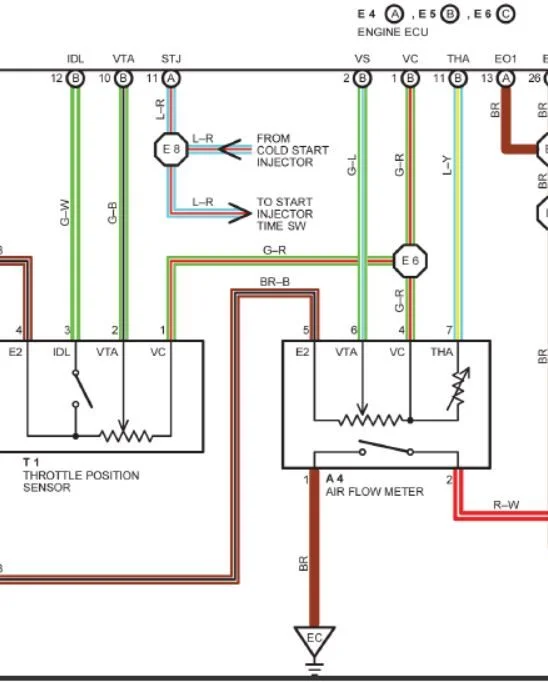

Air Flow Meter connection has 6 active pins on a 7 pin connector.
Pin 1 GND
Pin 2 fuel pump logic
Pin 3 N/C
Pin 4 +12 logic from ECU
Pin 5 ECU logic GND
Pin 6 AFM door flap position (variable resistance)
Pin 7 thermistor for IAT
Pins 1-2 is the fuel pump logic switch. This is closed when the flap starts to move and fires the secondary coil in the circuit opening relay.
4,5,6 Is your variable resistor for the flap, with 6 as the armature.
A failed AFM can result in no CEL if there are internal fractures or shorts in the wiring. It can also result in the engine firing briefly during starter cranking, and then stalling because the flap in the AFM is not firing the secondary coil in the circuit opening relay.
If you're not firing at all with the CEL illuminated, then it is not related to the AFM.
Have you checked for spark?
Are you getting fuel to the rail?
Last edited:
- Thread starter
- #5
Fuel yes, spark is week and orange-reddish .
- Thread starter
- #6
I can’t find another igniter
Did you check the easy things first like distributor rotor/cap?
- Thread starter
- #8
Jon I replaced plugs,cap,rotor. Mike
- Thread starter
- #9
Found an igniter . So the 1993 Camry one worked ? Thanks, Mike
Hi Mike, I was curious if the 1993 Camary MAF worked? Just had mine fail this week and in the endless search for a replacement.
What were the symptoms on the failure? How did you diagnose it?
- Thread starter
- #12
Truck is at the lake in Arkansas. Ran the tests in the repair manual on all electrical components. However it’s been a few weeks ago and I don’t remember specifics. Going back up soon and will also try a new Toyota rebuilt ecu out of Canada. Truck won’t start ,just turns over,getting fuel. Truck quit running and blew the hose under the water pump during a severe rain storm. Never started again. Just have had not enough time to work on it. Mike
- Thread starter
- #13
Well finally back up working. On the 1991. Battery, rotor,dist. Cap., spark plugs and wires,ecu,fuseable links,coil, igniter, all new. Distributor checks out ok. Changed mass air flow sensor and hose to it. Cranks but won’t even attempt to start. Never had this happen to 20 plus cruisers. Mike
- Thread starter
- #14
Forgot fuel pump and filters new. I can’t find any short or rubbing in the wiring.
Hey Michael,
I know this is an old thread but what happened with this? I'm having similar problems with mine so I'm curious if you ever got to the bottom of it.
Same here…..
I added the Cardone 74-20070 to my 91 yesterday and it seems to run fine. Little concerned about the engine running lean since it's meant for a smaller engine. No check engine lights though.
Hello splint sec is out of business anyone know of another MAF bypass kit or who is making them ? I’m sick of dealing with sourcing this component and want a permanent solution. Thanks
its not a MAF, its a Air Flow Meter.
I have a AFM from a earlier model Camry and been in my rig for the last 5 yrs. Works great.
I tried this fix last year and it didn’t work did you have to pop the top and adjust the arm ? I ended up finding a used one that worked until now.
