Late model heater console install

S.CarolinaFZJ80

SILVER Star
Joined
Oct 4, 2008
Messages
4,855

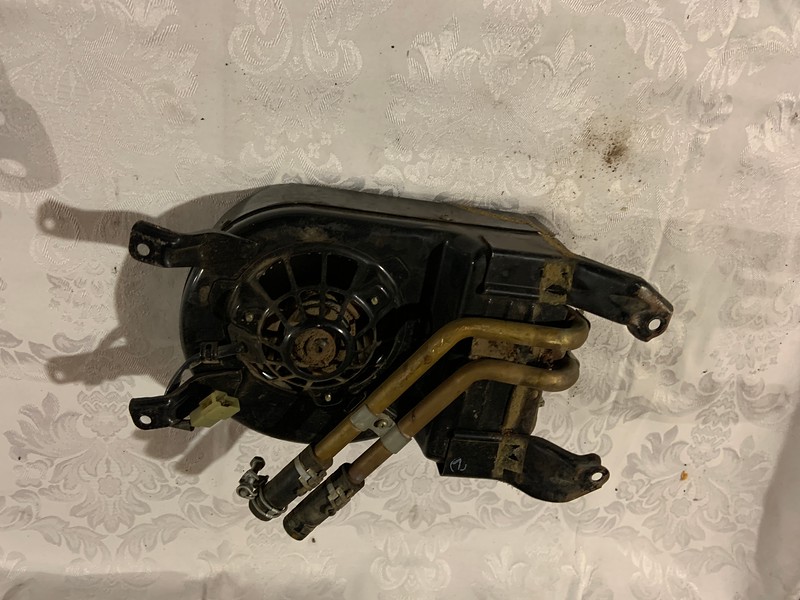

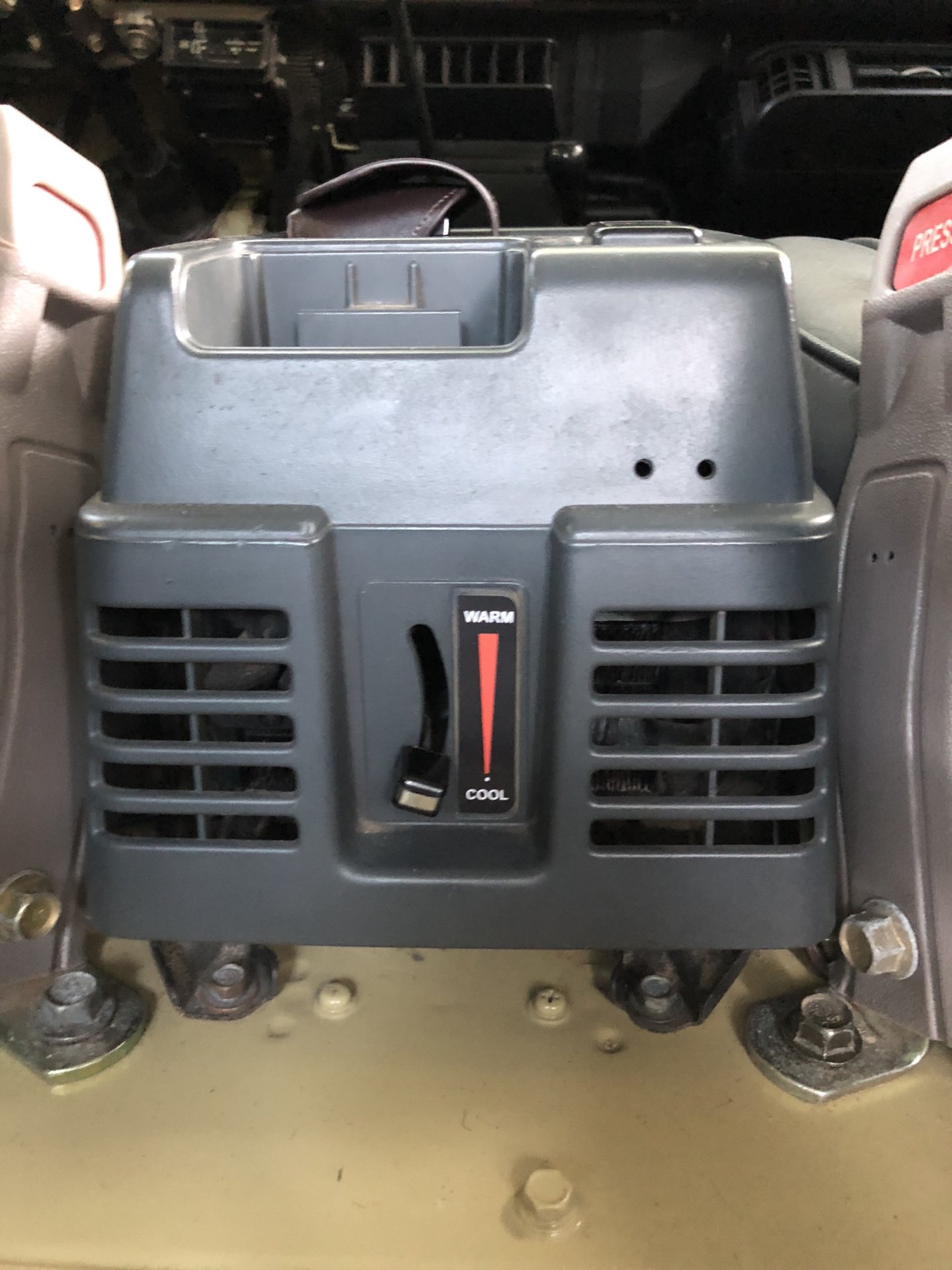

I picked up a late model ( '81+) center heater console, thanks @Wadesters

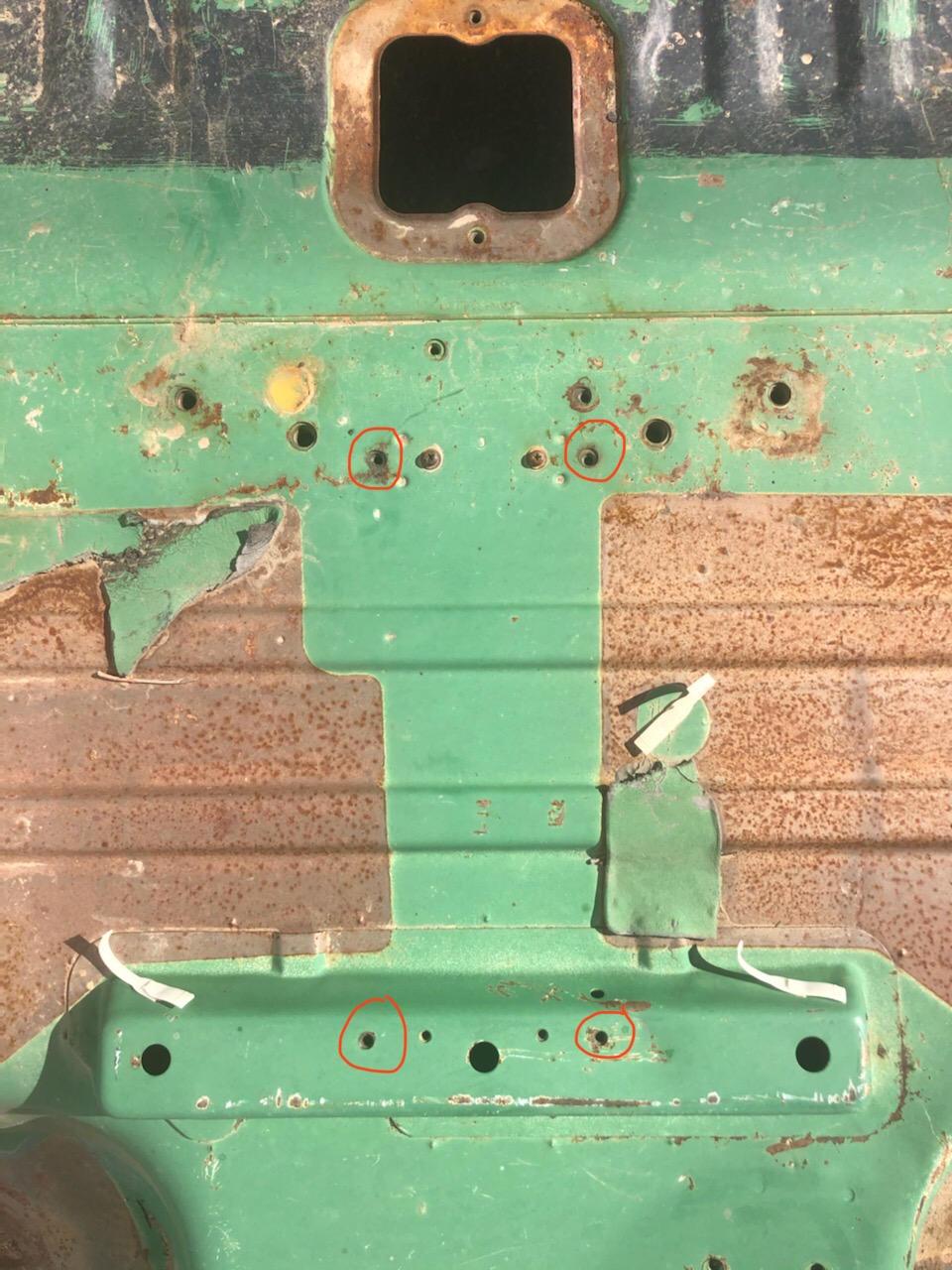

BUT my '79 doesn't have the mounting holes for this console. (Circled in pic below)

Does anyone happen to know the thread pitch used to mount the four feet?

Last edited:

EWheeler

4 Cruisers, No Garage !
GOLD Star
Joined
Apr 5, 2008
Messages
2,176
Location
Menifee, CA
I picked up a late model ( '81+) center heater console, thanks @Wadesters
BUT my '79 doesn't have the mounting holes for this console. (Circled in pic below)

Does anyone happen to know the thread pitch used to mount the four feet? View attachment 3068236View attachment 3068237View attachment 3068238View attachment 3068249
Did I ever send you the dimensions?!? The tub is still sitting where it is in the photo above. If I didn't send you dimensions, which I don't think I did, I can do so and also check the threads for you.


S.CarolinaFZJ80

SILVER Star
Joined
Oct 4, 2008
Messages
4,855

S.CarolinaFZJ80

SILVER Star
Joined
Oct 4, 2008
Messages
4,855
Did I ever send you the dimensions?!? The tub is still sitting where it is in the photo above. If I didn't send you dimensions, which I don't think I did, I can do so and also check the threads for you.
That would be great! Thanks


EWheeler

4 Cruisers, No Garage !
GOLD Star
Joined
Apr 5, 2008
Messages
2,176
Location
Menifee, CA
@S.CarolinaFZJ80

So it appears that the front two holes in the "rib" are offset to the inside of the rear holes ~1/8" on each side. I put a square along the face of the rib and here is what I got.

~13.75" from face of rib to center of rear holes:

Drivers rear hole dims:




Pass rear hole dims, again ~13.75 face of rib to center:




This shows how the front holes are offset from the rear holes:





Here is spacing from hole to hole laterally, about 4-7/8" for rear, this would put spacing between the front two holes at 4-5/8" (I forgot to measure!):




This shows the front passenger hole is "inside" of the rear hole:



EWheeler

4 Cruisers, No Garage !
GOLD Star
Joined
Apr 5, 2008
Messages
2,176
Location
Menifee, CA
Threads are a standard Toyota M6 bolt thread:



S.CarolinaFZJ80

SILVER Star
Joined
Oct 4, 2008
Messages
4,855
Great. Thank you. Appreciate all the detailed measurements and pics
