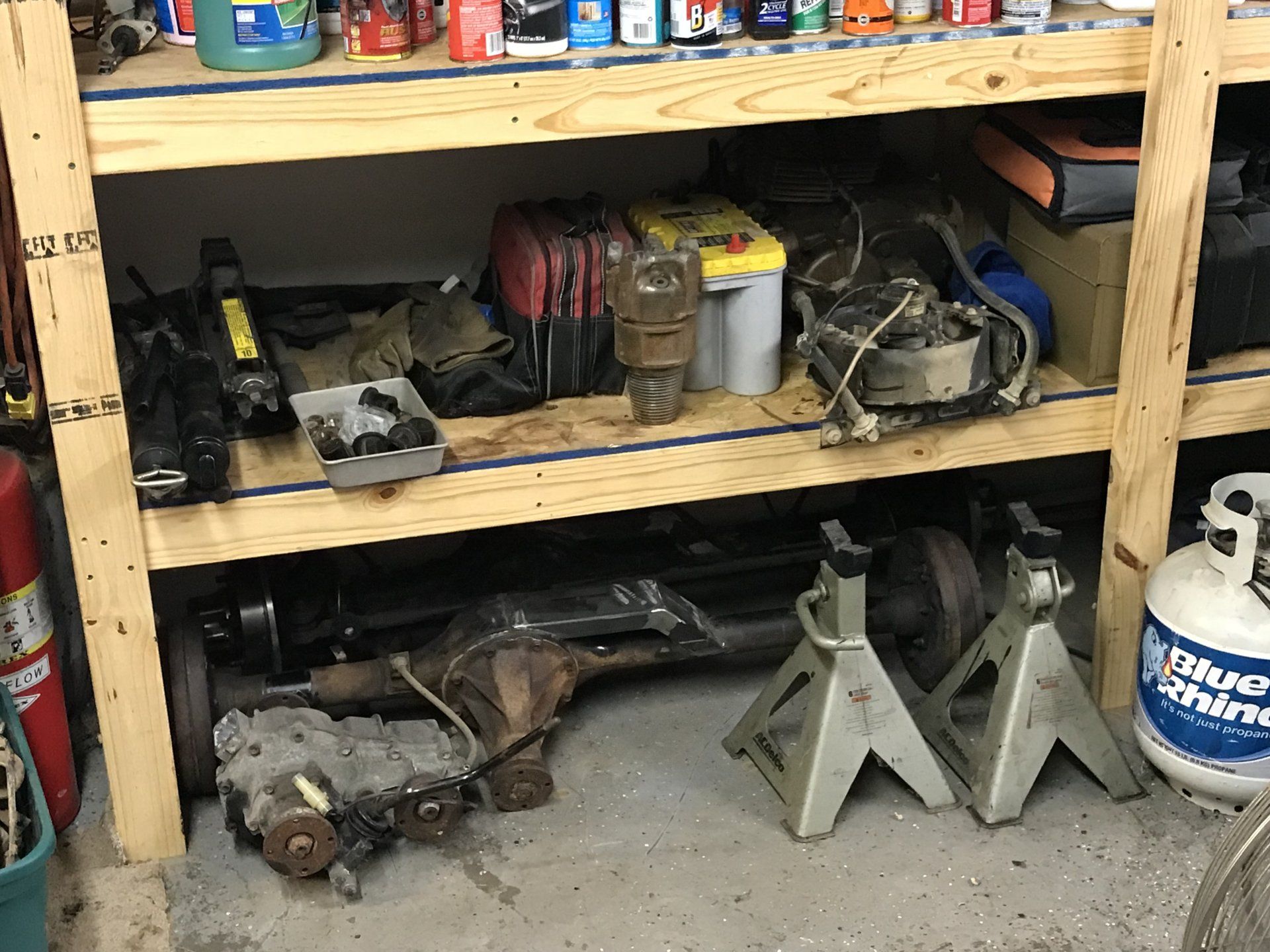

    I got the wheel seals replaced and one brake rebuilt last night. Waiting on parts to get back from ATV shop to re assemble the motor and test run it.



  2. AggiePE

    AggiePE

    Messages:
    337
    Media:
    1
    Albums:
    2
    Likes Received:
    417
    Joined:
    May 11, 2010
    Location:
    Longview, TX
    Got the Rancher 350 motor back together this weekend. Had to bore it out with new piston, rings, valve guides and valves. I got it all set up on the work bench to run tonight and make sure its all good. Also started on the rear axle upper link mounts. Got it all cut and should finish fitting and welding tonight.






    Grant Woodbridge and 2fpower like this.
  3. AggiePE

    AggiePE

    Messages:
    337
    Media:
    1
    Albums:
    2
    Likes Received:
    417
    Joined:
    May 11, 2010
    Location:
    Longview, TX

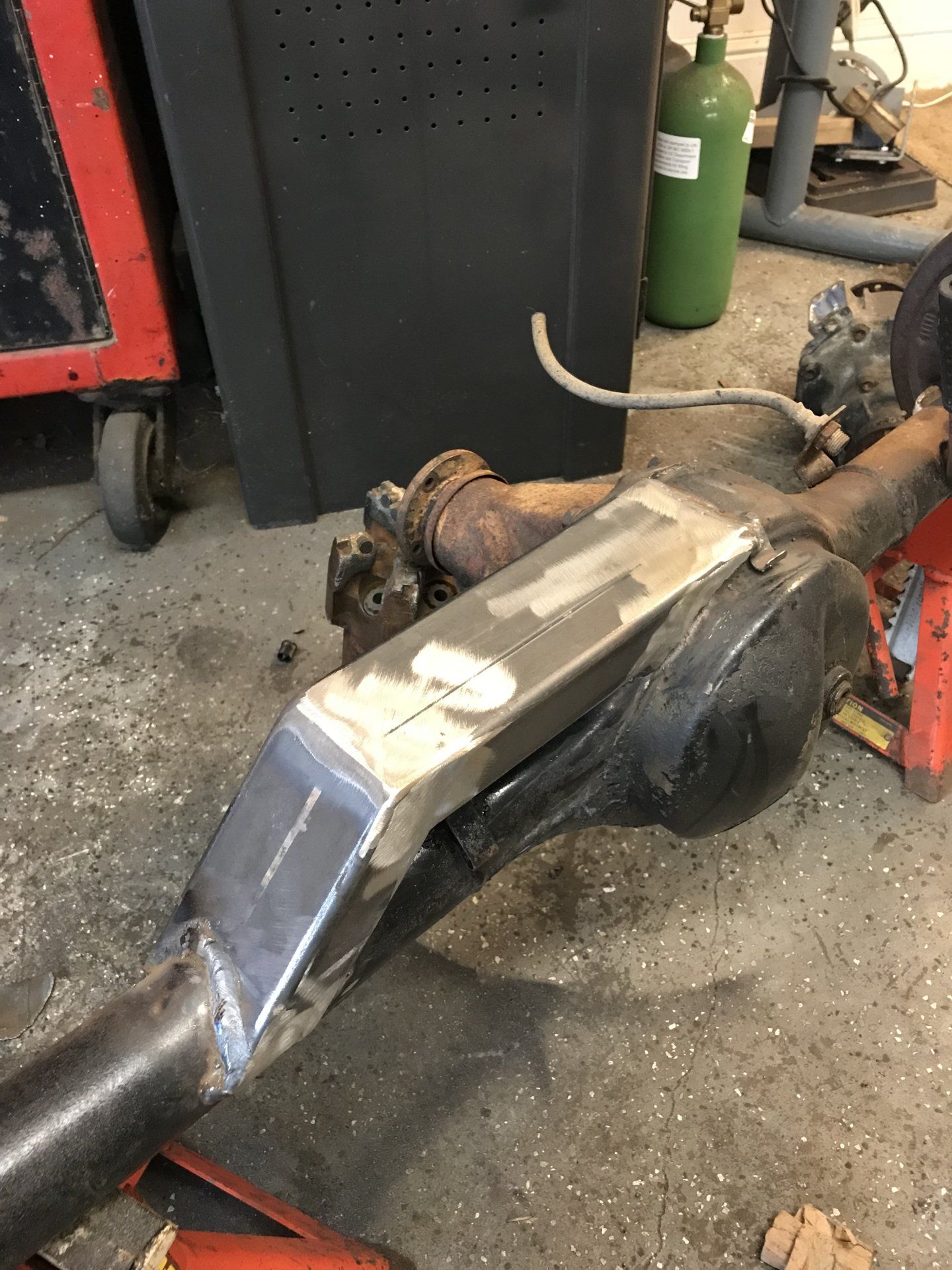

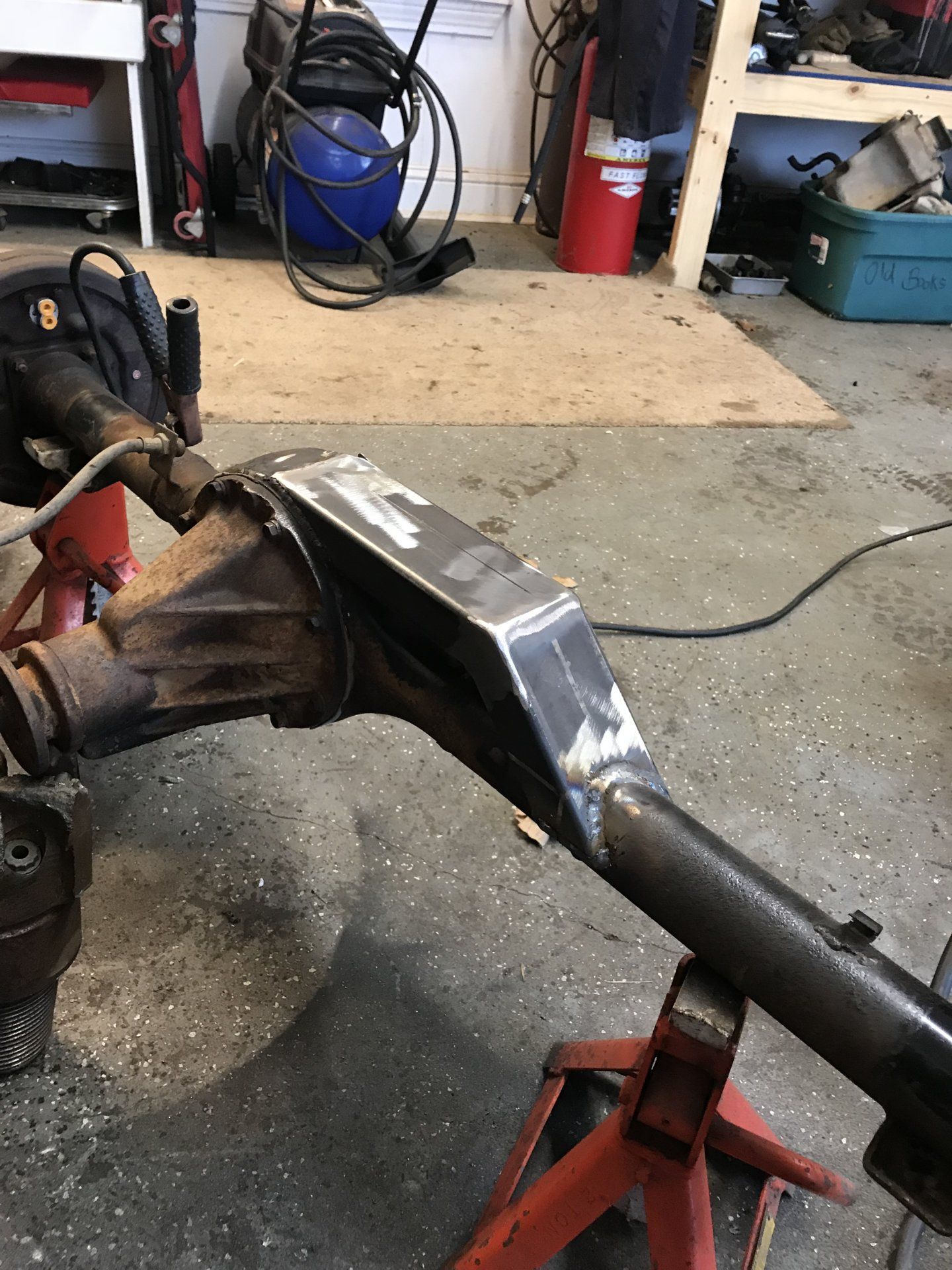

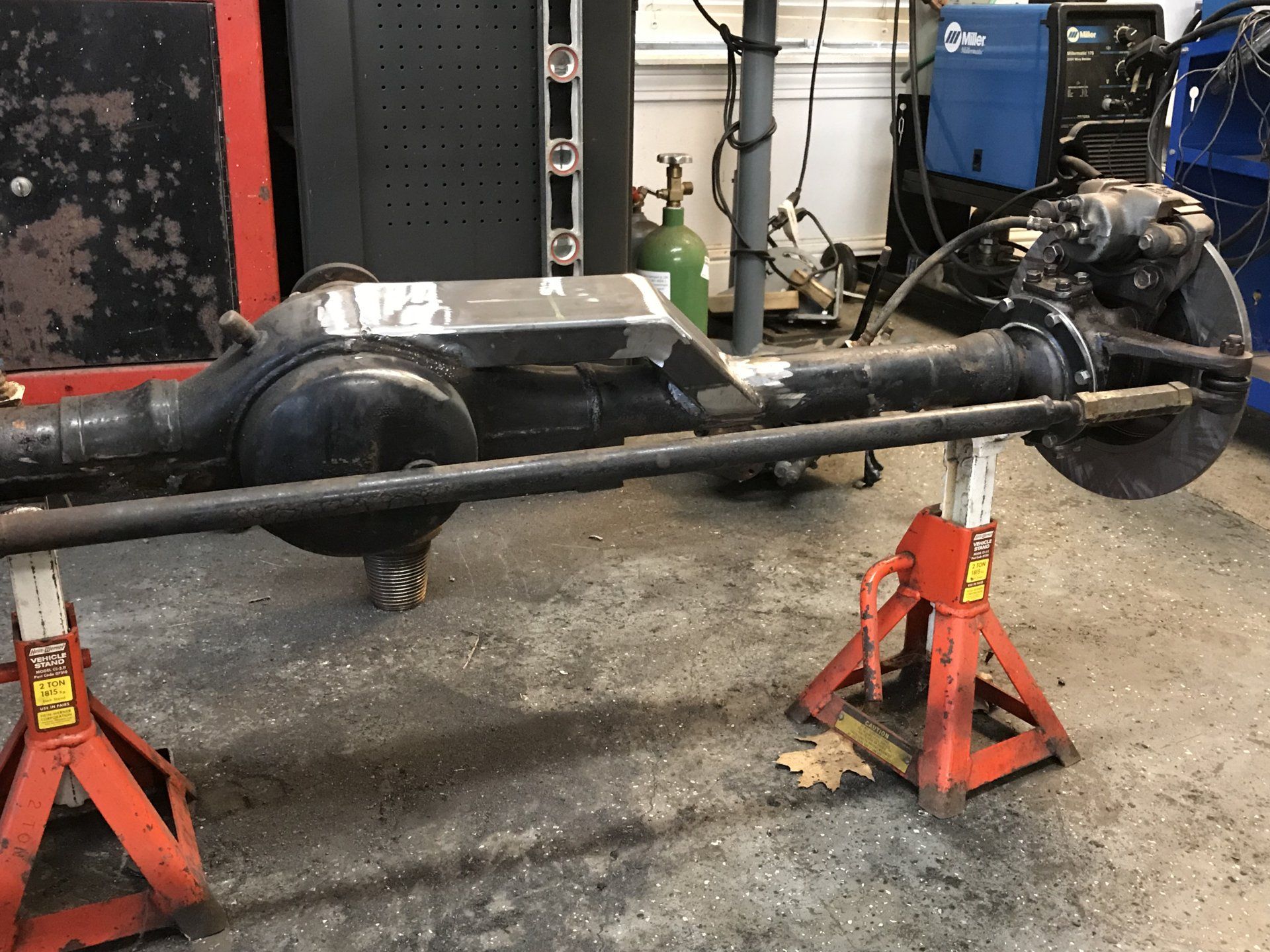

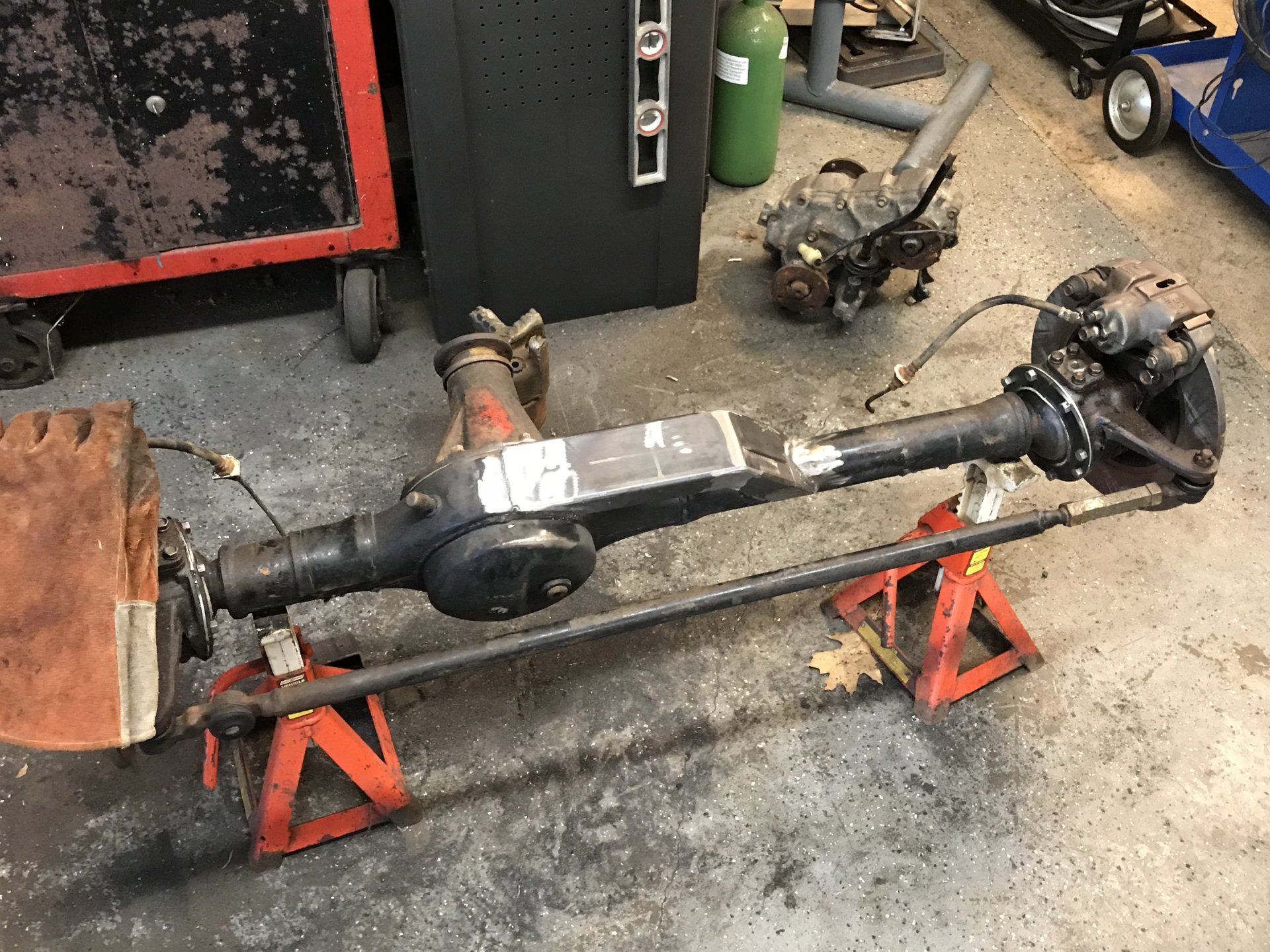

    Got the upper link towers built and welded onto the front and rear axles and removed factory leaf spring perches. Got the caliper out and figured out how to build the driveshaft adapter to get from the Honda rancher transmission to the samurai transfer case. Some used differing sizes of DOM but I have a co-worker with a lathe that should make quick work of this.






  4. AggiePE

    AggiePE

    Messages:
    337
    Media:
    1
    Albums:
    2
    Likes Received:
    417
    Joined:
    May 11, 2010
    Location:
    Longview, TX
    Towers made from 1.5” x 3” X 3/16”.



  5. AggiePE

    AggiePE

    Messages:
    337
    Media:
    1
    Albums:
    2
    Likes Received:
    417
    Joined:
    May 11, 2010
    Location:
    Longview, TX
    Onshape drawing of adapter. Adapter.JPG

  6. AggiePE

    AggiePE

    Messages:
    337
    Media:
    1
    Albums:
    2
    Likes Received:
    417
    Joined:
    May 11, 2010
    Location:
    Longview, TX

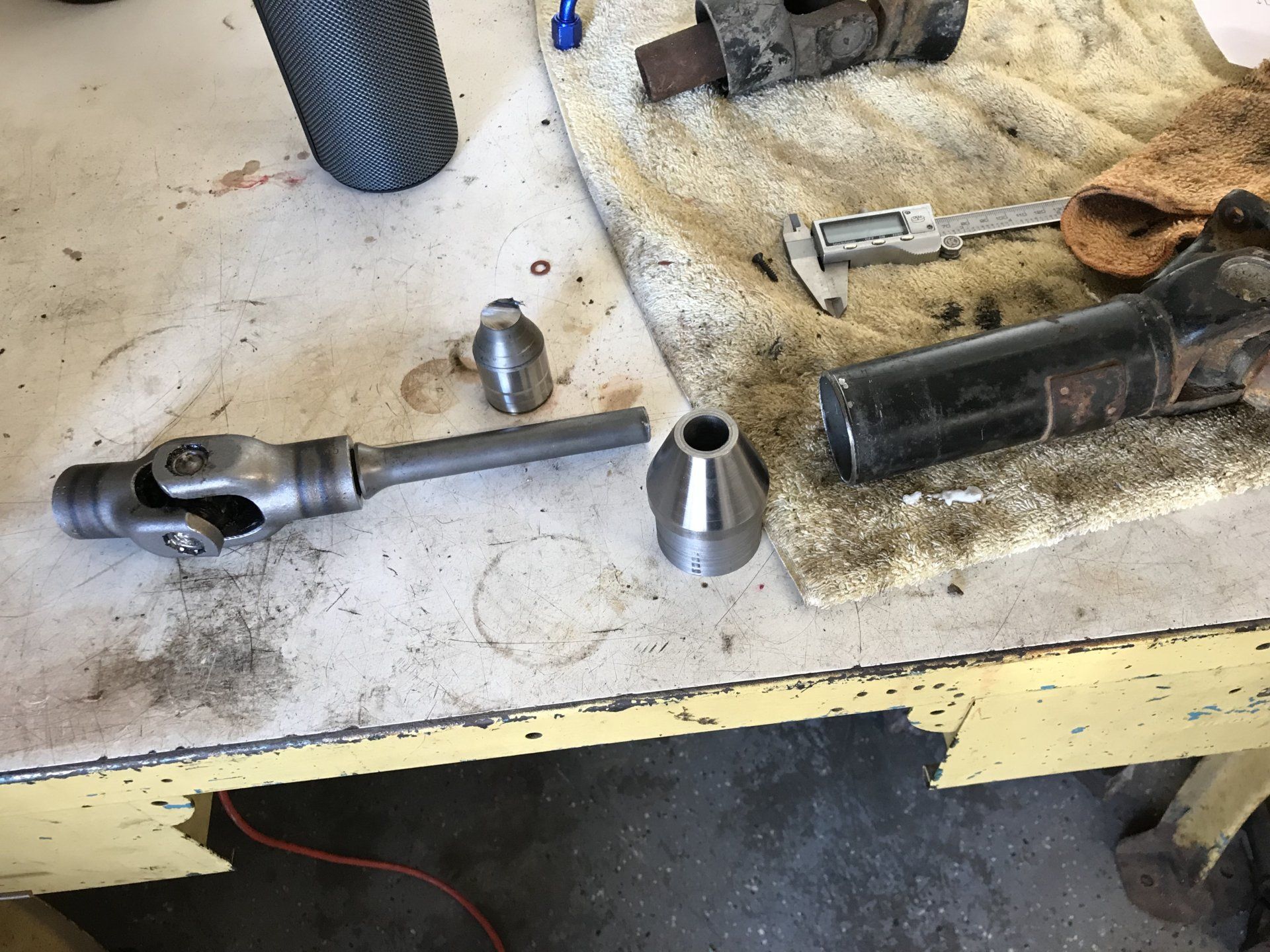

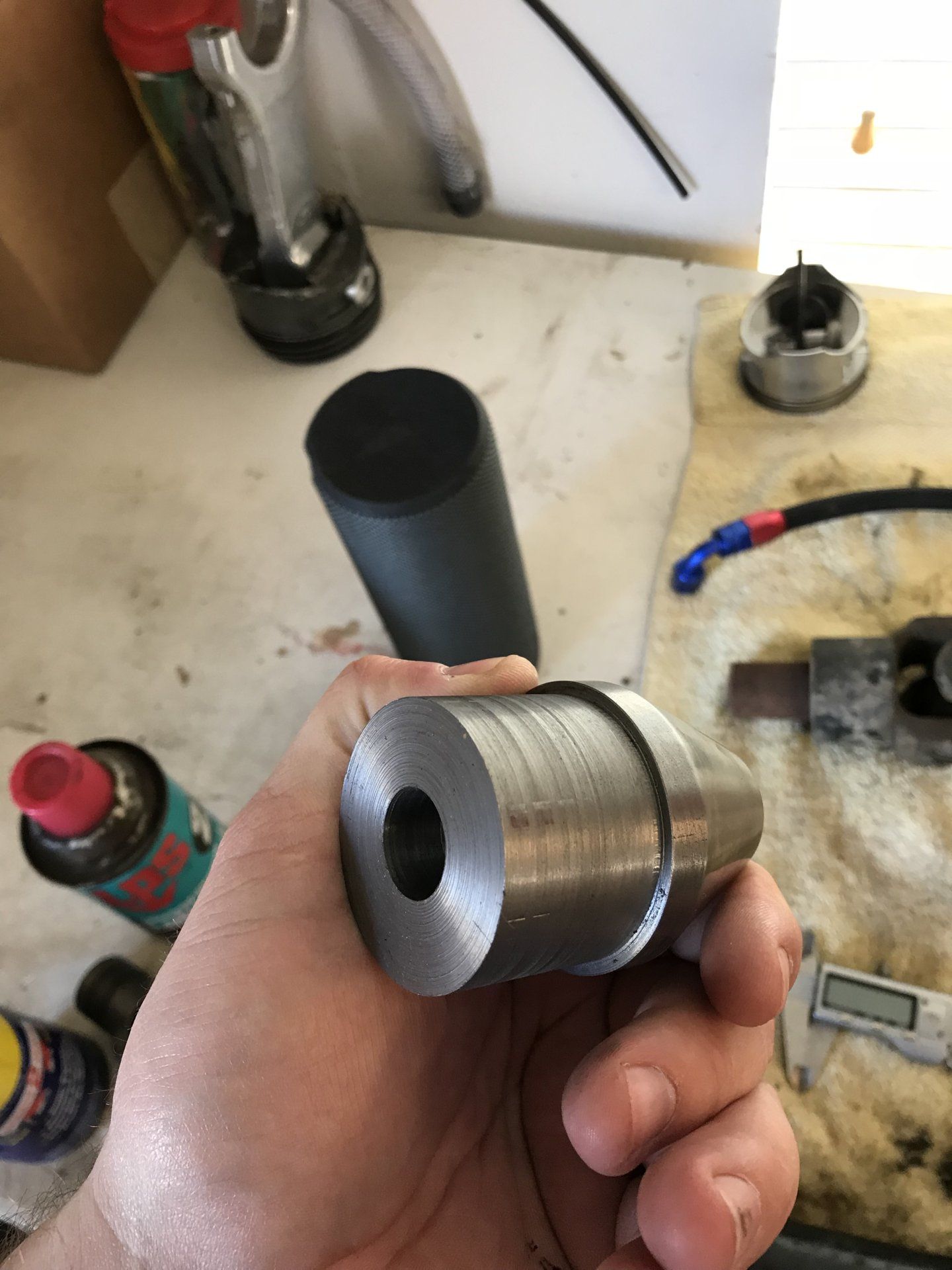

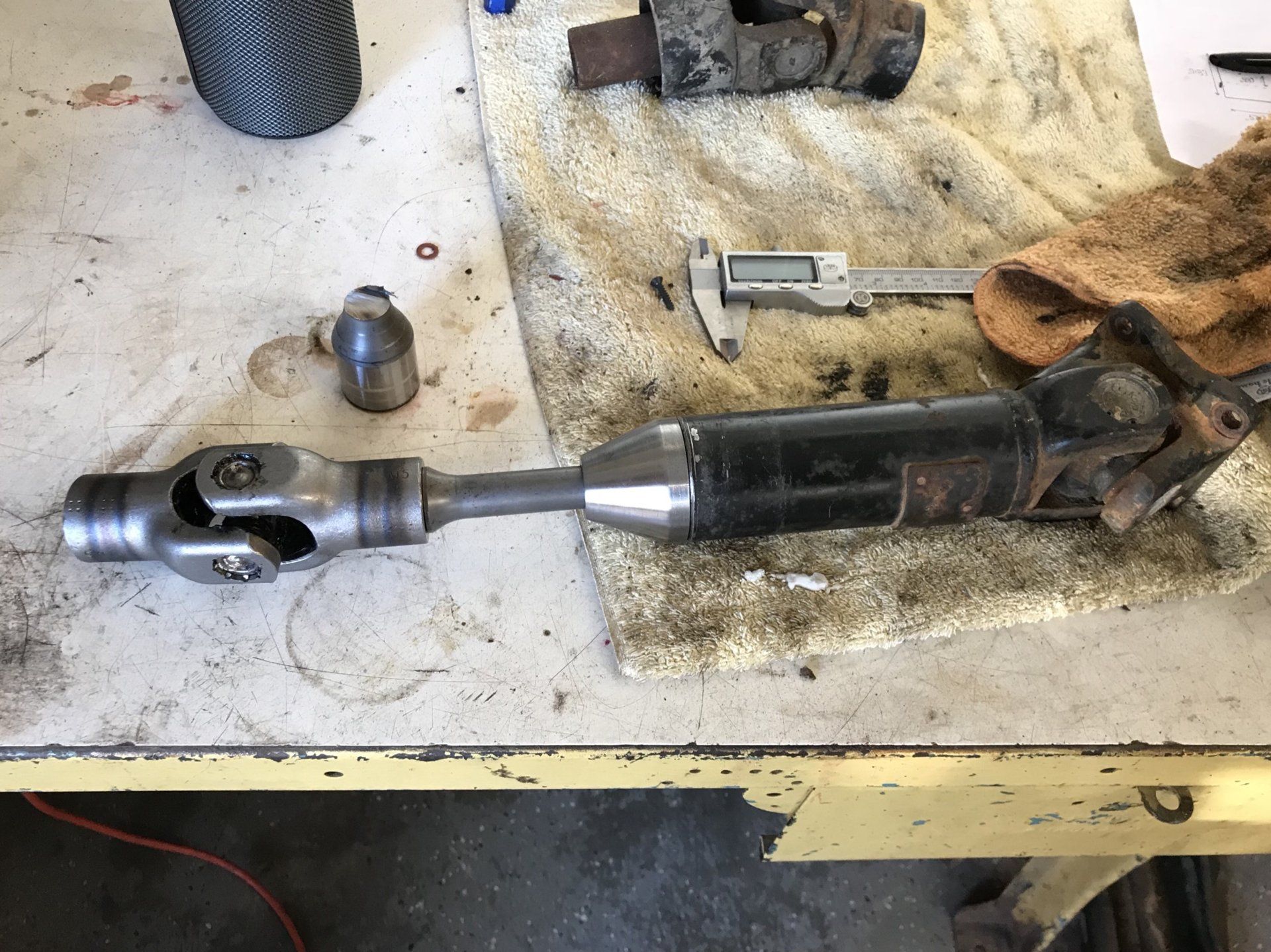

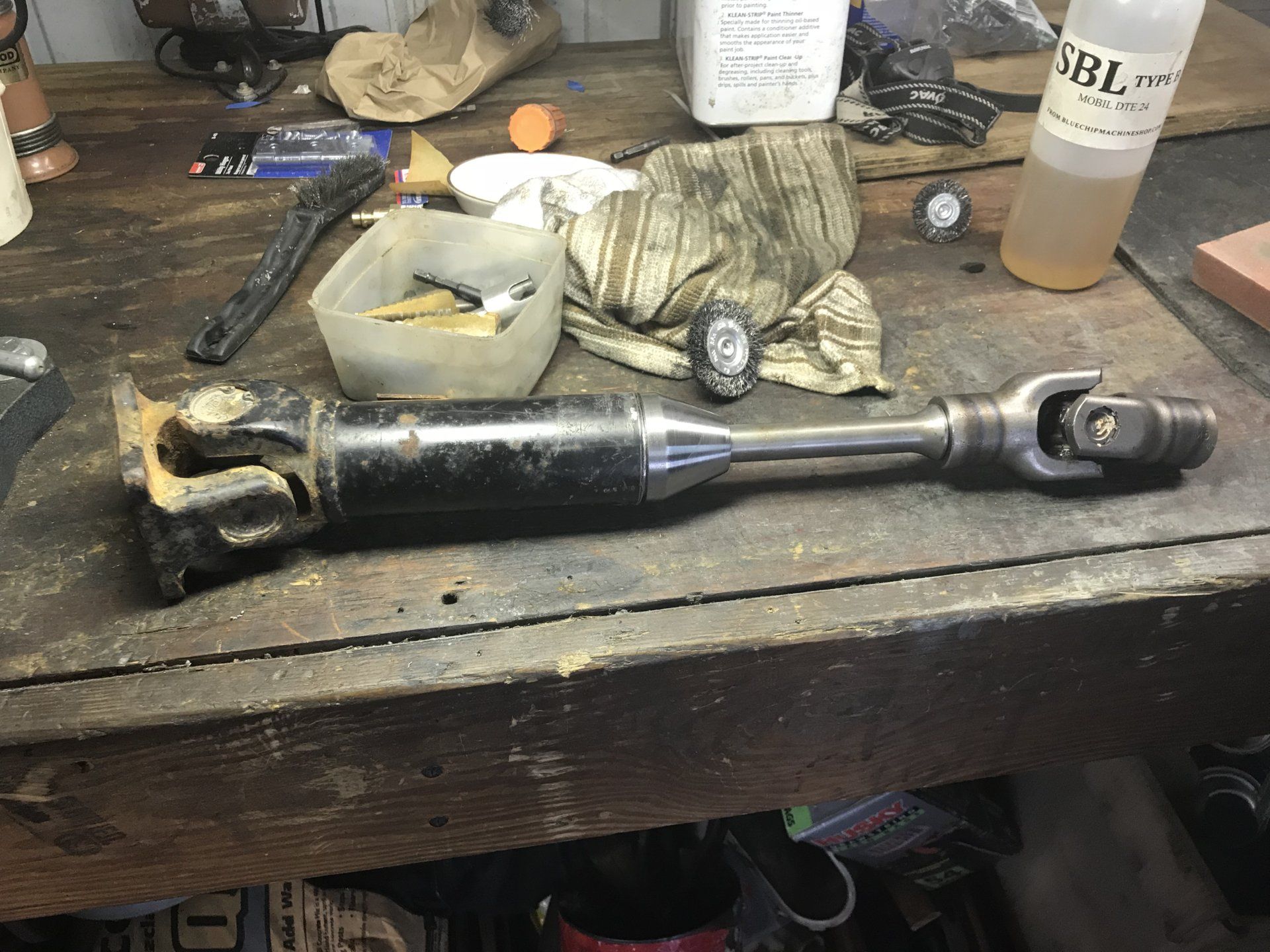

    This weekend with the help of a co-worker we were able to build the adapter to get from the ATV drive shaft to the samurai drive shaft. Using an 80+ year old lathe and 5 hours we ended with the final product.





    Last edited: Mar 4, 2018
  7. AggiePE

    AggiePE

    Messages:
    337
    Media:
    1
    Albums:
    2
    Likes Received:
    417
    Joined:
    May 11, 2010
    Location:
    Longview, TX
    More



    Redgrrr, dirtyboots, hoser and 3 others like this.
  8. AggiePE

    AggiePE

    Messages:
    337
    Media:
    1
    Albums:
    2
    Likes Received:
    417
    Joined:
    May 11, 2010
    Location:
    Longview, TX
    I broke down a few weeks ago and ordered the body from quadratec who had the best price on it with free shipping! 2 weeks later this arrives!!!! Let the fun continue!



    2fpower likes this.
  9. AggiePE

    AggiePE

    Messages:
    337
    Media:
    1
    Albums:
    2
    Likes Received:
    417
    Joined:
    May 11, 2010
    Location:
    Longview, TX

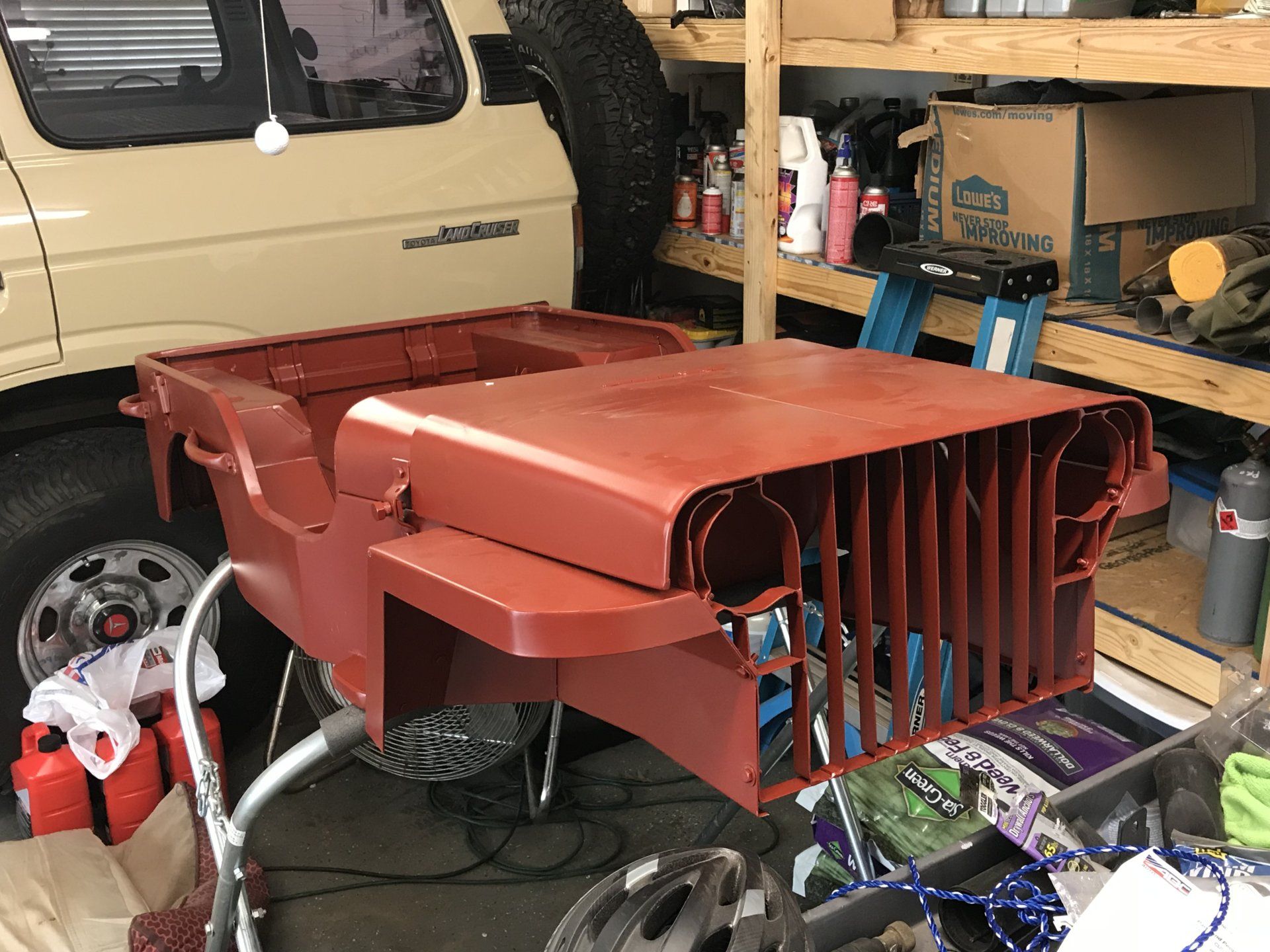

    Unboxed the body and brought it home. Have it set up on a body stand doesn’t weigh but 60-80 lbs.

  10. AggiePE

    AggiePE

    Messages:
    337
    Media:
    1
    Albums:
    2
    Likes Received:
    417
    Joined:
    May 11, 2010
    Location:
    Longview, TX
    Unboxed the body and brought it home. Have it set up on a body stand doesn’t weigh but 60-80 lbs.



  11. AggiePE

    AggiePE

    Messages:
    337
    Media:
    1
    Albums:
    2
    Likes Received:
    417
    Joined:
    May 11, 2010
    Location:
    Longview, TX
  12. AggiePE

    AggiePE

    Messages:
    337
    Media:
    1
    Albums:
    2
    Likes Received:
    417
    Joined:
    May 11, 2010
    Location:
    Longview, TX

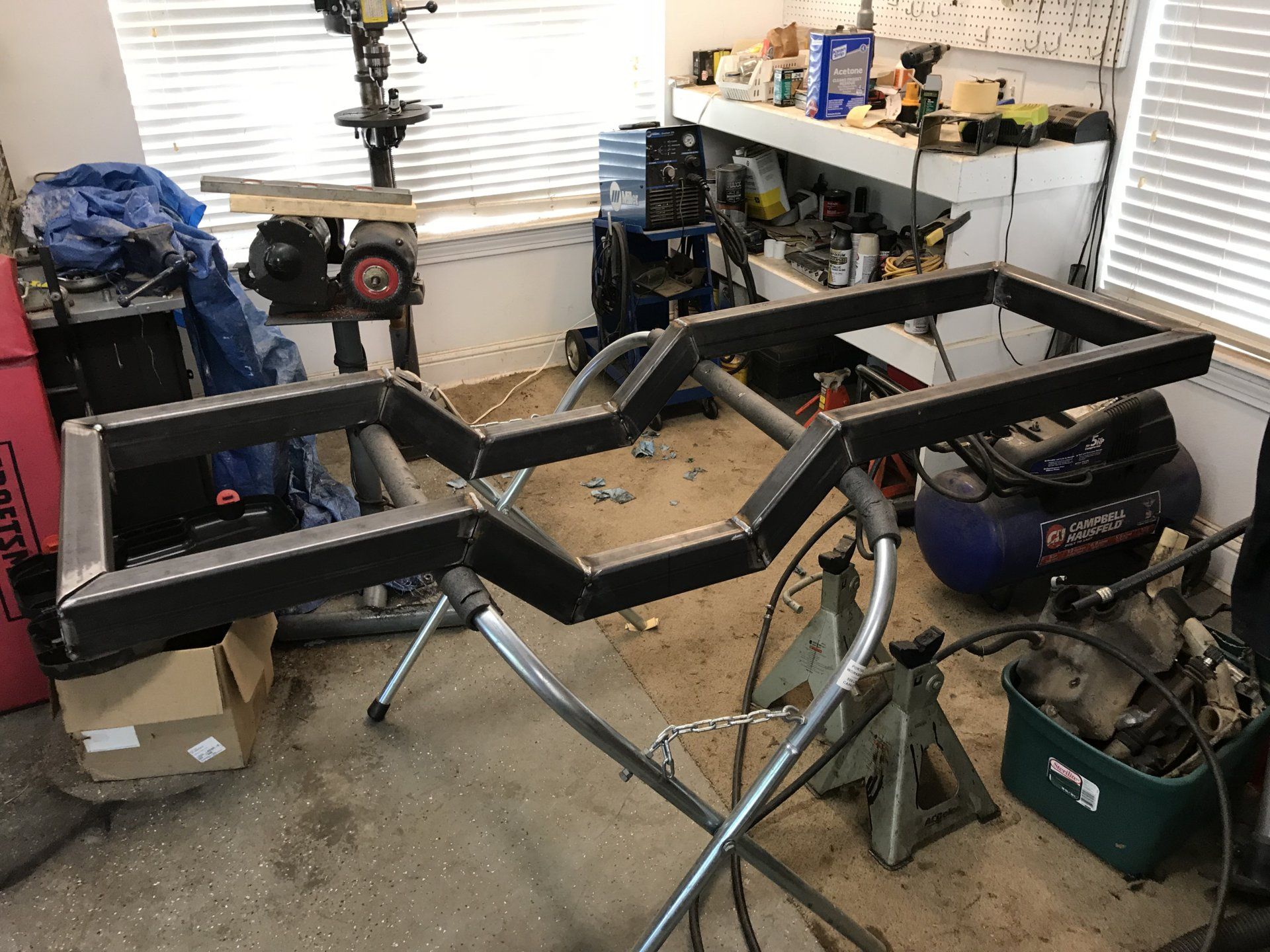

    Been super busy with work but I was able to buy some steel a few weeks back and have started on the frame. I bought 2x3x3/16 rectangular tubing for the frame. Probably a bit more heavy duty than needed, but hopefully the heavy frame will help lower the center of gravity a bit.




  13. AggiePE

    AggiePE

    Messages:
    337
    Media:
    1
    Albums:
    2
    Likes Received:
    417
    Joined:
    May 11, 2010
    Location:
    Longview, TX

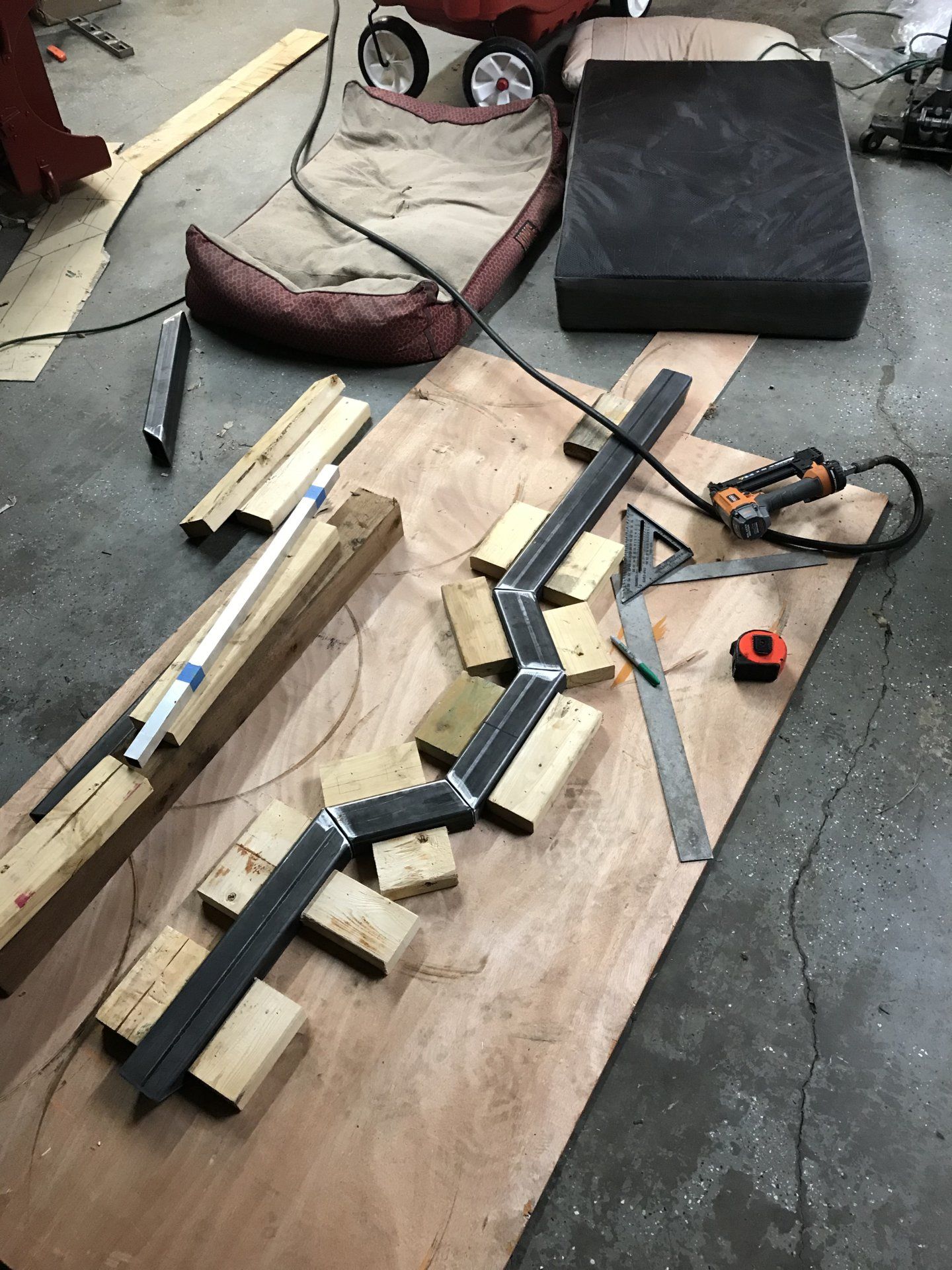

    With the help of CAD (cardboard aided design) I got an idea of dimensions and drop for the transfer case cradle in the middle. I built a frame jig out of a piece of old plywood and 2x4 blocks to keep the frame halves in place and exactly the same angles as they are welded.





  14. AggiePE

    AggiePE

    Messages:
    337
    Media:
    1
    Albums:
    2
    Likes Received:
    417
    Joined:
    May 11, 2010
    Location:
    Longview, TX

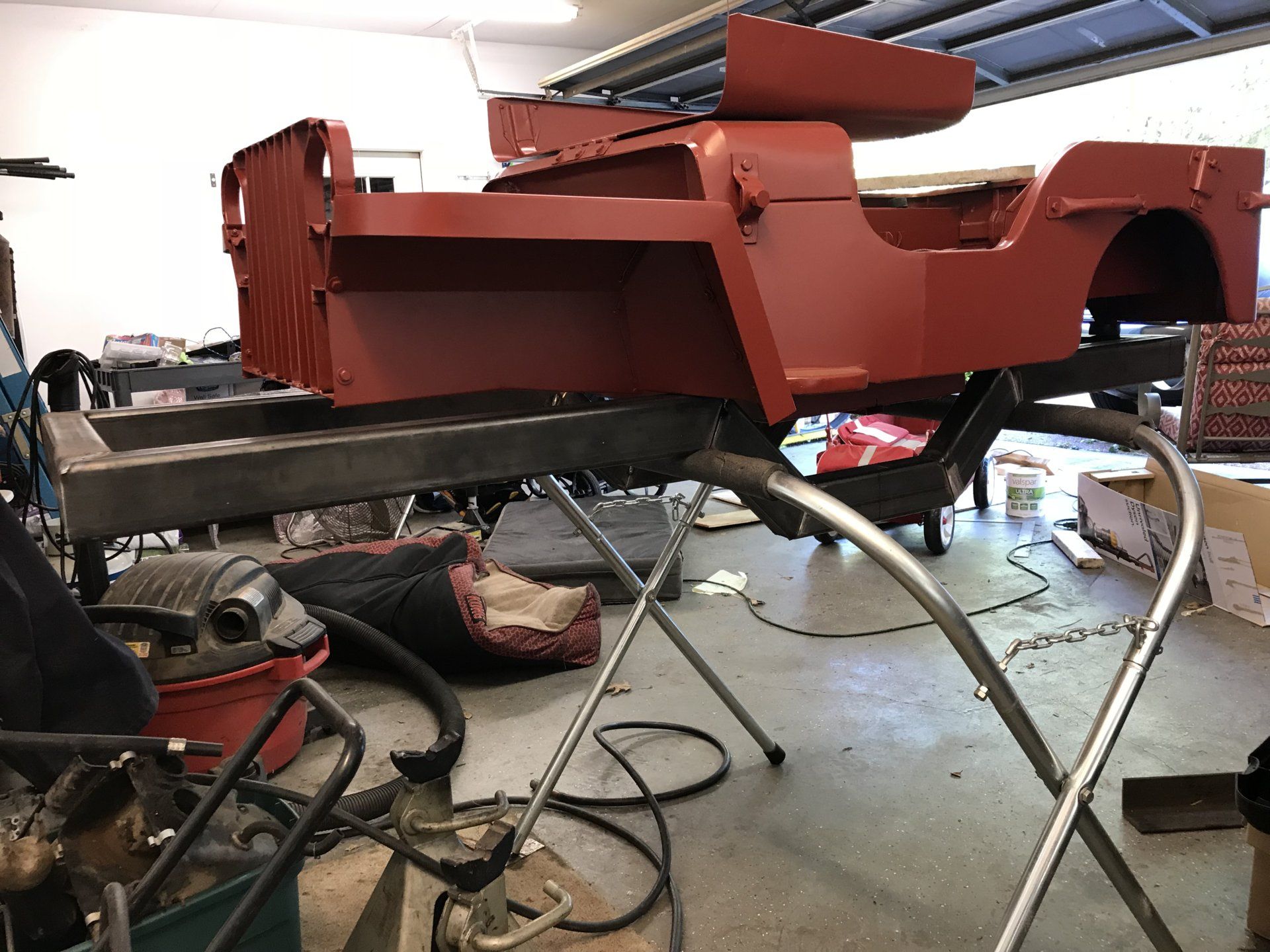

    I was able to tack weld the frame together and get it on a stand with the body. I’ll try to get body mounts built this week then I can start on the motor mounts and transfer case mount.





    2fpower and abtx4x4 like this.
  15. bigredmachine

    bigredmachine

    Messages:
    1,231
    Likes Received:
    349
    Joined:
    Aug 22, 2010
    Location:
    Jersey, 07740
    I wish I was small enough to fit in that bad boy. howd the finger heal up?

  16. dirtyboots

    dirtyboots Atrocious Driving SILVER Star

    Messages:
    508
    Likes Received:
    228
    Joined:
    Apr 17, 2006
    Location:
    Sonoma County, CA
    Literally putting the cart before the buggy with this idea but I can’t resist- how about a trailer? We had a Jeep Hurricane electric toy car and fab’d up a trailer. Kids loved hauling stuff around. Switched lights were a big hit as well. Awesome work!

  17. AggiePE

    AggiePE

    Messages:
    337
    Media:
    1
    Albums:
    2
    Likes Received:
    417
    Joined:
    May 11, 2010
    Location:
    Longview, TX
    E24B5F9B-7951-4E34-B945-6DD44F594A56.png Finger is good as new.... well as new as it can be minus the scar! I was thinking about a trailer the other day.... those lawn mower trailers are light weight and could probably be modified to work perfect when the time comes! I got started on the body mounts yesterday and I was able to get the rear ones built out of a piece of the 3/16” tubing I used for the frame. They are 1-1/4” tall and I’m planning to use 3/8” grade 8 bolts. Im trying to figure out where to put the midddle body mounts as the original body only has tabs in the rear for mounting.

  18. AggiePE

    AggiePE

    Messages:
    337
    Media:
    1
    Albums:
    2
    Likes Received:
    417
    Joined:
    May 11, 2010
    Location:
    Longview, TX

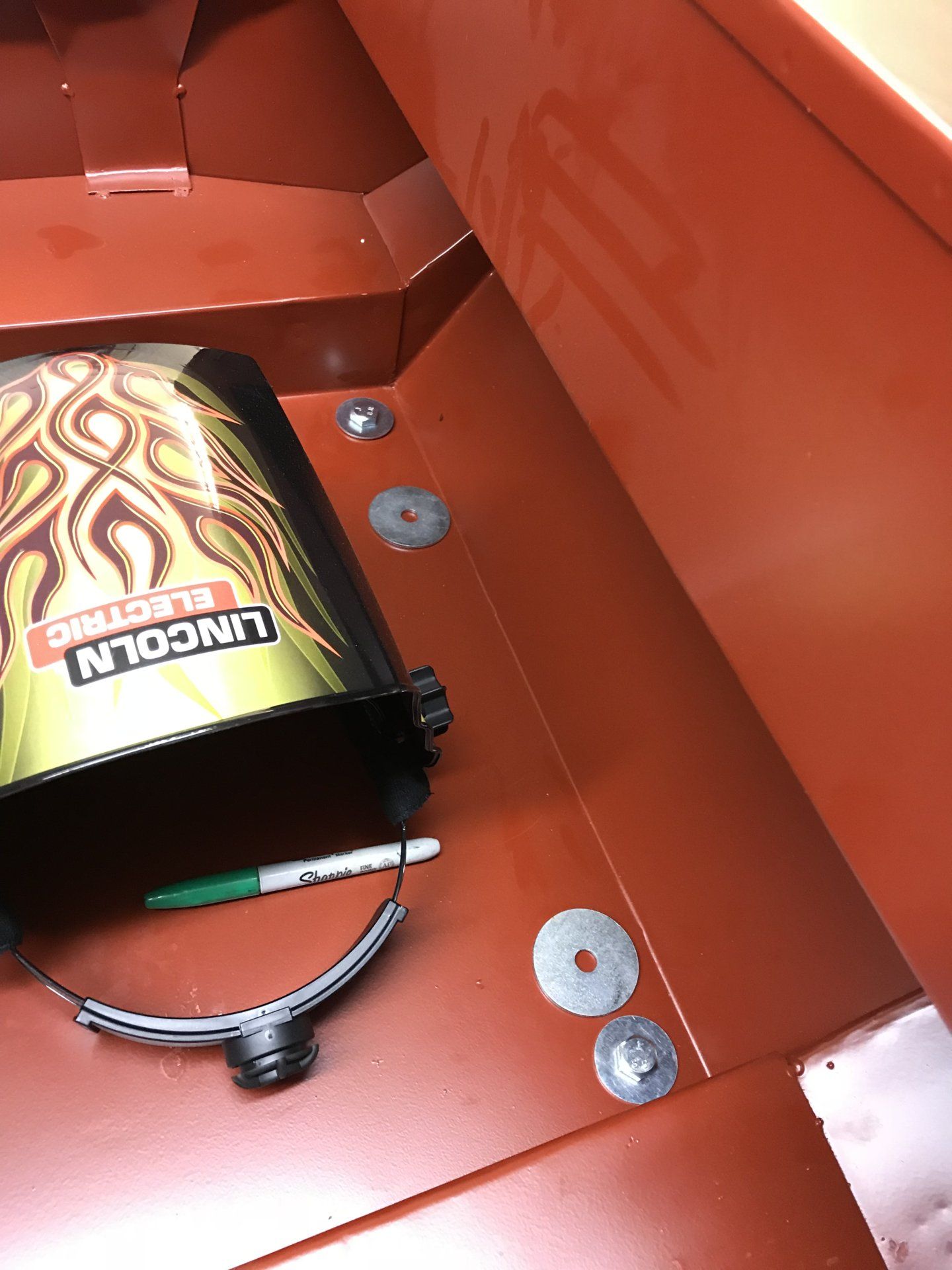

    Had some time this evening to get the front body mounts made and tacked to the frame. The body did not have any type of mounts except in the rear. I drilled the front floor board and will use some thick 2” fender washers to help spread out the load on the top side.



    mattcamp, 74fj40 and White Stripe like this.
  19. L3TT3RS

    L3TT3RS

    Messages:
    1
    Likes Received:
    2
    Joined:
    Apr 21, 2018
    Location:
    Longview, TX
    This. Is. Awesome.

    mattcamp and 74fj40 like this.
  20. AggiePE

    AggiePE

    Messages:
    337
    Media:
    1
    Albums:
    2
    Likes Received:
    417
    Joined:
    May 11, 2010
    Location:
    Longview, TX
    I was able to get the frame fully welded up, the front body mounts, and the grille mounts fabricated and welded in. I put the body back on and checked clearances with it on the garage floor. Decided to get the motor and transfer case a quick look to see how things might lay out.





  21. AggiePE

    AggiePE

    Messages:
    337
    Media:
    1
    Albums:
    2
    Likes Received:
    417
    Joined:
    May 11, 2010
    Location:
    Longview, TX
    The floor jack was very unstable and uneven so I made a little table for the motor to sit on so it would be flat under the frame.
